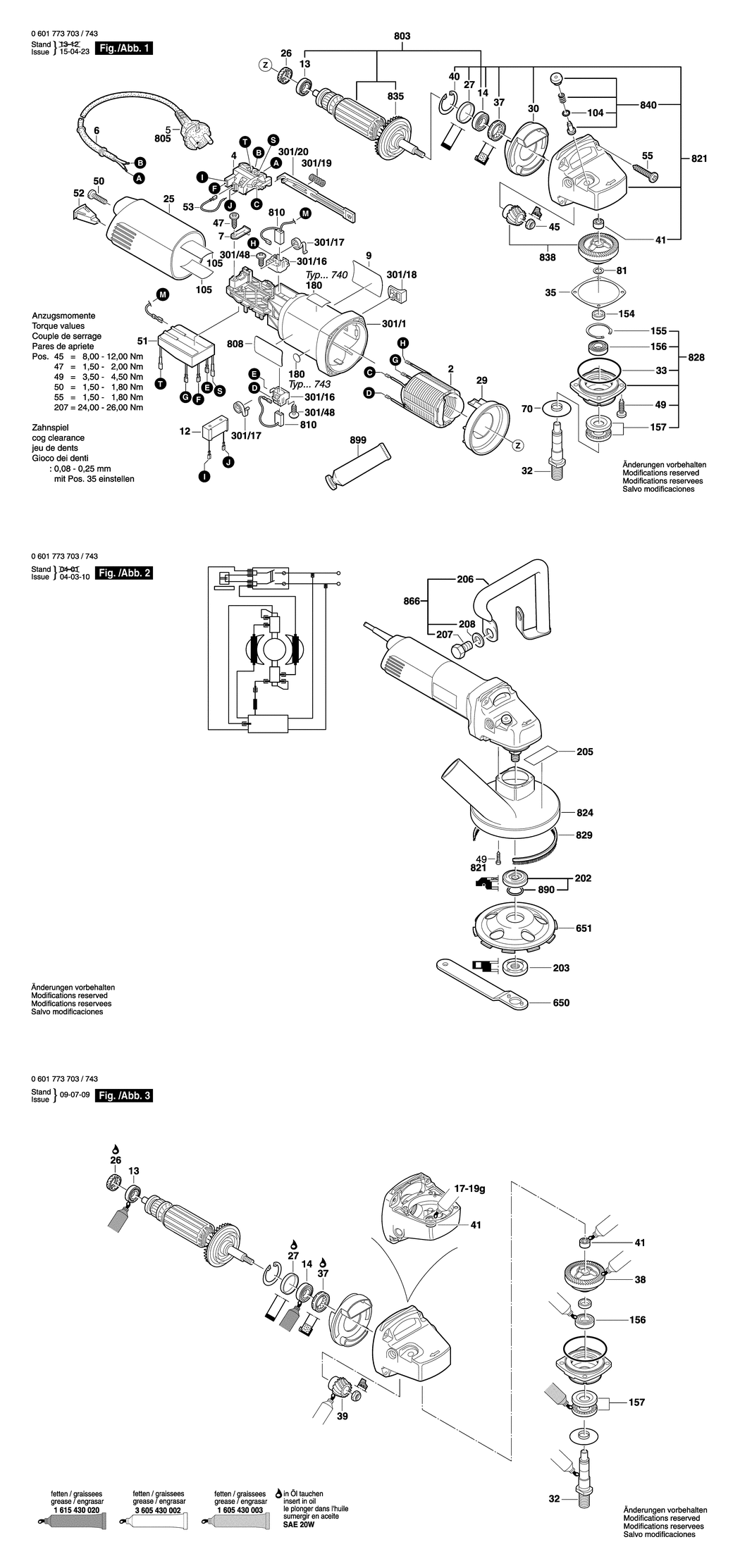

An exploded drawing and listing for the Bosch GBR 14 CA / 0601773732 / --- 230 Volt
Ex VAT Inc VAT
2 - FIELD 220-230V BSD-1604220284.A103 1604220284 £30.28 £36.33
4 - SWITCH BSD-1607200150.A8 1607200150 £21.52 £25.83
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07RN-F BSD-1604460447.A21 1604460447 £21.68 £26.01
6 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A124 2600703013 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302017.A1050 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118891.A5 1601118891 £4.26 £5.11
12 - SUPPRESSION FILTER BSD-1607328042.A125 1607328042 £6.52 £7.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A405 1610905025 £6.52 £7.83
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A522 1600905032 £5.58 £6.70
25 - HOUSING COVER BSD-1600508016.A5 1600508016 £6.52 £7.83
26 - RUBBER RING BSD-1600206036.A107 1600206036 £1.75 £2.10
27 - RUBBER RING BSD-1600206025.A855 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1600591025.A14 1600591025 £2.61 £3.13
30 - AIR-DEFLECTOR RING BSD-1600591014.A292 1600591014 £2.61 £3.13
32 - GRINDING SPINDLE M14 BSD-3603523041.A3 3603523041 £40.80 £48.96
33 - O-RING 46.0x1.1 MM BSD-3600210124.A333 3600210124 £2.80 £3.36
35 - SHIM 0.1 MM BSD-1600136013.A218 1600136013 £2.61 £3.13
35 - SHIM 0.2 MM BSD-1600136014.A302 1600136014 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136015.A218 1600136015 £2.61 £3.13
35 - SHIM 0.15 MM BSD-1600136020.A289 1600136020 £3.72 £4.47
37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A12 1600290016 £2.61 £3.13
40 - RETAINING CLIP BSD-1600119011.A541 1600119011 £2.16 £2.59
41 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A500 1600910018 £5.30 £6.36
45 - HEX NUT M7. SW10 BSD-1603300016.A428 1603300016 £1.75 £2.10
47 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A425 1603435042 £1.75 £2.10
49 - TORX OVAL-HEAD SCREW BSD-3603435047.A16 3603435047 £2.61 £3.13
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z BSD-2912401420.A127 2912401420 £1.75 £2.10
51 - SPEED GOVERNOR 220-240V BSD-1607233148.A7 1607233148 £54.42 £65.30
52 - LIGHT CONDUCTOR BSD-3604460117.A14 3604460117 £2.80 £3.36
53 - CONNECTING CABLE L=50 MM BSD-3604438020.A16 3604438020 £3.72 £4.47
55 - TORX OVAL-HEAD SCREW BSD-1603435078.A268 1603435078 £1.75 £2.10
70 - COVER DISC BSD-3600150023.A13 3600150023 £2.80 £3.36
81 - SHIM 0.2 MM BSD-2600101022.A403 2600101022 £1.75 £2.10
104 - O-RING 4.0x1.0 MM BSD-1600210034.A176 1600210034 £1.75 £2.10
105 - INSULATING PLATE BSD-1601008005.A23 1601008005 £4.26 £5.11
154 - DISTANCE PIPE BSD-3600913010.A13 3600913010 £5.58 £6.70
155 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A84 2916660013 £2.16 £2.59
156 - GROOVE BALL BEARING 12x32x10 BSD-3600905130.A7 3600905130 £12.04 £14.45
157 - SEAL RING BSD-3600105009.A11 3600105009 £6.52 £7.83
202 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A458 2605703014 £7.36 £8.83
203 - ROUND NUT M14 BSD-1603345043.A1268 1603345043 £8.67 £10.41
205 - REFERENCE PLATE BSD-3601119236.A1508 3601119236 £3.72 £4.47
206 - STRAP-SHAPED HANDLE BSD-3601303016.A0 3601303016 £63.50 £76.20
207 - HEX SCREW DIN 933 M10x16-8.8 BSD-2911061285.A9 2911061285 £2.16 £2.59
208 - PLAIN WASHER DIN 125-A10.5-ST BSD-2916011017.A31 2916011017 £1.75 £2.10
301/1 - MOTOR HOUSING BSD-1605108208.A2 1605108208 £11.30 £13.56
301/16 - BRUSH HOLDER BSD-1601323025.A252 1601323025 £3.72 £4.47
301/17 - SPIRAL SPRING BSD-1604652013.A966 1604652013 £1.75 £2.10
301/18 - SWITCH HANDLE BSD-1602026057.A328 1602026057 £1.97 £2.36
301/19 - COMPRESSION SPRING BSD-1604611026.A609 1604611026 £1.75 £2.10
301/20 - ADJUSTING SLIDE BSD-1602319011.A21 1602319011 £1.75 £2.10
301/48 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A31 2912401005 £1.75 £2.10
650 - PIN-TYPE FACE-WRENCH BSD-3607950017.A14 3607950017 -
651 - CUP WHEEL dia 125 MM BSD-3608600008.A1 3608600008 £306.81 £368.17
803 - ARMATURE WITH FAN 220-240V BSD-1604010650.A6 1604010650 £81.81 £98.17
808 - NAMEPLATE BSD-160111A3H3.A2793 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-3607014010.A0 3607014010 £21.68 £26.01
810 - CARBON-BRUSH SET 10 x 3 607 014 010 BSD-1607000500.A11 1607000500 £120.11 £144.13
821 - GEAR HOUSING BSD-16058065B1.A14 16058065B1 £37.27 £44.72
824 - SUCTION HOOD BSD-3605510040.A1 3605510040 £27.23 £32.68
828 - BEARING FLANGE BSD-3605700158.A18 3605700158 £54.42 £65.30
829 - STRIP BRUSH BSD-3600290054.A9 3600290054 £12.04 £14.45
835 - FAN BSD-1606610132.A3 1606610132 £2.16 £2.59
838 - GEAR UNIT BSD-1607000D4Y.A78 1607000D4Y £21.42 £25.71
840 - PUSH-BUTTON BSD-1607000253.A203 1607000253 £2.49 £2.99
866 - STRAP-SHAPED HANDLE BSD-3607031584.A1 3607031584 £59.53 £71.44
890 - O-RING 20.35x1.78 MM BSD-1600210039.A926 1600210039 £2.16 £2.59
899 - SILICONE SEALING SILASTIC 7091 BSD-3605430011.A14 3605430011 £23.86 £28.63
