Dewalt DCD735 Type 1 Cordless Drill Spare Parts

Home Details Reviews Delivery

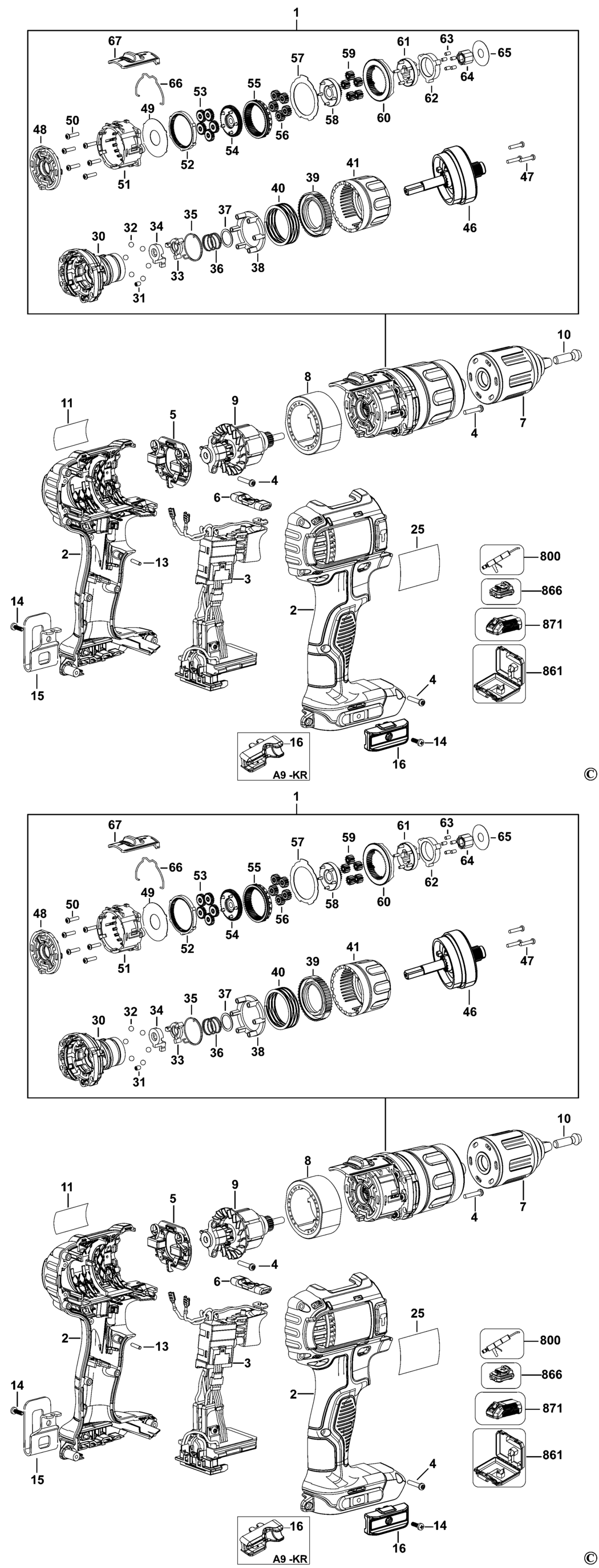

An exploded drawing and spare parts listing for the Dewalt DCD735 Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - TRANSMISSION SA BDE-N110035.A2 N110035	£74.15	£88.98
1 - TRANSMISSION SA BDE-N110035.A3 N110035	£74.15	£88.98
2 - CLAMSHELL SET GB BDE-N391699.A0 N391699	£16.03	£19.24
2 - CLAMSHELL SET BDE-N075817.A1 N075817	£24.39	£29.27
3 - SWITCH KIT WELD TERM INC CLAMSH GB BDE-N384403.A3 N384403	£69.63	£83.56
3 - SWITCH KIT WELD TERM INC CLAMSH BDE-N384403.A4 N384403	£69.63	£83.56
4 - SCREW BDE-682211-00.A44 682211-00	£1.50	£1.80
4 - SCREW BDE-682211-00.A45 682211-00	£1.50	£1.80
5 - BRUSH PLATE SA BDE-N109433.A8 N109433	£14.57	£17.48
5 - BRUSH PLATE SA BDE-N109433.A9 N109433	£14.57	£17.48
6 - ACTUATOR FWD/REV BDE-N039788.A10 N039788	£1.50	£1.80
6 - ACTUATOR FWD/REV BDE-N039788.A11 N039788	£1.50	£1.80
7 - CHUCK BDE-N092054.A13 N092054	£44.14	£52.97
7 - CHUCK KEYLESS BDE-N092054.A16 N092054	£44.14	£52.97
8 - MAGNET BDE-N109712.A4 N109712	£34.00	£40.80
8 - MAGNET BDE-N109712.A5 N109712	£34.00	£40.80
9 - ARMATURE SA BDE-N110037.A7 N110037	£34.00	£40.80
9 - ARMATURE SA BDE-N110037.A8 N110037	£34.00	£40.80
10 - SCREW BDE-N092854.A30 N092854	£1.66	£1.99
10 - SCREW BDE-N092854.A31 N092854	£1.66	£1.99
11 - BRAND LABEL BDE-N093952.A6 N093952	£1.50	£1.80
11 - BRAND LABEL BDE-N093950.A4 N093950	£1.50	£1.80
13 - ROLL PIN BDE-N071836.A24 N071836	£1.50	£1.80
13 - ROLL PIN BDE-N071836.A25 N071836	£1.50	£1.80
14 - SCREW BDE-N042665.A4 N042665	£1.50	£1.80
14 - SCREW BDE-N042665.A5 N042665	£1.50	£1.80
15 - HOOK BDE-N086039.A37 N086039	£4.69	£5.63
15 - HOOK BDE-N086039.A38 N086039	£4.69	£5.63
16 - HOLDER BIT BDE-N095778.A3 N095778	£7.18	£8.62
25 - NO LONGER AVAILABLE GB BDE-000000-00.A63682 000000-00	-
30 - HOUSING BDE-N124588.A4 N124588	£7.85	£9.42
30 - HOUSING BDE-N124588.A5 N124588	£7.85	£9.42
31 - DETENT BDE-326467-00.A139 326467-00	£1.50	£1.80
31 - DETENT BDE-326467-00.A140 326467-00	£1.50	£1.80
32 - BALL BDE-386690-00.A34 386690-00	£1.50	£1.80
32 - BALL BDE-386690-00.A35 386690-00	£1.50	£1.80
33 - RATCHET BDE-N047986.A4 N047986	£3.80	£4.56
33 - RATCHET BDE-N047986.A5 N047986	£3.80	£4.56
34 - RATCHET BDE-N047987.A15 N047987	£4.69	£5.63
34 - RATCHET BDE-N047987.A16 N047987	£4.69	£5.63
35 - SPRING BDE-N047989.A13 N047989	£1.50	£1.80
35 - SPRING BDE-N047989.A14 N047989	£1.50	£1.80
36 - SPRING BDE-N047988.A4 N047988	£1.50	£1.80
36 - SPRING BDE-N047988.A5 N047988	£1.50	£1.80
37 - WASHER BDE-N047985.A15 N047985	£1.50	£1.80
37 - WASHER BDE-N047985.A16 N047985	£1.50	£1.80
38 - PLATE BDE-N063688.A4 N063688	£3.80	£4.56
38 - PLATE BDE-N063688.A5 N063688	£3.80	£4.56
39 - ADJUSTER TORQUE BDE-N036372.A28 N036372	£1.50	£1.80
39 - ADJUSTER TORQUE BDE-N036372.A29 N036372	£1.50	£1.80
40 - SPRING BDE-N077956.A19 N077956	£17.48	£20.97
40 - SPRING BDE-N077956.A20 N077956	£17.48	£20.97
41 - COLLAR BDE-N047992.A2 N047992	£3.80	£4.56
41 - COLLAR BDE-N047992.A3 N047992	£3.80	£4.56
46 - SPINDLE SA BDE-N110039.A9 N110039	£19.90	£23.88
46 - SPINDLE SA BDE-N110039.A10 N110039	£19.90	£23.88
47 - SCREW BDE-682211-00.A46 682211-00	£1.50	£1.80
47 - SCREW BDE-682211-00.A47 682211-00	£1.50	£1.80
48 - ADAPTOR BDE-N022994.A10 N022994	£1.50	£1.80
48 - ADAPTOR BDE-N022994.A11 N022994	£1.50	£1.80
49 - PLATE BDE-N063567.A36 N063567	£1.50	£1.80
49 - PLATE BDE-N063567.A37 N063567	£1.50	£1.80
50 - SCREW BDE-N075506.A12 N075506	£1.50	£1.80
50 - SCREW BDE-N075506.A13 N075506	£1.50	£1.80
51 - GEARCASE BDE-N033869.A2 N033869	£3.30	£3.96
51 - GEARCASE BDE-N033869.A3 N033869	£3.30	£3.96
52 - GEAR BDE-N030988.A12 N030988	£1.82	£2.19
52 - GEAR BDE-N030988.A13 N030988	£1.82	£2.19
53 - GEAR BDE-N030999.A28 N030999	£1.50	£1.80
53 - GEAR BDE-N030999.A29 N030999	£1.50	£1.80
54 - CARRIER SA BDE-N124371.A31 N124371	£7.18	£8.62
54 - CARRIER SA BDE-N124371.A32 N124371	£7.18	£8.62
55 - GEAR BDE-N031079.A30 N031079	£3.80	£4.56
55 - GEAR BDE-N031079.A31 N031079	£3.80	£4.56
56 - GEAR BDE-N031080.A10 N031080	£1.50	£1.80
56 - GEAR BDE-N031080.A11 N031080	£1.50	£1.80
57 - WASHER BDE-N032409.A31 N032409	£1.50	£1.80
57 - WASHER BDE-N032409.A32 N032409	£1.50	£1.80
58 - CARRIER SA BDE-N122400.A4 N122400	£7.18	£8.62
58 - CARRIER SA BDE-N122400.A5 N122400	£7.18	£8.62
59 - GEAR BDE-N031083.A30 N031083	£1.50	£1.80
59 - GEAR BDE-N031083.A31 N031083	£1.50	£1.80
60 - GEAR BDE-N078410.A24 N078410	£3.80	£4.56
60 - GEAR BDE-N078410.A25 N078410	£3.80	£4.56
61 - CARRIER SA BDE-N122401.A35 N122401	£3.30	£3.96
61 - CARRIER SA BDE-N122401.A36 N122401	£3.30	£3.96
62 - LOCKING RING BDE-N022985.A22 N022985	£7.18	£8.62
62 - LOCKING RING BDE-N022985.A23 N022985	£7.18	£8.62
63 - ROLLER BDE-N093416.A12 N093416	£1.50	£1.80
63 - ROLLER BDE-N093416.A13 N093416	£1.50	£1.80
64 - ANVIL ASSEMBLY BDE-N157720.A20 N157720	£3.80	£4.56
64 - ANVIL ASSEMBLY BDE-N157720.A21 N157720	£3.80	£4.56
65 - WASHER BDE-N090435.A17 N090435	£1.50	£1.80
65 - WASHER BDE-N090435.A18 N090435	£1.50	£1.80
66 - WIRE STEEL BDE-N035441.A34 N035441	£1.50	£1.80
66 - WIRE STEEL BDE-N035441.A35 N035441	£1.50	£1.80
67 - SELECTOR SA BDE-N035051.A31 N035051	£2.08	£2.50
67 - SELECTOR SA BDE-N035051.A32 N035051	£2.08	£2.50
800 - GREASE 100 GMS BDE-808386-00.A288 808386-00	£55.30	£66.36
800 - GREASE 100 GMS BDE-808386-00.A289 808386-00	£55.30	£66.36
861 - KITBOX BDE-N087499.A4 N087499	£40.21	£48.25
861 - KITBOX BDE-N087499.A5 N087499	£40.21	£48.25
866 - BATTERY 14.4V - 1.5AH - 21.6WH DCD735C2 GB BDE-N123280.A2 N123280	£165.92	£199.11
871 - CHARGER 10.8V - 18V GB BDE-N450537.A130 N450537	£157.18	£188.61

Attribute Name	Value
Brand	Dewalt
