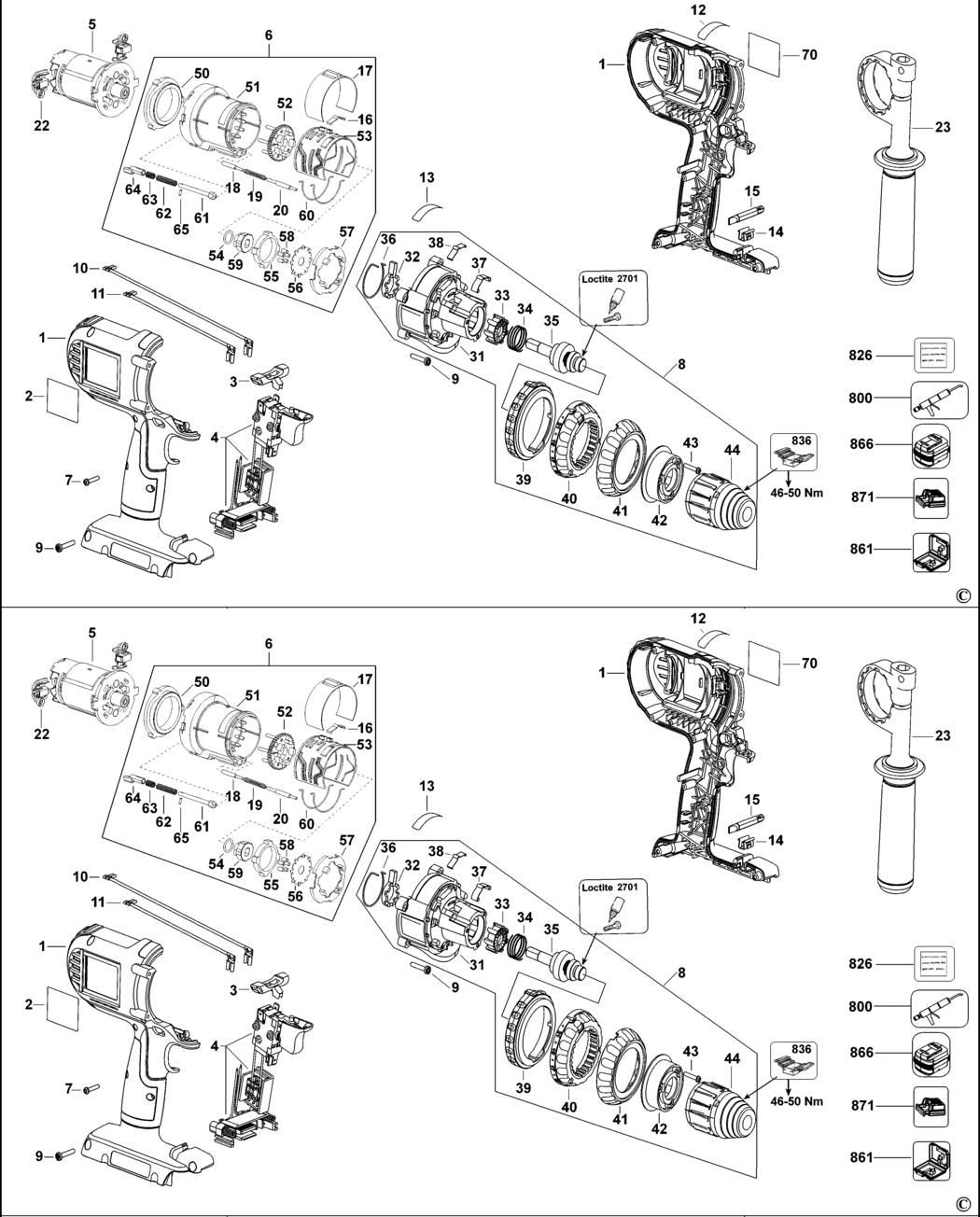

1 - NO LONGER AVAILABLE
BDE-000000-00.A61934
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE
BDE-000000-00.A61935
000000-00
|
-
|
|
|
|
3 - LEVER
BDE-628741-00.A1
628741-00
|
£1.42
|
£1.70
|
|
|
3 - NO LONGER AVAILABLE
BDE-000000-00.A61936
000000-00
|
-
|
|
|
|
4 - SWITCH SA
BDE-648672-02SV.A0
648672-02SV
|
-
|
|
|
|
4 - SWITCH SA GB
BDE-648672-02SV.A1
648672-02SV
|
-
|
|
|
|
5 - MOTOR & PINION
BDE-639521-00SV
639521-00SV
|
£131.46
|
£157.75
|
|
|
6 - TRANSMISSION SA INCL ITEMS 16 - 20
BDE-629059-00SV
629059-00SV
|
£72.28
|
£86.73
|
|
|
6 - NO LONGER AVAILABLE INCL ITEMS 16 - 20
BDE-000000-00.A61937
000000-00
|
-
|
|
|
|
7 - SCREW
BDE-330019-00.A82
330019-00
|
£1.50
|
£1.80
|
|
|
8 - NO LONGER AVAILABLE
BDE-000000-00.A61938
000000-00
|
-
|
|
|
|
9 - SCREW.SPECIAL
BDE-330019-52.A0
330019-52
|
£1.50
|
£1.80
|
|
|
10 - BRUSH PAIR INCL 11 & 22
BDE-389025-03.A0
389025-03
|
£34.00
|
£40.80
|
|
|
11 - BRUSH PAIR INCL 10 & 22
BDE-389025-03.A1
389025-03
|
£34.00
|
£40.80
|
|
|
12 - NO LONGER AVAILABLE
BDE-000000-00.A61939
000000-00
|
-
|
|
|
|
13 - NO LONGER AVAILABLE
BDE-000000-00.A61940
000000-00
|
-
|
|
|
|
14 - HOLDER
BDE-148354-03.A287
148354-03
|
£1.50
|
£1.80
|
|
|
15 - BIT SCREWDRIVER
BDE-607918-41.A28
607918-41
|
£1.50
|
£1.80
|
|
|
16 - SPRING
BDE-634729-00.A1
634729-00
|
£1.42
|
£1.70
|
|
|
17 - SHROUD
BDE-394518-02
394518-02
|
-
|
|
|
|
17 - NO LONGER AVAILABLE
BDE-000000-00.A61941
000000-00
|
-
|
|
|
|
18 - PIN
BDE-630124-00
630124-00
|
-
|
|
|
|
19 - SPRING
BDE-613217-00
613217-00
|
-
|
|
|
|
20 - NO LONGER AVAILABLE
BDE-000000-00.A61942
000000-00
|
-
|
|
|
|
22 - BRUSH PAIR INCL 10 & 11
BDE-389025-03.A2
389025-03
|
£34.00
|
£40.80
|
|
|
23 - HANDLE SIDE SA GB
BDE-939794-60.A0
939794-60
|
-
|
|
|
|
23 - HANDLE SIDE SA
BDE-939794-60.A1
939794-60
|
-
|
|
|
|
23 - SIDE HANDLE
BDE-646594-00.A12
646594-00
|
£10.85
|
£13.02
|
|
|
31 - NO LONGER AVAILABLE
BDE-000000-00.A61943
000000-00
|
-
|
|
|
|
31 - HOUSING SA
BDE-628021-00
628021-00
|
-
|
|
|
|
32 - CAM
BDE-394545-00.A25
394545-00
|
£1.42
|
£1.70
|
|
|
33 - RATCHET FIXED
BDE-638072-00.A0
638072-00
|
£2.71
|
£3.25
|
|
|
34 - SPRING
BDE-394546-00.A0
394546-00
|
£1.42
|
£1.70
|
|
|
35 - SPINDLE SA
BDE-638427-00.A2
638427-00
|
£17.03
|
£20.44
|
|
|
36 - SPRING
BDE-399059-00.A20
399059-00
|
-
|
|
|
|
37 - SPRING GUIDE
BDE-395460-00.A3
395460-00
|
£1.50
|
£1.80
|
|
|
38 - SPRING
BDE-634729-00.A2
634729-00
|
£1.42
|
£1.70
|
|
|
39 - COLLAR
BDE-630442-00
630442-00
|
£1.78
|
£2.13
|
|
|
40 - COLLAR
BDE-630443-00
630443-00
|
-
|
|
|
|
40 - NO LONGER AVAILABLE
BDE-000000-00.A61944
000000-00
|
-
|
|
|
|
41 - NO LONGER AVAILABLE
BDE-000000-00.A61945
000000-00
|
-
|
|
|
|
41 - COLLAR
BDE-630444-00
630444-00
|
-
|
|
|
|
42 - CAP
BDE-630445-00
630445-00
|
-
|
|
|
|
42 - NO LONGER AVAILABLE
BDE-000000-00.A61946
000000-00
|
-
|
|
|
|
43 - SCREW
BDE-330019-00.A83
330019-00
|
£1.50
|
£1.80
|
|
|
44 - CHUCK KEYLESS
BDE-330075-90.A2
330075-90
|
£78.12
|
£93.74
|
|
|
44 - SERVICE KIT
BDE-N422782.A1
N422782
|
£60.94
|
£73.13
|
|
|
50 - LOCKING RING
BDE-628002-00
628002-00
|
-
|
|
|
|
51 - NO LONGER AVAILABLE
BDE-000000-00.A61956
000000-00
|
-
|
|
|
|
52 - NO LONGER AVAILABLE
BDE-000000-00.A61957
000000-00
|
-
|
|
|
|
53 - SELECTOR
BDE-629104-00
629104-00
|
-
|
|
|
|
53 - NO LONGER AVAILABLE
BDE-000000-00.A61947
000000-00
|
-
|
|
|
|
54 - NO LONGER AVAILABLE
BDE-000000-00.A61948
000000-00
|
-
|
|
|
|
54 - O RING
BDE-50048-00
50048-00
|
-
|
|
|
|
55 - LOCKING RING
BDE-605008-01
605008-01
|
-
|
|
|
|
56 - NO LONGER AVAILABLE
BDE-000000-00.A61958
000000-00
|
-
|
|
|
|
57 - NO LONGER AVAILABLE
BDE-000000-00.A61959
000000-00
|
-
|
|
|
|
58 - PIN
BDE-330041-43.A5
330041-43
|
-
|
|
|
|
59 - NO LONGER AVAILABLE
BDE-000000-00.A61949
000000-00
|
-
|
|
|
|
60 - NO LONGER AVAILABLE
BDE-000000-00.A61950
000000-00
|
-
|
|
|
|
61 - NO LONGER AVAILABLE
BDE-000000-00.A61951
000000-00
|
-
|
|
|
|
62 - NO LONGER AVAILABLE
BDE-000000-00.A61952
000000-00
|
-
|
|
|
|
63 - NO LONGER AVAILABLE
BDE-000000-00.A61953
000000-00
|
-
|
|
|
|
64 - NO LONGER AVAILABLE
BDE-000000-00.A61954
000000-00
|
-
|
|
|
|
65 - NO LONGER AVAILABLE
BDE-000000-00.A61955
000000-00
|
-
|
|
|
|
65 - PIN
BDE-330043-03
330043-03
|
£1.42
|
£1.70
|
|
|
70 - NO LONGER AVAILABLE GB
BDE-000000-00.A61960
000000-00
|
-
|
|
|
|
70 - RATING PLATE
BDE-643760-00
643760-00
|
-
|
|
|
|
70 - NO LONGER AVAILABLE
BDE-000000-00.A61961
000000-00
|
-
|
|
|
|
800 - GREASE
BDE-283484-01.A10
283484-01
|
£80.98
|
£97.18
|
|
|
800 - GREASE 90 GMS
BDE-870889-02.A264
870889-02
|
£7.85
|
£9.42
|
|
|
836 - S.T.CHUCK REMOVAL JIG
BDE-559661-99.A12
559661-99
|
£113.07
|
£135.68
|
|
|
836 - S.T.CHUCK REMOVAL JIG GB
BDE-559661-99.A13
559661-99
|
£113.07
|
£135.68
|
|
|
836 - S.T.CHUCK REMOVAL JIG
BDE-559662-99.A35
559662-99
|
£58.69
|
£70.43
|
|
|
836 - S.T.CHUCK REMOVAL JIG
BDE-559665-99.A0
559665-99
|
£38.80
|
£46.56
|
|
|
836 - S.T.INSERT
BDE-559697-99.A20
559697-99
|
£55.30
|
£66.36
|
|
|
836 - SERVICE TOOL
BDE-233804-40.A12
233804-40
|
-
|
|
|
|
861 - KITBOX
BDE-652203-00
652203-00
|
£65.52
|
£78.62
|
|
|
861 - KITBOX
BDE-N232344.A1
N232344
|
£57.22
|
£68.66
|
|
|
866 - BATTERY 36V - 2.2AH DC900KL
BDE-1006624-00.A1
1006624-00
|
£245.11
|
£294.13
|
|
|
866 - BATTERY 36V - 4.0AH - 144WH DC900KL GB
BDE-N394595.A16
N394595
|
£209.59
|
£251.51
|
|
|
871 - CHARGER GB DC900KL GB
BDE-1006633-00.A1
1006633-00
|
£131.95
|
£158.34
|
|
|
871 - CHARGER (EURO) DC900KL
BDE-1006632-00.A1
1006632-00
|
£115.77
|
£138.92
|
|
|
871 - CHARGER GB DC900KL
BDE-1006633-00.A0
1006633-00
|
£131.95
|
£158.34
|
|
|
871 - CHARGER 28V - 36V
BDE-DC9000
DC9000
|
-
|
|
|
