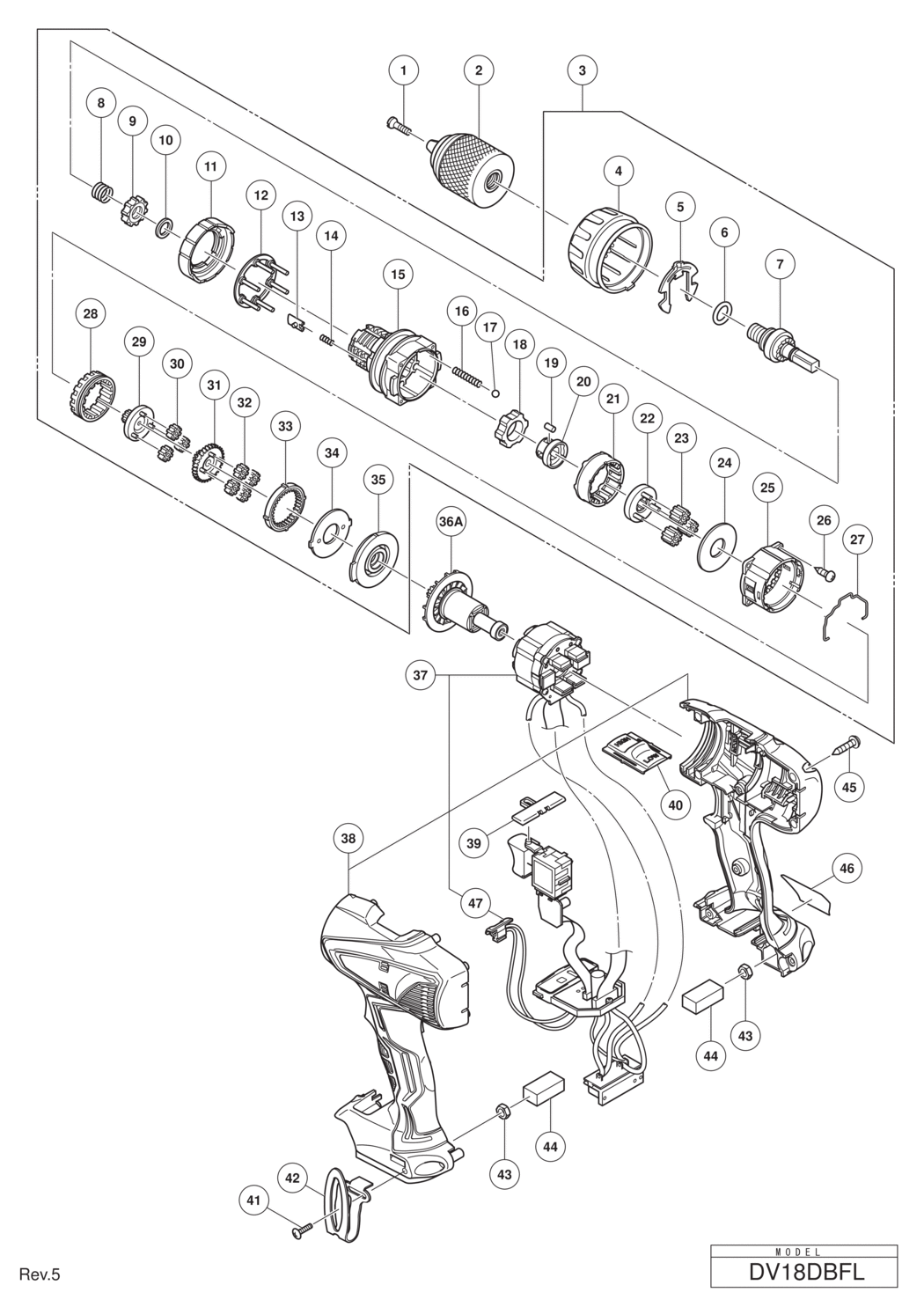

1 - FLAT HD. SCREW (LEFT HAND) M6X20
HIT-331966.A0
331966
|
£11.39
|
£13.67
|
|
|
2 - DRILL CHUCK 13VLRU-N (W/O CHUCK WRENCH)
HIT-335961.A0
335961
|
£38.46
|
£46.15
|
|
|
3 - GEAR BOX ASS'Y INCLUD.4-35
HIT-335940.A0
335940
|
£78.90
|
£94.68
|
|
|
4 - CLUTCH DIAL
HIT-335960.A1
335960
|
-
|
|
|
|
5 - CLICK SPRING
HIT-327146.A12
327146
|
£1.67
|
£2.00
|
|
|
6 - O-RING
HIT-327142.A0
327142
|
£1.67
|
£2.00
|
|
|
7 - SPINDLE
HIT-336351.A0
336351
|
£12.52
|
£15.03
|
|
|
8 - SPRING (C)
HIT-327136.A5
327136
|
£1.67
|
£2.00
|
|
|
9 - RATCHET (B)
HIT-327134.A4
327134
|
£4.68
|
£5.62
|
|
|
10 - WASHER (A)
HIT-327147.A2
327147
|
£3.13
|
£3.76
|
|
|
11 - NUT
HIT-327145.A1
327145
|
£1.67
|
£2.00
|
|
|
12 - WASHER SET
HIT-335948.A1
335948
|
-
|
|
|
|
13 - SLIP BLOCK
HIT-327135.A6
327135
|
£1.67
|
£2.00
|
|
|
14 - STOPPER SPRING
HIT-327133.A9
327133
|
£1.67
|
£2.00
|
|
|
15 - FRONT CASE
HIT-336352.A1
336352
|
-
|
|
|
|
16 - SPRING (A)
HIT-327143.A4
327143
|
£1.67
|
£2.00
|
|
|
17 - STEEL BALL D5
HIT-306936.A34
306936
|
£1.67
|
£2.00
|
|
|
18 - LOCK RING
HIT-335945.A1
335945
|
-
|
|
|
|
19 - NEEDLE ROLLER SET (4 PCS.)
HIT-335946.A1
335946
|
-
|
|
|
|
20 - SLEEVE
HIT-335944.A1
335944
|
£1.67
|
£2.00
|
|
|
21 - RING GEAR
HIT-328055.A11
328055
|
£4.78
|
£5.73
|
|
|
22 - CARRIER
HIT-327139.A3
327139
|
£4.78
|
£5.73
|
|
|
23 - PLANET GEAR (C) SET (3 PCS.)
HIT-312705.A8
312705
|
£3.59
|
£4.31
|
|
|
24 - WASHER (A)
HIT-312704.A6
312704
|
-
|
|
|
|
25 - REAR CASE
HIT-335959.A1
335959
|
£1.67
|
£2.00
|
|
|
26 - SCREW SET D3X12 (4 PCS.)
HIT-324357.A14
324357
|
-
|
|
|
|
27 - SHIFT ARM
HIT-332017.A12
332017
|
£1.67
|
£2.00
|
|
|
28 - SLIDE RING GEAR
HIT-332013.A7
332013
|
£5.15
|
£6.18
|
|
|
29 - PINION (C)
HIT-332012.A4
332012
|
£7.48
|
£8.97
|
|
|
30 - PLANET GEAR (A) SET (6 PCS.)
HIT-332019.A11
332019
|
£17.51
|
£21.01
|
|
|
31 - PINION (B)
HIT-335947.A1
335947
|
-
|
|
|
|
32 - PLANET GEAR (A) SET (4 PCS.)
HIT-335941.A1
335941
|
-
|
|
|
|
33 - FIRST RING GEAR
HIT-335942.A1
335942
|
-
|
|
|
|
34 - WASHER (B)
HIT-312716.A1
312716
|
-
|
|
|
|
35 - MOTOR SPACER
HIT-335943.A1
335943
|
-
|
|
|
|
36A - ROTOR PINION SET
HIT-336380.A1
336380
|
£46.34
|
£55.61
|
|
|
37 - WIRING SET INCLUD.49
HIT-335952.A1
335952
|
£217.69
|
£261.23
|
|
|
38 - HOUSING (A).(B) SET
HIT-335958.A1
335958
|
-
|
|
|
|
39 - PUSHING BUTTON (B)
HIT-324225.A7
324225
|
£1.67
|
£2.00
|
|
|
40 - SHIFT KNOB
HIT-335950.A1
335950
|
-
|
|
|
|
41 - TRUSS HD. SCREW M4 (BLACK)
HIT-327001.A62
327001
|
£2.71
|
£3.25
|
|
|
42 - HOOK
HIT-332824.A14
332824
|
£7.12
|
£8.54
|
|
|
43 - LOCK NUT M4 (BLACK)
HIT-327002.A3
327002
|
£2.71
|
£3.25
|
|
|
44 - PACKING
HIT-328644.A1
328644
|
£1.67
|
£2.00
|
|
|
45 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
HIT-313687.A39
313687
|
£1.67
|
£2.00
|
|
|
46 - NAME PLATE
HIT-000000.A1819
000000
|
-
|
|
|
|
47 - LED HOLDER
HIT-339280.A4
339280
|
-
|
|
|
