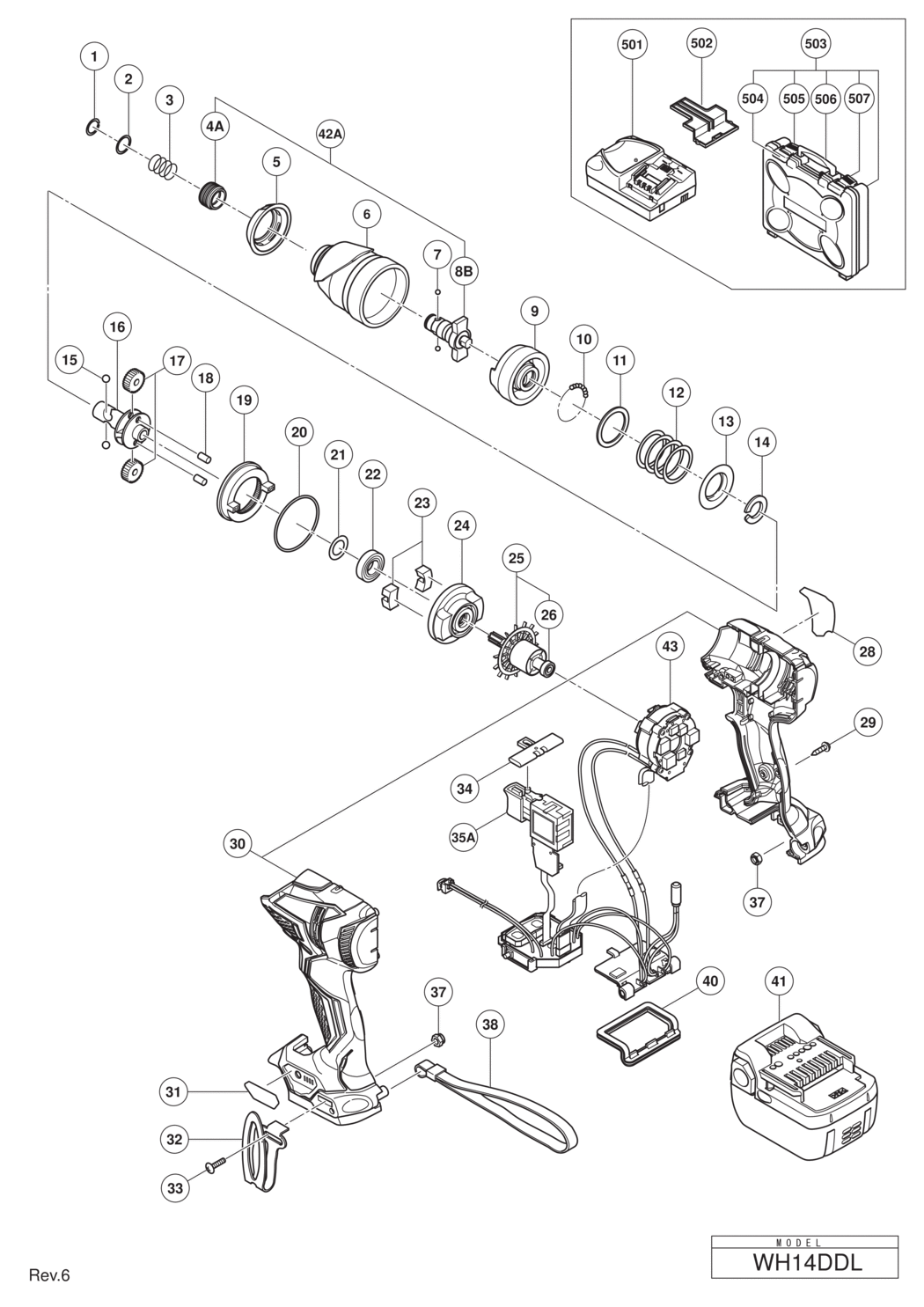

1 - RETAINING RING
HIT-315984.A3
315984
|
£1.67
|
£2.00
|
|
|
2 - WASHER (D)
HIT-330856.A1
330856
|
£2.71
|
£3.25
|
|
|
3 - GUIDE SPRING (D)
HIT-321657.A1
321657
|
£1.67
|
£2.00
|
|
|
4A - GUIDE SLEEVE (G)
HIT-337105.A1
337105
|
-
|
|
|
|
5 - FRONT CAP
HIT-335330.A1
335330
|
-
|
|
|
|
6 - HAMMER CASE
HIT-335331.A0
335331
|
-
|
|
|
|
7 - STEEL BALL D3.5 (10 PCS.)
HIT-319535.A29
319535
|
£1.67
|
£2.00
|
|
|
*8B - ANVIL SINCE 10.2014 FOR EUROPE
HIT-338883.A0
338883
|
-
|
|
|
|
9 - HAMMER
HIT-335329.A0
335329
|
-
|
|
|
|
10 - STEEL BALL D3.175 (10 PCS.)
HIT-959148.A77
959148
|
£1.67
|
£2.00
|
|
|
11 - WASHER (J)
HIT-315978.A12
315978
|
£1.67
|
£2.00
|
|
|
12 - HAMMER SPRING (J)
HIT-335316.A0
335316
|
-
|
|
|
|
13 - WASHER (S)
HIT-316172.A2
316172
|
£1.67
|
£2.00
|
|
|
14 - STOPPER (C)
HIT-328647.A2
328647
|
-
|
|
|
|
15 - STEEL BALL D5.556 (10 PCS.)
HIT-959154.A40
959154
|
£1.67
|
£2.00
|
|
|
16 - SPINDLE
HIT-335318.A0
335318
|
-
|
|
|
|
17 - IDLE GEAR SET (2 PCS.)
HIT-326295.A13
326295
|
£25.42
|
£30.51
|
|
|
18 - NEEDLE ROLLER
HIT-319914.A17
319914
|
£1.67
|
£2.00
|
|
|
19 - RING GEAR
HIT-330657.A5
330657
|
£4.89
|
£5.87
|
|
|
20 - O-RING (S-42)
HIT-983852.A28
983852
|
£1.67
|
£2.00
|
|
|
21 - WASHER (E)
HIT-330855.A5
330855
|
-
|
|
|
|
22 - BALL BEARING 6901VV-N
HIT-323118.A1
323118
|
£9.18
|
£11.02
|
|
|
23 - DAMPER
HIT-333952.A9
333952
|
£3.02
|
£3.63
|
|
|
24 - INNER COVER (E)
HIT-335317.A5
335317
|
-
|
|
|
|
25 - ROTOR ASS'Y INCLUD.26
HIT-335325.A1
335325
|
-
|
|
|
|
26 - BALL BEARING 604DD
HIT-335723.A5
335723
|
-
|
|
|
|
28 - NAME PLATE
HIT-000000.A5466
000000
|
-
|
|
|
|
29 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
HIT-313687.A12
313687
|
£1.67
|
£2.00
|
|
|
30 - HOUSING (A).(B)SET (GREEN)
HIT-335735.A0
335735
|
-
|
|
|
|
31 - PANEL SHEET (D)
HIT-335722.A0
335722
|
-
|
|
|
|
32 - HOOK
HIT-335724.A0
335724
|
-
|
|
|
|
33 - TRUSS HD. SCREW M4 (BLACK)
HIT-327001.A24
327001
|
£2.71
|
£3.25
|
|
|
34 - PUSHING BUTTON (A)
HIT-321661.A0
321661
|
£1.67
|
£2.00
|
|
|
35A - DC-SPEED CONTROL SWITCH
HIT-339720.A1
339720
|
-
|
|
|
|
37 - LOCK NUT M4 (BLACK)
HIT-327002.A45
327002
|
£2.71
|
£3.25
|
|
|
38 - STRAP (BLACK)
HIT-306952.A67
306952
|
£7.97
|
£9.57
|
|
|
40 - TERMINAL RUBBER
HIT-335324.A0
335324
|
-
|
|
|
|
*41 - BATTERY BSL 1440 (EUROPE AUS NZL) INCLUD.502
HIT-334419.A6
334419
|
£146.92
|
£176.30
|
|
|
*42A - ANVIL. SLEEVE SET INCLUD.4A
HIT-338884.A1
338884
|
-
|
|
|
|
43 - WIRING ASS'Y INCLUD.35
HIT-337891.A0
337891
|
-
|
|
|
|
*501 - CHARGER (MODEL UC 18YRSL)
HIT-000000.A5468
000000
|
-
|
|
|
|
502 - BATTERY COVER
HIT-329897.A16
329897
|
£1.67
|
£2.00
|
|
|
503 - CASE ASS'Y INCLUD.504-507
HIT-329440.A5
329440
|
£63.48
|
£76.18
|
|
|
504 - LATCH (DARK GRAY)
HIT-334233.A1
334233
|
-
|
|
|
|
505 - KNOB (L) DARK GRAY
HIT-334235.A1
334235
|
-
|
|
|
|
506 - HANDLE (DARK GRAY)
HIT-334232.A7
334232
|
-
|
|
|
|
507 - KNOB (R) DARK GRAY
HIT-334234.A6
334234
|
-
|
|
|
|
601 - DRILL CHUCK AND ADAPTER SET INCLUD.616
HIT-321823.A28
321823
|
-
|
|
|
|
602 - GREASE (ATTOLUB MS NO.2) 500G
HIT-309922.A22
309922
|
£56.92
|
£68.31
|
|
|
603 - + DRIVER BIT (B) NO.2 50L
HIT-992671.A27
992671
|
-
|
|
|
|
604 - + DRIVER BIT (B) NO.3 50L
HIT-992672.A6
992672
|
£4.33
|
£5.20
|
|
|
605 - NON-MAGNETIC HEX. SOCKET 8MM 65L
HIT-996177.A4
996177
|
-
|
|
|
|
606 - NON-MAGNETIC HEX. SOCKET 10MM 65L
HIT-985329.A18
985329
|
-
|
|
|
|
607 - NON-MAGNETIC HEX. SOCKET 12MM 65L
HIT-996178.A22
996178
|
£16.59
|
£19.91
|
|
|
608 - NON-MAGNETIC HEX. SOCKET 13MM 65L
HIT-996179.A4
996179
|
-
|
|
|
|
609 - NON-MAGNETIC HEX. SOCKET 14MM 65L
HIT-996180.A22
996180
|
-
|
|
|
|
610 - NON-MAGNETIC HEX. SOCKET 15MM 65L
HIT-996185.A14
996185
|
£16.59
|
£19.91
|
|
|
611 - NON-MAGNETIC HEX. SOCKET 16MM 65L
HIT-996181.A4
996181
|
£16.59
|
£19.91
|
|
|
612 - NON-MAGNETIC HEX. SOCKET 17MM 65L
HIT-996182.A22
996182
|
-
|
|
|
|
613 - NON-MAGNETIC HEX. SOCKET 19MM 65L
HIT-996186.A3
996186
|
£16.59
|
£19.91
|
|
|
614 - HEX. SOCKET (LONG) 21MMX166L
HIT-996197.A19
996197
|
£33.82
|
£40.58
|
|
|
615 - BIT PIECE
HIT-996184.A4
996184
|
-
|
|
|
|
616 - CHUCK WRENCH FOR 10VLB-D 1
HIT-987575.A28
987575
|
-
|
|
|
|
617 - CHUCK WRENCH 6.5G
HIT-930119.A4
930119
|
£6.19
|
£7.43
|
|
|
618 - CHUCK ADAPTER
HIT-307543.A1
307543
|
-
|
|
|
|
619 - SILICONE RUBBER
HIT-306927.A31
306927
|
-
|
|
|
|
620 - PROTECTOR
HIT-336373.A1
336373
|
-
|
|
|
|
621 - GREASE (MOLUB-ALLOY NO.777-1) 75G
HIT-325149.A5
325149
|
£18.35
|
£22.02
|
|
