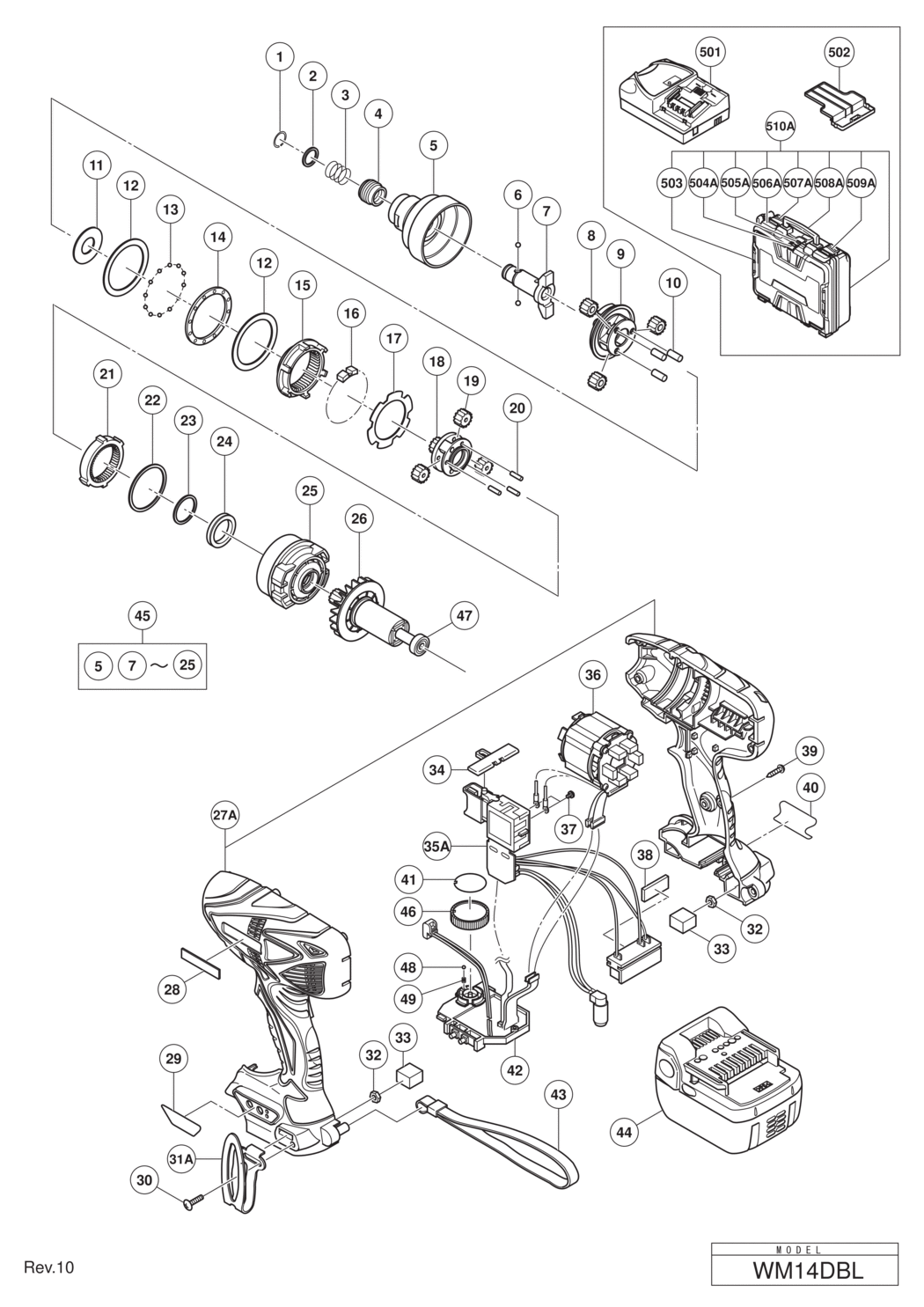

1 - RETAINING RING
HIT-315984.A12
315984
|
£1.67
|
£2.00
|
|
|
2 - WASHER (D)
HIT-330856.A12
330856
|
£2.71
|
£3.25
|
|
|
3 - GUIDE SPRING (D)
HIT-321657.A8
321657
|
£1.67
|
£2.00
|
|
|
4 - GUIDE SLEEVE (D)
HIT-322717.A5
322717
|
£4.22
|
£5.07
|
|
|
5 - HAMMER CASE
HIT-333278.A1
333278
|
-
|
|
|
|
6 - STEEL BALL D3.5 (10 PCS.)
HIT-319535.A17
319535
|
£1.67
|
£2.00
|
|
|
*7 - ANVIL (B)
HIT-333270.A1
333270
|
-
|
|
|
|
8 - IDLE GEAR (B)
HIT-333274.A1
333274
|
-
|
|
|
|
9 - HAMMER
HIT-333271.A0
333271
|
-
|
|
|
|
10 - NEEDLE ROLLER
HIT-333288.A1
333288
|
-
|
|
|
|
11 - WASHER (D)
HIT-333283.A0
333283
|
-
|
|
|
|
12 - WASHER (E)
HIT-333284.A1
333284
|
-
|
|
|
|
13 - STEEL BALL D2.5 (10 PCS.)
HIT-329303.A1
329303
|
-
|
|
|
|
14 - WASHER (F)
HIT-333285.A0
333285
|
-
|
|
|
|
15 - RING GEAR (B)
HIT-333276.A1
333276
|
-
|
|
|
|
16 - DAMPER
HIT-333279.A0
333279
|
-
|
|
|
|
17 - WASHER (C)
HIT-333282.A1
333282
|
-
|
|
|
|
18 - PINION (B)
HIT-333277.A0
333277
|
-
|
|
|
|
19 - IDLE GEAR (A)
HIT-333273.A0
333273
|
-
|
|
|
|
20 - NEEDLE ROLLER
HIT-333287.A0
333287
|
-
|
|
|
|
21 - RING GEAR (A)
HIT-333275.A0
333275
|
-
|
|
|
|
22 - WASHER (B)
HIT-333281.A1
333281
|
-
|
|
|
|
23 - WASHER (A)
HIT-333280.A0
333280
|
-
|
|
|
|
24 - METAL
HIT-333286.A0
333286
|
-
|
|
|
|
25 - INNER COVER
HIT-333272.A0
333272
|
-
|
|
|
|
26 - ROTOR ASS'Y INCLUD.47
HIT-332679.A0
332679
|
-
|
|
|
|
27A - HOUSING (A).(B)SET (GREEN)
HIT-334284.A0
334284
|
-
|
|
|
|
28A - BRAND PLATE
HIT-329648.A10
329648
|
£2.81
|
£3.37
|
|
|
29 - PANEL SHEET (B)
HIT-332680.A1
332680
|
-
|
|
|
|
30 - TRUSS HD. SCREW M4 (BLACK)
HIT-327001.A47
327001
|
£2.71
|
£3.25
|
|
|
31A - HOOK
HIT-335724.A7
335724
|
-
|
|
|
|
32 - LOCK NUT M4 (BLACK)
HIT-327002.A22
327002
|
£2.71
|
£3.25
|
|
|
33 - PACKING
HIT-330854.A9
330854
|
-
|
|
|
|
34 - PUSHING BUTTON (A)
HIT-321661.A15
321661
|
£1.67
|
£2.00
|
|
|
35A - DC-SPEED CONTROL SWITCH
HIT-334903.A0
334903
|
£36.81
|
£44.17
|
|
|
36 - STATOR FET PCB
HIT-332676.A0
332676
|
-
|
|
|
|
37 - MACHINE SCREW (W/SP. WASHER) M3X5
HIT-994532.A17
994532
|
£1.67
|
£2.00
|
|
|
38 - CUSHION
HIT-331101.A0
331101
|
£3.12
|
£3.74
|
|
|
39 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A155
301653
|
£1.67
|
£2.00
|
|
|
40 - NAME PLATE
HIT-000000.A1405
000000
|
-
|
|
|
|
41 - SEAL
HIT-333291.A0
333291
|
-
|
|
|
|
42 - CONTROLLER ASS'Y INCLUD.41
HIT-333289.A0
333289
|
-
|
|
|
|
43 - STRAP (BLACK)
HIT-306952.A23
306952
|
£7.97
|
£9.57
|
|
|
44 - BATTERY BSL 1430 (EUROPE AUS NZL) INCLUD.502
HIT-329083.A15
329083
|
£109.82
|
£131.78
|
|
|
*45 - GEAR BOX ASS'Y INCLUD.5
HIT-332682.A0
332682
|
-
|
|
|
|
46 - DIAL
HIT-333348.A0
333348
|
-
|
|
|
|
47 - BALL BEARING 625DD
HIT-333826.A11
333826
|
£8.72
|
£10.47
|
|
|
48 - STEEL BALL D3.175 (10 PCS.)
HIT-959148.A4
959148
|
£1.67
|
£2.00
|
|
|
49 - SPRING
HIT-333984.A0
333984
|
-
|
|
|
|
*501 - CHARGER (MODEL UC 18YFSL)
HIT-000000.A1407
000000
|
-
|
|
|
|
502 - BATTERY COVER
HIT-329897.A97
329897
|
£1.67
|
£2.00
|
|
|
*503 - COVER
HIT-331363.A1
331363
|
-
|
|
|
|
*504A - SUB LATCH
HIT-336588.A1
336588
|
-
|
|
|
|
*505A - KNOB (C)
HIT-336587.A0
336587
|
-
|
|
|
|
*506A - LATCH (DARK GRAY)
HIT-334233.A7
334233
|
-
|
|
|
|
*507A - KNOB (L) DARK GRAY
HIT-334235.A7
334235
|
-
|
|
|
|
*508A - HANDLE (DARK GRAY)
HIT-334232.A0
334232
|
-
|
|
|
|
*509A - KNOB (R) DARK GRAY
HIT-334234.A0
334234
|
-
|
|
|
|
*510A - CASE ASS'Y INCLUD.503-509A
HIT-334231.A1
334231
|
-
|
|
|
|
601 - DRILL CHUCK AND ADAPTER SET INCLUD.612
HIT-321823.A9
321823
|
-
|
|
|
|
602 - + DRIVER BIT (B) NO.2 50L
HIT-992671.A7
992671
|
-
|
|
|
|
603 - + DRIVER BIT (B) NO.3 50L
HIT-992672.A22
992672
|
£4.33
|
£5.20
|
|
|
604 - NON-MAGNETIC HEX. SOCKET 7MM 65L
HIT-992689.A3
992689
|
£14.23
|
£17.08
|
|
|
605 - NON-MAGNETIC HEX. SOCKET 8MM 65L
HIT-996177.A16
996177
|
-
|
|
|
|
606 - NON-MAGNETIC HEX. SOCKET 10MM 65L
HIT-985329.A8
985329
|
-
|
|
|
|
607 - NON-MAGNETIC HEX. SOCKET 12MM 65L
HIT-996178.A11
996178
|
£16.59
|
£19.91
|
|
|
608 - NON-MAGNETIC HEX. SOCKET 13MM 65L
HIT-996179.A15
996179
|
-
|
|
|
|
609 - NON-MAGNETIC HEX. SOCKET 14MM 65L
HIT-996180.A11
996180
|
-
|
|
|
|
610 - NON-MAGNETIC HEX. SOCKET 16MM 65L
HIT-996181.A15
996181
|
£16.59
|
£19.91
|
|
|
611 - NON-MAGNETIC HEX. SOCKET 17MM 65L
HIT-996182.A11
996182
|
-
|
|
|
|
612 - CHUCK WRENCH FOR 10VLB-D 1
HIT-987575.A0
987575
|
-
|
|
|
|
613 - CHUCK ADAPTER
HIT-307543.A17
307543
|
-
|
|
|
|
614 - SILICONE RUBBER
HIT-306927.A3
306927
|
-
|
|
|
