Hitachi / Hikoki NT1865DBSL Cordless Nailer Spare Parts

Home Details Reviews Delivery

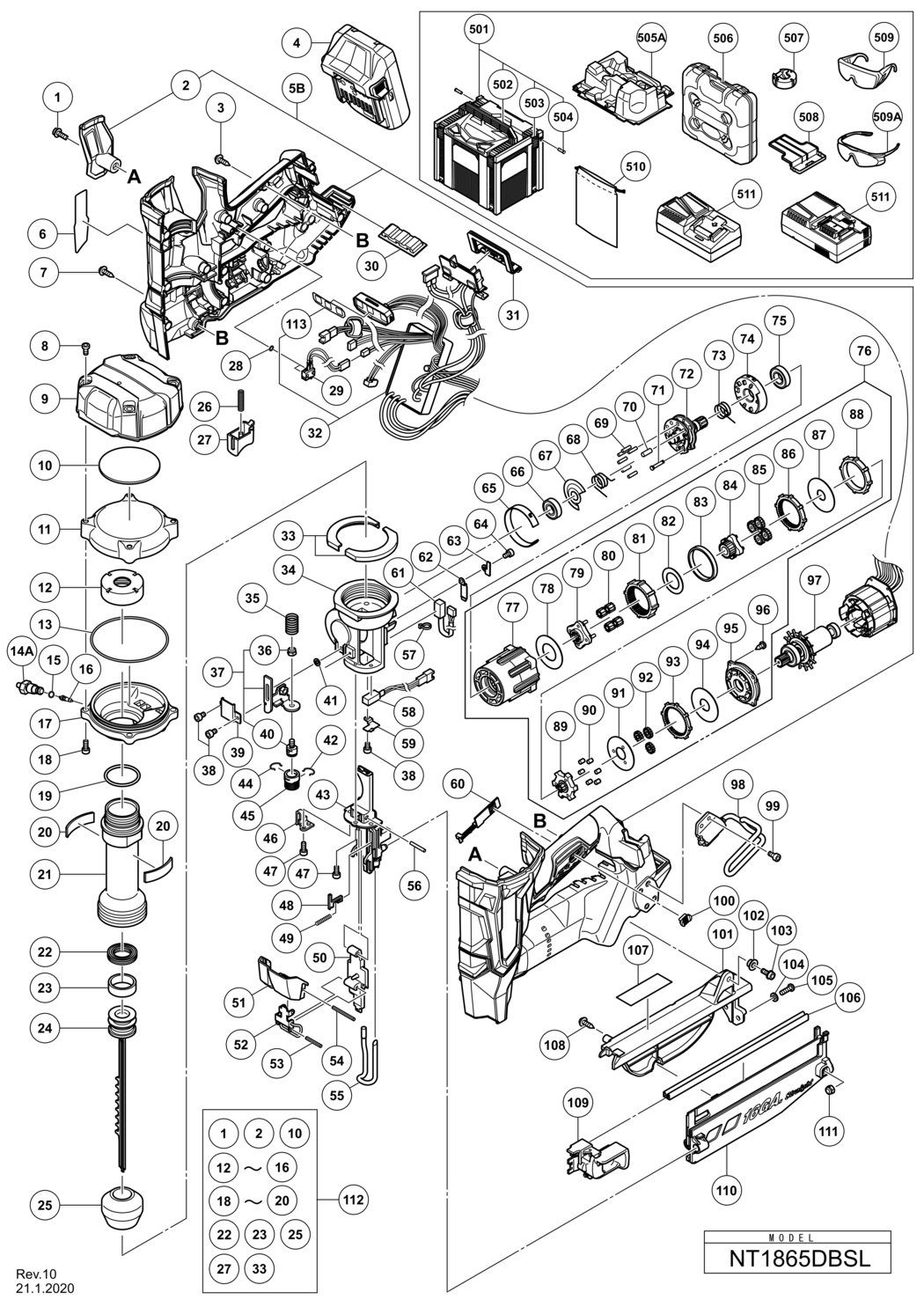

An exploded diagram and spare parts listing for the Hitachi / Hikoki NT1865DBSL Cordless Nailer

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-880219.A3 880219	-
2 - HOUSING (C) HIT-371225.A2 371225	-
3 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A229 301653	£1.67	£2.00
*4 - BATTERY BSL 1830C (EUROPE AUS NZL) INCLUD.508 HIT-339783.A6 339783	£140.79	£168.95
*4 - BATTERY BSL 1850 (EUROPE AUS NZL) INCLUD.508 HIT-335790.A6 335790	£190.99	£229.19
*4 - BATTERY BSL 1860 (EUROPE AUS NZL) INCLUD.508 HIT-338891.A1 338891	£195.89	£235.07
5B - HOUSING ASS'Y INCLUD.2 HIT-371009.A2 371009	£55.62	£66.74
6 - NAME PLATE HIT-000000.A1935 000000	-
7 - P-TITE SCREW D4X20 HIT-994806.A6 994806	-
8 - HEX. SOCKET BOLT M5 HIT-371015.A3 371015	-
9 - TOP COVER HIT-371014.A2 371014	-
10 - RUBBER CUSHION (C) HIT-371012.A5 371012	-
11 - CHAMBER COVER HIT-371035.A2 371035	-
12 - SPECIAL NUT M36 HIT-371040.A2 371040	-
13 - O-RING (I.D 79.5) HIT-371037.A2 371037	-
14A - CHARGE CAP HIT-376085.A1 376085	-
15 - O-RING (S-5) HIT-872822.A19 872822	£3.19	£3.83
16 - VALVE CORE HIT-371038.A3 371038	£5.70	£6.84
17 - CHAMBER BASE HIT-371036.A3 371036	-
18 - HEX. SOCKET HD. BOLT M5X18 (10 PCS.) HIT-949658.A20 949658	£3.28	£3.93
19 - O-RING (I.D 32.99) HIT-371042.A2 371042	-
20 - RUBBER CUSHION (B) HIT-371011.A0 371011	-
21 - CYLINDER HIT-371041.A3 371041	-
22 - X-RING HIT-371046.A2 371046	-
23 - SLIDE RING HIT-371047.A3 371047	-
24 - PISTON HIT-371044.A0 371044	£179.67	£215.60
25 - PISTON BUMPER HIT-371048.A2 371048	-
26 - SPRING (T) HIT-332000.A4 332000	-
27 - TRIGGER HIT-371021.A3 371021	-
28 - O-RING (I.D 2.5) HIT-371020.A4 371020	-
29 - SWITCH CABLE (A) HIT-371019.A3 371019	£12.68	£15.22
30 - RUBBER CUSHION HIT-332668.A5 332668	£3.83	£4.60
31 - TERMINAL RUBBER (A) HIT-370728.A6 370728	-
*32 - WIRING ASS'Y INCLUD.113 HIT-372186.A0 372186	£151.69	£182.03
*32 - WIRING ASS'Y INCLUD.113 FOR AUS HIT-370931.A0 370931	-
*32 - WIRNIG ASS'Y INCLUD.113 FOR NZL HIT-373082.A0 373082	-
33 - RUBBER CUSHION (A) HIT-371010.A5 371010	-
34 - NOSE HIT-371049.A1 371049	-
35 - SPRING HIT-371067.A1 371067	-
36 - NYLON NUT M5 HIT-877371.A34 877371	£1.67	£2.00
37 - PUSHING LEVER ARM ASS'Y INCLUD.36 HIT-371064.A1 371064	-
38 - SEAL LOCK HEX. SOCKET HD. BOLT M3X6 HIT-325077.A1 325077	£1.67	£2.00
39 - PUSHING LEVER ARM HOLDER HIT-371058.A3 371058	-
40 - PUSHING LEVER PIECE HIT-371065.A2 371065	-
41 - WASHER D4 HIT-371062.A3 371062	-
42 - RATCHET SPRING HIT-886331.A11 886331	£1.67	£2.00
43 - BLADE GUIDE HIT-371056.A0 371056	£76.95	£92.34
44 - RATCHET SPRING HIT-881765.A6 881765	£3.02	£3.63
45 - ADJUSTER HIT-887358.A4 887358	£3.66	£4.39
46 - PUSHING LEVER ARM HOLDER (A) HIT-371060.A0 371060	-
47 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-886311.A5 886311	£1.67	£2.00
48 - LOCK PLATE HIT-371092.A1 371092	£1.67	£2.00
49 - LOCK SPRING HIT-886305.A3 886305	£1.67	£2.00
50 - GUIDE PLATE HIT-371069.A0 371069	-
51 - LOCK LEVER COVER HIT-371078.A1 371078	-
52 - LOCK LEVER HIT-371075.A0 371075	-
53 - ROLL PIN D3X22 HIT-371077.A2 371077	£1.67	£2.00
54 - ROLL PIN D3X32 HIT-371080.A6 371080	-
55 - PUSHING LEVER HIT-371082.A0 371082	£16.72	£20.06
56 - NEEDLE ROLLER D3 HIT-371072.A0 371072	-
57 - WIRE BAND HIT-6696839.A4 6696839	-
58 - SENSOR (B) HIT-371022.A2 371022	-
59 - SENSOR HOLDER (A) HIT-371052.A1 371052	-
60 - LEVER (C) HIT-331790.A4 331790	-
61 - SENSOR (C) HIT-371023.A3 371023	-
62 - SENSOR HOLDER (B) HIT-371054.A1 371054	-
63 - SENSOR HOLDER (A) HIT-371053.A5 371053	-
64 - SEAL LOCK HEX. SOCKET HD. BOLT M3X8 HIT-325241.A12 325241	£1.67	£2.00
65 - SHIELD RING HIT-371051.A5 371051	-
66 - BALL BEARING 6900VVCM HIT-371033.A3 371033	-
67 - WASHER (A) HIT-371032.A2 371032	-
68 - WHEEL SPRING (A) HIT-371027.A3 371027	-
69 - NEEDLE ROLLER D3 HIT-371030.A2 371030	-
70 - NEEDLE ROLLER D4.5 HIT-371031.A3 371031	-
71 - PIN (A) HIT-371029.A3 371029	-
72 - PIN WHEEL HIT-371026.A2 371026	-
73 - WHEEL SPRING (B) HIT-371028.A2 371028	-
74 - POSITION DETECTOR HIT-371034.A2 371034	-
75 - BALL BEARING 6901VV HIT-6901VV.A24 6901VV	£11.83	£14.20
76 - GEAR BOX ASS'Y INCLUD.77-96 HIT-371025.A3 371025	£45.50	£54.60
77 - GEAR CASE HIT-000000.A1936 000000	-
78 - WASHER (E) HIT-000000.A1937 000000	-
79 - CARRIER HIT-000000.A1938 000000	-
80 - PLANET GEAR (C) (4 PCS.) HIT-000000.A1939 000000	-
81 - RING GEAR (C) HIT-000000.A1940 000000	-
82 - WASHER (D) HIT-000000.A1941 000000	-
83 - GEAR SPACER HIT-000000.A1942 000000	-
84 - PINION (C) HIT-000000.A1943 000000	-
85 - PLANET GEAR (B) (4 PCS.) HIT-000000.A1944 000000	-
86 - RING GEAR (B) HIT-000000.A1945 000000	-
87 - WASHER (C) HIT-000000.A1946 000000	-
88 - LOCK RING HIT-000000.A1947 000000	-
89 - PINION (B) HIT-000000.A1948 000000	-
90 - NEEDLE ROLLER (A) (6 PCS.) HIT-000000.A1949 000000	-
91 - WASHER (B) HIT-000000.A1950 000000	-
92 - PLANET GEAR (A) (3 PCS.) HIT-000000.A1951 000000	-
93 - RING GEAR (A) HIT-000000.A1952 000000	-
94 - WASHER (A) HIT-000000.A1953 000000	-
95 - MOTOR SPACER HIT-000000.A1954 000000	-
96 - TAPPING SCREW D3X8 HIT-000000.A1955 000000	-
97 - ROTOR HIT-361054.A2 361054	-
98 - HOOK HIT-371214.A3 371214	£17.14	£20.57
99 - LOW HEAD HEX. SOCKET BOLT M4X8 HIT-331109.A3 331109	£3.02	£3.63
100 - LEVER (A) HIT-326276.A5 326276	£1.67	£2.00
101 - MAGAZINE COVER HIT-371084.A0 371084	£18.16	£21.79
102 - DISTANCE PIECE M5 HIT-371086.A0 371086	-
103 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-996399.A6 996399	£1.67	£2.00
104 - BOLT WASHER M5 (10 PCS.) HIT-949431.A26 949431	£1.67	£2.00
105 - MACHINE SCREW M5X15 (BLACK) HIT-885997.A5 885997	£1.67	£2.00
106 - NAIL RAIL HIT-886341.A4 886341	£9.47	£11.36
*107 - CAUTION LABEL (EU) HIT-372191.A1 372191	-
*107 - CAUTION LABEL FOR AUS HIT-371107.A3 371107	-
108 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A25 307811	£1.67	£2.00
109 - NAIL FEEDER (A) HIT-371089.A0 371089	£29.35	£35.22
110 - MAGAZINE HIT-371087.A1 371087	£23.15	£27.78
111 - NYLON NUT M5 HIT-877371.A35 877371	£1.67	£2.00
112 - REPAIR PARTS SET (NT) INCLUD.1 HIT-372991.A2 372991	£123.17	£147.80
*113 - PANEL SHEET HIT-373658.A5 373658	-
*113 - PANEL SHEET (S) FOR NZL HIT-373084.A1 373084	-
501 - CASE ASS'Y (STACKABLE 4) INCLUD.502-504 HIT-337528.A10 337528	-
502 - HANDLE HIT-336473.A64 336473	£6.43	£7.72
503 - LATCH HIT-336472.A10 336472	£1.67	£2.00
504 - HINGE HIT-336474.A10 336474	£1.67	£2.00
505A - INNER TRAY HIT-375577.A0 375577	-
506 - CASE HIT-371896.A2 371896	-
507 - NOSE CAP HIT-371094.A2 371094	£3.02	£3.63
508 - BATTERY COVER HIT-329897.A93 329897	£1.67	£2.00
*509 - PROTECTIVE GLASSES HIT-875769.A106 875769	-
509A - PROTECTIVE GLASSES FOR NZL HIT-376161.A4 376161	-
510 - POUCH CLOTH EXCEPT FOR NZL HIT-6698667.A0 6698667	-
511 - CHARGER (MODEL UC 18YSL3) HIT-000000.A1446 000000	-
511 - CHARGER (MODEL UC 18YFSL) HIT-000000.A1447 000000	-
601 - NOSE CAP THICK-BOTTOM TYPE HIT-375605.A0 375605	-

Attribute Name	Value
Brand	Hikoki
