Fein CCG 18-125 BLPD (18V) / 71200400940 Spare Parts

Fein CCG 18-125 BLPD ⠘V) / 71200400940 Spare Parts

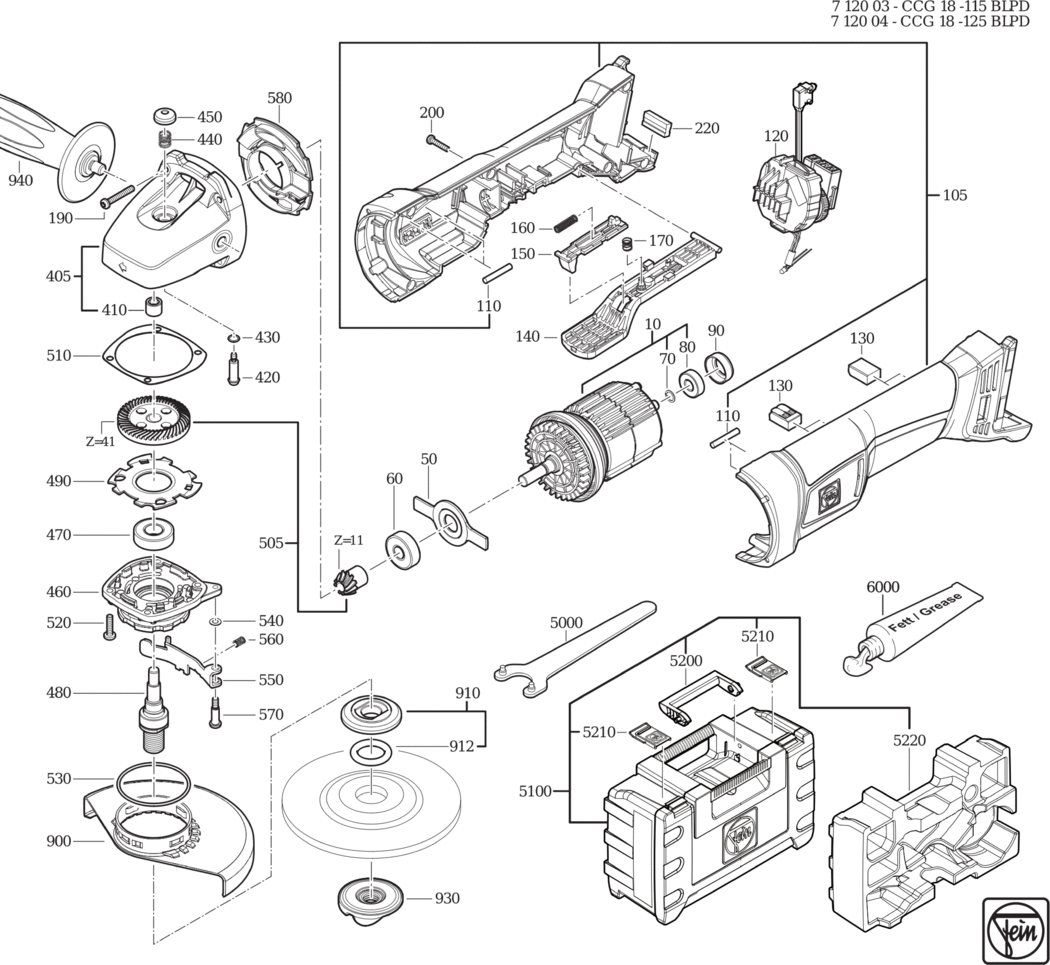

An exploded diagram and spare parts listing for the Fein CCG 18-125 BLPD (18V) / 71200400940

	Ex VAT	Inc VAT
10 - MOTOR ECG18 FEI-54113016800.A1 54113016800	£232.22	£278.67
50 - PLATE FEI-32416117000.A74 32416117000	£1.60	£1.92
60 - GROOVED BALL BEARING FEI-41701207260.A77 41701207260	£7.41	£8.89
70 - CIRCLIP FEI-42615090002.A15 42615090002	£1.60	£1.92
80 - GROOVED BALL BEARING FEI-41701001260.A182 41701001260	£7.11	£8.53
90 - BEARING BUSH FEI-30507236000.A56 30507236000	£3.19	£3.83
105 - MOTOR HOUSING SET FEI-31912119020.A0 31912119020	-
110 - PRESSURE PIECE FEI-31415183000.A1 31415183000	-
120 - ELECTRONICS FEI-30762587990.A2 30762587990	-
130 - TERMINAL FEI-30728445000.A38 30728445000	-
140 - ROCKER SWITCH FEI-32805325000.A0 32805325000	£9.34	£11.21
150 - LEVER FEI-32816717000.A1 32816717000	£8.20	£9.84
160 - SPIRAL SPRING FEI-30901307000.A1 30901307000	£8.02	£9.63
170 - SPRING FEI-30901411000.A0 30901411000	-
190 - SCREW FEI-43074012000.A1 43074012000	£1.60	£1.92
200 - SCREW FEI-43074010000.A124 43074010000	£1.60	£1.92
220 - PRESSURE PIECE FEI-31415171000.A3 31415171000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206163030.A3 31206163030	-
410 - NEEDLE SLEEVE FEI-41705006006.A51 41705006006	£7.31	£8.77
420 - BOLT FEI-30217335005.A82 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A1 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A165 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A160 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419157000.A1 32419157000	-
470 - GROOVED BALL BEARING FEI-41701010054.A237 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406299001.A34 33406299001	£26.04	£31.25
490 - PLATE FEI-32416115000.A38 32416115000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A15 33809238020	£40.91	£49.09
510 - WASHER 0.1 FEI-32624122020.A54 32624122020	£1.60	£1.92
510 - WASHER 0.15 FEI-32624122060.A9 32624122060	-
520 - FILLISTER HEAD SCREW FEI-43064024043.A168 43064024043	-
530 - SEALING RING FEI-40612000003.A56 40612000003	£1.60	£1.92
540 - DISC FEI-32408450000.A2 32408450000	£1.60	£1.92
550 - LEVER FEI-30240331000.A0 30240331000	£7.99	£9.59
560 - SPRING FEI-30901403000.A25 30901403000	£1.60	£1.92
570 - SCREW FEI-33024077000.A2 33024077000	£1.60	£1.92
580 - AIR GUIDE RING FEI-31428180000.A85 31428180000	£4.28	£5.14
900 - WHEEL GUARD FEI-31810300000.A7 31810300000	£19.05	£22.86
910 - INNER FLANGE FEI-63801182010.A221 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A0 40612000007	£1.60	£1.92
930 - QUICK-CLAMPING NUT FEI-63802191010.A0 63802191010	£47.65	£57.18
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A0 32119124010	£17.68	£21.22
5100 - PLASTIC TOOL CASES FEI-33901152390.A2 33901152390	-
5220 - CASE INSERT FEI-33904590000.A1 33904590000	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A328 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A31 34130054061	-

Attribute Name	Value
Brand	Fein
