Fein AGSZ 18-90 LBL (18V) / 71230300940 Spare Parts

Fein AGSZ 18-90 LBL ⠘V) / 71230300940 Spare Parts

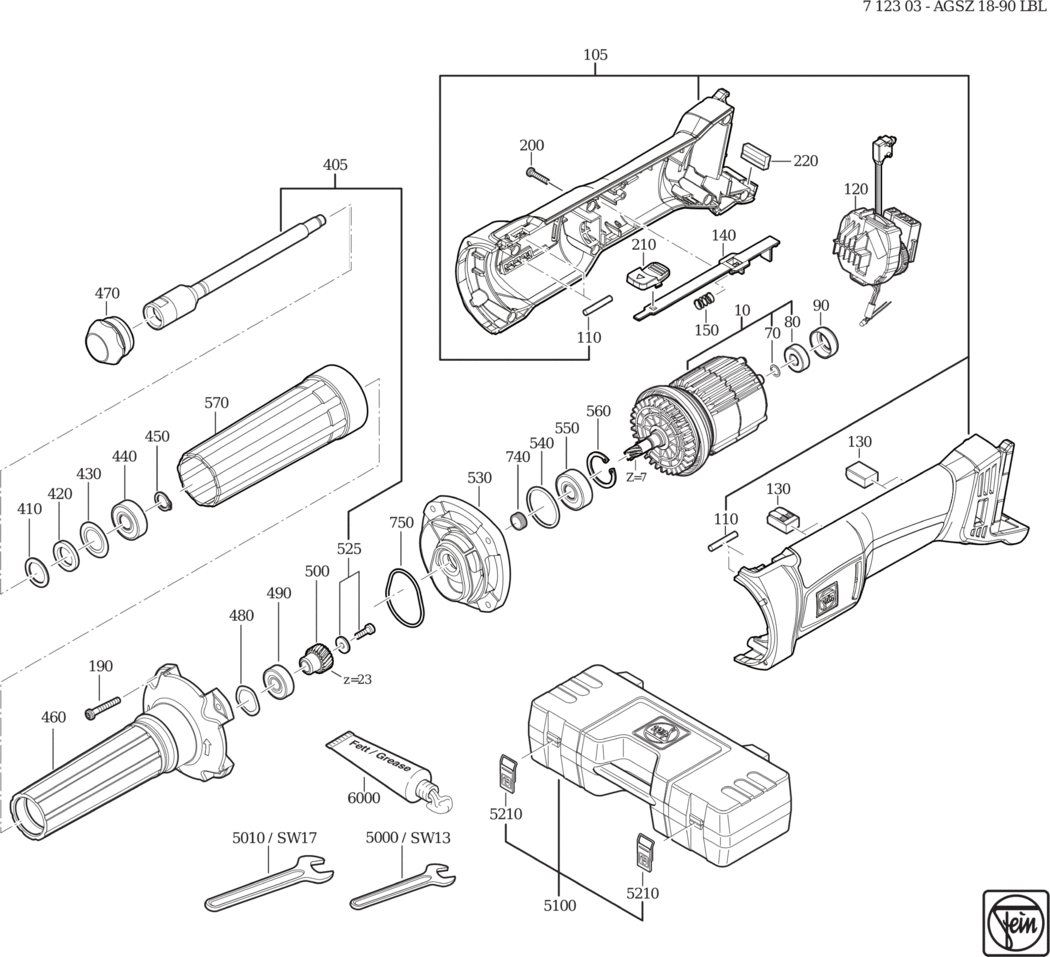

An exploded diagram and spare parts listing for the Fein AGSZ 18-90 LBL (18V) / 71230300940

	Ex VAT	Inc VAT
10 - MOTOR EC FEI-54113016830.A0 54113016830	-
70 - CIRCLIP FEI-42615090002.A25 42615090002	£1.60	£1.92
80 - GROOVED BALL BEARING FEI-41701001260.A358 41701001260	£7.11	£8.53
90 - BEARING BUSH FEI-30507236000.A217 30507236000	£3.19	£3.83
105 - MOTOR HOUSING SET FEI-31912123020.A4 31912123020	-
110 - PRESSURE PIECE FEI-31415183000.A4 31415183000	-
120 - ELECTRONICS FEI-30762594990.A0 30762594990	-
130 - TERMINAL FEI-30728445000.A11 30728445000	-
140 - CONTROL ROD FEI-32816716000.A2 32816716000	-
150 - SPRING FEI-30901416000.A2 30901416000	£1.60	£1.92
190 - SCREW FEI-43074012000.A113 43074012000	£1.60	£1.92
200 - SCREW FEI-43074010000.A49 43074010000	£1.60	£1.92
210 - SLIDE SWITCH FEI-32805306000.A26 32805306000	£4.59	£5.51
220 - PRESSURE PIECE FEI-31415171000.A13 31415171000	£1.60	£1.92
405 - SHAFT SET M.SCHRAUBE/SCREW FEI-33406357010.A3 33406357010	-
410 - DISC FEI-32408020008.A17 32408020008	£3.83	£4.60
420 - FELT RING FEI-30601047008.A15 30601047008	£1.60	£1.92
430 - DISC FEI-32411051007.A33 32411051007	£2.55	£3.06
440 - GROOVED BALL BEARING FEI-41701000006.A11 41701000006	-
450 - CIRCLIP FEI-42616013001.A31 42616013001	£1.60	£1.92
460 - COLLAR BEARING FEI-31510098010.A2 31510098010	-
470 - SLEEVE FEI-30514103000.A12 30514103000	-
480 - DISC FEI-42446000000.A0 42446000000	-
490 - GROOVED BALL BEARING FEI-41701000007.A5 41701000007	-
500 - GEAR-WHEEL FEI-33657185000.A2 33657185000	-
525 - SCREW SET M- SCHEIBE/DISK FEI-32408000009.A0 32408000009	-
530 - INTERMEDIATE GEAR BOX FEI-31506404000.A9 31506404000	-
540 - SEALING RING FEI-40612038007.A47 40612038007	£10.08	£12.10
550 - GROOVED BALL BEARING FEI-41701207260.A59 41701207260	£7.41	£8.89
560 - CIRCLIP FEI-42616001005.A32 42616001005	£1.60	£1.92
570 - PROTECTIVE HOSE FEI-31413258000.A10 31413258000	-
740 - SEALING RING FEI-32612132000.A3 32612132000	-
750 - SEALING RING FEI-40612000001.A0 40612000001	-
5000 - JAW SPANNER SW13 FEI-62901007007.A92 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A50 62903002009	£11.61	£13.93
5100 - PLASTIC TOOL CASES FEI-33901182020.A1 33901182020	-
5210 - WIRE CLAMP FEI-30232050000.A185 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A57 32160003014	-
