Fein ASW 14-14 (14.40V) / 71125800950 Spare Parts

Fein ASW 14-14 ⠔.40V) / 71125800950 Spare Parts

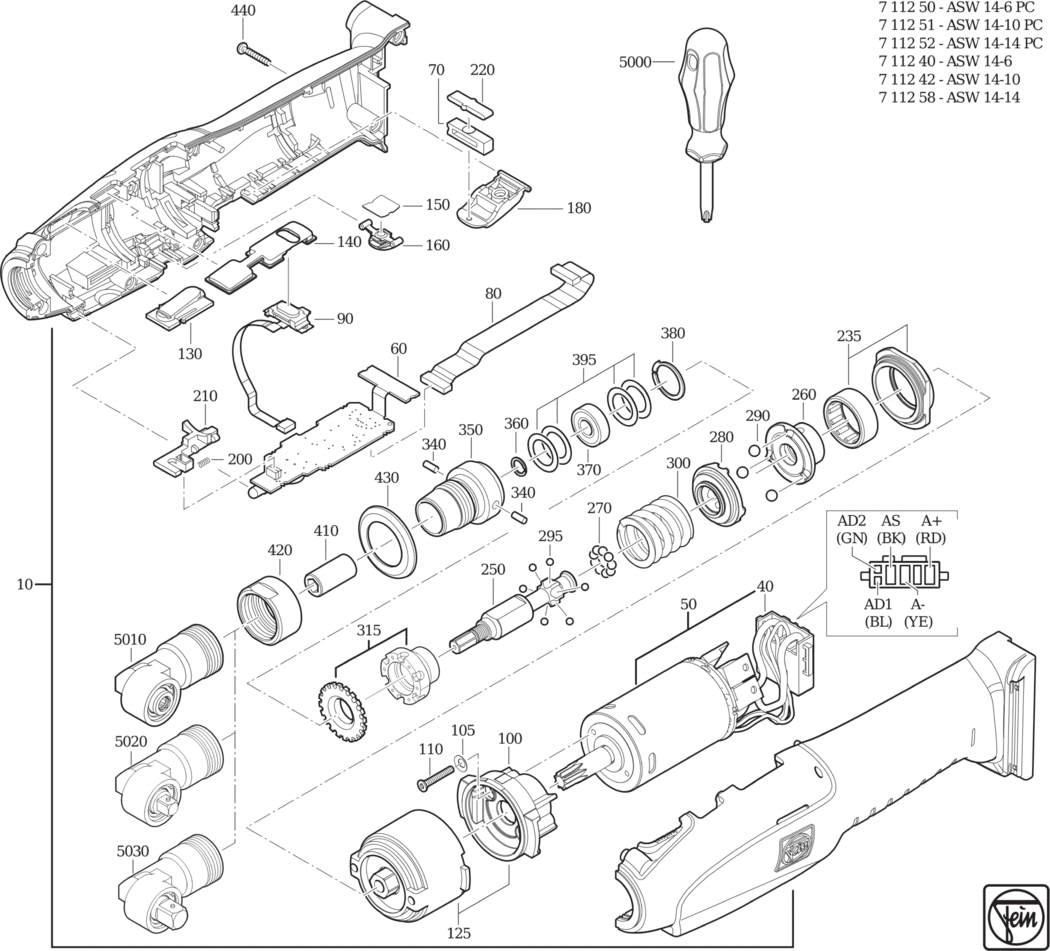

An exploded diagram and spare parts listing for the Fein ASW 14-14 (14.40V) / 71125800950

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912105010.A3 31912105010	£67.24	£80.69
50 - MOTOR SET FEI-54199058800.A0 54199058800	-
60 - ELECTRONICS FEI-30762433990.A3 30762433990	£215.82	£258.98
70 - PRESSURE PIECE FEI-30220065000.A14 30220065000	-
80 - CONNECTING CABLE FEI-30719845010.A10 30719845010	-
90 - FOIL CONDUCTOR FEI-30762377020.A14 30762377020	-
100 - FLANGE FEI-32436074000.A11 32436074000	-
105 - CIRCLIP M4 FEI-42443003043.A150 42443003043	£1.60	£1.92
110 - COUNTERSUNK SCREW FEI-43075001030.A11 43075001030	-
125 - PLANETARY GEAR FEI-30109197020.A1 30109197020	-
130 - COVER FEI-32424025004.A4 32424025004	-
140 - COVER FEI-32424026000.A13 32424026000	-
150 - LEAF SPRING FEI-30904043000.A3 30904043000	-
160 - SWITCH PUSHBUTTON FEI-32805221000.A14 32805221000	-
180 - SWITCH PUSHBUTTON FEI-32805220000.A2 32805220000	-
200 - SPIRAL SPRING FEI-30901379000.A12 30901379000	-
210 - SLIDE SWITCH FEI-32804003010.A2 32804003010	-
220 - SWITCH PUSHBUTTON FEI-32816710000.A3 32816710000	-
235 - BUSH FEI-30508040010.A15 30508040010	-
250 - TOOL HOLDER FEI-30104143000.A4 30104143000	-
260 - CLUTCH RING FEI-30103051001.A3 30103051001	-
270 - BALL FEI-41708017002.A60 41708017002	£1.60	£1.92
280 - CLUTCH RING FEI-30103052000.A51 30103052000	-
290 - BALL FEI-41708018000.A27 41708018000	£1.60	£1.92
295 - BALL FEI-41708018000.A28 41708018000	£1.60	£1.92
300 - SPIRAL SPRING FEI-30901389000.A2 30901389000	-
315 - PRESSURE PIECE SET FEI-32602092010.A37 32602092010	-
340 - STRAIGHT PIN FEI-40201022008.A19 40201022008	-
350 - FLANGE FEI-32436073000.A6 32436073000	-
360 - CIRCLIP FEI-42615090002.A30 42615090002	£1.60	£1.92
370 - GROOVED BALL BEARING FEI-41701001260.A320 41701001260	£7.11	£8.53
380 - CIRCLIP FEI-42616033009.A92 42616033009	£1.60	£1.92
395 - DISC SET FEI-32624192990.A1 32624192990	-
410 - CLUTCH PART FEI-30101038000.A5 30101038000	-
420 - THREAD RING FEI-30509048000.A7 30509048000	-
430 - SLEEVE ROT/RED FEI-30501356000.A0 30501356000	-
440 - SCREW FEI-43072015000.A51 43072015000	£1.60	£1.92
5000 - ADJUSTMENT SPANNER - TORQUE FEI-32123002006.A13 32123002006	£15.36	£18.43
5010 - ANGLED HEAD BASIC FEI-90102012010.A8 90102012010	£613.88	£736.66
5020 - ANGLED HEAD BASIC FEI-90102014010.A7 90102014010	£705.08	£846.09
5030 - ANGLED HEAD BASIC FEI-90102013010.A4 90102013010	£613.88	£736.66
9000 - OPERATING INSTRUCTIONS FEI-34101230060.A1 34101230060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A733 34130054061	-
