Fein ASM 10-4 (10.80V) / 71122700110 Spare Parts

Fein ASM 10-4 ⠐.80V) / 71122700110 Spare Parts

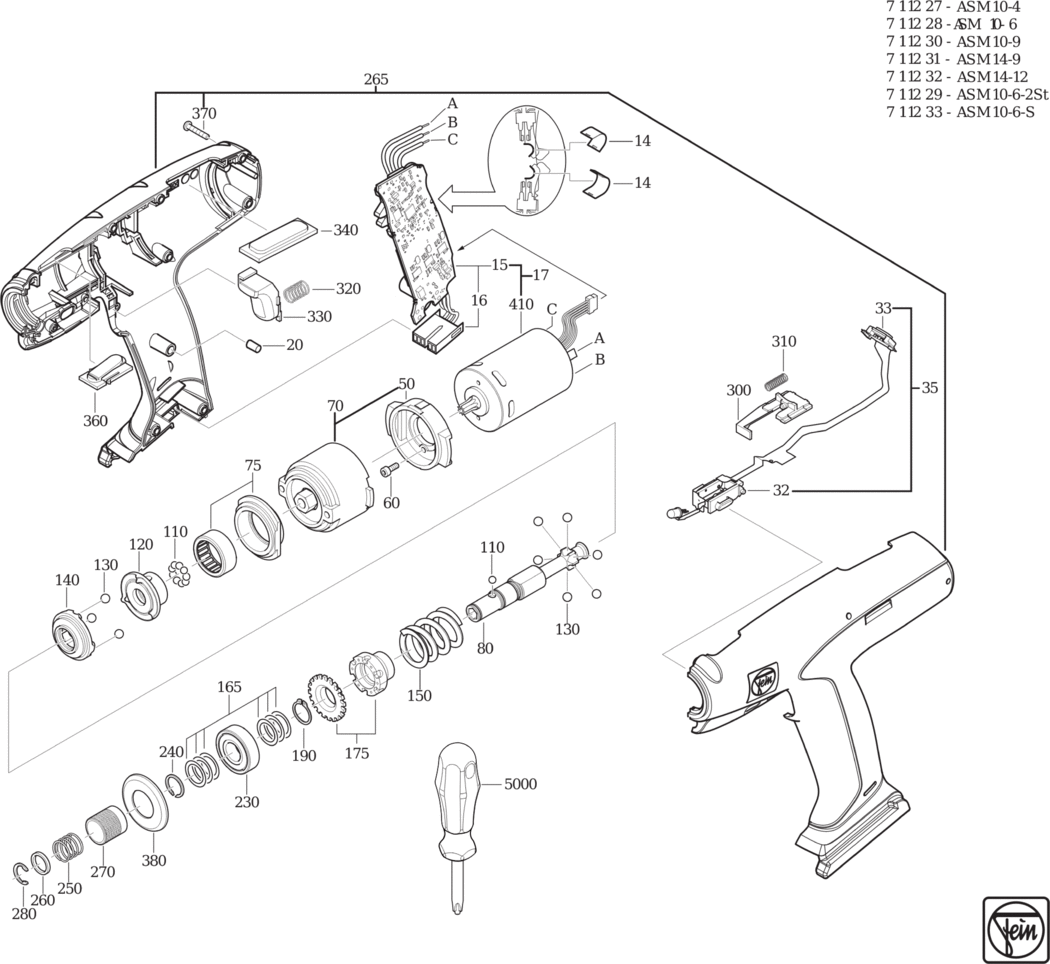

An exploded diagram and spare parts listing for the Fein ASM 10-4 (10.80V) / 71122700110

	Ex VAT	Inc VAT
14 - LEAF SPRING VE10 FEI-30904046099.A8 30904046099	-
15 - ELECTRONICS FEI-30762413990.A0 30762413990	-
17 - ELECTRONICS WITH MOTOR FEI-54199031800.A0 54199031800	-
20 - PRESSURE PIECE FEI-31415061003.A32 31415061003	£1.60	£1.92
32 - SWITCH PUSHBUTTON FEI-32805204002.A5 32805204002	-
33 - HOLDER FEI-30240264009.A7 30240264009	-
35 - FOIL CONDUCTOR FEI-30762426990.A5 30762426990	-
50 - FLANGE FEI-32436070001.A22 32436070001	-
60 - CYLINDER HEAD SCREW FEI-43035117034.A5 43035117034	-
70 - PLANETARY GEAR FEI-30109198020.A2 30109198020	-
75 - BUSH FEI-30508040010.A8 30508040010	-
80 - TOOL HOLDER FEI-30104135008.A0 30104135008	-
110 - BALL FEI-41708017002.A73 41708017002	£1.60	£1.92
120 - CLUTCH RING FEI-30103051001.A10 30103051001	-
130 - BALL FEI-41708018000.A14 41708018000	£1.60	£1.92
140 - CLUTCH RING FEI-30103052000.A37 30103052000	-
150 - SPIRAL SPRING FEI-30901368002.A4 30901368002	-
165 - DISC SET FEI-32408310990.A6 32408310990	-
175 - PRESSURE PIECE SET FEI-32602092010.A42 32602092010	-
190 - CIRCLIP FEI-42616006007.A67 42616006007	£1.60	£1.92
230 - GROOVED BALL BEARING FEI-41701010054.A32 41701010054	£8.25	£9.90
240 - CIRCLIP FEI-42615110009.A14 42615110009	£1.60	£1.92
250 - SPIRAL SPRING FEI-30901315002.A35 30901315002	£3.92	£4.70
260 - RING FEI-32601242005.A31 32601242005	£6.76	£8.11
265 - MOTOR HOUSING FEI-31912098020.A2 31912098020	-
270 - SLEEVE FEI-30503154000.A0 30503154000	-
280 - CIRCLIP FEI-42615081002.A53 42615081002	£1.60	£1.92
300 - SLIDE SWITCH FEI-32804002010.A23 32804002010	-
310 - SPIRAL SPRING FEI-30901370000.A0 30901370000	-
320 - SPIRAL SPRING FEI-30901357005.A63 30901357005	£2.38	£2.86
330 - SWITCH PUSHBUTTON FEI-32805203004.A22 32805203004	-
340 - HOUSING INSERT FEI-32414115000.A19 32414115000	-
360 - COVER FEI-32424025004.A11 32424025004	-
370 - SCREW FEI-43072015000.A70 43072015000	£1.60	£1.92
380 - SLEEVE FEI-30501350000.A2 30501350000	-
410 - MOTOR FEI-54199012020.A3 54199012020	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A422 34130054061	-

Attribute Name	Value
Brand	Fein
