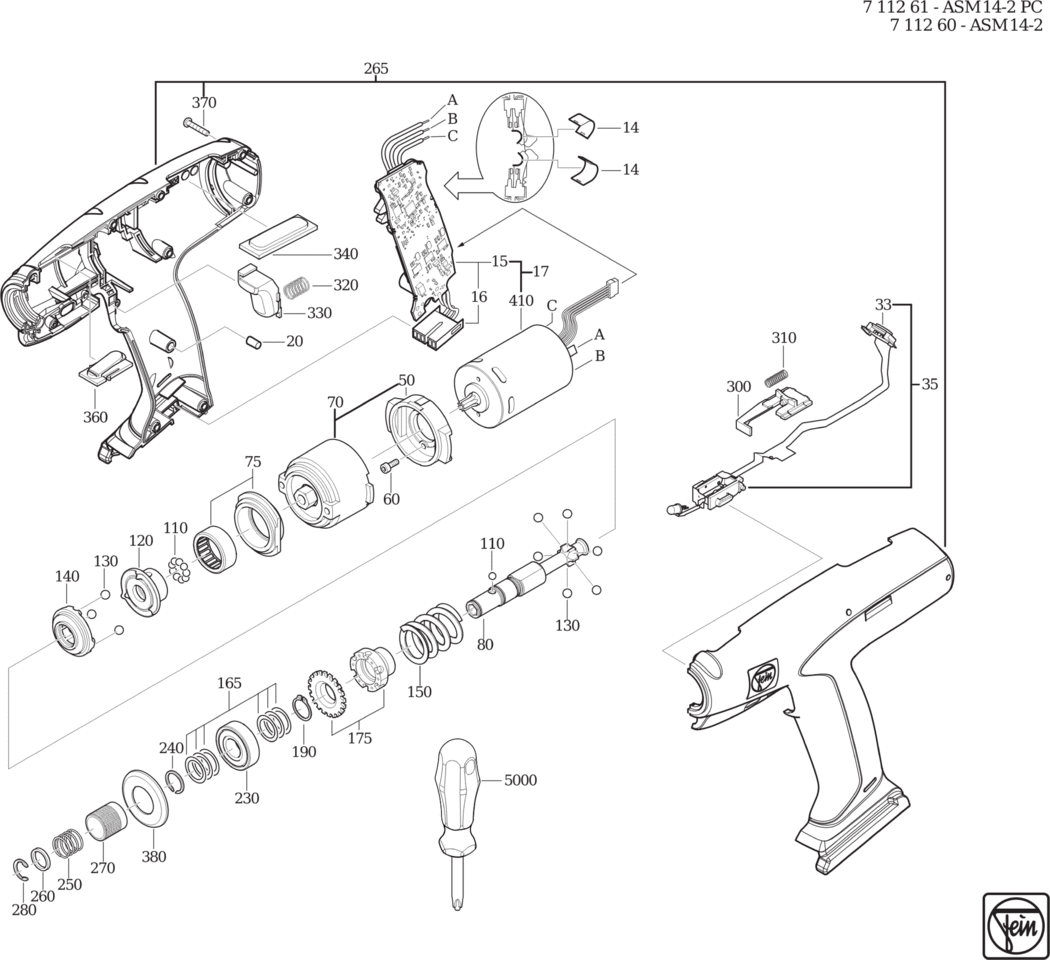

An exploded diagram and spare parts listing for the Fein ASM 14-2 PC (14.40V) / 71126100950
Ex VAT Inc VAT
14 - LEAF SPRING VE10 FEI-30904046099.A15 30904046099 -
15 - ELECTRONICS FEI-30762517990.A0 30762517990 -
16 - PLUG FEI-30703058000.A13 30703058000 -
17 - MOTOR FEI-54199062800.A0 54199062800 -
20 - PRESSURE PIECE FEI-31415061003.A14 31415061003 £1.60 £1.92
32 - SWITCH PUSHBUTTON FEI-32805204002.A13 32805204002 -
33 - HOLDER FEI-30240264009.A19 30240264009 -
35 - FOIL CONDUCTOR FEI-30762426990.A12 30762426990 -
50 - FLANGE FEI-32436070001.A6 32436070001 -
60 - CYLINDER HEAD SCREW FEI-43035117034.A19 43035117034 -
70 - PLANETARY GEAR FEI-30109197020.A8 30109197020 -
75 - BUSH FEI-30508040010.A20 30508040010 -
80 - TOOL HOLDER FEI-30104135008.A14 30104135008 -
110 - BALL FEI-41708017002.A8 41708017002 £1.60 £1.92
120 - CLUTCH RING FEI-30103051001.A37 30103051001 -
130 - BALL FEI-41708018000.A88 41708018000 £1.60 £1.92
140 - CLUTCH RING FEI-30103052000.A5 30103052000 -
150 - SPRING FEI-30901405000.A1 30901405000 -
165 - DISC SET FEI-32408310990.A12 32408310990 -
175 - PRESSURE PIECE SET FEI-32602092010.A7 32602092010 -
190 - CIRCLIP FEI-42616006007.A52 42616006007 £1.60 £1.92
230 - GROOVED BALL BEARING FEI-41701010054.A315 41701010054 £8.25 £9.90
240 - CIRCLIP FEI-42615110009.A46 42615110009 £1.60 £1.92
250 - SPIRAL SPRING FEI-30901315002.A2 30901315002 £3.92 £4.70
260 - RING FEI-32601242005.A3 32601242005 £6.76 £8.11
265 - MOTOR HOUSING FEI-31912098020.A8 31912098020 -
270 - SLEEVE FEI-30503154000.A24 30503154000 -
280 - CIRCLIP FEI-42615081002.A118 42615081002 £1.60 £1.92
300 - SLIDE SWITCH FEI-32804002010.A2 32804002010 -
310 - SPIRAL SPRING FEI-30901370000.A24 30901370000 -
320 - SPIRAL SPRING FEI-30901357005.A175 30901357005 £2.38 £2.86
330 - SWITCH PUSHBUTTON FEI-32805203004.A14 32805203004 -
340 - HOUSING INSERT FEI-32414115000.A14 32414115000 -
360 - COVER FEI-32424025004.A24 32424025004 -
370 - SCREW FEI-43072015000.A8 43072015000 £1.60 £1.92
380 - SLEEVE FEI-30501348000.A0 30501348000 -
410 - MOTOR FEI-54199012020.A17 54199012020 -
5000 - ADJUSTMENT SPANNER - TORQUE FEI-32123002006.A8 32123002006 £15.36 £18.43
