Fein ASM 14-9 (14.40V) / 71125900950 Spare Parts

Fein ASM 14-9 ⠔.40V) / 71125900950 Spare Parts

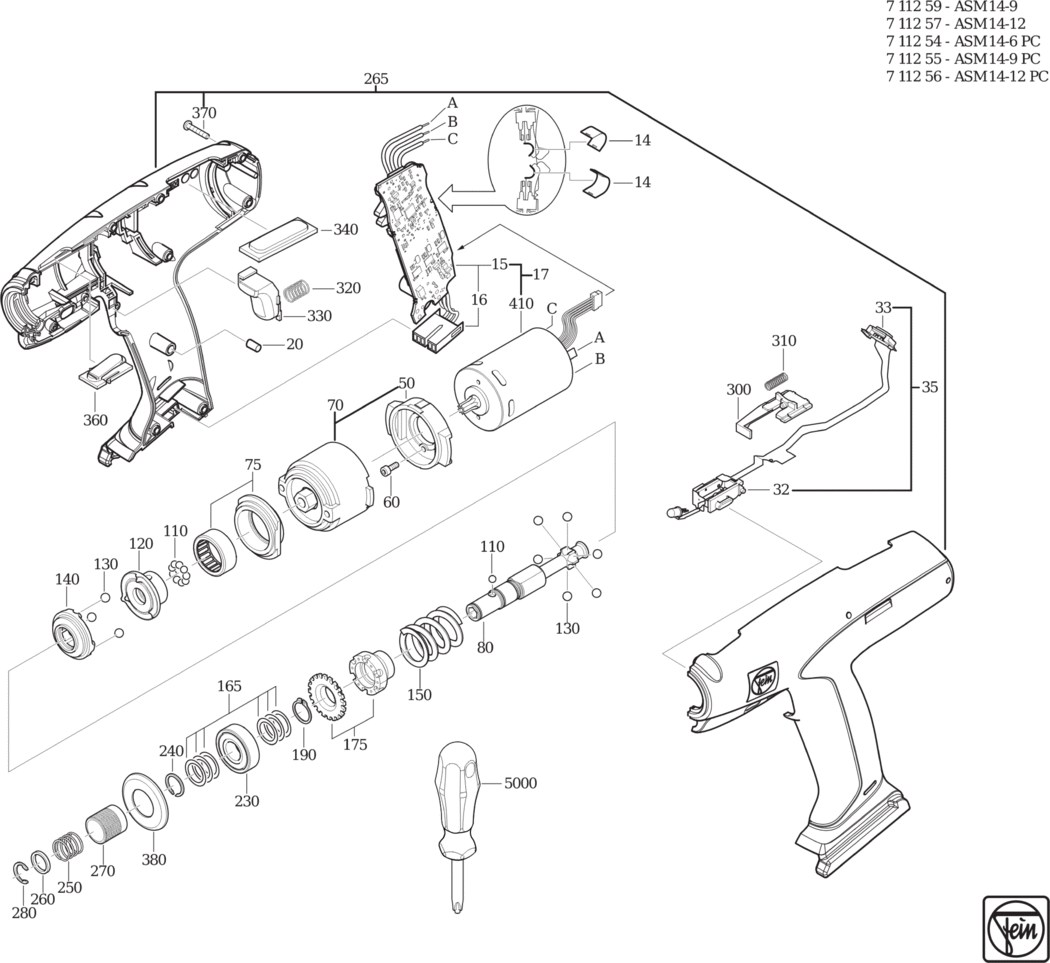

An exploded diagram and spare parts listing for the Fein ASM 14-9 (14.40V) / 71125900950

	Ex VAT	Inc VAT
15 - ELECTRONICS FEI-30762486990.A0 30762486990	-
16 - PLUG FEI-30703058000.A10 30703058000	-
17 - MOTOR FEI-54199035800.A1 54199035800	-
20 - PRESSURE PIECE FEI-31415061003.A11 31415061003	£1.60	£1.92
32 - SWITCH PUSHBUTTON FEI-32805204002.A20 32805204002	-
33 - HOLDER FEI-30240264009.A21 30240264009	-
35 - FOIL CONDUCTOR FEI-30762426990.A8 30762426990	-
50 - FLANGE FEI-32436070001.A9 32436070001	-
60 - CYLINDER HEAD SCREW FEI-43035117034.A21 43035117034	-
70 - PLANETARY GEAR FEI-30109197020.A4 30109197020	-
75 - BUSH FEI-30508040010.A39 30508040010	-
80 - TOOL HOLDER FEI-30104135008.A24 30104135008	-
110 - BALL FEI-41708017002.A36 41708017002	£1.60	£1.92
120 - CLUTCH RING FEI-30103051001.A23 30103051001	-
130 - BALL FEI-41708018000.A50 41708018000	£1.60	£1.92
140 - CLUTCH RING FEI-30103052000.A21 30103052000	-
150 - SPIRAL SPRING FEI-30901372000.A8 30901372000	-
165 - DISC SET FEI-32408310990.A20 32408310990	-
175 - PRESSURE PIECE SET FEI-32602092010.A23 32602092010	-
190 - CIRCLIP FEI-42616006007.A23 42616006007	£1.60	£1.92
230 - GROOVED BALL BEARING FEI-41701010054.A214 41701010054	£8.25	£9.90
240 - CIRCLIP FEI-42615110009.A56 42615110009	£1.60	£1.92
250 - SPIRAL SPRING FEI-30901315002.A18 30901315002	£3.92	£4.70
260 - RING FEI-32601242005.A18 32601242005	£6.76	£8.11
265 - MOTOR HOUSING FEI-31912098020.A6 31912098020	-
270 - SLEEVE FEI-30503154000.A16 30503154000	-
280 - CIRCLIP FEI-42615081002.A88 42615081002	£1.60	£1.92
300 - SLIDE SWITCH FEI-32804002010.A11 32804002010	-
310 - SPIRAL SPRING FEI-30901370000.A33 30901370000	-
320 - SPIRAL SPRING FEI-30901357005.A115 30901357005	£2.38	£2.86
330 - SWITCH PUSHBUTTON FEI-32805203004.A1 32805203004	-
340 - HOUSING INSERT FEI-32414115000.A5 32414115000	-
360 - COVER FEI-32424025004.A42 32424025004	-
370 - SCREW FEI-43072015000.A32 43072015000	£1.60	£1.92
380 - SLEEVE FEI-30501345003.A2 30501345003	-
410 - MOTOR FEI-54199012020.A20 54199012020	-
5000 - ADJUSTMENT SPANNER - TORQUE FEI-32123002006.A11 32123002006	£15.36	£18.43
9020 - SAFETY INSTRUCTION FEI-34130054061.A393 34130054061	-
