Fein AKBU 35 PMQ (18V) / 71700100940 Spare Parts

Fein AKBU 35 PMQ ⠘V) / 71700100940 Spare Parts

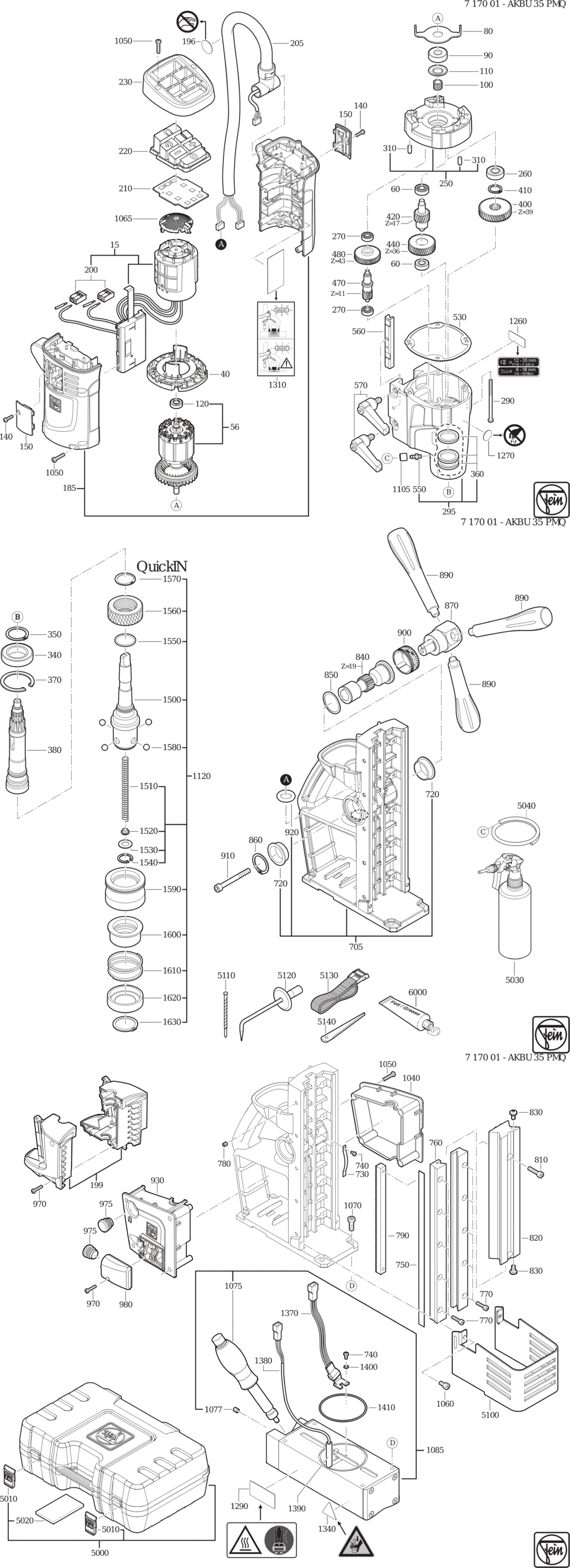

An exploded diagram and spare parts listing for the Fein AKBU 35 PMQ (18V) / 71700100940

	Ex VAT	Inc VAT
15 - STATOR WITH ELECTRONICS FEI-52113003940.A1 52113003940	-
40 - AIR GUIDE RING FEI-31428200000.A1 31428200000	-
56 - ROTOR FEI-33102013040.A1 33102013040	-
60 - GROOVED BALL BEARING FEI-41701001172.A167 41701001172	£9.63	£11.56
80 - PLATE FEI-32416098005.A25 32416098005	£1.60	£1.92
90 - GROOVED BALL BEARING FEI-41701207260.A0 41701207260	£7.41	£8.89
100 - SEALING RING FEI-32612135000.A23 32612135000	£9.45	£11.34
110 - SEALING RING FEI-42639028003.A36 42639028003	£5.74	£6.89
120 - GROOVED BALL BEARING FEI-41701120030.A0 41701120030	-
140 - SCREW FEI-43072000000.A152 43072000000	£1.60	£1.92
150 - COVER FEI-32427157000.A0 32427157000	£4.97	£5.96
185 - MOTOR HOUSING SET FEI-31901202020.A0 31901202020	-
196 - STICKER FEI-32217468060.A33 32217468060	-
199 - HOUSING SET FEI-31207334010.A0 31207334010	-
200 - TERMINAL FEI-30728445000.A0 30728445000	-
205 - PROTECTIVE HOSE SET FEI-31414074010.A1 31414074010	-
210 - ELECTRONICS FEI-30762585990.A0 30762585990	-
220 - SWITCH INSERT FEI-32816078000.A14 32816078000	£37.72	£45.27
230 - COVER FEI-32429141000.A35 32429141000	£14.66	£17.59
250 - INTERMEDIATE GEAR BOX FEI-31506412010.A29 31506412010	-
260 - GROOVED BALL BEARING FEI-41701006034.A6 41701006034	£11.83	£14.20
270 - GROOVED BALL BEARING FEI-41701202018.A91 41701202018	£6.92	£8.30
290 - SCREW FEI-43072006001.A18 43072006001	-
295 - GEARBOX HOUSING FEI-31508310020.A0 31508310020	-
310 - PIN FEI-40242058004.A11 40242058004	-
340 - GROOVED BALL BEARING FEI-41701000015.A30 41701000015	-
350 - CIRCLIP FEI-42616014009.A1 42616014009	£1.60	£1.92
360 - SEALING RING FEI-40608000005.A6 40608000005	-
370 - CIRCLIP FEI-42616022006.A4 42616022006	-
380 - SHAFT FEI-33402056000.A2 33402056000	-
400 - GEAR-WHEEL Z=39 FEI-33663174000.A15 33663174000	-
410 - CIRCLIP FEI-42616007001.A60 42616007001	£1.60	£1.92
420 - SHAFT TOOTHED Z=17 FEI-33763064000.A13 33763064000	-
440 - GEAR-WHEEL Z=36 FEI-33661002000.A33 33661002000	-
470 - SHAFT TOOTHED FEI-33761002000.A13 33761002000	-
480 - GEAR-WHEEL FEI-33657190000.A5 33657190000	£38.05	£45.66
530 - SEAL FEI-30610048000.A39 30610048000	-
550 - HOSE SOCKET FEI-41138025006.A88 41138025006	£8.40	£10.08
560 - PRESSURE PIECE FEI-33218134000.A49 33218134000	-
570 - LEVER FEI-32170025000.A35 32170025000	£26.84	£32.21
705 - HOUSING FEI-31207320020.A27 31207320020	-
720 - BUSH FEI-31602089009.A79 31602089009	-
730 - LEAF SPRING FEI-30904047000.A7 30904047000	-
740 - SCREW FEI-43076001030.A31 43076001030	-
750 - PRESSURE PIECE FEI-33216047000.A34 33216047000	£5.35	£6.42
760 - GUIDE STRIP FEI-34300000002.A6 34300000002	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A55 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A66 43058008051	-
790 - GEAR RACK FEI-33812007004.A79 33812007004	£101.03	£121.24
810 - CYLINDER HEAD SCREW FEI-43035017057.A84 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000003.A23 34300000003	-
830 - FILLISTER HEAD SCREW FEI-43041041053.A20 43041041053	£1.60	£1.92
840 - SHAFT TOOTHED FEI-33713073000.A22 33713073000	-
850 - DISC FEI-42446003009.A30 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A45 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A15 30109201010	-
890 - HANDLE FEI-32119114014.A68 32119114014	£19.35	£23.22
900 - SCALE FEI-32636046000.A22 32636046000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A46 43035084062	-
920 - SEALING RING FEI-40612171000.A13 40612171000	-
930 - COVER LEFT FEI-32424040000.A1 32424040000	-
970 - SCREW FEI-43074010000.A86 43074010000	£1.60	£1.92
975 - PLUG FEI-31420128000.A4 31420128000	-
980 - COVER FEI-32424031000.A64 32424031000	£12.77	£15.32
1040 - COVER FEI-32424033000.A25 32424033000	-
1050 - SCREW FEI-43074008000.A97 43074008000	£1.60	£1.92
1060 - CYLINDER HEAD SCREW FEI-43035013058.A32 43035013058	£1.60	£1.92
1065 - PROTECTIVE GRILLE FEI-32901054000.A0 32901054000	£3.17	£3.80
1070 - CYLINDER HEAD SCREW FEI-43033064066.A58 43033064066	£1.60	£1.92
1075 - LEVER FEI-32172032020.A0 32172032020	-
1077 - SET SCREW FEI-43045000002.A2 43045000002	-
1085 - MAGNETIC FOOT FEI-32172032000.A5 32172032000	-
1105 - SLEEVE FEI-30501377000.A24 30501377000	-
1120 - QUICKIN-ADAPTORS FEI-63901065020.A2 63901065020	£244.65	£293.58
1260 - INFORMATION SIGN FEI-32217519000.A7 32217519000	-
1270 - STICKER FEI-32217406002.A46 32217406002	£1.60	£1.92
1290 - STICKER FEI-32217407000.A21 32217407000	-
1310 - INFORMATION SIGN FEI-32217466060.A20 32217466060	-
1350 - INFORMATION SIGN FEI-32217552000.A21 32217552000	£1.60	£1.92
1370 - SWITCH FEI-30701313010.A0 30701313010	-
1380 - SENSOR FEI-30767143000.A2 30767143000	-
1390 - HOSE FEI-31413264000.A5 31413264000	-
1400 - CIRCLIP M3 FEI-42443001030.A1 42443001030	-
1410 - SEALING RING FEI-40612049000.A22 40612049000	£7.56	£9.07
1500 - SHAFT FEI-33401106000.A2 33401106000	-
1510 - SPIRAL SPRING FEI-30901341000.A36 30901341000	£5.99	£7.19
1520 - SEALING RING FEI-30503145006.A37 30503145006	£3.52	£4.23
1530 - DISC FEI-32408389000.A40 32408389000	£1.60	£1.92
1540 - CIRCLIP FEI-42616075007.A24 42616075007	-
1550 - SEALING RING FEI-40612073006.A2 40612073006	£1.60	£1.92
1560 - NUT FEI-42015069000.A1 42015069000	-
1570 - CIRCLIP FEI-42643015005.A2 42643015005	£1.60	£1.92
1580 - BALL FEI-41708025004.A2 41708025004	£1.60	£1.92
1590 - CLAMPING SLEEVE FEI-30503163000.A5 30503163000	-
1600 - BUSH FEI-30510089000.A5 30510089000	-
1610 - SPRING FEI-30901391000.A8 30901391000	-
1620 - SLEEVE FEI-30503164000.A10 30503164000	-
1630 - CIRCLIP 28X1 5 FEI-42616076000.A25 42616076000	-
5000 - N.A. FEI-33901174060.A10 33901174060	£131.31	£157.57
5010 - WIRE CLAMP FEI-30232050000.A45 30232050000	£10.78	£12.94
5020 - INSERT FEI-33904576000.A26 33904576000	-
5030 - PUMP FEI-32132022007.A6 32132022007	£19.91	£23.89
5040 - REPLACEMENT HOSE FEI-31414054008.A17 31414054008	£6.47	£7.76
5100 - PROTECTIVE GRILLE FEI-31810307000.A0 31810307000	-
5110 - CENTERING PIN FEI-63134998310.A23 63134998310	£25.18	£30.21
5120 - HOOK F. CHIP REMOVAL FEI-64201001000.A1 64201001000	£61.87	£74.24
5130 - STRAP SAFETY FEI-32174008007.A89 32174008007	£33.23	£39.88
5140 - DRIFT KEYS FEI-63305003003.A33 63305003003	£10.56	£12.67
6000 - LUBRICANT CAN 1000 G FEI-32132041000.A32 32132041000	-
9020 - SAFETY INSTRUCTION FEI-34130465060.A3 34130465060	-
