Fein ASCD 18 W4 / 71150200940 Spare Parts

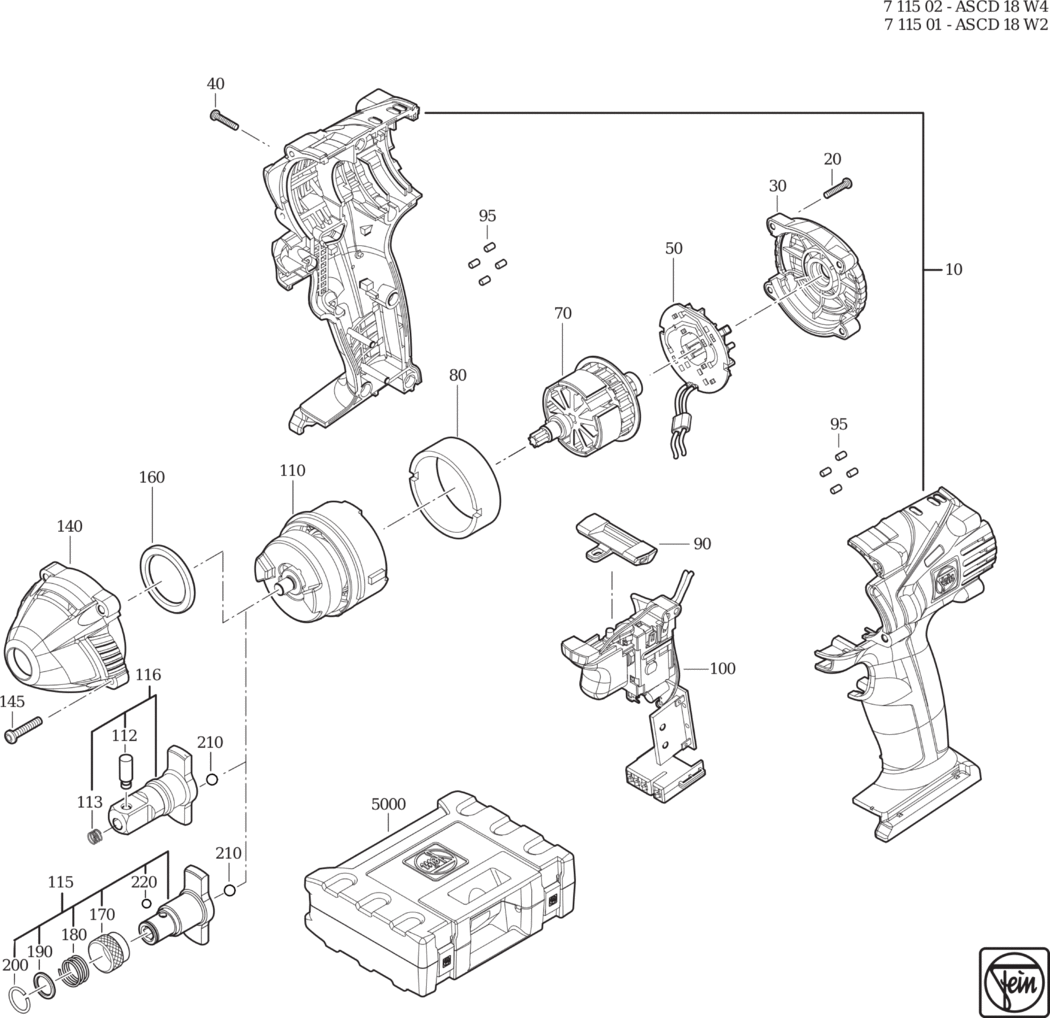

An exploded diagram and spare parts listing for the Fein ASCD 18 W4 / 71150200940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31333081000.A0 31333081000	£55.56	£66.67
20 - SCREW FEI-31333125000.A2 31333125000	£1.60	£1.92
30 - COVER FEI-31333082000.A1 31333082000	£14.43	£17.32
40 - SCREW FEI-43072015000.A31 43072015000	£1.60	£1.92
50 - BRUSH HOLDER SET FEI-31333121000.A3 31333121000	£27.03	£32.44
70 - ARMATURE 18V FEI-31333087010.A0 31333087010	£69.63	£83.56
80 - STATOR 18V FEI-31333088000.A1 31333088000	£77.62	£93.15
90 - TOGGLE SWITCH FEI-31333083000.A0 31333083000	-
95 - PRESSURE PIECE FEI-31333084000.A1 31333084000	£1.60	£1.92
100 - SWITCH 18V FEI-31333093000.A3 31333093000	£119.32	£143.19
110 - GEARBOX FEI-31333089010.A0 31333089010	£116.47	£139.76
115 - TOOL HOLDER 1/4 INNEN/INSIDE FEI-31333104010.A0 31333104010	£71.02	£85.23
140 - GEARBOX HOUSING FEI-31333111000.A1 31333111000	£47.38	£56.85
145 - SCREW FEI-31333112000.A0 31333112000	-
160 - DISC FEI-31333110000.A0 31333110000	£1.60	£1.92
170 - SLEEVE FEI-31333106000.A0 31333106000	£12.77	£15.32
180 - SPRING FEI-31333107000.A0 31333107000	-
190 - DISC FEI-31333108000.A0 31333108000	£5.38	£6.45
200 - CIRCLIP FEI-31333109000.A0 31333109000	£1.60	£1.92
210 - BALL FEI-41708018000.A46 41708018000	£1.60	£1.92
220 - BALL FEI-41708015005.A19 41708015005	£1.60	£1.92
5000 - PLASTIC TOOL CASES FEI-33901141010.A2 33901141010	£31.28	£37.53
9020 - SAFETY INSTRUCTION FEI-34130054061.A320 34130054061	-
