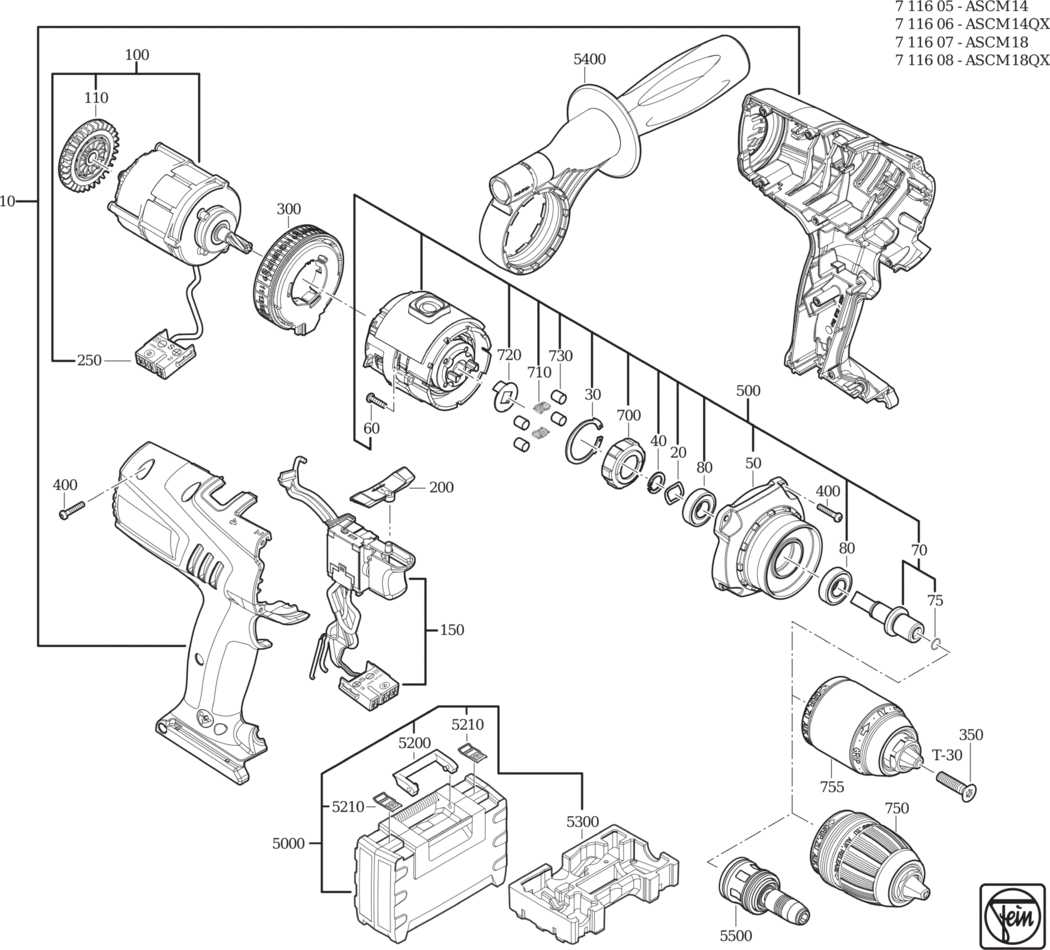

An exploded diagram and spare parts listing for the Fein ASCM 18 QX (18V) / 71160800940
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31912117010.A6 31912117010 -
20 - DISC FEI-30235026000.A4 30235026000 £1.60 £1.92
30 - CIRCLIP FEI-31305457000.A7 31305457000 -
40 - CIRCLIP FEI-42616013001.A36 42616013001 £1.60 £1.92
50 - HOUSING FEI-32436075000.A4 32436075000 £31.58 £37.90
60 - SCREW FEI-33024075000.A0 33024075000 -
70 - SHAFT FEI-33403120000.A2 33403120000 -
75 - CIRCLIP FEI-30240382000.A2 30240382000 -
80 - GROOVED BALL BEARING FEI-31305456000.A1 31305456000 -
100 - MOTOR FEI-54113002800.A2 54113002800 £171.25 £205.50
110 - FAN WHEEL FEI-31004051000.A21 31004051000 -
150 - SWITCH FEI-30701318970.A2 30701318970 -
200 - TOGGLE SWITCH FEI-32805308000.A5 32805308000 -
250 - PLUG 18V FEI-30703054000.A5 30703054000 £5.78 £6.94
300 - ADJUSTING RING FEI-32816074010.A5 32816074010 £51.48 £61.78
400 - SCREW FEI-43072015000.A61 43072015000 £1.60 £1.92
450 - NUT FEI-42017000000.A4 42017000000 -
500 - GEARBOX FEI-30109210010.A2 30109210010 £117.88 £141.46
700 - SPINDLE LOCK FEI-30240320000.A3 30240320000 -
710 - SPRING FEI-30240322000.A1 30240322000 -
720 - HOLDER FEI-30240323000.A3 30240323000 -
730 - ROLLER FEI-30240318000.A0 30240318000 -
750 - DRILL CHUCK FEI-63208001020.A2 63208001020 £74.18 £89.01
5000 - TOOL CASE FEI-33901128580.A2 33901128580 £61.28 £73.54
5200 - HANDLE FEI-32119122000.A97 32119122000 -
5210 - WIRE CLAMP FEI-30232050000.A169 30232050000 £10.78 £12.94
5300 - CASE INSERT FEI-33904580000.A4 33904580000 -
5400 - HANDLE FEI-31204189000.A2 31204189000 £18.32 £21.99
5500 - BIT HOLDER FEI-60510219010.A0 60510219010 £41.68 £50.01
9000 - OPERATING INSTRUCTIONS FEI-34101193060.A2 34101193060 -
