Fein ABLK 1.3 CSE (14.40V) / 71320200950 Spare Parts

Fein ABLK 1.3 CSE ⠔.40V) / 71320200950 Spare Parts
Home Details Reviews Delivery

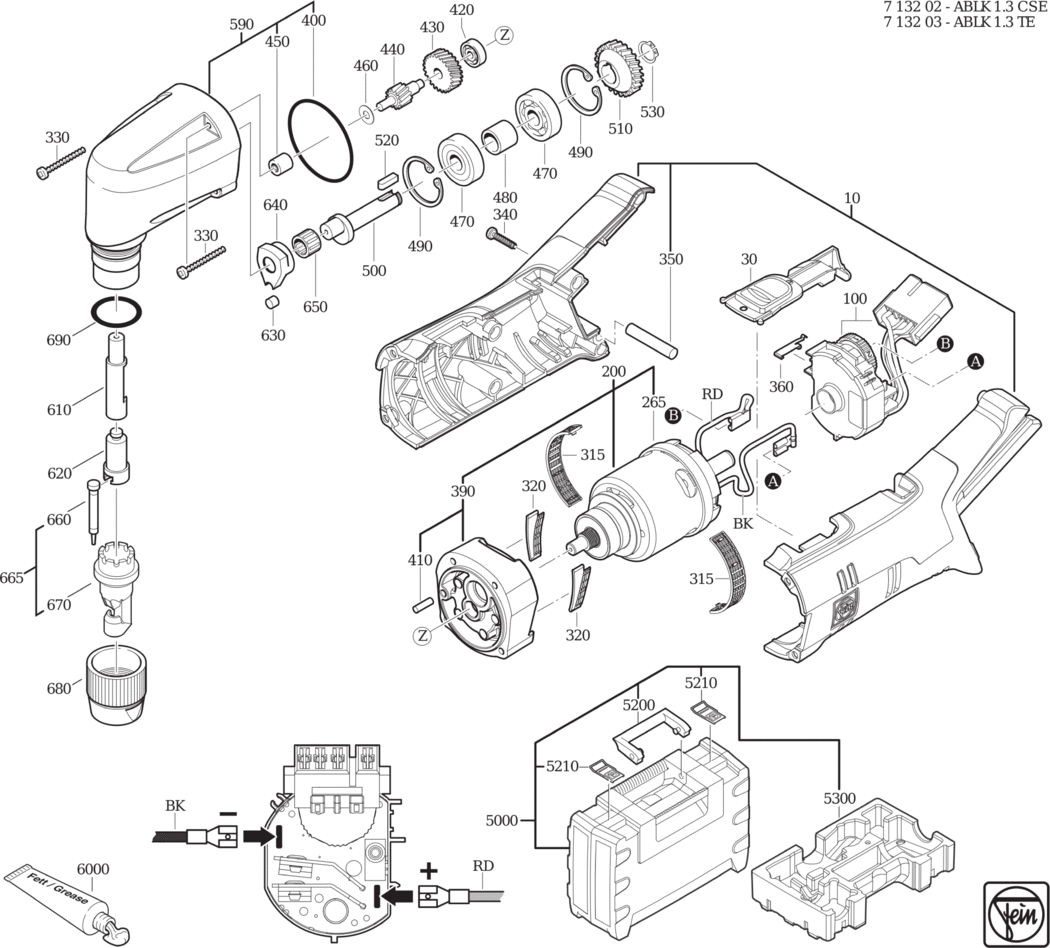

An exploded diagram and spare parts listing for the Fein ABLK 1.3 CSE (14.40V) / 71320200950
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31901156020.A15 31901156020 £46.88 £56.26
30 - SLIDE SWITCH FEI-32805237000.A3 32805237000 £2.86 £3.43
100 - SPEED SETTING SWITCH FEI-30762569990.A4 30762569990 £93.15 £111.78
200 - MOTOR FEI-54112004800.A0 54112004800 £115.09 £138.11
230 - RING FEI-32636044000.A10 32636044000 -
265 - MOTOR BEARING RING FEI-30610038010.A2 30610038010 £9.92 £11.91
315 - PROTECTIVE GRILLE FEI-32901053000.A0 32901053000 -
320 - PROTECTIVE GRILLE FEI-32901051000.A7 32901051000 -
330 - SCREW FEI-43074015000.A19 43074015000 £1.60 £1.92
340 - SCREW FEI-43074010000.A117 43074010000 £1.60 £1.92
350 - PRESSURE PIECE FEI-31415108000.A0 31415108000 £1.60 £1.92
360 - LOCKING SPRING FEI-30907070000.A12 30907070000 £4.59 £5.51
390 - INTERMEDIATE GEAR BOX FEI-31506387020.A0 31506387020 -
400 - SEALING RING FEI-40612000000.A20 40612000000 £1.60 £1.92
410 - PIN FEI-40242006007.A15 40242006007 -
420 - GROOVED BALL BEARING FEI-41701202018.A153 41701202018 £6.92 £8.30
430 - GEAR-WHEEL FEI-33657163004.A32 33657163004 £48.54 £58.25
440 - SHAFT TOOTHED Z=17 FEI-33757081005.A19 33757081005 £58.39 £70.07
450 - NEEDLE BEARING FEI-41706034001.A0 41706034001 £38.61 £46.33
460 - DISC FEI-32408185009.A51 32408185009 £2.94 £3.53
470 - GROOVED BALL BEARING FEI-41701010032.A36 41701010032 £13.90 £16.68
480 - SLEEVE FEI-30501342007.A8 30501342007 £4.00 £4.80
490 - CIRCLIP FEI-42616027009.A22 42616027009 £1.60 £1.92
500 - ECCENTRIC SHAFT FEI-33405045007.A7 33405045007 £93.68 £112.41
510 - GEAR-WHEEL Z=39 FEI-33657174001.A14 33657174001 £54.63 £65.56
520 - FEATHER KEY FEI-40223016005.A13 40223016005 £1.60 £1.92
530 - CIRCLIP FEI-42616006007.A45 42616006007 £1.60 £1.92
590 - GEARBOX HOUSING FEI-31508278130.A13 31508278130 £210.25 £252.30
610 - PLUNGER FEI-30109146005.A7 30109146005 £121.99 £146.39
620 - HOLDER FEI-30109147009.A28 30109147009 £57.58 £69.09
630 - ROLLER FEI-41709001008.A21 41709001008 £11.78 £14.13
640 - CON ROD FEI-32305016008.A0 32305016008 £93.12 £111.75
650 - NEEDLE CAGE FEI-41715049007.A8 41715049007 £17.50 £21.00
660 - PUNCH FEI-63602050000.A0 63602050000 £29.48 £35.38
665 - PUNCHES AND DIES IN A SET FEI-30109169030.A1 30109169030 £285.51 £342.61
670 - DIE FEI-30109169009.A8 30109169009 £225.90 £271.08
680 - NUT FEI-42015064005.A30 42015064005 £28.94 £34.73
690 - SEALING RING FEI-40612041002.A14 40612041002 £3.50 £4.20
5000 - TOOL CASE FEI-33901128820.A1 33901128820 £65.32 £78.39
5200 - HANDLE FEI-32119122000.A24 32119122000 -
5210 - WIRE CLAMP FEI-30232050000.A57 30232050000 £10.78 £12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A35 32160003083 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A33 34130054061 -
