Fein ABLS 1.6 E (14.40V) / 71300200950 Spare Parts

Fein ABLS 1.6 E ⠔.40V) / 71300200950 Spare Parts
Home Details Reviews Delivery

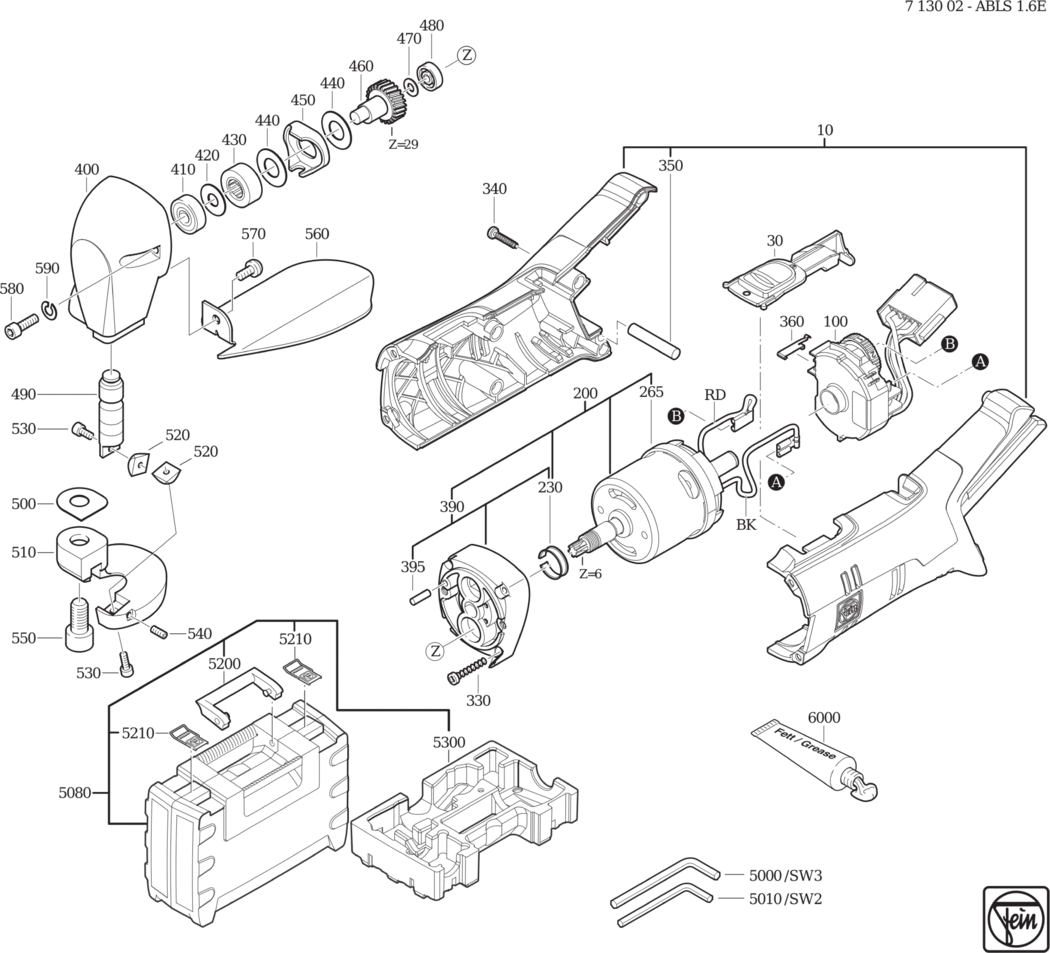

An exploded diagram and spare parts listing for the Fein ABLS 1.6 E (14.40V) / 71300200950
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31901156020.A13 31901156020 £46.88 £56.26
30 - SLIDE SWITCH FEI-32805237000.A4 32805237000 £2.86 £3.43
100 - SPEED SETTING SWITCH FEI-30762569990.A3 30762569990 £93.15 £111.78
200 - MOTOR FEI-54112010950.A1 54112010950 £173.52 £208.22
230 - RING FEI-32636044000.A8 32636044000 -
265 - MOTOR BEARING RING FEI-30610038010.A0 30610038010 £9.92 £11.91
330 - SCREW FEI-43074004000.A29 43074004000 £1.60 £1.92
340 - SCREW FEI-43074010000.A115 43074010000 £1.60 £1.92
350 - PRESSURE PIECE FEI-31415108000.A2 31415108000 £1.60 £1.92
360 - LOCKING SPRING FEI-30907070000.A14 30907070000 £4.59 £5.51
390 - FLANGE FEI-31506395020.A2 31506395020 -
395 - PIN FEI-40242006007.A17 40242006007 -
400 - HOUSING FEI-31308167003.A0 31308167003 £188.89 £226.67
410 - GROOVED BALL BEARING FEI-41701004021.A1 41701004021 £11.73 £14.08
420 - SHIM FEI-31308177002.A0 31308177002 £1.60 £1.92
430 - ROLLER FEI-41724001005.A4 41724001005 £40.15 £48.18
440 - SHIM FEI-31308178000.A8 31308178000 £1.60 £1.92
450 - HOLDER FEI-31308168001.A8 31308168001 £18.55 £22.26
460 - ECCENTRIC SHAFT FEI-31308169014.A0 31308169014 £115.51 £138.61
470 - DISC FEI-31308170007.A8 31308170007 £1.60 £1.92
480 - GROOVED BALL BEARING FEI-41701202018.A155 41701202018 £6.92 £8.30
490 - PLUNGER FEI-31308171006.A0 31308171006 £62.25 £74.70
500 - DISC FEI-31308173003.A0 31308173003 -
500 - DISC FEI-31308172009.A8 31308172009 £2.32 £2.79
500 - DISC FEI-31308174001.A8 31308174001 £2.52 £3.02
510 - CUTTING TABLE FEI-31308175005.A0 31308175005 -
520 - PLUNGER BLADE AND FIXED BLADE FEI-31308072000.A9 31308072000 £48.11 £57.73
530 - CYLINDER HEAD SCREW FEI-43035004041.A8 43035004041 £1.60 £1.92
540 - SET SCREW FEI-43058013047.A1 43058013047 -
550 - CYLINDER HEAD SCREW FEI-43035123102.A9 43035123102 £3.11 £3.73
560 - HAND GUARD FEI-31308176008.A8 31308176008 £57.82 £69.39
570 - FILLISTER HEAD SCREW FEI-43064017051.A0 43064017051 -
580 - CYLINDER HEAD SCREW FEI-43035016053.A14 43035016053 -
590 - SPRING WASHER FEI-42445002053.A22 42445002053 -
5000 - ALLEN KEY SW3 FEI-62907013006.A0 62907013006 £3.29 £3.95
5010 - ALLEN KEY SW2 FEI-62907029006.A19 62907029006 £3.29 £3.95
5080 - TOOL CASE FEI-33901128820.A3 33901128820 £65.32 £78.39
5200 - HANDLE FEI-32119122000.A29 32119122000 -
5210 - WIRE CLAMP FEI-30232050000.A55 30232050000 £10.78 £12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A33 32160003083 -
9000 - OPERATING INSTRUCTIONS ABLS / ABSS FEI-34101180060.A0 34101180060 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A26 34130054061 -
