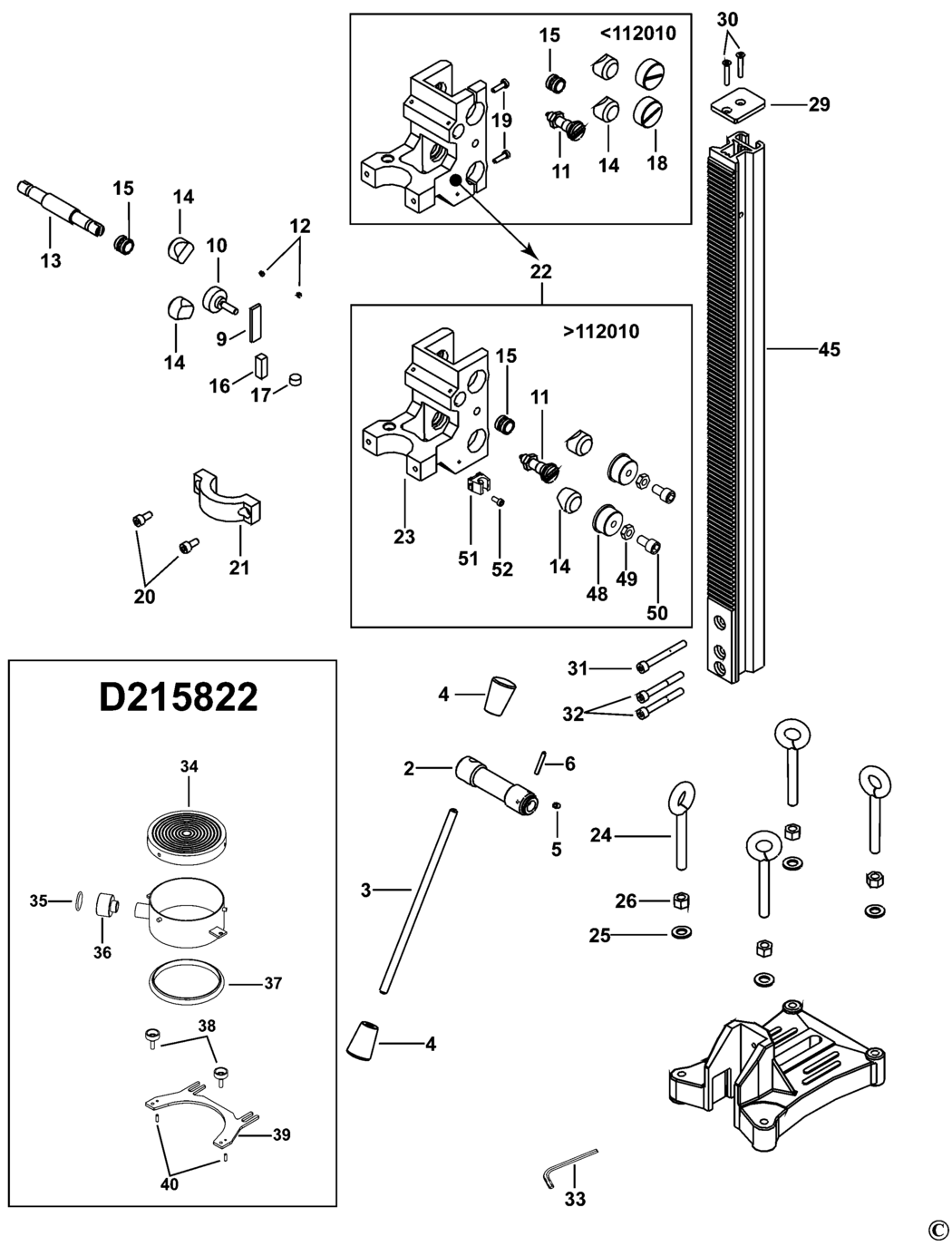

2 - HANDLE GB
BDE-1002936-00.A2
1002936-00
|
£34.00
|
£40.80
|
|
|
2 - HANDLE LX
BDE-1002936-00.A3
1002936-00
|
£34.00
|
£40.80
|
|
|
3 - LEVER
BDE-1002937-00.A0
1002937-00
|
£19.90
|
£23.88
|
|
|
4 - CONE
BDE-1002935-00.A0
1002935-00
|
£18.91
|
£22.69
|
|
|
5 - CLIP
BDE-1002933-00.A2
1002933-00
|
£7.18
|
£8.62
|
|
|
6 - PIN
BDE-1002927-00.A2
1002927-00
|
£2.78
|
£3.34
|
|
|
9 - PLATE
BDE-1002944-00
1002944-00
|
£12.17
|
£14.60
|
|
|
10 - LOCKING SCREW
BDE-1002934-00.A0
1002934-00
|
£17.48
|
£20.97
|
|
|
11 - BOLT
BDE-1002942-00.A1
1002942-00
|
£55.30
|
£66.36
|
|
|
12 - GRUB SCREW
BDE-1002945-00
1002945-00
|
£2.78
|
£3.34
|
|
|
13 - PINION
BDE-1002943-00.A0
1002943-00
|
£125.16
|
£150.19
|
|
|
14 - THRUST PLATE
BDE-1002938-00.A2
1002938-00
|
£14.57
|
£17.48
|
|
|
15 - BEARING BUSH
BDE-1002939-00.A0
1002939-00
|
£17.48
|
£20.97
|
|
|
16 - LEVEL
BDE-1002931-00.A2
1002931-00
|
£18.91
|
£22.69
|
|
|
17 - LEVEL
BDE-1002932-00.A0
1002932-00
|
£17.48
|
£20.97
|
|
|
18 - SCREW.SPECIAL <112010
BDE-1002956-00
1002956-00
|
£18.91
|
£22.69
|
|
|
19 - SCREW.SPECIAL <112010
BDE-1002947-00
1002947-00
|
£2.78
|
£3.34
|
|
|
20 - SCREW.SPECIAL
BDE-1002948-00
1002948-00
|
£2.78
|
£3.34
|
|
|
21 - PLATE
BDE-1002955-00
1002955-00
|
£51.90
|
£62.28
|
|
|
22 - REPAIR KIT <112010
BDE-1004529-00
1004529-00
|
£615.67
|
£738.80
|
|
|
23 - SLIDER >112010
BDE-1004529-01
1004529-01
|
£523.98
|
£628.77
|
|
|
24 - BOLT
BDE-1002929-00.A2
1002929-00
|
£12.17
|
£14.60
|
|
|
25 - WASHER
BDE-1002930-00.A0
1002930-00
|
£2.78
|
£3.34
|
|
|
26 - NUT
BDE-1002928-00.A0
1002928-00
|
£2.78
|
£3.34
|
|
|
29 - CAP
BDE-1002957-00
1002957-00
|
£16.03
|
£19.24
|
|
|
30 - SCREW
BDE-1002940-00.A1
1002940-00
|
£3.80
|
£4.56
|
|
|
31 - BOLT
BDE-1002941-00.A0
1002941-00
|
£2.78
|
£3.34
|
|
|
32 - BOLT
BDE-1002946-00
1002946-00
|
£2.78
|
£3.34
|
|
|
33 - HEX KEY 6 MM
BDE-1003202-00.A2
1003202-00
|
£3.30
|
£3.96
|
|
|
34 - RUBBER SEAL
BDE-1003358-00
1003358-00
|
£18.91
|
£22.69
|
|
|
35 - RING
BDE-1002971-00.A2
1002971-00
|
£2.78
|
£3.34
|
|
|
36 - ADAPTOR
BDE-1002978-00.A2
1002978-00
|
£80.98
|
£97.18
|
|
|
37 - SEAL
BDE-1002972-00
1002972-00
|
£30.08
|
£36.10
|
|
|
38 - LOCKING SCREW
BDE-1002934-00.A2
1002934-00
|
£17.48
|
£20.97
|
|
|
39 - BRACKET
BDE-1003359-00
1003359-00
|
£37.35
|
£44.82
|
|
|
40 - PIN
BDE-1002958-00.A0
1002958-00
|
£2.78
|
£3.34
|
|
|
45 - COLUMN
BDE-1004565-00
1004565-00
|
£804.38
|
£965.26
|
|
|
48 - CAP >112010
BDE-1002979-00.A0
1002979-00
|
£14.57
|
£17.48
|
|
|
49 - NUT >112010
BDE-1002961-00.A2
1002961-00
|
£2.78
|
£3.34
|
|
|
50 - SCREW >112010
BDE-1002964-00.A1
1002964-00
|
£2.78
|
£3.34
|
|
|
51 - CABLE CLAMP >112010
BDE-1004529-02
1004529-02
|
£37.35
|
£44.82
|
|
|
52 - SCREW >112010
BDE-1004529-03
1004529-03
|
£3.80
|
£4.56
|
|
