Dewalt DCS380 Type 1 Cordless Reciprocating Saw Spare Parts

Home Details Reviews Delivery

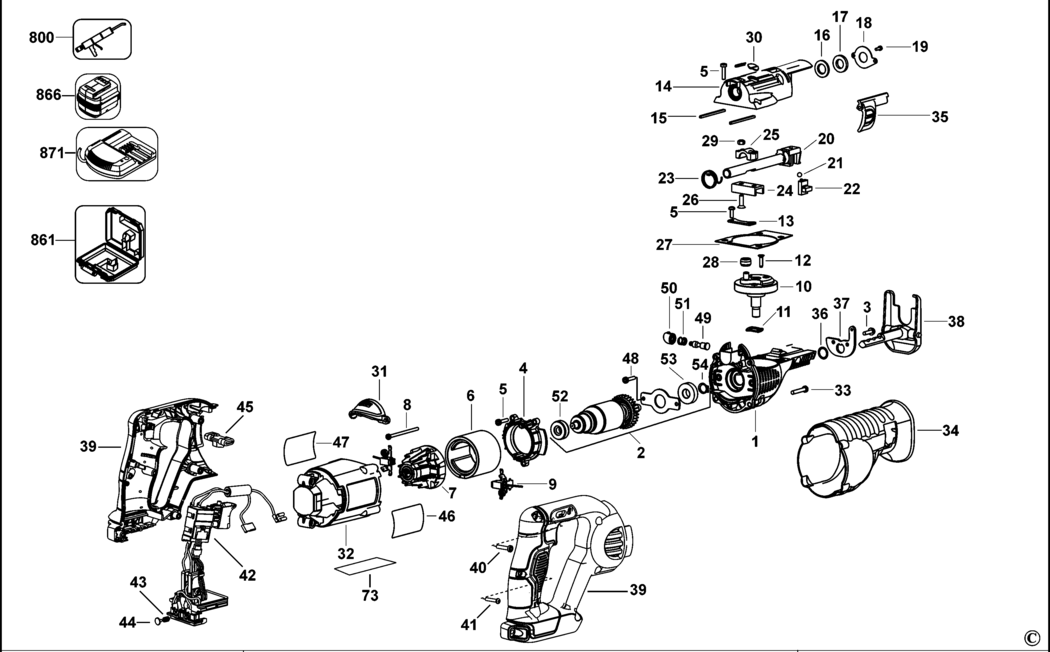

An exploded drawing and spare parts listing for the Dewalt DCS380 Type 1 Cordless Reciprocating Saw

	Ex VAT	Inc VAT
1 - GEARCASE SA INCL.495051 BDE-613138-00SV.A3 613138-00SV	£47.08	£56.49
1 - GEARCASE SA INCL.495051 BDE-613138-00SV.A4 613138-00SV	£47.08	£56.49
2 - ARMATURE SA BDE-617376-00SV.A4 617376-00SV	£78.12	£93.74
2 - ARMATURE SA BDE-617376-00SV.A5 617376-00SV	£78.12	£93.74
3 - SCREW BDE-142940-00.A21 142940-00	£1.50	£1.80
3 - SCREW BDE-142940-00.A22 142940-00	£1.50	£1.80
4 - BAFFLE FAN BDE-613137-00.A3 613137-00	£3.22	£3.86
4 - BAFFLE FAN BDE-613137-00.A4 613137-00	£3.22	£3.86
5 - SCREW BDE-613619-00.A23 613619-00	£1.50	£1.80
5 - SCREW BDE-613619-00.A24 613619-00	£1.50	£1.80
6 - MAGNET BDE-611202-00SV.A30 611202-00SV	-
6 - MAGNET BDE-611202-00SV.A31 611202-00SV	-
7 - SUPPORT BEARING BDE-N171820.A29 N171820	-
7 - SUPPORT BEARING BDE-N171820.A30 N171820	-
8 - SCREW BDE-330019-25.A5 330019-25	£1.50	£1.80
8 - SCREW BDE-330019-25.A6 330019-25	£1.50	£1.80
9 - BRUSHBOX SA BDE-610126-00.A22 610126-00	£7.85	£9.42
9 - BRUSHBOX SA BDE-610126-00.A23 610126-00	£7.85	£9.42
10 - GEAR & SPINDLE BDE-615940-00SV.A5 615940-00SV	£41.24	£49.49
10 - GEAR & SPINDLE BDE-615940-00SV.A6 615940-00SV	£41.24	£49.49
11 - WASHER SPECIAL BDE-619618-00.A4 619618-00	£1.50	£1.80
11 - WASHER SPECIAL BDE-619618-00.A5 619618-00	£1.50	£1.80
12 - SCREW BDE-622484-00.A8 622484-00	£1.50	£1.80
12 - SCREW BDE-622484-00.A9 622484-00	£1.50	£1.80
13 - SUPPORT PLATE BDE-621173-00.A3 621173-00	£1.50	£1.80
13 - SUPPORT PLATE BDE-621173-00.A4 621173-00	£1.50	£1.80
14 - GEARCASE COVER BDE-N027851SV.A0 N027851SV	£34.00	£40.80
14 - GEARCASE COVER BDE-N027851SV.A1 N027851SV	£34.00	£40.80
15 - STRIP BDE-621979-00.A9 621979-00	£1.50	£1.80
15 - STRIP BDE-621979-00.A10 621979-00	£1.50	£1.80
16 - SEAL BDE-618733-00.A10 618733-00	£1.50	£1.80
16 - SEAL BDE-618733-00.A11 618733-00	£1.50	£1.80
17 - FELT SEAL BDE-618477-00.A1 618477-00	£1.50	£1.80
17 - FELT SEAL BDE-618477-00.A2 618477-00	£1.50	£1.80
18 - COVERPLATE BDE-N020720.A1 N020720	£1.50	£1.80
18 - COVERPLATE BDE-N020720.A2 N020720	£1.50	£1.80
19 - SCREW BDE-330045-43.A25 330045-43	£1.50	£1.80
19 - SCREW BDE-330045-43.A26 330045-43	£1.50	£1.80
20 - SHAFT SA BDE-N026647.A7 N026647	£38.80	£46.56
20 - SHAFT SA BDE-N026647.A8 N026647	£38.80	£46.56
21 - BALL BDE-000903-00.A120 000903-00	£12.17	£14.60
21 - BALL BDE-000903-00.A121 000903-00	£12.17	£14.60
22 - SLIDER <=2016 WK09 BDE-622647-00.A10 622647-00	£4.69	£5.63
22 - SLIDER BDE-622647-00.A11 622647-00	£4.69	£5.63
22 - SLIDER >2016 WK09 BDE-N252639.A9 N252639	£7.85	£9.42
23 - SPRING TORSION <=2016 WK09 BDE-622659-00.A5 622659-00	£1.50	£1.80
23 - SPRING TORSION BDE-622659-00.A6 622659-00	£1.50	£1.80
23 - SPRING >2016 WK09 BDE-N426742.A8 N426742	£1.50	£1.80
24 - YOKE BDE-658115-00.A7 658115-00	£5.88	£7.06
24 - SHAFT SA BDE-N026647.A9 N026647	£38.80	£46.56
25 - SADDLE BDE-617000-00.A2 617000-00	£3.30	£3.96
25 - SADDLE BDE-617000-00.A3 617000-00	£3.30	£3.96
26 - SCREW BDE-622486-00.A5 622486-00	£1.50	£1.80
26 - SCREW BDE-622486-00.A6 622486-00	£1.50	£1.80
27 - GASKET BDE-N063272.A7 N063272	£1.50	£1.80
27 - GASKET BDE-N063272.A8 N063272	£1.50	£1.80
28 - BEARING BDE-N021857.A7 N021857	£9.41	£11.29
28 - BEARING BDE-N021857.A8 N021857	£9.41	£11.29
29 - LOCK NUT BDE-622485-00.A4 622485-00	£1.50	£1.80
29 - LOCK NUT BDE-622485-00.A5 622485-00	£1.50	£1.80
30 - COVER BDE-621927-00.A2 621927-00	£1.50	£1.80
30 - COVER BDE-621927-00.A3 621927-00	£1.50	£1.80
31 - INSERT BDE-N030977.A1 N030977	£2.78	£3.34
32 - HOUSING MOTOR BDE-613143-01.A1 613143-01	-
32 - HOUSING MOTOR BDE-N264499.A1 N264499	£7.18	£8.62
33 - SCREW BDE-330019-45.A14 330019-45	£1.50	£1.80
33 - SCREW BDE-330019-45.A15 330019-45	£1.50	£1.80
34 - BOOT BDE-N084697.A0 N084697	£10.85	£13.02
34 - BOOT BDE-N084697.A1 N084697	£10.85	£13.02
35 - LEVER LOCK BDE-N093438SV.A0 N093438SV	£9.41	£11.29
35 - LEVER LOCK BDE-N093438SV.A1 N093438SV	£9.41	£11.29
36 - RING BDE-050049-00.A51 050049-00	£1.50	£1.80
36 - RING BDE-050049-00.A52 050049-00	£1.50	£1.80
37 - BRACKET BDE-617008-00.A0 617008-00	£1.50	£1.80
37 - BRACKET BDE-617008-00.A1 617008-00	£1.50	£1.80
38 - SHOE SA BDE-623511-00SV.A3 623511-00SV	£38.80	£46.56
38 - SHOE SA BDE-623511-00SV.A4 623511-00SV	£38.80	£46.56
39 - HANDLE SA BDE-N347382.A0 N347382	£14.57	£17.48
39 - HANDLE SA BDE-N347382.A1 N347382	£14.57	£17.48
40 - SCREW BDE-90611830.A197 90611830	£1.50	£1.80
40 - SCREW BDE-90611830.A9 90611830	£1.50	£1.80
41 - SCREW BDE-682211-00.A213 682211-00	£1.50	£1.80
41 - SCREW BDE-682211-00.A214 682211-00	£1.50	£1.80
42 - SWITCH SA PRE EMI GB BDE-N413819.A0 N413819	£45.14	£54.17
43 - SPRING BDE-N102647.A1 N102647	£1.50	£1.80
43 - SPRING BDE-N102647.A2 N102647	£1.50	£1.80
44 - BLOCK BDE-N122099.A19 N122099	£1.50	£1.80
44 - MOUNT BDE-N122099.A64 N122099	£1.50	£1.80
45 - BUTTON LOCK-OFF BDE-N060864.A1 N060864	£1.50	£1.80
45 - BUTTON LOCK-OFF BDE-N060864.A2 N060864	£1.50	£1.80
46 - BRAND LABEL BDE-N093227.A0 N093227	£1.50	£1.80
47 - BRAND LABEL BDE-N093227.A1 N093227	£1.50	£1.80
47 - RATING PLATE GB BDE-N108565 N108565	£1.50	£1.80
48 - SCREW BDE-330045-45.A63 330045-45	£1.50	£1.80
48 - SCREW BDE-330045-45.A64 330045-45	£1.50	£1.80
49 - LOCK PIN BDE-615983-00.A6 615983-00	£1.50	£1.80
49 - LOCK PIN BDE-615983-00.A7 615983-00	£1.50	£1.80
50 - CAP BDE-617733-00.A7 617733-00	£1.50	£1.80
50 - CAP BDE-617733-00.A8 617733-00	£1.50	£1.80
51 - SPRING BDE-618427-00.A8 618427-00	£1.50	£1.80
51 - SPRING BDE-618427-00.A9 618427-00	£1.50	£1.80
52 - BEARING & SEAL BDE-391032-00.A21 391032-00	£3.80	£4.56
52 - BEARING & SEAL BDE-391032-00.A22 391032-00	£3.80	£4.56
53 - BEARING BDE-330003-64.A97 330003-64	£4.69	£5.63
53 - BEARING BDE-330003-64.A98 330003-64	£4.69	£5.63
54 - RETAINER BDE-696060-00.A31 696060-00	£1.50	£1.80
54 - RETAINER BDE-696060-00.A32 696060-00	£1.50	£1.80
73 - WARNING LABEL GB BDE-N105032.A0 N105032	£1.42	£1.70
73 - WARNING LABEL BDE-N105032.A1 N105032	£1.42	£1.70
800 - GREASE BDE-286436-00.A280 286436-00	£126.63	£151.96
800 - GREASE BDE-286436-00.A281 286436-00	£126.63	£151.96
861 - KITBOX BDE-N152704.A6 N152704	£44.14	£52.97
861 - KITBOX BDE-N152704.A7 N152704	£44.14	£52.97
866 - BATTERY 18V - 4.0AH - 72WH DCS380L2 GB BDE-N195933.A33 N195933	£218.32	£261.98
866 - BATTERY 18V - 4.0AH - 72WH DCS380M2 GB BDE-N195933.A34 N195933	£218.32	£261.98
871 - CHARGER 10.8V - 18V GB BDE-N450537.A65 N450537	£157.18	£188.61
