Stanley FME365 Type 1 Cut Saw Spare Parts

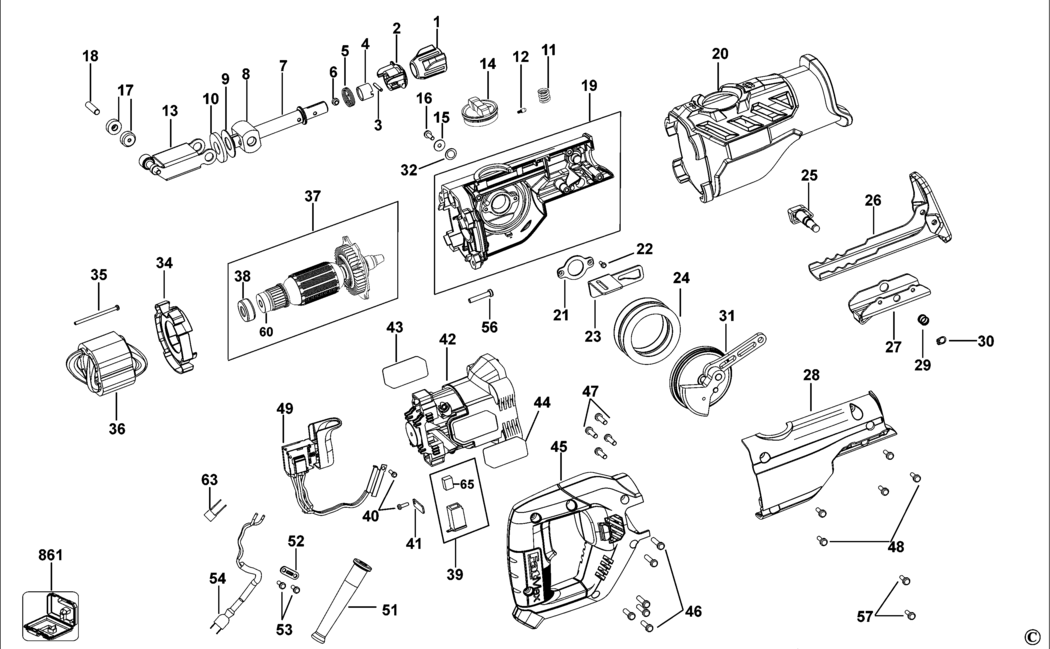

An exploded drawing and spare parts listing for the Stanley FME365 Type 1 Cut Saw

	Ex VAT	Inc VAT
1 - BOOT BDE-90562315.A0 90562315	£1.50	£1.80
2 - COLLAR BDE-90562332.A0 90562332	£9.41	£11.29
3 - PIN BDE-90570102.A5 90570102	£1.50	£1.80
4 - SLEEVE BDE-90562334.A0 90562334	£1.50	£1.80
5 - SPRING BDE-90562333.A5 90562333	£1.50	£1.80
6 - PIN BDE-90562314.A5 90562314	£2.26	£2.71
7 - SHAFT SA BDE-90587516.A0 90587516	£12.17	£14.60
8 - BEARING BDE-90587517.A1 90587517	£5.88	£7.06
9 - WASHER BDE-90562321.A1 90562321	£1.50	£1.80
10 - FELT SEAL BDE-90562320.A0 90562320	£1.50	£1.80
11 - SPRING COMPRESSION BDE-90562319.A1 90562319	£1.50	£1.80
12 - DETENT BDE-N403227.A67 N403227	£1.50	£1.80
13 - TRACK BDE-90587518.A0 90587518	£9.41	£11.29
14 - KNOB SA BDE-90583997 90583997	£1.50	£1.80
15 - WASHER BDE-90563044.A0 90563044	£1.50	£1.80
16 - SCREW BDE-90563040.A1 90563040	£1.50	£1.80
17 - ROLLER BDE-90562303.A1 90562303	£1.50	£1.80
18 - PIN BDE-90562304.A0 90562304	£1.50	£1.80
19 - GEAR CASE SA BDE-90587519.A1 90587519	£34.00	£40.80
20 - RUBBER BOOT BDE-90574947 90574947	£19.90	£23.88
21 - BEARING PLATE BDE-90562305.A1 90562305	£1.50	£1.80
22 - SCREW BDE-90502260.A0 90502260	£1.50	£1.80
23 - ACTUATOR BDE-90562299.A0 90562299	£2.78	£3.34
24 - BEARING THRUST BDE-90563562.A0 90563562	£10.85	£13.02
25 - BUTTON SA BDE-90583996 90583996	£3.30	£3.96
26 - SHOE SA BDE-90563570.A0 90563570	£9.41	£11.29
27 - SUPPORT PLATE BDE-90562309.A0 90562309	£4.69	£5.63
28 - COVER SA BDE-90587520.A0 90587520	£18.91	£22.69
29 - SPRING BDE-618427-00.A3 618427-00	£1.50	£1.80
30 - CLIP BDE-90552725.A0 90552725	£1.50	£1.80
31 - GEAR SA BDE-90563563.A1 90563563	£37.35	£44.82
32 - WASHER BDE-98197-03.A10 98197-03	£1.50	£1.80
34 - BAFFLE FAN BDE-90562519.A0 90562519	£1.50	£1.80
35 - SCREW BDE-330019-64.A12 330019-64	£1.50	£1.80
36 - FIELD 230V BDE-90587521.A1 90587521	£37.35	£44.82
37 - ARMATURE SA BDE-90636471.A1 90636471	£45.14	£54.17
38 - CAP BDE-90565402.A0 90565402	£1.50	£1.80
39 - BRUSH PAIR 230V BDE-90587523 90587523	£7.18	£8.62
40 - SCREW BDE-330019-28.A8 330019-28	£1.50	£1.80
41 - BRUSH HOLDER BDE-90561435.A0 90561435	£1.50	£1.80
42 - FIELDCASE BDE-90582682 90582682	£12.17	£14.60
43 - RATING PLATE GB BDE-90583465 90583465	£1.42	£1.70
44 - BRAND LABEL GB BDE-90583466 90583466	£1.50	£1.80
45 - HANDLE SA BDE-90587524 90587524	£18.91	£22.69
46 - SCREW BDE-330019-13.A294 330019-13	£1.50	£1.80
47 - SCREW BDE-330019-12.A31 330019-12	£1.50	£1.80
48 - SCREW BDE-330045-06.A19 330045-06	£1.50	£1.80
49 - SWITCH BDE-90563353.A3 90563353	£19.90	£23.88
51 - CORD PROTECTOR BDE-N542553.A511 N542553	£3.80	£4.56
52 - CORD CLAMP BDE-329301-00.A189 329301-00	£1.50	£1.80
53 - SCREW.TEMP BDE-330019-01.A65 330019-01	£1.50	£1.80
54 - CORDSET (M/PLUG) GB GB BDE-90579848 90579848	£24.39	£29.27
56 - SCREW BDE-330019-13.A293 330019-13	£1.50	£1.80
57 - SCREW BDE-90568551.A8 90568551	£1.50	£1.80
60 - BEARING BDE-574853-08.A21 574853-08	£1.50	£1.80
63 - CAPACITOR BDE-90568607.A5 90568607	£1.50	£1.80
65 - BRUSH PAIR 230V SA BDE-90569536.A1 90569536	£7.18	£8.62
861 - KIT BOX BDE-90580689-01 90580689-01	£38.80	£46.56
