Bosch PSR 18 LI-2 / 3603J73301 / EU 18 Volt Spare Parts

Bosch PSR 18 LI-2 / 3603J73301 / EU 18 Volt Spare Parts

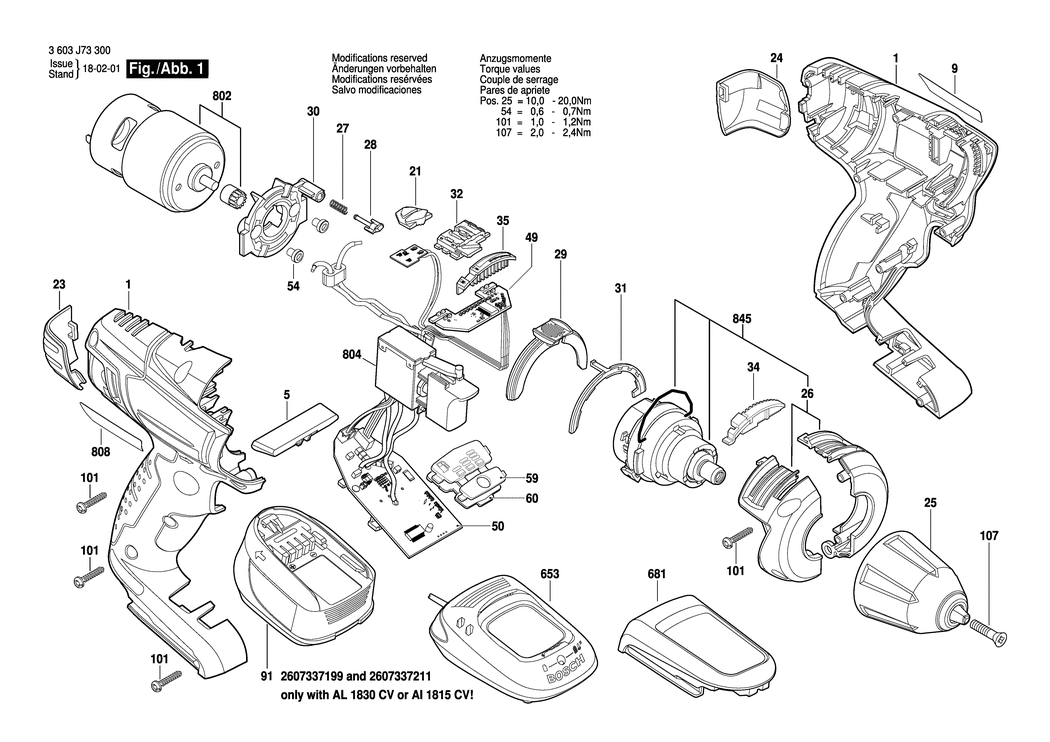

An exploded drawing and listing for the Bosch PSR 18 LI-2 / 3603J73301 / EU 18 Volt
Ex VAT Inc VAT
1 - HOUSING BSD-2609004254.A0 2609004254 £21.52 £25.83
5 - LEVER BSD-2609004264.A2 2609004264 £2.16 £2.59
9 - MANUFACTURER'S NAMEPLATE PSR 18 LI-2 BSD-2609004628.A0 2609004628 £2.61 £3.13
21 - LENS BSD-2609004270.A1 2609004270 £1.75 £2.10
23 - DECORATIVE COVER BSD-2609005334.A0 2609005334 £2.61 £3.13
24 - DECORATIVE COVER BSD-2609005335.A1 2609005335 £2.61 £3.13
25 - KEYLESS CHUCK BSD-2609006385.A2 2609006385 £37.27 £44.72
26 - HOUSING COVER BSD-2609004255.A1 2609004255 £5.01 £6.01
27 - SPRING BSD-2609004265.A1 2609004265 -
28 - LEVER BSD-2609004275.A0 2609004275 £1.75 £2.10
29 - SLIDER BSD-2609004262.A2 2609004262 £2.61 £3.13
30 - FLANGE BSD-2609004267.A0 2609004267 £1.75 £2.10
31 - ADJUSTING DISC BSD-2609004263.A1 2609004263 £1.75 £2.10
32 - CHANGE-OVER SWITCH BSD-2609004485.A3 2609004485 £7.36 £8.83
34 - COVER BSD-2609004613.A2 2609004613 £1.75 £2.10
35 - DISPLAY BSD-2609004273.A3 2609004273 £2.16 £2.59
49 - ELECTRONIC ASSEMBLY BSD-2609003876.A1 2609003876 £40.80 £48.96
50 - ELECTRONIC ASSEMBLY BSD-1600A004BR.A1 1600A004BR -
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A9 2603414049 -
59 - COVER BSD-2609004272.A2 2609004272 £2.33 £2.80
60 - LENS BSD-2609004271.A2 2609004271 £1.75 £2.10
91 - BATTERY PACK PBA 18V 2.5Ah W-B BSD-2607337199.A0 2607337199 £81.81 £98.17
91 - BATTERY PACK PBA 18V 2.0Ah 36Wh LI BSD-2607337211.A0 2607337211 £72.18 £86.62
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A325 2603490018 £1.75 £2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A61 2603421229 £1.75 £2.10
653 - CHARGER GB AL 1830 CV 230/14.4-18V 1h BSD-2607225967.A28 2607225967 £68.42 £82.10
653 - FAST CHARGER EU AL 1830 CV 230/14.4-18V 1h BSD-2607225965.A4 2607225965 £48.38 £58.06
653 - CHARGER AUS AL 1830 CV 230/14.4-18V 1h BSD-2607225969.A4 2607225969 £68.42 £82.10
653 - FAST CHARGER EU AL 2204 CV 230/14.4-18V 3h BSD-2607225273.A4 2607225273 -
653 - CHARGER EU AL 1815 CV 230/14.4-18V 3h BSD-2607226077.A25 2607226077 £41.62 £49.95
653 - FAST CHARGER EU AL 2215 CV 230/14.4-18V. 1h BSD-2607225471.A7 2607225471 £41.62 £49.95
802 - DC MOTOR BSD-2609004487.A1 2609004487 £40.80 £48.96
804 - SWITCH BSD-2609005123.A1 2609005123 £27.23 £32.68
808 - NAMEPLATE BSD-160111A3ED.A0 160111A3ED -
845 - PLANETARY GEAR TRAIN BSD-2609007548.A0 2609007548 £33.74 £40.49
