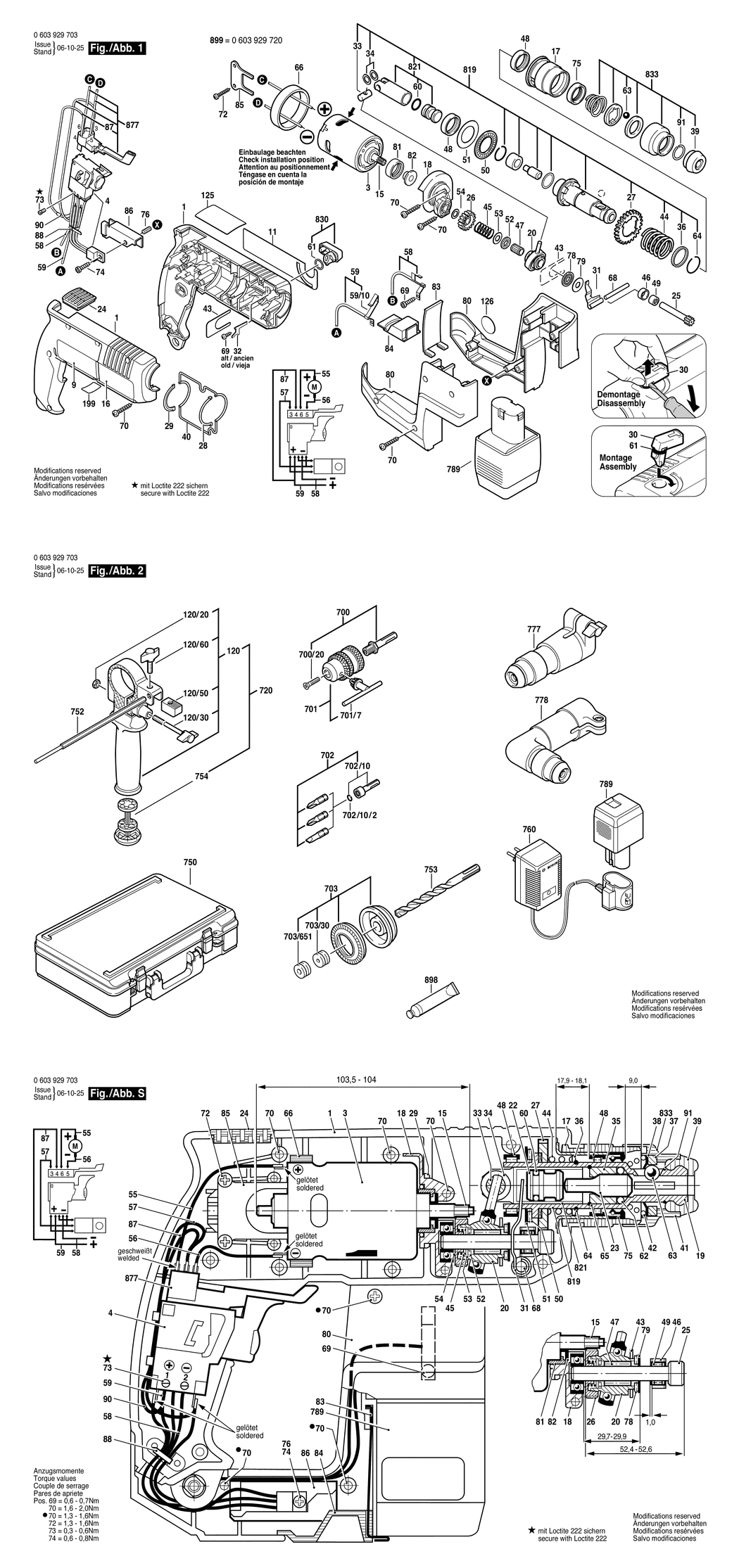

1 - HOUSING SECTION
BSD-1615104004.A1
1615104004
|
-
|
|
|
|
3 - DC MOTOR 230V
BSD-1617220011.A13
1617220011
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200269.A0
2607200269
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110538.A0
1611110538
|
-
|
|
|
|
11 - MANUFACTURER'S NAMEPLATE
BSD-1611110370.A29
1611110370
|
-
|
|
|
|
15 - DRIVE PINION Z=8
BSD-1616333024.A13
1616333024
|
-
|
|
|
|
16 - REFERENCE PLATE
BSD-1611110539.A1
1611110539
|
-
|
|
|
|
17 - GUIDE SLEEVE
BSD-1615819013.A20
1615819013
|
£6.61
|
£7.93
|
|
|
18 - FLANGED BEARING
BSD-1615700027.A25
1615700027
|
-
|
|
|
|
20 - DRIVE BEARING
BSD-1615819012.A28
1615819012
|
-
|
|
|
|
24 - PROTECTIVE GRILLE
BSD-1612388019.A51
1612388019
|
-
|
|
|
|
25 - TOOTHED SHAFT Z=9
BSD-1613160008.A27
1613160008
|
-
|
|
|
|
26 - CYLINDRICAL GEAR Z=31
BSD-1616317600.A52
1616317600
|
£2.52
|
£3.02
|
|
|
27 - CYLINDRICAL GEAR Z=49
BSD-1616316034.A1
1616316034
|
-
|
|
|
|
28 - SEAL RING
BSD-1611015034.A27
1611015034
|
-
|
|
|
|
29 - SEAL RING
BSD-1611015035.A26
1611015035
|
-
|
|
|
|
31 - PRESSURE LEVER
BSD-1611329009.A25
1611329009
|
-
|
|
|
|
33 - PISTON PIN
BSD-1613103006.A58
1613103006
|
-
|
|
|
|
34 - SHIM WASHER 1.2 MM
BSD-1610100608.A1
1610100608
|
£1.75
|
£2.10
|
|
|
36 - SUPPORTING DISC
BSD-1610102024.A42
1610102024
|
-
|
|
|
|
39 - PROTECTIVE CAP L=17 MM. SDS-PLUS
BSD-1610508008.A316
1610508008
|
£2.16
|
£2.59
|
|
|
40 - SEALING FRAME
BSD-1611015033.A26
1611015033
|
-
|
|
|
|
43 - HOLDING PLATE
BSD-1611031005.A52
1611031005
|
-
|
|
|
|
44 - COMPRESSION SPRING
BSD-1614634002.A27
1614634002
|
-
|
|
|
|
45 - COMPRESSION SPRING
BSD-1614610005.A27
1614610005
|
-
|
|
|
|
46 - RETAINING SNAP RING
BSD-1610200014.A51
1610200014
|
-
|
|
|
|
47 - NEEDLE-ROLLER ASSEMBLY
BSD-1610913008.A28
1610913008
|
-
|
|
|
|
48 - NEEDLE BEARING
BSD-1610910071.A22
1610910071
|
£6.52
|
£7.83
|
|
|
49 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A135
2600917003
|
£2.80
|
£3.36
|
|
|
50 - ROLLER-CAGE ASSEMBLY
BSD-1610920002.A0
1610920002
|
£3.72
|
£4.47
|
|
|
51 - SUPPORT DISC 1.0 MM
BSD-1610102617.A35
1610102617
|
£2.16
|
£2.59
|
|
|
52 - THRUST NEEDLE RIM
BSD-1610920005.A53
1610920005
|
-
|
|
|
|
53 - SUPPORT DISC
BSD-1610100602.A51
1610100602
|
-
|
|
|
|
54 - SHIM 0.6 MM
BSD-1610100604.A2
1610100604
|
-
|
|
|
|
54 - SHIM 0.8 MM
BSD-1610100605.A62
1610100605
|
-
|
|
|
|
54 - SHIM 1.0 MM
BSD-1610100606.A2
1610100606
|
-
|
|
|
|
54 - SHIM 1.2 MM
BSD-1610100607.A51
1610100607
|
-
|
|
|
|
58 - CONTACT SPRING 2.5 MM
BSD-1614449007.A12
1614449007
|
-
|
|
|
|
59 - CONTACT SPRING 2.5 MM
BSD-1614449009.A8
1614449009
|
-
|
|
|
|
59/10 - CONTACT SPRING
BSD-1611290002.A2
1611290002
|
-
|
|
|
|
60 - O-RING 13.0x2.5 MM
BSD-1610210086.A60
1610210086
|
-
|
|
|
|
61 - O-RING 10.5x2.7 MM
BSD-1610210046.A241
1610210046
|
£2.16
|
£2.59
|
|
|
63 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A292
1903230013
|
£2.16
|
£2.59
|
|
|
64 - RETAINING RING
BSD-1614601007.A26
1614601007
|
-
|
|
|
|
66 - RUBBER RING
BSD-1610206025.A13
1610206025
|
-
|
|
|
|
68 - STRAIGHT PIN DIN 6325-5M6x45
BSD-2917550133.A1
2917550133
|
£2.33
|
£2.80
|
|
|
69 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A342
2912401005
|
£1.75
|
£2.10
|
|
|
70 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z
BSD-2912401022.A56
2912401022
|
£1.75
|
£2.10
|
|
|
72 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A178
2912401019
|
£1.75
|
£2.10
|
|
|
73 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1412
2603410001
|
£1.75
|
£2.10
|
|
|
74 - OVAL-HEAD SCREW DIN 7985 M 3x8-5.8-Z
BSD-2912451050.A7
2912451050
|
-
|
|
|
|
74 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A688
2603435015
|
£2.16
|
£2.59
|
|
|
75 - ROTARY SHAFT LIP SEAL
BSD-1610283021.A12
1610283021
|
-
|
|
|
|
76 - EXPANSION BUSHING
BSD-1610390020.A6
1610390020
|
-
|
|
|
|
78 - ROLLER-CAGE ASSEMBLY
BSD-1610920006.A0
1610920006
|
£2.52
|
£3.02
|
|
|
79 - SUPPORT DISC
BSD-1610100609.A51
1610100609
|
-
|
|
|
|
80 - ADDITIONAL HOUSING
BSD-1615190031.A11
1615190031
|
-
|
|
|
|
81 - LOCATING RING
BSD-1610290017.A13
1610290017
|
-
|
|
|
|
82 - COVER DISC
BSD-1610516011.A14
1610516011
|
-
|
|
|
|
83 - HOLDING SPRING
BSD-1611290003.A12
1611290003
|
-
|
|
|
|
84 - PUSH-BUTTON
BSD-1612026034.A13
1612026034
|
-
|
|
|
|
85 - GUIDING PLATE
BSD-1611098003.A13
1611098003
|
-
|
|
|
|
86 - COOLING SHEET
BSD-1611329013.A7
1611329013
|
-
|
|
|
|
87 - CONNECTING CABLE
BSD-1614430028.A6
1614430028
|
-
|
|
|
|
88 - HOLDING BELT
BSD-2601398007.A6
2601398007
|
-
|
|
|
|
90 - SHRINKABLE TUBE
BSD-2600409018.A6
2600409018
|
-
|
|
|
|
91 - RETAINING RING DIN 7993-A22
BSD-2916540012.A487
2916540012
|
-
|
|
|
|
120 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A122
1619P10682
|
£12.49
|
£14.99
|
|
|
120/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A658
2915011007
|
-
|
|
|
|
120/30 - WING SCREW M6x(15)55
BSD-1613480007.A188
1613480007
|
£1.75
|
£2.10
|
|
|
120/50 - CLAMPING PLATE M6
BSD-2608040014.A176
2608040014
|
-
|
|
|
|
120/60 - WING SCREW M6x20 MM
BSD-1613480008.A251
1613480008
|
£1.75
|
£2.10
|
|
|
125 - MANUFACTURER'S NAMEPLATE
BSD-1611110345.A14
1611110345
|
-
|
|
|
|
126 - STICKER
BSD-2601110461.A96
2601110461
|
-
|
|
|
|
199 - STICKER
BSD-1601110265.A271
1601110265
|
-
|
|
|
|
700 - DRILL CHUCK SHANK
BSD-1617000132.A156
1617000132
|
£16.84
|
£20.21
|
|
|
700/20 - COUNTERSUNK-HEAD SCREW M6x27
BSD-2603421226.A365
2603421226
|
£1.75
|
£2.10
|
|
|
701 - CHUCK
BSD-1608571088.A290
1608571088
|
£27.23
|
£32.68
|
|
|
701/7 - CHUCK WRENCH SG2
BSD-2607950007.A328
2607950007
|
£6.52
|
£7.83
|
|
|
702 - PARTS SET
BSD-1617000133.A36
1617000133
|
-
|
|
|
|
702/10 - TOOLHOLDER 1/4
BSD-1618598152.A2
1618598152
|
-
|
|
|
|
702/10/2 - RETAINING RING
BSD-2604601004.A368
2604601004
|
£1.75
|
£2.10
|
|
|
703 - DUST TRAY
BSD-1615439003.A125
1615439003
|
-
|
|
|
|
703/30 - RUBBER BUSHING dia5-7 MM
BSD-1610312001.A86
1610312001
|
-
|
|
|
|
703/651 - RUBBER BUSHING dia8-10 MM
BSD-1610312002.A53
1610312002
|
-
|
|
|
|
720 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A123
1619P10682
|
£12.49
|
£14.99
|
|
|
750 - CARRYING CASE
BSD-1615438188.A14
1615438188
|
-
|
|
|
|
752 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A162
1613001005
|
-
|
|
|
|
753 - ROTARY HAMMER BIT dia6x50 MM
BSD-1618596166.A26
1618596166
|
-
|
|
|
|
754 - DRILL HOLDER
BSD-2607000122.A49
2607000122
|
-
|
|
|
|
760 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A310
2607224425
|
£88.07
|
£105.68
|
|
|
760 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A267
2607224701
|
£88.07
|
£105.68
|
|
|
777 - CHISEL ATTACHMENT
BSD-2607018296.A0
2607018296
|
£52.49
|
£62.99
|
|
|
778 - ANGLE DRILL HEAD
BSD-1618580000.A125
1618580000
|
£239.08
|
£286.90
|
|
|
789 - ACCUMULATOR BATTERY 12V. 1.2Ah. NiCd
BSD-2607335010.A22
2607335010
|
-
|
|
|
|
819 - RATCHET SLEEVE
BSD-1617000940.A12
1617000940
|
-
|
|
|
|
821 - PARTS SET
BSD-1617000230.A13
1617000230
|
-
|
|
|
|
830 - CLAMP HANDLE
BSD-1617000177.A26
1617000177
|
-
|
|
|
|
833 - PROTECTION SLEEVE
BSD-1617000163.A274
1617000163
|
£7.36
|
£8.83
|
|
|
877 - CHANGE-OVER SWITCH
BSD-1617200050.A0
1617200050
|
-
|
|
|
|
898 - GREASE TUBE 225 ML
BSD-3605430009.A4
3605430009
|
£45.67
|
£54.80
|
|
|
899 - CORDLESS HAMMER DRILL 12V
BSD-0603929720.A0
0603929720
|
-
|
|
|
