Bosch PSR 14.4-2 / 3603J51400 / EU 14.4 Volt Spare Parts

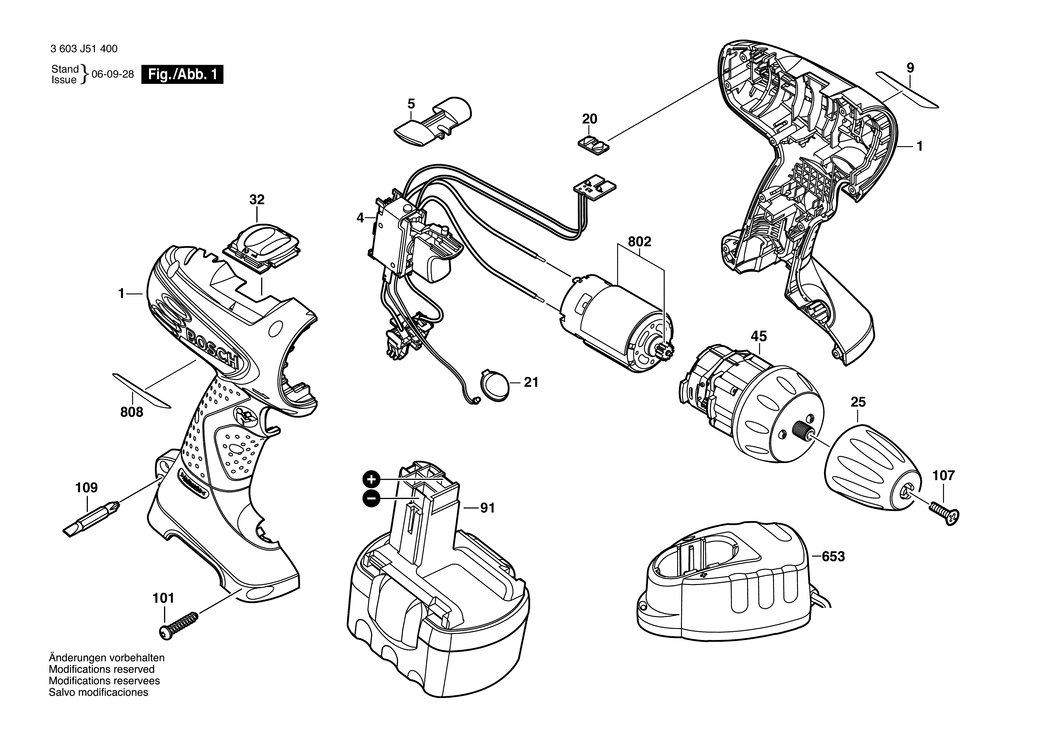

An exploded drawing and listing for the Bosch PSR 14.4-2 / 3603J51400 / EU 14.4 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100509.A1 2609100509	£21.68	£26.01
4 - ON-OFF SWITCH BSD-2609120271.A1 2609120271	-
5 - ADJUSTING SLIDE BSD-2601099096.A48 2601099096	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE PSR 14.4-2 BSD-2609131357.A0 2609131357	£2.61	£3.13
20 - LENS PLEXIGLASS 8N BSD-2609100257.A6 2609100257	£1.75	£2.10
21 - LENS BSD-2609100513.A2 2609100513	£2.16	£2.59
25 - KEYLESS CHUCK BSD-2609110668.A2 2609110668	£40.80	£48.96
32 - CHANGE-OVER SWITCH BSD-2609199124.A3 2609199124	£2.16	£2.59
45 - GEAR BOX BSD-2606200166.A3 2606200166	£45.67	£54.80
91 - ACCUMULATOR BATTERY 14.4V. 1.5Ah. NiCd BSD-1617S0004W.A4 1617S0004W	-
91 - SLIDE-IN ACCU PACKAGE 14.4V. 2.0Ah. NiMH BSD-2607335699.A20 2607335699	-
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A18 2609110201	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A275 2609110721	£2.16	£2.59
109 - SCREWDRIVER BIT BSD-2609160063.A64 2609160063	£3.72	£4.47
653 - FAST CHARGER EU 230/7.2-14.4V. 1h BSD-2607224391.A5 2607224391	£48.38	£58.06
653 - FAST CHARGER GB 230/7.2-14.4V. 1h BSD-2607224393.A27 2607224393	-
802 - MOTOR BSD-2609199138.A0 2609199138	£31.64	£37.97
808 - NAMEPLATE BSD-2609131346.A0 2609131346	-
