Bosch PSR 14.4 VE-2 / 0603943491 / EU 14.4 Volt Spare Parts

Bosch PSR 14.4 VE-2 / 0603943491 / EU 14.4 Volt Spare Parts

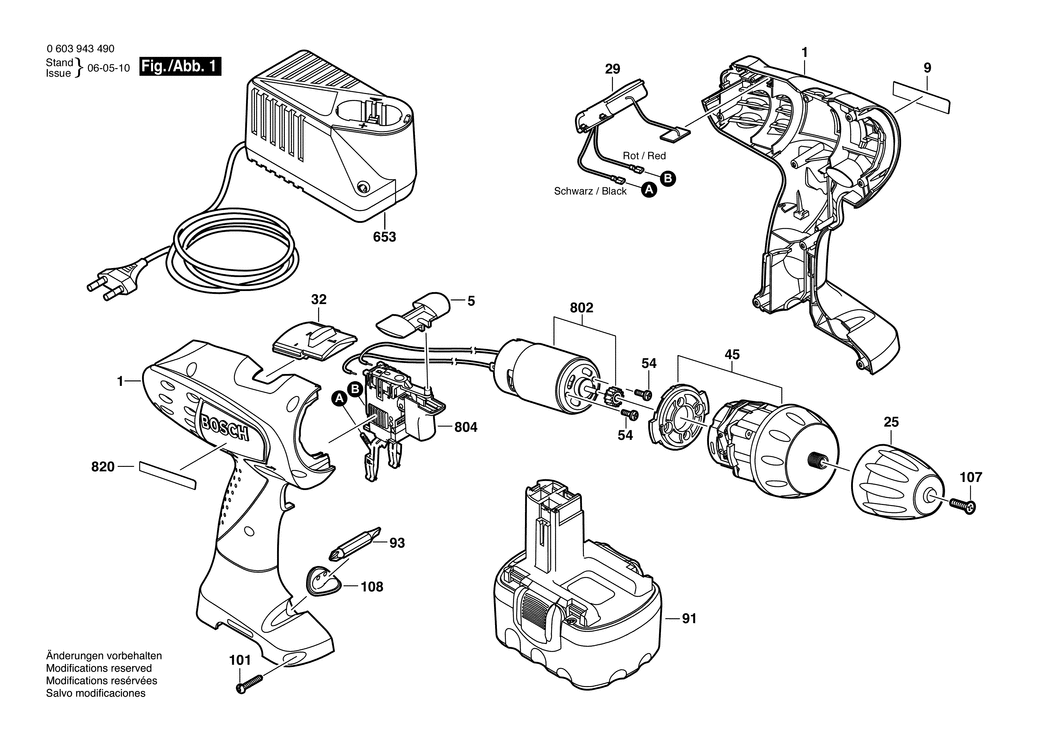

An exploded drawing and listing for the Bosch PSR 14.4 VE-2 / 0603943491 / EU 14.4 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605105034.A1 2605105034 £23.86 £28.63
5 - ADJUSTING SLIDE BSD-2601099096.A26 2601099096 £2.16 £2.59
9 - MANUFACTURER'S NAMEPLATE BSD-2601115348.A1 2601115348 £2.61 £3.13
25 - KEYLESS CHUCK BSD-2608572205.A3 2608572205 £41.62 £49.95
29 - INDICATOR UNIT BSD-2607230107.A1 2607230107 £36.63 £43.96
32 - SERVO UNIT BSD-2608040212.A14 2608040212 -
45 - PLANETARY GEAR TRAIN BSD-2606200167.A2 2606200167 -
54 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A32 2603414048 £1.75 £2.10
91 - SLIDE-IN ACCU PACKAGE 14.4V. 2.0Ah. NiMH BSD-2607335699.A1 2607335699 -
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A292 1609200147 £3.72 £4.47
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A639 2603490018 £1.75 £2.10
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A8 2609110721 £2.16 £2.59
108 - TOOLHOLDER BSD-2607001443.A14 2607001443 £2.16 £2.59
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A64 2607224425 £88.07 £105.68
802 - DC MOTOR 14.4V BSD-2607022851.A5 2607022851 -
804 - ON-OFF SWITCH BSD-2607200474.A4 2607200474 -
820 - NAMEPLATE BSD-2609001902.A0 2609001902 £2.33 £2.80
