Bosch PSR 18 VE-2 / 0603943390 / EU 18 Volt Spare Parts

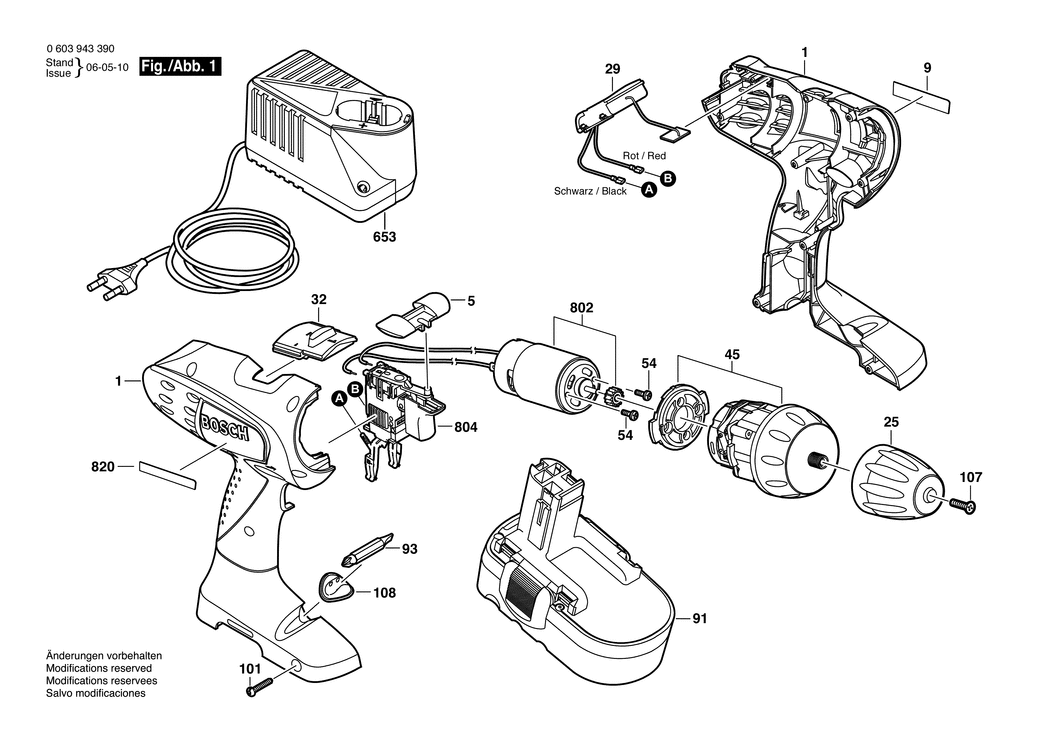

An exploded drawing and listing for the Bosch PSR 18 VE-2 / 0603943390 / EU 18 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605105035.A0 2605105035	-
5 - ADJUSTING SLIDE BSD-2601099096.A38 2601099096	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-2601115344.A0 2601115344	£2.61	£3.13
25 - KEYLESS CHUCK BSD-2608572205.A9 2608572205	£41.62	£49.95
29 - INDICATOR UNIT BSD-2607230092.A0 2607230092	-
32 - SERVO UNIT BSD-2608040212.A4 2608040212	-
45 - PLANETARY GEAR TRAIN BSD-2606200185.A2 2606200185	-
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A43 2603414049	-
91 - SLIDE-IN ACCU PACKAGE 18V. 1.5Ah. NiCd BSD-2607335535.A12 2607335535	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A275 1609200147	£3.72	£4.47
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A633 2603490018	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A293 2603421229	£1.75	£2.10
108 - TOOLHOLDER BSD-2607001443.A7 2607001443	£2.16	£2.59
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A55 2607224425	£88.07	£105.68
653 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A237 2607224427	£103.14	£123.77
653 - FAST CHARGER AUS 240/7.2-24V. 1h BSD-2607224429.A7 2607224429	£102.57	£123.08
653 - FAST CHARGER AUS 240/7.2-24V. 30 MIN. BSD-2607225031.A106 2607225031	£98.11	£117.73
802 - DC MOTOR 18V BSD-2607022850.A3 2607022850	£36.63	£43.96
804 - ON-OFF SWITCH BSD-2607200475.A0 2607200475	-
820 - NAMEPLATE BSD-2609001900.A0 2609001900	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
