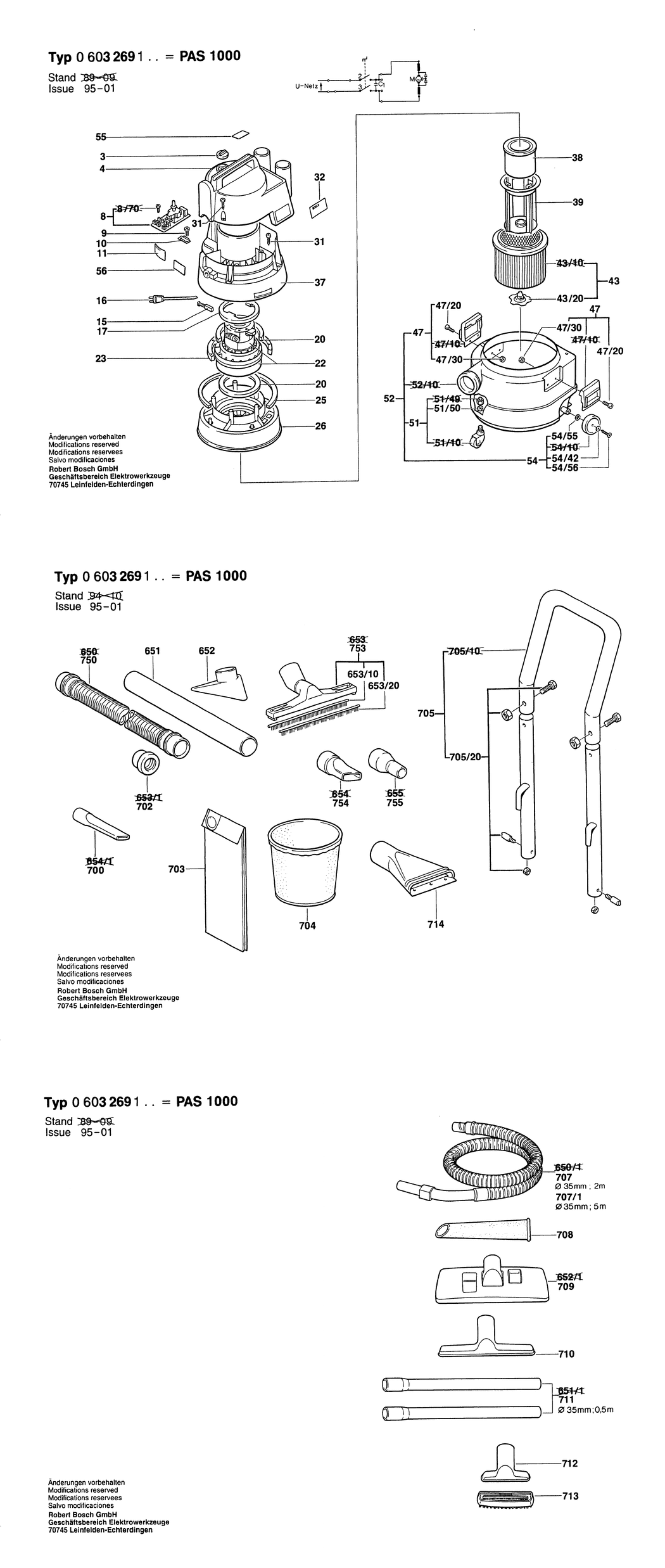

An exploded drawing and listing for the Bosch PAS 1000 / 0603269132 / CH 220 Volt
Ex VAT Inc VAT
3 - SWITCH BUTTON BSD-1609201717.A5 1609201717 -
4 - COVERING HOOD BSD-1609202372.A8 1609202372 -
8 - ON-OFF SWITCH BSD-1609201712.A17 1609201712 -
9 - TAPPING SCREW DIN 7971-B2.9x19 BSD-2910211208.A56 2910211208 -
10 - CLAMP BSD-1609201659.A45 1609201659 -
11 - NAMEPLATE BSD-1601110558.A0 1601110558 -
15 - CARBON-BRUSH SET BSD-1609201664.A15 1609201664 -
16 - CONNECTOR CABLE BSD-1609201718.A2 1609201718 -
17 - AIR-DEFLECTOR RING BSD-1609201666.A80 1609201666 -
20 - SEAL RING BSD-1609201669.A91 1609201669 £5.58 £6.70
22 - SUCTION BLOWER 220V BSD-1609202695.A47 1609202695 -
23 - AIR FILTER BSD-1609201672.A31 1609201672 -
25 - AIR FILTER BSD-1609201674.A32 1609201674 -
26 - INTERMEDIATE FLANGE BSD-1609201714.A5 1609201714 -
28 - AIR FILTER BSD-1609201677.A78 1609201677 £1.95 £2.34
31 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A204 2910611015 £1.75 £2.10
32 - MANUFACTURER'S NAMEPLATE BSD-1601110564.A11 1601110564 -
37 - INTERMEDIATE HOUSING BSD-1609201715.A22 1609201715 -
38 - FLOAT BSD-1609200952.A117 1609200952 -
39 - SUCTION BASKET BSD-1609201684.A47 1609201684 -
43 - AIR FILTER dia 148x188x165 MM BSD-1609201636.A9 1609201636 -
43/20 - STAR KNOB BSD-1609202200.A45 1609202200 -
47 - BENT-LEVER CLOSURE BSD-1609201690.A43 1609201690 -
47/20 - SOCKET HEAD CAP SCREW DIN 84-AM6x12-8.8 BSD-2910021193.A31 2910021193 £1.75 £2.10
47/30 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A804 2915011007 -
51 - IMPELLER BSD-1609201691.A20 1609201691 -
51/50 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A54 2915011009 £2.61 £3.13
52 - DUST CONTAINER BSD-1609201716.A11 1609201716 -
54 - IMPELLER BSD-1609202221.A39 1609202221 -
54/42 - PLAIN WASHER dia4.2xdia11x1.2MM BSD-1609202726.A119 1609202726 £1.75 £2.10
54/55 - PLAIN WASHER DIN 125-A 8.4-ST BSD-2916011016.A6 2916011016 £1.75 £2.10
54/56 - TAPPING SCREW DIN 7981-B4.2x19 BSD-2910611027.A54 2910611027 -
55 - REFERENCE PLATE BSD-1601110573.A15 1601110573 -
651 - SUCTION PIPE dia 49 MM. L=0.5 M BSD-1609200968.A73 1609200968 £12.24 £14.69
652 - SUCTION NOZZLE dia 49 MM BSD-1609200969.A37 1609200969 -
653/10 - FLAT BRUSH BSD-1609201109.A79 1609201109 -
653/20 - FLAT BRUSH BSD-1609201110.A48 1609201110 -
700 - CREVICE NOZZLE dia 35 MM. L= 250 MM BSD-2607000165.A14 2607000165 £5.24 £6.29
702 - REDUCTION SLEEVE dia 49/35 MM+3/4 BSD-1609200933.A100 1609200933 £7.21 £8.65
703 - PAPER BAG BSD-1609201628.A29 1609201628 £13.99 £16.79
704 - DUST SEPARATOR BSD-2607432010.A70 2607432010 -
705 - GUIDE BRACKET BSD-1609201627.A6 1609201627 -
705/20 - PARTS SET BSD-1609201661.A22 1609201661 -
707 - AIR HOSE dia 35 MM. 2 M.1 BSD-2607000163.A12 2607000163 -
707/1 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A79 1609202230 £85.74 £102.89
708 - SUCTION NOZZLE dia 35 MM BSD-1609201229.A102 1609201229 £17.49 £20.99
709 - SUCTION NOZZLE dia 35 MM BSD-1609201230.A36 1609201230 £41.99 £50.39
710 - FLAT SUCTION NOZZLE dia 35 MM-200 MM BSD-1609201231.A45 1609201231 -
711 - SUCTION PIPE dia 35 MM. L=0.5 M BSD-1609201232.A21 1609201232 -
712 - UPHOLSTERY NOZZLE dia 35 MM BSD-1609201233.A45 1609201233 -
713 - SUCTION BRUSH BSD-1609201234.A21 1609201234 -
714 - SUCTION NOZZLE dia 49 MM BSD-1609201235.A53 1609201235 -
750 - AIR HOSE dia 49 MM. 3 M.1 BSD-2607000167.A9 2607000167 £64.74 £77.69
753 - SUCTION NOZZLE dia 49 MM. 350 MM BSD-1609200970.A79 1609200970 £26.24 £31.49
754 - CREVICE NOZZLE dia 49 MM BSD-1609200971.A43 1609200971 £7.87 £9.44
755 - SUCTION PIPE dia 49/35 MM BSD-1609200976.A103 1609200976 £3.61 £4.33
