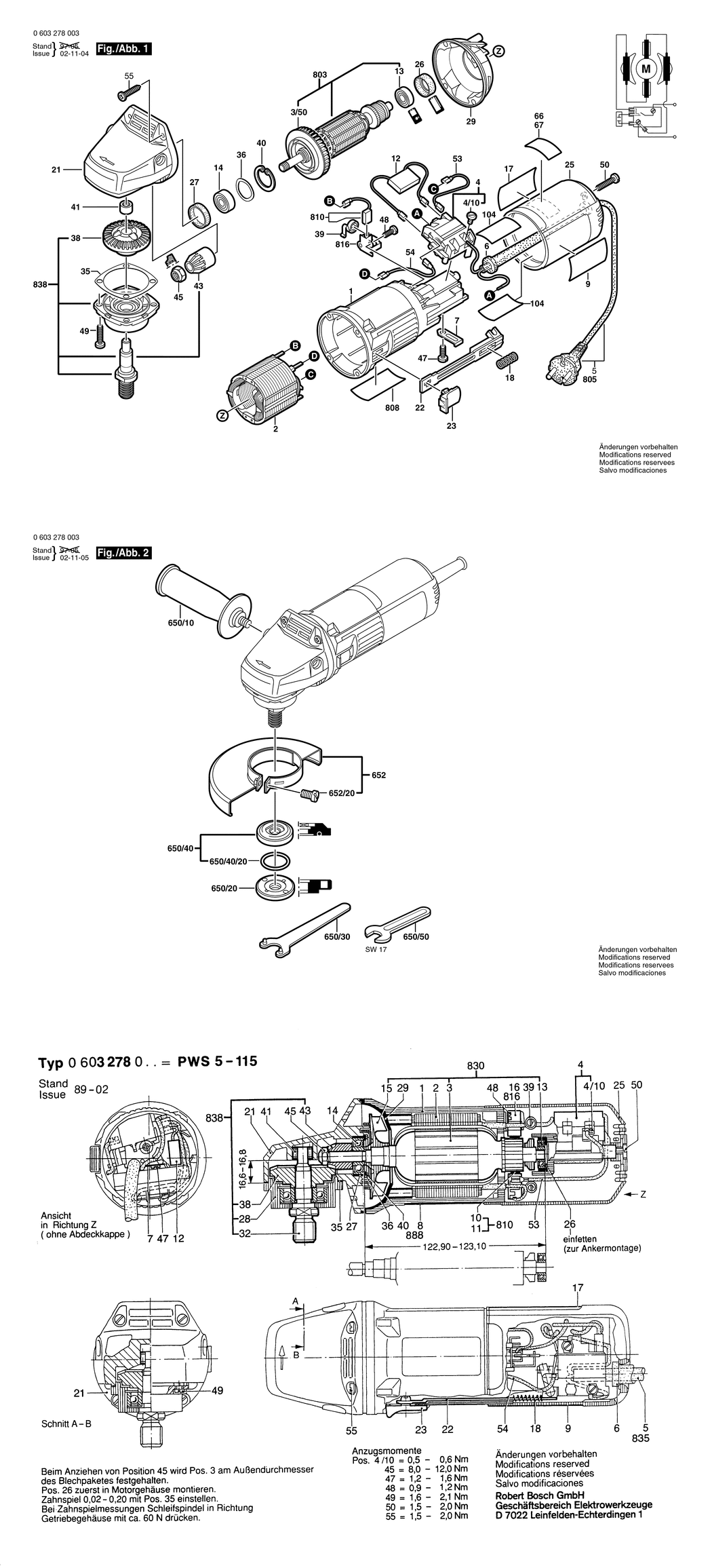

An exploded drawing and listing for the Bosch PWS 5-115 / 0603278042 / GB 240 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108127.A45 1605108127 -
2 - FIELD 240V BSD-1604220257.A5 1604220257 -
3/50 - FAN BSD-1606610121.A159 1606610121 £1.75 £2.10
4 - ON-OFF SWITCH BSD-1607200086.A201 1607200086 £11.30 £13.56
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A472 2910110048 £1.75 £2.10
5 - POWER SUPPLY CORD GB 240V 2.65m 2 x 1.0mm H05 VV-F BSD-1604460150.A8 1604460150 £16.41 £19.69
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1411 2600703012 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302017.A1104 1601302017 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601110475.A3 1601110475 -
12 - SUPPRESSION FILTER BSD-1607328029.A50 1607328029 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A1185 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A455 1600905032 £5.58 £6.70
18 - COMPRESSION SPRING BSD-1604611026.A685 1604611026 £1.75 £2.10
21 - GEAR HOUSING BSD-1605806429.A25 1605806429 £7.36 £8.83
22 - ADJUSTING SLIDE BSD-1602319002.A128 1602319002 £2.61 £3.13
23 - SWITCH HANDLE BSD-1602026057.A395 1602026057 £1.97 £2.36
25 - HOUSING COVER BSD-1600508005.A51 1600508005 £3.80 £4.56
26 - RUBBER BUSHING BSD-1600502020.A47 1600502020 £2.61 £3.13
27 - RUBBER RING BSD-1600206025.A957 1600206025 £2.16 £2.59
29 - AIR-DEFLECTOR RING BSD-1601328005.A113 1601328005 £2.61 £3.13
35 - SHIM 0.2 MM BSD-1600136010.A200 1600136010 £2.61 £3.13
35 - SHIM 0.3 MM BSD-1600136011.A129 1600136011 £2.16 £2.59
35 - SHIM 0.1 MM BSD-1600136012.A194 1600136012 £1.75 £2.10
36 - SPRING WASHER BSD-1600150011.A228 1600150011 £1.75 £2.10
38 - CROWN GEAR Z=36 BSD-1606333606.A94 1606333606 £11.30 £13.56
39 - SPIRAL SPRING BSD-1604652013.A1027 1604652013 £1.75 £2.10
40 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A30 2916660009 £2.16 £2.59
41 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A608 1600910018 £5.30 £6.36
43 - BEVEL GEAR Z=11 BSD-1606333605.A3 1606333605 £3.72 £4.47
45 - HEX NUT M7. SW10 BSD-1603300016.A343 1603300016 £1.75 £2.10
47 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A153 2910211018 £1.75 £2.10
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A172 2910211005 £1.75 £2.10
49 - TAPPING SCREW DIN7981-ST3.9x19-F-Z BSD-2912401420.A169 2912401420 £1.75 £2.10
50 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A973 2910211021 £1.75 £2.10
53 - CONNECTING CABLE BSD-1604448015.A50 1604448015 £1.75 £2.10
54 - CONNECTING CABLE BSD-1604448016.A99 1604448016 £1.75 £2.10
55 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A90 2912401021 £1.75 £2.10
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A496 160202509T £3.72 £4.47
650/20 - ROUND NUT M14 BSD-1603345043.A1171 1603345043 £8.67 £10.41
650/30 - PIN-TYPE FACE-WRENCH BSD-1607950052.A404 1607950052 £3.72 £4.47
650/40 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A414 2605703014 £7.36 £8.83
650/40/20 - O-RING 20.35x1.78 MM BSD-1600210039.A998 1600210039 £2.16 £2.59
650/50 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A477 2607950511 £4.26 £5.11
652 - PROTECTIVE COVER dia 115 MM(4 1/2) BSD-2605510125.A79 2605510125 £27.23 £32.68
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A211 2910022197 -
803 - ARMATURE WITH FAN 240V BSD-1604010262.A15 1604010262 -
808 - NAMEPLATE BSD-160111A3H3.A2532 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014116.A211 1607014116 £11.30 £13.56
816 - BRUSH HOLDER BSD-1600A003G4.A347 1600A003G4 £3.72 £4.47
838 - PARTS SET BSD-1607000934.A5 1607000934 -
