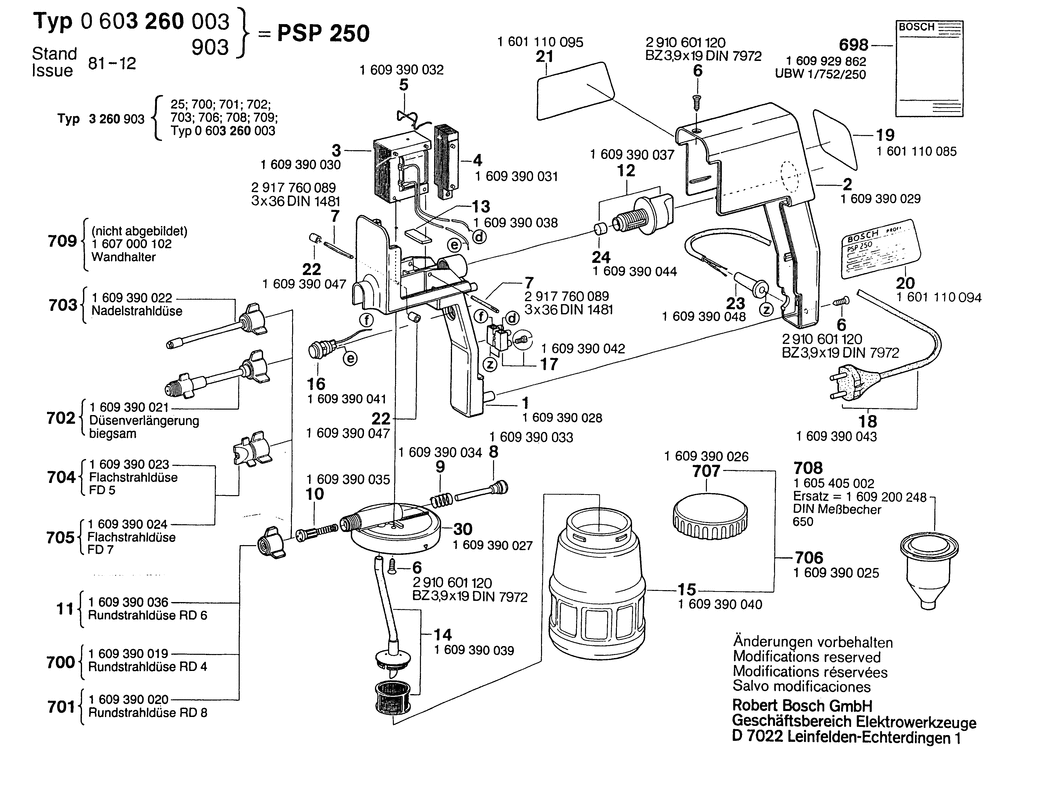

1 - HANDLE
BSD-1609390028.A0
1609390028
|
-
|
|
|
|
2 - HOUSING COVER
BSD-1609390029.A0
1609390029
|
-
|
|
|
|
2 - HOUSING COVER
BSD-1609390204.A0
1609390204
|
-
|
|
|
|
3 - OSCILL. ARMATURE MAGNET
BSD-1609390030.A2
1609390030
|
-
|
|
|
|
4 - OSCILLATING ARMATURE
BSD-1609390031.A0
1609390031
|
-
|
|
|
|
5 - HOLDING SPRING
BSD-1609390032.A10
1609390032
|
-
|
|
|
|
6 - TAPPING SCREW BZ 3.9x19 DIN 7972
BSD-2910601120.A41
2910601120
|
-
|
|
|
|
7 - COILED SPRING PIN 3x36 DIN 1481
BSD-2917760089.A0
2917760089
|
-
|
|
|
|
8 - PUMP PISTON
BSD-1609390033.A0
1609390033
|
-
|
|
|
|
9 - COMPRESSION SPRING
BSD-1609390034.A5
1609390034
|
-
|
|
|
|
10 - VACUUM/PRESSURE VALVE
BSD-1609390035.A0
1609390035
|
-
|
|
|
|
11 - CYLINDRICAL-SPRAY NOZZLE dia 0.6 MM
BSD-1609390541.A12
1609390541
|
-
|
|
|
|
12 - ADJUSTING SCREW
BSD-1609390037.A5
1609390037
|
-
|
|
|
|
13 - RUBBER BUFFER
BSD-1609390038.A0
1609390038
|
-
|
|
|
|
14 - SUCTION PIPE
BSD-1609390039.A0
1609390039
|
-
|
|
|
|
15 - PAINT BEAKER
BSD-1609390040.A0
1609390040
|
-
|
|
|
|
16 - ON-OFF SWITCH
BSD-1609390041.A0
1609390041
|
-
|
|
|
|
17 - CONNECTING TERMINAL
BSD-1609390042.A0
1609390042
|
£3.34
|
£4.01
|
|
|
18 - POWER SUPPLY CORD
BSD-1609390043.A13
1609390043
|
£14.75
|
£17.70
|
|
|
20 - REFERENCE PLATE
BSD-1601110094.A0
1601110094
|
-
|
|
|
|
21 - REFERENCE PLATE
BSD-1601110095.A5
1601110095
|
-
|
|
|
|
22 - PROTECTIVE CAP
BSD-1609390047.A5
1609390047
|
-
|
|
|
|
23 - GROMMET
BSD-1609390048.A0
1609390048
|
£3.34
|
£4.01
|
|
|
24 - RUBBER BUFFER
BSD-1609390044.A0
1609390044
|
-
|
|
|
|
30 - PUMP HOUSING
BSD-1609390027.A0
1609390027
|
-
|
|
|
|
650 - PAINT CONTAINER
BSD-1609200248.A0
1609200248
|
-
|
|
|
|
700 - CYLINDRICAL-SPRAY NOZZLE dia 0.4 MM
BSD-1609390540.A0
1609390540
|
-
|
|
|
|
701 - CYLINDRICAL-SPRAY NOZZLE dia 0.8 MM
BSD-1609390542.A0
1609390542
|
-
|
|
|
|
702 - NOZZLE EXTENSION
BSD-1609390021.A0
1609390021
|
-
|
|
|
|
703 - PENCIL-SPRAY NOZZLE
BSD-1609390022.A5
1609390022
|
-
|
|
|
|
704 - FLAT-SPRAY NOZZLE FD 5
BSD-1609390358.A12
1609390358
|
-
|
|
|
|
705 - FLAT-SPRAY NOZZLE FD 7
BSD-1609390359.A2
1609390359
|
-
|
|
|
|
706 - PAINT BEAKER
BSD-1609390025.A5
1609390025
|
-
|
|
|
|
707 - RESERVOIR CAP
BSD-1609390026.A0
1609390026
|
-
|
|
|
|
708 - STRAINER
BSD-1609390045.A5
1609390045
|
-
|
|
|
|
709 - MOUNTING PIECE
BSD-1607000167.A0
1607000167
|
-
|
|
|
|
800 - COMBI SPRAY GUN
BSD-0603260803.A0
0603260803
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1374
160111A3H3
|
£2.61
|
£3.13
|
|
