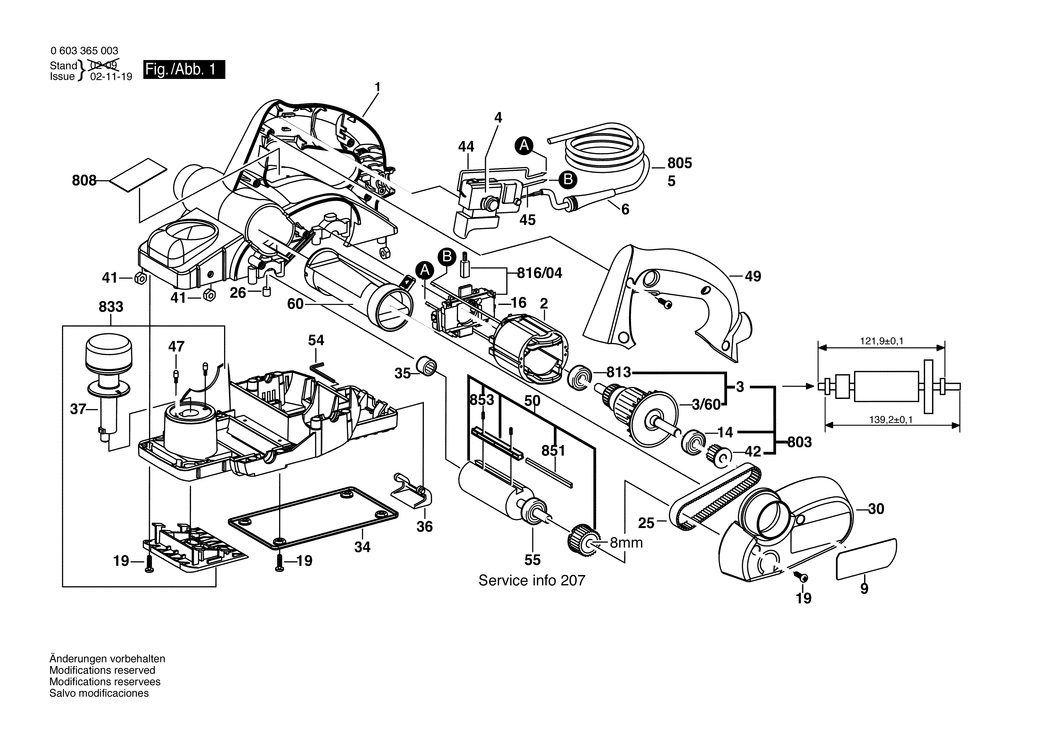

1 - HOUSING SECTION
BSD-2605105037.A5
2605105037
|
£21.42
|
£25.71
|
|
2 - FIELD 230V
BSD-2610390992.A33
2610390992
|
£14.72
|
£17.67
|
|
3 - ARMATURE 230-240V
BSD-2604011196.A0
2604011196
|
-
|
|
|
3/60 - FAN
BSD-2606610096.A0
2606610096
|
£2.61
|
£3.13
|
|
4 - SWITCH
BSD-2607200531.A7
2607200531
|
-
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A510
2600703017
|
£2.61
|
£3.13
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-1610905011.A105
1610905011
|
£14.91
|
£17.89
|
|
16 - BRUSH PLATE
BSD-2604337086.A7
2604337086
|
£11.30
|
£13.56
|
|
19 - SCREW 4x16
BSD-2603490022.A2541
2603490022
|
£1.75
|
£2.10
|
|
25 - TOOTHED BELT
BSD-2604736001.A0
2604736001
|
£10.10
|
£12.12
|
|
26 - DAMPING RUBBER
BSD-2603100056.A61
2603100056
|
£1.75
|
£2.10
|
|
30 - GEAR COVER
BSD-2605500149.A3
2605500149
|
-
|
|
|
34 - BASE PLATE
BSD-2608000225.A0
2608000225
|
£7.78
|
£9.33
|
|
35 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A60
1610910057
|
£2.80
|
£3.36
|
|
36 - KNIFE GUARD
BSD-2601329104.A6
2601329104
|
£2.80
|
£3.36
|
|
37 - HANDLE
BSD-2602026094.A2
2602026094
|
£7.78
|
£9.33
|
|
41 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A240
2915011007
|
-
|
|
|
42 - TOOTHED BELT WHEEL
BSD-2606625030.A9
2606625030
|
£3.72
|
£4.47
|
|
44 - CONNECTING CABLE L = 300 MM
BSD-2604448221.A0
2604448221
|
£2.61
|
£3.13
|
|
45 - CONNECTING CABLE L = 325 MM
BSD-2604448222.A9
2604448222
|
£2.61
|
£3.13
|
|
47 - RATCHET CAP
BSD-2600590006.A516
2600590006
|
£1.75
|
£2.10
|
|
49 - HANDLE PLATE
BSD-2605133029.A8
2605133029
|
£7.36
|
£8.83
|
|
50 - PLANER HEAD
BSD-2608584003.A0
2608584003
|
£45.67
|
£54.80
|
|
54 - OFFSET SCREWDRIVER DIN 911 SW2.5
BSD-1907950003.A63
1907950003
|
£2.61
|
£3.13
|
|
55 - GROOVE BALL BEARING 8x22x7
BSD-2600905052.A324
2600905052
|
£7.36
|
£8.83
|
|
60 - DEFLECTOR PIPE
BSD-2600409027.A6
2600409027
|
-
|
|
|
803 - ARMATURE
BSD-2604010990.A5
2604010990
|
£61.98
|
£74.38
|
|
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A228
1607000388
|
£12.04
|
£14.45
|
|
808 - NAMEPLATE
BSD-2601117121.A1
2601117121
|
-
|
|
|
813 - GROOVE BALL BEARING 7x19x6
BSD-1610905025.A465
1610905025
|
£6.52
|
£7.83
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014014.A0
2607014014
|
£8.67
|
£10.41
|
|
833 - BASE FRAME
BSD-2608000921.A4
2608000921
|
-
|
|
|
851 - PLANING KNIFE
BSD-2608635341.A20
2608635341
|
£16.41
|
£19.69
|
|
853 - SET SCREW
BSD-2603400016.A39
2603400016
|
£1.75
|
£2.10
|
|
