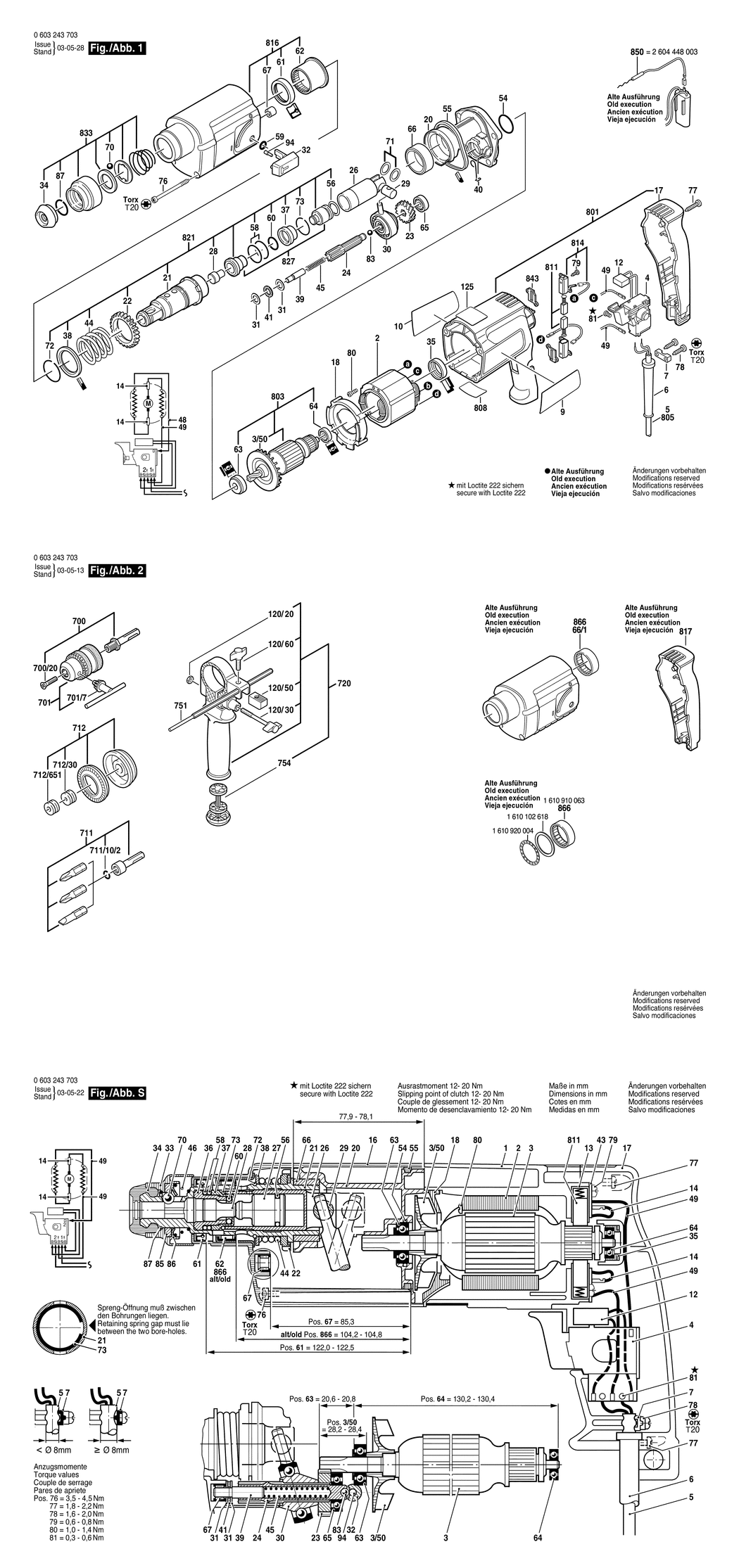

An exploded drawing and listing for the Bosch PBH 14-E / 0603243732 / CH 220 Volt
Ex VAT Inc VAT
2 - FIELD 220-230V BSD-2604220429.A6 2604220429 £23.86 £28.63
3/50 - FAN BSD-2606610049.A132 2606610049 £2.16 £2.59
4 - SWITCH BSD-1617200089.A9 1617200089 -
4 - ON-OFF SWITCH BSD-2607200137.A14 2607200137 -
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H07 RN-F BSD-1604460448.A8 1604460448 £18.96 £22.75
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A454 2600703011 £2.80 £3.36
7 - CABLE CLIP BSD-1611035005.A214 1611035005 £2.16 £2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110418.A7 1611110418 -
10 - REFERENCE PLATE BSD-1611110417.A23 1611110417 -
12 - SUPPRESSION CAPACITOR BSD-1617328021.A13 1617328021 -
18 - AIR-DEFLECTOR RING BSD-1610522008.A113 1610522008 £1.75 £2.10
20 - INTERMEDIATE FLANGE BSD-1615700037.A148 1615700037 £40.80 £48.96
21 - RATCHET SLEEVE SDS-PLUS BSD-1616490058.A133 1616490058 £218.41 £262.09
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A159 1616320007 £7.36 £8.83
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A160 1616320007 £7.36 £8.83
23 - CYLINDRICAL GEAR Z=6/21 BSD-1616320002.A141 1616320002 £24.45 £29.34
24 - TOOTHED SHAFT Z=6/10 BSD-1613060010.A160 1613060010 £54.42 £65.30
26 - HAMMER PISTON BSD-1618700052.A159 1618700052 £13.12 £15.75
28 - STRIKER PIN BSD-1613124026.A166 1613124026 £2.80 £3.36
29 - PISTON PIN BSD-1613105012.A488 1613105012 £3.72 £4.47
30 - DRIVE BEARING BSD-1615819005.A157 1615819005 £31.64 £37.97
31 - SUPPORT DISC 0.8 MM BSD-1610100003.A166 1610100003 £1.75 £2.10
32 - CLAMP HANDLE BSD-1612026023.A169 1612026023 £2.61 £3.13
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A304 1610508008 £2.16 £2.59
35 - RUBBER RING BSD-1610206021.A288 1610206021 £1.75 £2.10
37 - DAMPING BUSHING BSD-1610390011.A142 1610390011 £3.72 £4.47
38 - SUPPORTING DISC BSD-1610102022.A153 1610102022 £2.16 £2.59
39 - STRAIGHT PIN BSD-1613100013.A12 1613100013 £2.16 £2.59
40 - HOLDING SPRING BSD-1614690001.A169 1614690001 £1.75 £2.10
41 - ROLLER-CAGE ASSEMBLY BSD-1610920003.A17 1610920003 £4.26 £5.11
44 - COMPRESSION SPRING BSD-1614633001.A155 1614633001 £2.52 £3.02
45 - COMPRESSION SPRING BSD-1614614001.A168 1614614001 £1.75 £2.10
49 - CABLE L=130 MM BSD-2604448005.A6 2604448005 £1.75 £2.10
54 - O-RING 24.0x2.5 MM BSD-1610210068.A344 1610210068 £1.75 £2.10
55 - SEAL RING BSD-1610206023.A5 1610206023 £2.80 £3.36
56 - O-RING 14.0x3.0 MM BSD-1610210070.A152 1610210070 £2.61 £3.13
58 - O-RING 18.0x3.0 MM BSD-1610210058.A170 1610210058 £2.61 £3.13
59 - O-RING 6.0x2.5 MM BSD-1610210069.A10 1610210069 £1.75 £2.10
60 - O-RING 10.0x3.5 MM BSD-1610210073.A154 1610210073 £2.16 £2.59
61 - ROTARY SHAFT LIP SEAL BSD-1610283017.A187 1610283017 £7.36 £8.83
62 - PLAIN BEARING BSD-1610202026.A197 1610202026 £5.30 £6.36
63 - GROOVE BALL BEARING BSD-1610905013.A4 1610905013 -
64 - BALL BEARING 7x19x6 BSD-2600905032.A1525 2600905032 £5.30 £6.36
65 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A27 1900900228 £6.61 £7.93
66 - BUSHING dia30xdia37x15.7 MM BSD-1610301000.A99 1610301000 £3.34 £4.01
67 - NEEDLE BEARING BSD-1610910064.A19 1610910064 £2.52 £3.02
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A857 1903230013 £2.16 £2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A346 1610101011 £1.75 £2.10
72 - RETAINING RING DIN 7993-A32 BSD-2916540018.A150 2916540018 £3.72 £4.47
73 - RETAINING RING DIN 9045-24 BSD-1614601009.A15 1614601009 £1.95 £2.34
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A180 1613435009 £1.75 £2.10
77 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A184 2910211021 £1.75 £2.10
78 - TAPPING SCREW ST3.9x19-TORX.T20 BSD-1603435050.A6 1603435050 £2.33 £2.80
79 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A321 2910211005 £1.75 £2.10
79 - TAPPING SCREW DIN 7971-B 2.9x13 BSD-2910211206.A100 2910211206 £1.32 £1.58
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A229 2603435015 £2.16 £2.59
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2186 2603410001 £1.75 £2.10
83 - BALL 5 MM V DIN 5401 BSD-1903230309.A6 1903230309 £1.75 £2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A477 2916540012 -
94 - DETENT PIN BSD-1613120017.A167 1613120017 £1.75 £2.10
120/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A219 2915011007 -
120/30 - WING SCREW M6x(15)55 BSD-1613480007.A86 1613480007 £1.75 £2.10
120/50 - CLAMPING PLATE M6 BSD-2608040014.A41 2608040014 -
120/60 - WING SCREW M6x20 MM BSD-1613480008.A351 1613480008 £1.75 £2.10
125 - REFERENCE PLATE BSD-1611110353.A3 1611110353 £1.95 £2.34
700 - DRILL CHUCK SHANK BSD-1617000132.A132 1617000132 £16.84 £20.21
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A139 2603421226 £1.75 £2.10
701 - KEY CHUCK dia1.5-13 MM. 1/2 BSD-1608571055.A18 1608571055 -
701/7 - CHUCK WRENCH SG2. SW4 BSD-1607950044.A55 1607950044 £6.12 £7.34
711 - PARTS SET BSD-1617000133.A74 1617000133 -
711/10/2 - RETAINING RING BSD-2604601004.A51 2604601004 £1.75 £2.10
712 - DUST TRAY BSD-1615439003.A99 1615439003 -
712/30 - RUBBER BUSHING dia5-7 MM BSD-1610312001.A62 1610312001 -
712/651 - RUBBER BUSHING dia8-10 MM BSD-1610312002.A77 1610312002 -
720 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A84 1619P10682 £12.49 £14.99
751 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A256 1613001005 -
754 - DRILL HOLDER BSD-2607000122.A69 2607000122 -
801 - MOTOR HOUSING BSD-1615108040.A3 1615108040 -
803 - ARMATURE WITH FAN 220-240V BSD-1614010052.A27 1614010052 -
808 - NAMEPLATE BSD-160111A3H3.A3464 160111A3H3 £2.61 £3.13
811 - CARBON BRUSH BSD-1607014117.A176 1607014117 £10.10 £12.12
814 - BRUSH HOLDER BSD-1617000130.A25 1617000130 £3.80 £4.56
816 - GEAR HOUSING BSD-1615806076.A11 1615806076 -
817 - HOUSING COVER BSD-1615132031.A4 1615132031 -
821 - RATCHET SLEEVE BSD-1617000931.A105 1617000931 £283.50 £340.20
827 - STRIKER BSD-1617000338.A151 1617000338 £27.23 £32.68
833 - PROTECTION SLEEVE BSD-1617000163.A249 1617000163 £7.36 £8.83
843 - BRUSH PLATE BSD-2601015047.A22 2601015047 -
850 - CABLE BSD-2604448003.A65 2604448003 -
866 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A144 1610910063 £5.58 £6.70
