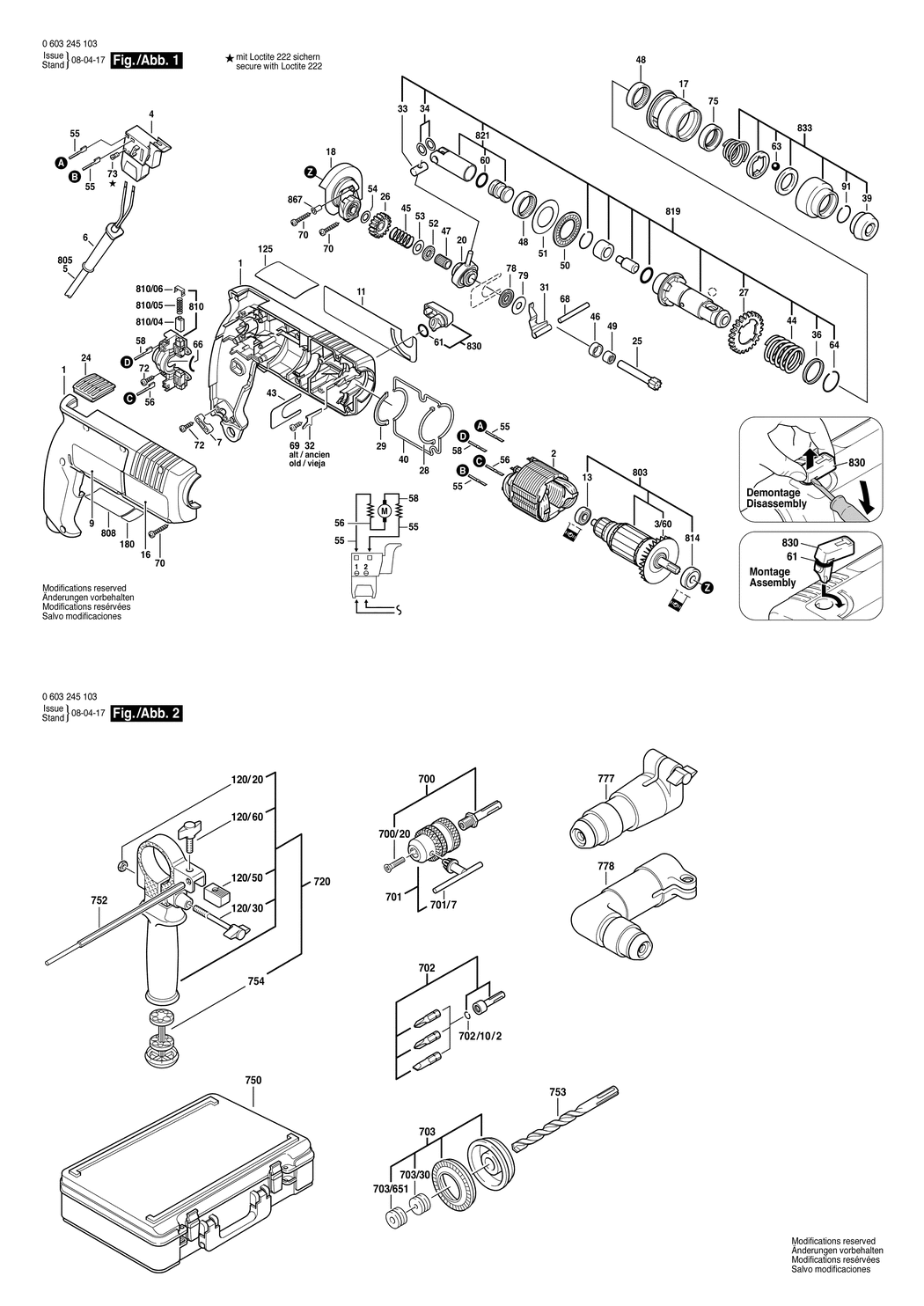

1 - HOUSING SECTION
BSD-1615104002.A28
1615104002
|
-
|
|
|
|
2 - FIELD 240V
BSD-2604220411.A26
2604220411
|
£21.68
|
£26.01
|
|
|
3/60 - FAN
BSD-2606610022.A21
2606610022
|
£4.26
|
£5.11
|
|
|
4 - SWITCH
BSD-2607200373.A7
2607200373
|
£11.78
|
£14.13
|
|
|
6 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A468
2600703011
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A804
2600703012
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-1611035005.A204
1611035005
|
£2.16
|
£2.59
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110393.A0
1611110393
|
-
|
|
|
|
11 - MANUFACTURER'S NAMEPLATE
BSD-1611110370.A13
1611110370
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328040.A93
1607328040
|
£6.52
|
£7.83
|
|
|
13 - GROOVE BALL BEARING 7x19x6
BSD-1610905032.A178
1610905032
|
£5.30
|
£6.36
|
|
|
16 - REFERENCE PLATE
BSD-1611110392.A4
1611110392
|
-
|
|
|
|
17 - GUIDE SLEEVE
BSD-1615819013.A34
1615819013
|
£6.61
|
£7.93
|
|
|
18 - FLANGED BEARING
BSD-1615700027.A51
1615700027
|
-
|
|
|
|
20 - DRIVE BEARING
BSD-1615819012.A13
1615819012
|
-
|
|
|
|
24 - PROTECTIVE GRILLE
BSD-1612388019.A36
1612388019
|
-
|
|
|
|
25 - TOOTHED SHAFT Z=9
BSD-1613160008.A11
1613160008
|
-
|
|
|
|
26 - CYLINDRICAL GEAR Z=31
BSD-1616317600.A47
1616317600
|
£2.52
|
£3.02
|
|
|
27 - CYLINDRICAL GEAR Z=48
BSD-1616317034.A13
1616317034
|
-
|
|
|
|
28 - SEAL RING
BSD-1611015034.A37
1611015034
|
-
|
|
|
|
29 - SEAL RING
BSD-1611015035.A16
1611015035
|
-
|
|
|
|
31 - PRESSURE LEVER
BSD-1611329009.A11
1611329009
|
-
|
|
|
|
33 - PISTON PIN
BSD-1613103006.A49
1613103006
|
-
|
|
|
|
34 - SHIM WASHER 1.2 MM
BSD-1610100608.A17
1610100608
|
£1.75
|
£2.10
|
|
|
36 - SUPPORTING DISC
BSD-1610102024.A22
1610102024
|
-
|
|
|
|
39 - PROTECTIVE CAP L=17 MM. SDS-PLUS
BSD-1610508008.A297
1610508008
|
£2.16
|
£2.59
|
|
|
40 - SEALING FRAME
BSD-1611015033.A16
1611015033
|
-
|
|
|
|
43 - HOLDING PLATE
BSD-1611031005.A44
1611031005
|
-
|
|
|
|
44 - COMPRESSION SPRING
BSD-1614634002.A2
1614634002
|
-
|
|
|
|
45 - COMPRESSION SPRING
BSD-1614610005.A32
1614610005
|
-
|
|
|
|
46 - RETAINING SNAP RING
BSD-1610200014.A41
1610200014
|
-
|
|
|
|
47 - NEEDLE-ROLLER ASSEMBLY
BSD-1610913008.A24
1610913008
|
-
|
|
|
|
48 - NEEDLE BEARING
BSD-1610910071.A37
1610910071
|
£6.52
|
£7.83
|
|
|
49 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A28
2600917003
|
£2.80
|
£3.36
|
|
|
50 - ROLLER-CAGE ASSEMBLY
BSD-1610920002.A23
1610920002
|
£3.72
|
£4.47
|
|
|
51 - SUPPORT DISC 1.0 MM
BSD-1610102617.A27
1610102617
|
£2.16
|
£2.59
|
|
|
52 - THRUST NEEDLE RIM
BSD-1610920005.A30
1610920005
|
-
|
|
|
|
53 - SUPPORT DISC
BSD-1610100602.A36
1610100602
|
-
|
|
|
|
54 - SHIM 0.6 MM
BSD-1610100604.A17
1610100604
|
-
|
|
|
|
54 - SHIM 0.8 MM
BSD-1610100605.A42
1610100605
|
-
|
|
|
|
54 - SHIM 1.0 MM
BSD-1610100606.A17
1610100606
|
-
|
|
|
|
54 - SHIM 1.2 MM
BSD-1610100607.A36
1610100607
|
-
|
|
|
|
55 - CABLE L=173 MM
BSD-2604448060.A162
2604448060
|
-
|
|
|
|
56 - PVC-INSULATED CABLE L=66 MM
BSD-1614448019.A9
1614448019
|
-
|
|
|
|
58 - PVC-INSULATED CABLE L=83 MM
BSD-1614448020.A11
1614448020
|
-
|
|
|
|
60 - O-RING 13.0x2.5 MM
BSD-1610210086.A38
1610210086
|
-
|
|
|
|
61 - O-RING 10.5x2.7 MM
BSD-1610210046.A231
1610210046
|
£2.16
|
£2.59
|
|
|
63 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A866
1903230013
|
£2.16
|
£2.59
|
|
|
64 - RETAINING RING
BSD-1614601007.A13
1614601007
|
-
|
|
|
|
66 - DAMPING RUBBER
BSD-1610026001.A8
1610026001
|
£1.75
|
£2.10
|
|
|
68 - STRAIGHT PIN DIN 6325-5M6x45
BSD-2917550133.A29
2917550133
|
£2.33
|
£2.80
|
|
|
70 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z
BSD-2912401022.A32
2912401022
|
£1.75
|
£2.10
|
|
|
72 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A213
2912401019
|
£1.75
|
£2.10
|
|
|
73 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2193
2603410001
|
£1.75
|
£2.10
|
|
|
75 - SHAFT SEAL
BSD-1610283019.A107
1610283019
|
£7.36
|
£8.83
|
|
|
78 - ROLLER-CAGE ASSEMBLY
BSD-1610920006.A23
1610920006
|
£2.52
|
£3.02
|
|
|
79 - SUPPORT DISC
BSD-1610100609.A37
1610100609
|
-
|
|
|
|
91 - RETAINING RING DIN 7993-A22
BSD-2916540012.A483
2916540012
|
-
|
|
|
|
120/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A213
2915011007
|
-
|
|
|
|
120/30 - WING SCREW M6x(15)55
BSD-1613480007.A96
1613480007
|
£1.75
|
£2.10
|
|
|
120/50 - CLAMPING PLATE M6
BSD-2608040014.A45
2608040014
|
-
|
|
|
|
120/60 - WING SCREW M6x20 MM
BSD-1613480008.A341
1613480008
|
£1.75
|
£2.10
|
|
|
125 - REFERENCE PLATE
BSD-1611110376.A5
1611110376
|
-
|
|
|
|
700 - DRILL CHUCK SHANK
BSD-1617000132.A138
1617000132
|
£16.84
|
£20.21
|
|
|
700/20 - COUNTERSUNK-HEAD SCREW M6x27
BSD-2603421226.A132
2603421226
|
£1.75
|
£2.10
|
|
|
701 - KEY CHUCK R/L dia13 MM. 1/2-20 UNF
BSD-1608571062.A1
1608571062
|
£17.49
|
£20.99
|
|
|
701/7 - CHUCK WRENCH SG2. SW4
BSD-1607950044.A52
1607950044
|
£6.12
|
£7.34
|
|
|
702 - PARTS SET
BSD-1617000133.A67
1617000133
|
-
|
|
|
|
702/10/2 - RETAINING RING
BSD-2604601004.A56
2604601004
|
£1.75
|
£2.10
|
|
|
703 - DUST TRAY
BSD-1615439003.A102
1615439003
|
-
|
|
|
|
703/30 - RUBBER BUSHING dia5-7 MM
BSD-1610312001.A72
1610312001
|
-
|
|
|
|
703/651 - RUBBER BUSHING dia8-10 MM
BSD-1610312002.A67
1610312002
|
-
|
|
|
|
720 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A79
1619P10682
|
£12.49
|
£14.99
|
|
|
752 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A253
1613001005
|
-
|
|
|
|
753 - ROTARY HAMMER BIT dia6x50 MM
BSD-1618596166.A21
1618596166
|
-
|
|
|
|
754 - DRILL HOLDER
BSD-2607000122.A73
2607000122
|
-
|
|
|
|
777 - CHISEL ATTACHMENT
BSD-2607018296.A4
2607018296
|
£52.49
|
£62.99
|
|
|
778 - ANGLE DRILL HEAD
BSD-1618580000.A112
1618580000
|
£239.08
|
£286.90
|
|
|
803 - ARMATURE WITH FAN 220-230V
BSD-1614010085.A7
1614010085
|
-
|
|
|
|
805 - POWER SUPPLY CORD
BSD-3607030489.A90
3607030489
|
£31.64
|
£37.97
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A3459
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - BRUSH PLATE
BSD-2609992600.A12
2609992600
|
-
|
|
|
|
810/04 - CARBON-BRUSH SET
BSD-1617014117.A1
1617014117
|
-
|
|
|
|
810/05 - COMPRESSION SPRING
BSD-2604611026.A175
2604611026
|
-
|
|
|
|
810/06 - RATCHET CAP
BSD-2601322013.A432
2601322013
|
£1.75
|
£2.10
|
|
|
814 - GROOVE BALL BEARING 9x24x7
BSD-1610905048.A455
1610905048
|
£8.67
|
£10.41
|
|
|
819 - RATCHET SLEEVE
BSD-1617000936.A15
1617000936
|
-
|
|
|
|
821 - PARTS SET
BSD-1617000215.A2
1617000215
|
-
|
|
|
|
830 - CLAMP HANDLE
BSD-1617000177.A22
1617000177
|
-
|
|
|
|
833 - PROTECTION SLEEVE
BSD-1617000163.A254
1617000163
|
£7.36
|
£8.83
|
|
|
867 - TUBULAR RIVET DIN 7340-A5x0.5x8-ST
BSD-2917161108.A0
2917161108
|
£1.75
|
£2.10
|
|
