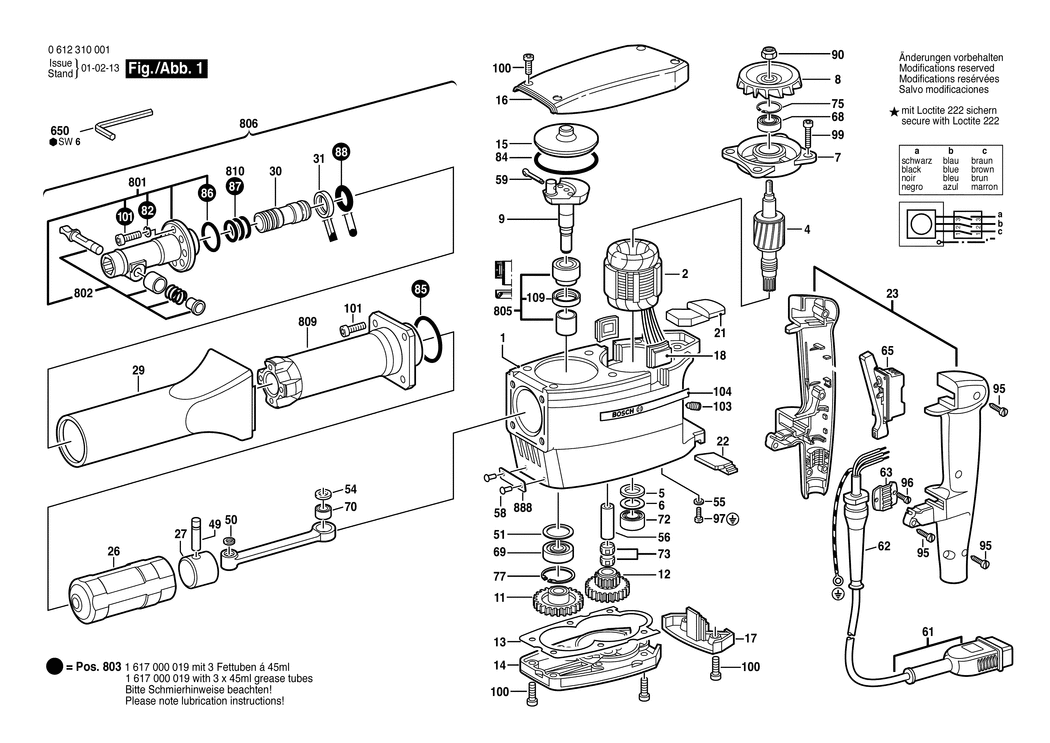

1 - MOTOR HOUSING
BSD-1615106016.A6
1615106016
|
£306.81
|
£368.17
|
|
|
2 - STATOR 250V/200HZ
BSD-1614229154.A4
1614229154
|
-
|
|
|
|
4 - ROTOR WITHOUT WINDING
BSD-1614080024.A9
1614080024
|
-
|
|
|
|
5 - SEALING DISK
BSD-1610108012.A3
1610108012
|
£1.75
|
£2.10
|
|
|
6 - SHIM 1.0 MM
BSD-1610102013.A39
1610102013
|
£1.75
|
£2.10
|
|
|
7 - BEARING FLANGE
BSD-1615805048.A5
1615805048
|
-
|
|
|
|
8 - FAN
BSD-1616610045.A2
1616610045
|
£37.27
|
£44.72
|
|
|
9 - ECCENTRIC SHAFT
BSD-1616110032.A30
1616110032
|
£46.82
|
£56.18
|
|
|
11 - CYLINDRICAL GEAR Z=38
BSD-1616317017.A0
1616317017
|
-
|
|
|
|
12 - CYLINDRICAL GEAR Z=47/28
BSD-1616328026.A0
1616328026
|
-
|
|
|
|
13 - SEALING PLATE
BSD-1611015012.A7
1611015012
|
£2.33
|
£2.80
|
|
|
14 - GEAR COVER
BSD-1615808039.A6
1615808039
|
-
|
|
|
|
15 - SEALING CAP
BSD-1615500168.A28
1615500168
|
£2.52
|
£3.02
|
|
|
16 - FAN COVER
BSD-1615500276.A7
1615500276
|
£52.15
|
£62.58
|
|
|
17 - SWITCH COVER
BSD-1615500261.A51
1615500261
|
£7.78
|
£9.33
|
|
|
18 - SEALING CAP
BSD-1615500282.A52
1615500282
|
£2.33
|
£2.80
|
|
|
21 - RUBBER PLATE
BSD-1612392001.A25
1612392001
|
£3.80
|
£4.56
|
|
|
22 - RUBBER PLATE
BSD-1612392000.A41
1612392000
|
£3.80
|
£4.56
|
|
|
23 - HANDLE
BSD-1615133021.A30
1615133021
|
£21.52
|
£25.83
|
|
|
26 - STRIKER
BSD-1618710031.A1
1618710031
|
-
|
|
|
|
27 - IMPACT MECHANISM
BSD-1617000917.A6
1617000917
|
£653.78
|
£784.53
|
|
|
28 - GUIDE TUBE
BSD-1615806020.A0
1615806020
|
-
|
|
|
|
29 - PROTECTIVE TUBE
BSD-1615190020.A6
1615190020
|
£16.41
|
£19.69
|
|
|
30 - STRIKER PIN
BSD-1613120013.A9
1613120013
|
-
|
|
|
|
31 - ADAPTOR PLATE
BSD-1610114011.A8
1610114011
|
-
|
|
|
|
49 - PISTON PIN
BSD-1613105009.A16
1613105009
|
-
|
|
|
|
50 - LOCKING WASHER
BSD-1610113008.A10
1610113008
|
-
|
|
|
|
51 - SHIM 1.0 MM
BSD-1610102014.A12
1610102014
|
-
|
|
|
|
54 - COVER DISC dia12xdia26x2.0 MM
BSD-1610113005.A9
1610113005
|
£1.75
|
£2.10
|
|
|
55 - SPRING WASHER DIN 137-A4
BSD-1600150006.A889
1600150006
|
-
|
|
|
|
56 - BEARING BOLT
BSD-1610300057.A20
1610300057
|
£4.75
|
£5.70
|
|
|
58 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST
BSD-2917721034.A63
2917721034
|
£1.75
|
£2.10
|
|
|
59 - SPLIT PIN 3.2x18 DIN 94-ST
BSD-1904681350.A6
1904681350
|
£1.75
|
£2.10
|
|
|
61 - POWER SUPPLY CORD 4x0.75 MM²
BSD-1614422053.A1
1614422053
|
-
|
|
|
|
62 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A92
1600703009
|
£5.58
|
£6.70
|
|
|
63 - FASTENING CLAMP
BSD-1611302007.A16
1611302007
|
-
|
|
|
|
65 - ON-OFF SWITCH
BSD-1617200024.A11
1617200024
|
£33.45
|
£40.14
|
|
|
68 - GROOVE BALL BEARING 10x32x12
BSD-1610905001.A25
1610905001
|
£14.91
|
£17.89
|
|
|
69 - GROOVE BALL BEARING
BSD-1610900013.A30
1610900013
|
£11.30
|
£13.56
|
|
|
70 - NEEDLE-ROLLER BEARING
BSD-1610910049.A52
1610910049
|
£37.26
|
£44.71
|
|
|
72 - NEEDLE-ROLLER BEARING
BSD-1610910007.A23
1610910007
|
£21.68
|
£26.01
|
|
|
73 - NEEDLE-ROLLER ASSEMBLY
BSD-1610913001.A56
1610913001
|
£11.30
|
£13.56
|
|
|
75 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A751
2916660013
|
£2.16
|
£2.59
|
|
|
77 - SPRING RETAINING RING 40x1.75 MM. DIN 472
BSD-2916660018.A51
2916660018
|
£2.61
|
£3.13
|
|
|
82 - SPRING LOCK WASHER B 8 DIN 127
BSD-2916680009.A69
2916680009
|
-
|
|
|
|
84 - O-RING 70x3 MM
BSD-1900210160.A36
1900210160
|
£5.58
|
£6.70
|
|
|
85 - O-RING 55x3 MM
BSD-1900210152.A26
1900210152
|
£3.72
|
£4.47
|
|
|
86 - O-RING 30x2 MM
BSD-1900210130.A5
1900210130
|
£3.72
|
£4.47
|
|
|
88 - SEAL RING
BSD-1610280001.A1
1610280001
|
-
|
|
|
|
90 - HEX NUT DIN 985-M8-8
BSD-2915061005.A6
2915061005
|
£2.61
|
£3.13
|
|
|
95 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A572
2910211011
|
£1.75
|
£2.10
|
|
|
96 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A145
2910021118
|
£1.75
|
£2.10
|
|
|
97 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A332
2910110116
|
£1.75
|
£2.10
|
|
|
99 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x15-8.8
BSD-2910141196.A8
2910141196
|
-
|
|
|
|
100 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8
BSD-2910141199.A29
2910141199
|
£3.72
|
£4.47
|
|
|
101 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8
BSD-2910141244.A50
2910141244
|
£1.75
|
£2.10
|
|
|
103 - SET SCREW DIN 417-M8x15-5.8
BSD-2912051237.A21
2912051237
|
-
|
|
|
|
104 - MANUFACTURER'S NAMEPLATE
BSD-1601110004.A55
1601110004
|
-
|
|
|
|
109 - ROTARY SHAFT LIP SEAL
BSD-1610283007.A8
1610283007
|
-
|
|
|
|
650 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A226
1907950007
|
£5.30
|
£6.36
|
|
|
651 - CARRYING CASE
BSD-1615438017.A1
1615438017
|
-
|
|
|
|
652 - POINTED CHISEL SW 19. L=300 MM
BSD-1618630000.A0
1618630000
|
£10.49
|
£12.59
|
|
|
801 - TOOL HOLDER SET
BSD-1617000017.A10
1617000017
|
-
|
|
|
|
802 - LOCKING BOLT SET
BSD-1617000014.A64
1617000014
|
£24.45
|
£29.34
|
|
|
803 - SERVICE BOX
BSD-1617000019.A8
1617000019
|
-
|
|
|
|
805 - SEAL KIT
BSD-1617031004.A45
1617031004
|
-
|
|
|
|
806 - IMPACT MECHANISM
BSD-1617000917.A4
1617000917
|
£653.78
|
£784.53
|
|
|
810 - PARTS SET
BSD-1617000104.A1
1617000104
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2956
160111A3H3
|
£2.61
|
£3.13
|
|
