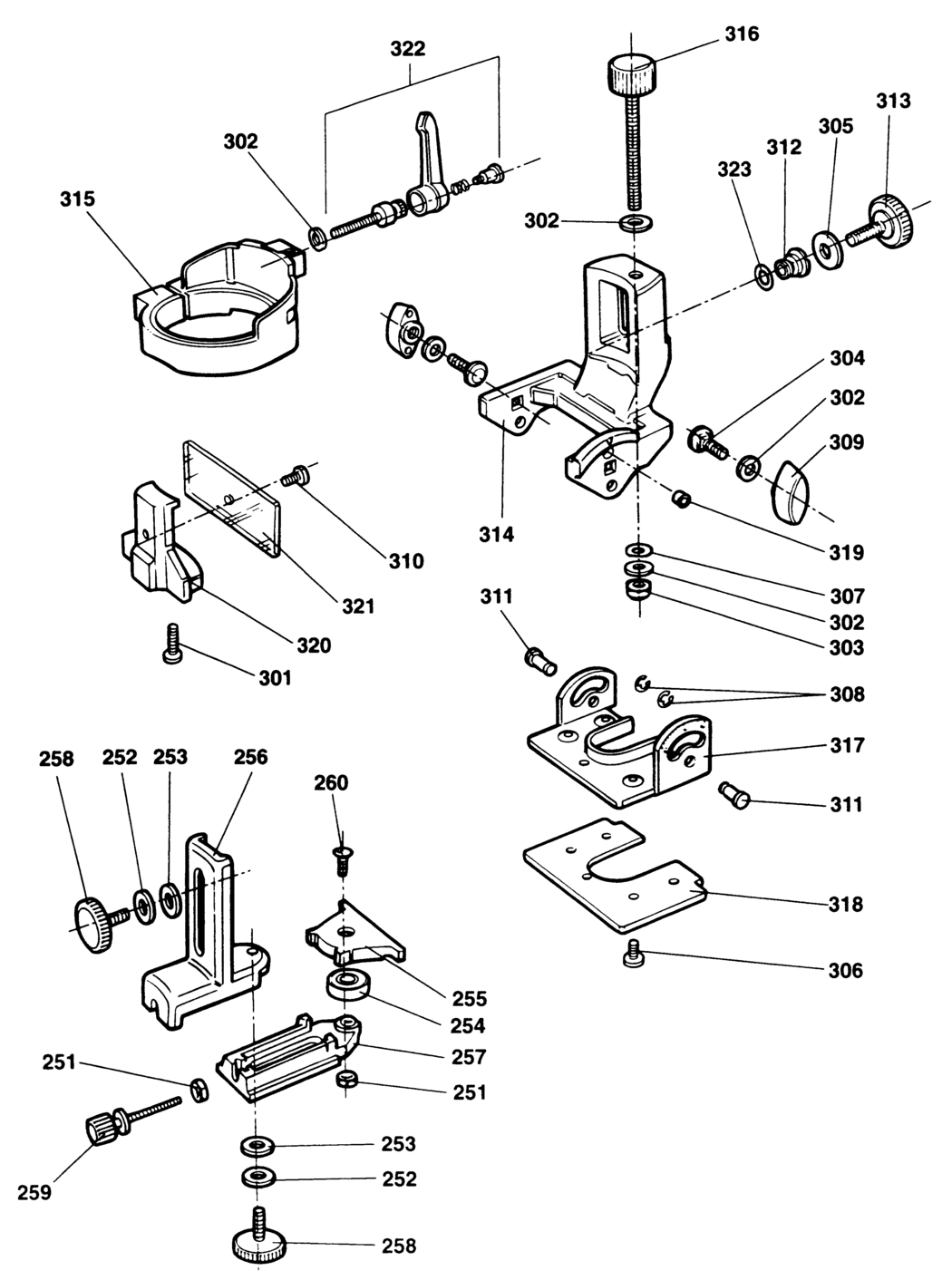

An exploded drawing and spare parts listing for the Dewalt DE6706 Type 1 Tilt Base - Trimmer
Ex VAT Inc VAT
251 - NUT BDE-860083-10.A26 860083-10 £1.50 £1.80
252 - WASHER BDE-931407-00.A25 931407-00 £5.88 £7.06
253 - WASHER SPRING BDE-937545-00.A7 937545-00 -
254 - BEARING BDE-330003-34.A39 330003-34 £24.39 £29.27
255 - GUIDE FENCE BDE-946292-00.A5 946292-00 £1.50 £1.80
256 - BRACKET BDE-947936-00.A3 947936-00 £37.35 £44.82
257 - SUPPORT BDE-947937-00.A1 947937-00 -
258 - SCREW BDE-947939-00.A1 947939-00 £3.70 £4.44
259 - SCREW BDE-947940-00.A3 947940-00 -
260 - SCREW BDE-949889-01.A5 949889-01 £1.42 £1.70
301 - SCREW BDE-930770-00.A28 930770-00 -
302 - WASHER BDE-930925.A80 930925 -
303 - NO LONGER AVAILABLE BDE-000000-00.A51503 000000-00 -
304 - SCREW BDE-931405-00.A3 931405-00 £1.50 £1.80
305 - WASHER BDE-942555-00.A4 942555-00 £1.50 £1.80
306 - NO LONGER AVAILABLE BDE-000000-00.A51504 000000-00 -
307 - WASHER SPRING BDE-937545-00.A8 937545-00 -
308 - NO LONGER AVAILABLE BDE-000000-00.A51505 000000-00 -
309 - KNOB BDE-942895-01.A0 942895-01 £3.30 £3.96
310 - SCREW BDE-860094-02.A11 860094-02 £1.50 £1.80
311 - NO LONGER AVAILABLE BDE-000000-00.A51506 000000-00 -
312 - BUSH BDE-947924-00.A4 947924-00 £3.80 £4.56
313 - SCREW BDE-947925-00.A1 947925-00 -
314 - NO LONGER AVAILABLE BDE-000000-00.A51507 000000-00 -
315 - NO LONGER AVAILABLE BDE-000000-00.A51508 000000-00 -
316 - NO LONGER AVAILABLE BDE-000000-00.A51509 000000-00 -
317 - NO LONGER AVAILABLE BDE-000000-00.A51510 000000-00 -
318 - NO LONGER AVAILABLE BDE-000000-00.A51511 000000-00 -
319 - NO LONGER AVAILABLE BDE-000000-00.A51512 000000-00 -
320 - BRACKET FROM 37-2004 BDE-868996-00.A2 868996-00 -
321 - GUARD SA BEFORE 37-2004 BDE-868950-01.A1 868950-01 £11.87 £14.24
321 - GUARD FROM 37-2004 BDE-947938-02.A2 947938-02 -
322 - NO LONGER AVAILABLE BDE-000000-00.A51513 000000-00 -
323 - WASHER SHIM BDE-949876-18.A4 949876-18 £3.70 £4.44
