Dewalt D21711 Type 5 Hammer Drill Spare Parts

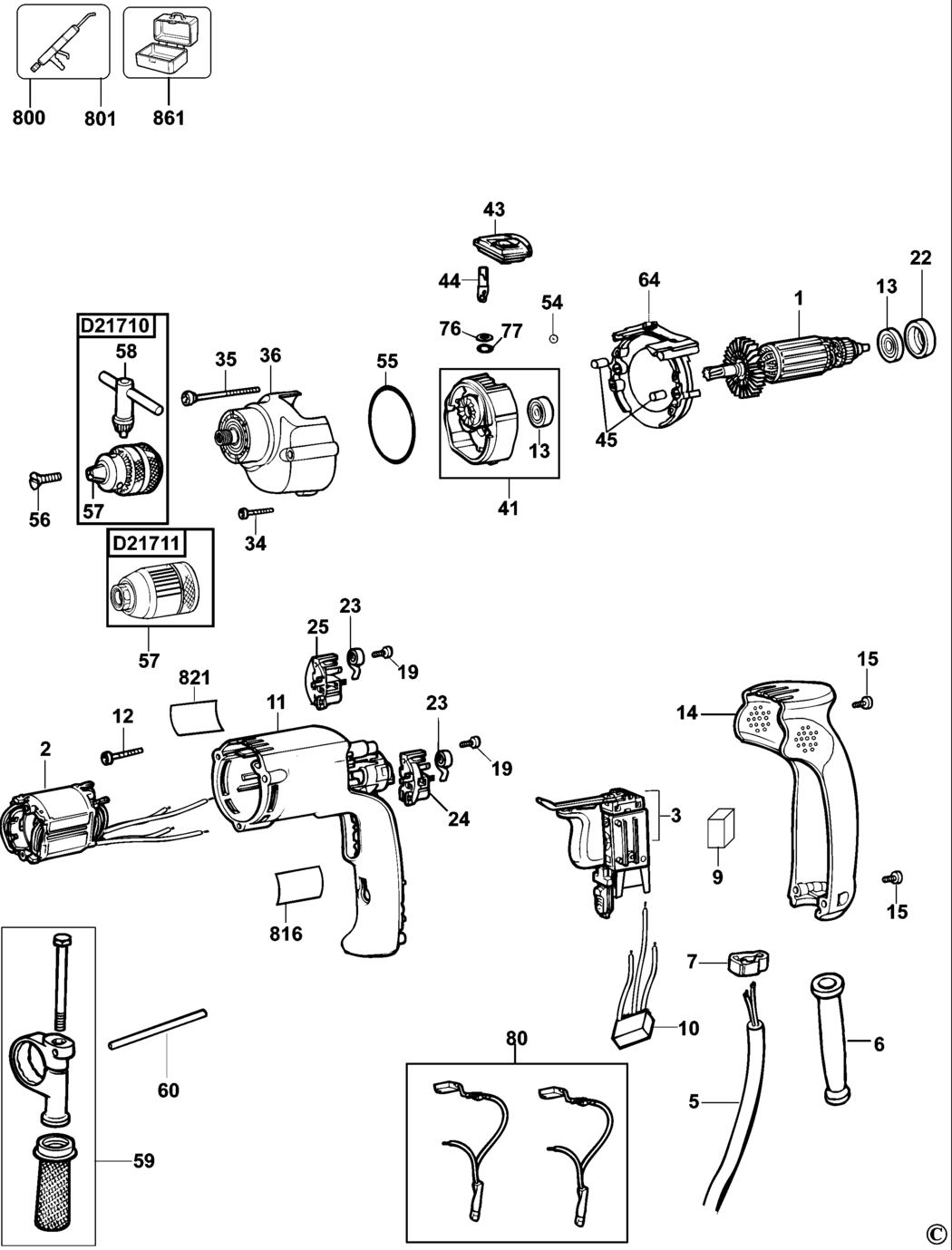

An exploded drawing and spare parts listing for the Dewalt D21711 Type 5 Hammer Drill

	Ex VAT	Inc VAT
3 - SWITCH BDE-616576-01.A10 616576-01	£57.22	£68.66
6 - CORD PROTECTOR BDE-401751-00.A39 401751-00	£1.50	£1.80
7 - CORD CLAMP BDE-603255-00.A2 603255-00	£1.50	£1.80
9 - BUMPER BDE-930026-01.A189 930026-01	£1.50	£1.80
10 - CAPACITOR BDE-496516-00.A1 496516-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A129026 000000-00	-
12 - SCREW BDE-496932-00.A5 496932-00	-
13 - BEARING 608 BDE-605040-55.A26 605040-55	£12.17	£14.60
14 - HANDLE COVER BDE-610140-00.A11 610140-00	-
15 - SCREW BDE-330019-13.A507 330019-13	£1.50	£1.80
19 - SCREW BDE-330065-06.A391 330065-06	£1.50	£1.80
22 - BOOT BDE-389824-00.A96 389824-00	£1.50	£1.80
23 - BRUSH SPRING BDE-402759-00.A8 402759-00	£1.50	£1.80
24 - BRUSH HOLDER SA BDE-401877-00.A12 401877-00	£3.30	£3.96
24 - BRUSH HOLDER SA BDE-401878-00.A6 401878-00	£3.22	£3.86
34 - SCREW BDE-330019-45.A20 330019-45	£1.50	£1.80
35 - SCREW BDE-330019-17.A60 330019-17	£1.50	£1.80
36 - HOUSING SA BDE-N063406.A6 N063406	-
41 - NO LONGER AVAILABLE BDE-000000-00.A129027 000000-00	-
43 - SELECTOR SA BDE-590107-00.A5 590107-00	£1.78	£2.13
44 - PIN BDE-946106-00.A9 946106-00	£1.42	£1.70
45 - DAMPER BDE-949638-02.A83 949638-02	£1.50	£1.80
54 - BALL BDE-000903-00.A6 000903-00	£12.17	£14.60
55 - SEAL BDE-401847-00.A14 401847-00	£1.50	£1.80
56 - SCREW BDE-490910-00.A2 490910-00	£1.51	£1.81
57 - CHUCK KEYLESS BDE-330075-51.A8 330075-51	£51.90	£62.28
59 - HANDLE SIDE SA BDE-939794-02.A43 939794-02	£14.57	£17.48
60 - DEPTH STOP BDE-940357-00.A10 940357-00	£17.48	£20.97
64 - BAFFLE FAN BDE-585994-00.A5 585994-00	£12.17	£14.60
76 - RING BDE-050050-00.A20 050050-00	£1.50	£1.80
77 - WASHER BDE-176659-00.A6 176659-00	£1.50	£1.80
80 - BRUSH KIT 230V BDE-578393-02.A8 578393-02	£14.57	£17.48
800 - GREASE 40 GMS BDE-429911-00.A5 429911-00	£116.32	£139.59
801 - GREASE 90 GMS BDE-870889-02.A587 870889-02	£7.85	£9.42
816 - BRAND LABEL BDE-395047-00.A84 395047-00	£1.50	£1.80
