Dewalt D21716 Type 1 Drill Spare Parts

Dewalt D21716 Type 1 Drill Spare Parts

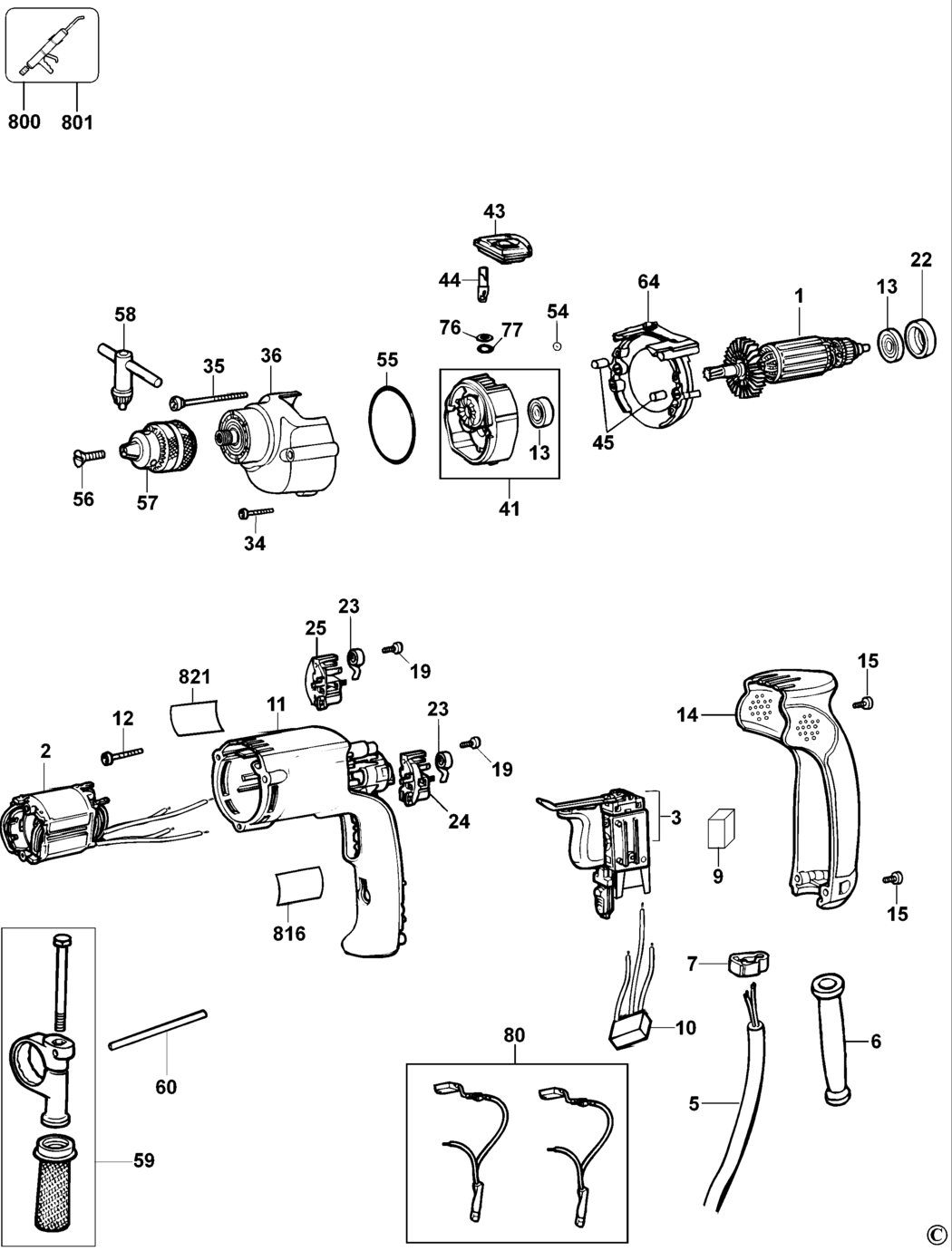

An exploded drawing and spare parts listing for the Dewalt D21716 Type 1 Drill
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE GB BDE-000000-00.A26154 000000-00 -
1 - ARMATURE SA LX BDE-590104-01.A3 590104-01 £59.41 £71.29
2 - NO LONGER AVAILABLE GB BDE-000000-00.A26155 000000-00 -
2 - NO LONGER AVAILABLE LX BDE-000000-00.A26156 000000-00 -
3 - NO LONGER AVAILABLE LX BDE-000000-00.A26157 000000-00 -
3 - SWITCH GB BDE-616576-01.A3 616576-01 £57.22 £68.66
5 - CORDSET GB BDE-330060-28.A5 330060-28 £24.39 £29.27
5 - CABLE SA LX BDE-330061-07.A56 330061-07 £36.42 £43.70
6 - CORD PROTECTOR BDE-401751-00.A12 401751-00 £1.50 £1.80
7 - CORD CLAMP BDE-603255-00.A13 603255-00 £1.50 £1.80
9 - BUMPER BDE-930026-01.A38 930026-01 £1.50 £1.80
10 - CAPACITOR BDE-585292-03.A13 585292-03 £5.88 £7.06
11 - FIELD CASE BDE-N014400.A9 N014400 £17.03 £20.44
12 - SCREW BDE-390198-00.A44 390198-00 £1.50 £1.80
13 - BEARING BDE-605040-08.A5 605040-08 £4.69 £5.63
14 - HANDLE COVER BDE-176816-03.A2 176816-03 £14.57 £17.48
15 - SCREW BDE-330019-13.A121 330019-13 £1.50 £1.80
19 - SCREW BDE-330065-06.A15 330065-06 £1.50 £1.80
22 - BOOT BDE-389824-00.A26 389824-00 £1.50 £1.80
23 - BRUSH SPRING BDE-402759-00.A33 402759-00 £1.50 £1.80
24 - BRUSH HOLDER SA BDE-401877-01.A45 401877-01 £4.69 £5.63
25 - BRUSH HOLDER SA BDE-401878-01.A18 401878-01 £4.69 £5.63
34 - SCREW BDE-330019-14.A199 330019-14 £1.50 £1.80
35 - SCREW BDE-330019-17.A17 330019-17 £1.50 £1.80
36 - HOUSING SA BDE-590106-00.A2 590106-00 £25.70 £30.84
41 - GEARCASE SA BDE-590108-00.A2 590108-00 £23.75 £28.50
43 - SELECTOR SA BDE-590107-00.A11 590107-00 £1.78 £2.13
44 - PIN BDE-946106-00.A6 946106-00 £1.42 £1.70
45 - DAMPER BDE-949638-02.A134 949638-02 £1.50 £1.80
54 - BALL BDE-000903-00.A27 000903-00 £12.17 £14.60
55 - SEAL BDE-401847-00.A39 401847-00 £1.50 £1.80
56 - SCREW BDE-490910-00.A33 490910-00 £1.51 £1.81
57 - CHUCK 13MM BDE-5140071-68.A109 5140071-68 £14.57 £17.48
58 - CHUCK KEY BDE-330034-07.A481 330034-07 £1.50 £1.80
59 - HANDLE SIDE SA BDE-939794-02.A213 939794-02 £14.57 £17.48
60 - DEPTH STOP BDE-940357-00.A46 940357-00 £17.48 £20.97
64 - BAFFLE FAN BDE-585994-00.A13 585994-00 £12.17 £14.60
76 - RING BDE-050050-00.A48 050050-00 £1.50 £1.80
77 - WASHER BDE-176659-00.A29 176659-00 £1.50 £1.80
80 - BRUSH KIT 230V GB BDE-578393-02.A28 578393-02 £14.57 £17.48
80 - BRUSH PAIR 115V LX BDE-N081423.A21 N081423 -
800 - GREASE 40 GMS BDE-429911-00.A13 429911-00 £116.32 £139.59
801 - GREASE 90 GMS BDE-870889-02.A64 870889-02 £7.85 £9.42
816 - BRAND LABEL BDE-395047-00.A161 395047-00 £1.50 £1.80
821 - RATING PLATE BDE-569037-00.A17 569037-00 £3.80 £4.56
