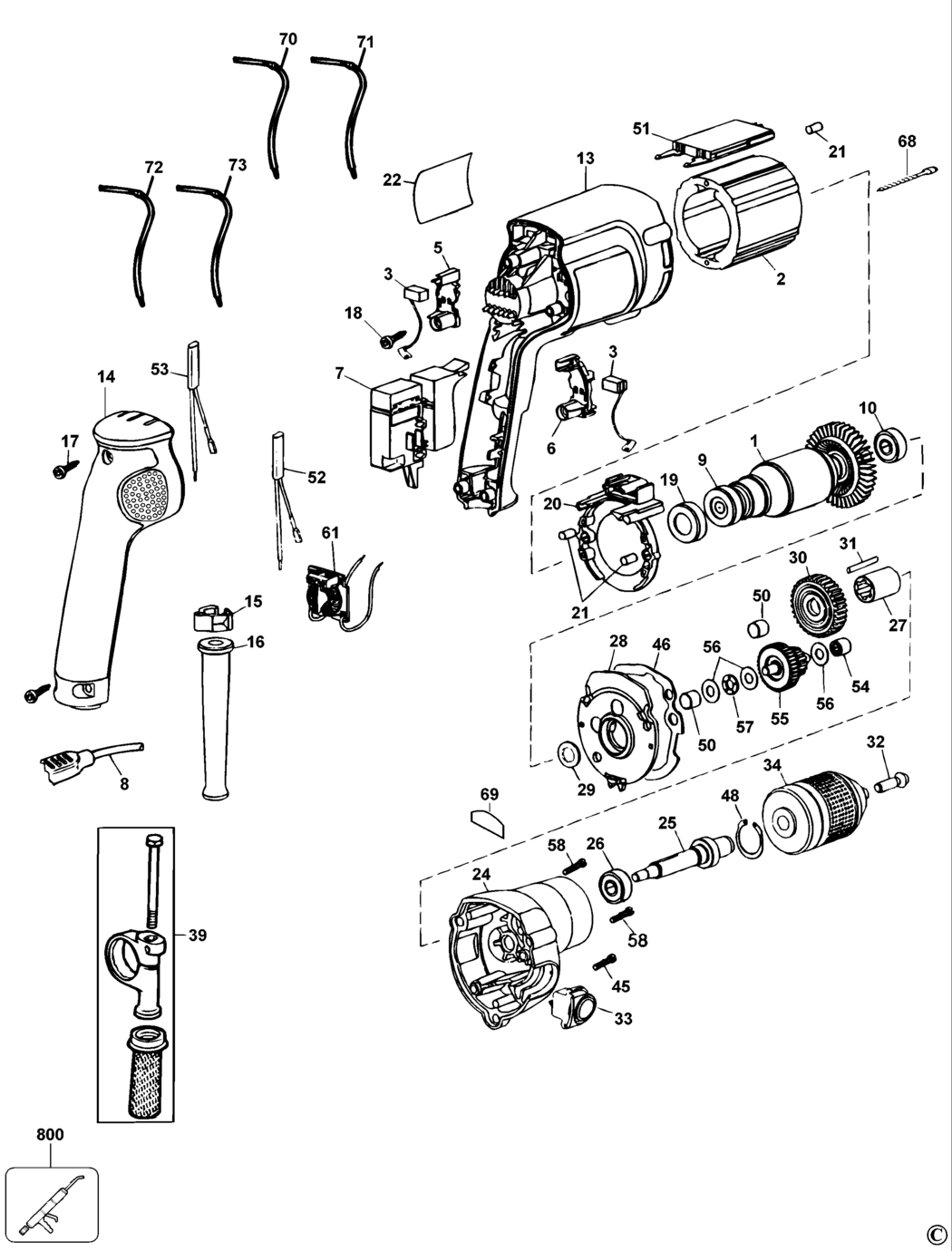

1 - ARMATURE 230V GB
BDE-579598-15.A4
579598-15
|
£47.08
|
£56.49
|
|
|
1 - NO LONGER AVAILABLE LX
BDE-000000-00.A23573
000000-00
|
-
|
|
|
|
2 - FIELD 230V GB
BDE-579605-01.A20
579605-01
|
£19.90
|
£23.88
|
|
|
2 - FIELD 115V LX
BDE-576690-06.A19
576690-06
|
£30.08
|
£36.10
|
|
|
3 - BRUSH 230V GB
BDE-176949-00.A45
176949-00
|
£4.69
|
£5.63
|
|
|
5 - BRUSH HOLDER RIGHT
BDE-176800-03.A45
176800-03
|
£12.17
|
£14.60
|
|
|
6 - BRUSH HOLDER LEFT
BDE-176801-03.A21
176801-03
|
£9.41
|
£11.29
|
|
|
7 - SWITCH
BDE-176830-15.A25
176830-15
|
-
|
|
|
|
9 - BEARING
BDE-605040-06.A48
605040-06
|
£3.80
|
£4.56
|
|
|
10 - BEARING
BDE-605040-06.A50
605040-06
|
£3.80
|
£4.56
|
|
|
13 - NO LONGER AVAILABLE
BDE-000000-00.A23574
000000-00
|
-
|
|
|
|
14 - NO LONGER AVAILABLE
BDE-000000-00.A23575
000000-00
|
-
|
|
|
|
15 - CORD CLAMP
BDE-402648-00.A33
402648-00
|
£1.50
|
£1.80
|
|
|
16 - CORD PROTECTOR
BDE-N542553.A195
N542553
|
£3.80
|
£4.56
|
|
|
17 - SCREW
BDE-330019-13.A98
330019-13
|
£1.50
|
£1.80
|
|
|
18 - SCREW
BDE-330065-06.A30
330065-06
|
£1.50
|
£1.80
|
|
|
19 - BOOT
BDE-389824-00.A36
389824-00
|
£1.50
|
£1.80
|
|
|
20 - BAFFLE
BDE-176811-00.A99
176811-00
|
£1.50
|
£1.80
|
|
|
21 - DAMPER
BDE-949638-02.A142
949638-02
|
£1.50
|
£1.80
|
|
|
22 - BRAND LABEL
BDE-395047-00.A167
395047-00
|
£1.50
|
£1.80
|
|
|
24 - GEARCASE
BDE-176634-04.A11
176634-04
|
£14.57
|
£17.48
|
|
|
25 - SPINDLE
BDE-176638-00.A16
176638-00
|
£9.41
|
£11.29
|
|
|
26 - BEARING
BDE-605040-20.A148
605040-20
|
£4.69
|
£5.63
|
|
|
27 - SPACER
BDE-176691-00.A29
176691-00
|
£1.50
|
£1.80
|
|
|
28 - GEARCASE COVER
BDE-388761-00.A54
388761-00
|
£4.69
|
£5.63
|
|
|
29 - WASHER
BDE-23813-00.A8
23813-00
|
£1.50
|
£1.80
|
|
|
30 - GEAR
BDE-176687-00.A5
176687-00
|
£18.42
|
£22.10
|
|
|
31 - PIN
BDE-099227-05.A24
099227-05
|
£84.42
|
£101.30
|
|
|
32 - SCREW
BDE-605256-02.A118
605256-02
|
£1.50
|
£1.80
|
|
|
33 - SPINDLE LOCK
BDE-176641-00.A24
176641-00
|
£7.18
|
£8.62
|
|
|
34 - CHUCK KEYLESS
BDE-330075-68.A3
330075-68
|
£41.24
|
£49.49
|
|
|
39 - HANDLE SIDE SA
BDE-939794-02.A284
939794-02
|
£14.57
|
£17.48
|
|
|
45 - SCREW
BDE-330019-14.A142
330019-14
|
£1.50
|
£1.80
|
|
|
46 - GASKET
BDE-176655-00.A25
176655-00
|
£4.69
|
£5.63
|
|
|
48 - RETAINER
BDE-87692-00.A41
87692-00
|
£1.42
|
£1.70
|
|
|
50 - BEARING NEEDLE
BDE-093128-00.A16
093128-00
|
£1.50
|
£1.80
|
|
|
51 - MODULE
BDE-176917-00.A14
176917-00
|
-
|
|
|
|
52 - NO LONGER AVAILABLE
BDE-000000-00.A57146
000000-00
|
-
|
|
|
|
53 - LEAD RED
BDE-176890-01.A12
176890-01
|
£5.72
|
£6.87
|
|
|
54 - BEARING NEEDLE
BDE-93129-00.A5
93129-00
|
£1.50
|
£1.80
|
|
|
55 - GEAR & PINION SA
BDE-176653-00.A3
176653-00
|
£19.90
|
£23.88
|
|
|
56 - WASHER THRUST
BDE-91817-00.A30
91817-00
|
£1.50
|
£1.80
|
|
|
58 - SCREW.TEMP
BDE-330019-16.A70
330019-16
|
£1.50
|
£1.80
|
|
|
61 - ELECTRONIC
BDE-383714-00.A2
383714-00
|
-
|
|
|
|
68 - SCREW
BDE-949650-01.A59
949650-01
|
£1.50
|
£1.80
|
|
|
70 - LEAD BLACK
BDE-176893-00.A28
176893-00
|
£1.50
|
£1.80
|
|
|
71 - LEAD BLUE
BDE-176834-00.A8
176834-00
|
£1.50
|
£1.80
|
|
|
72 - NO LONGER AVAILABLE
BDE-000000-00.A57147
000000-00
|
-
|
|
|
|
73 - NO LONGER AVAILABLE
BDE-000000-00.A57148
000000-00
|
-
|
|
|
|
800 - GREASE
BDE-286436-00.A73
286436-00
|
£126.63
|
£151.96
|
|
