Dewalt D25414K Type 1 Rotary Hammer Spare Parts

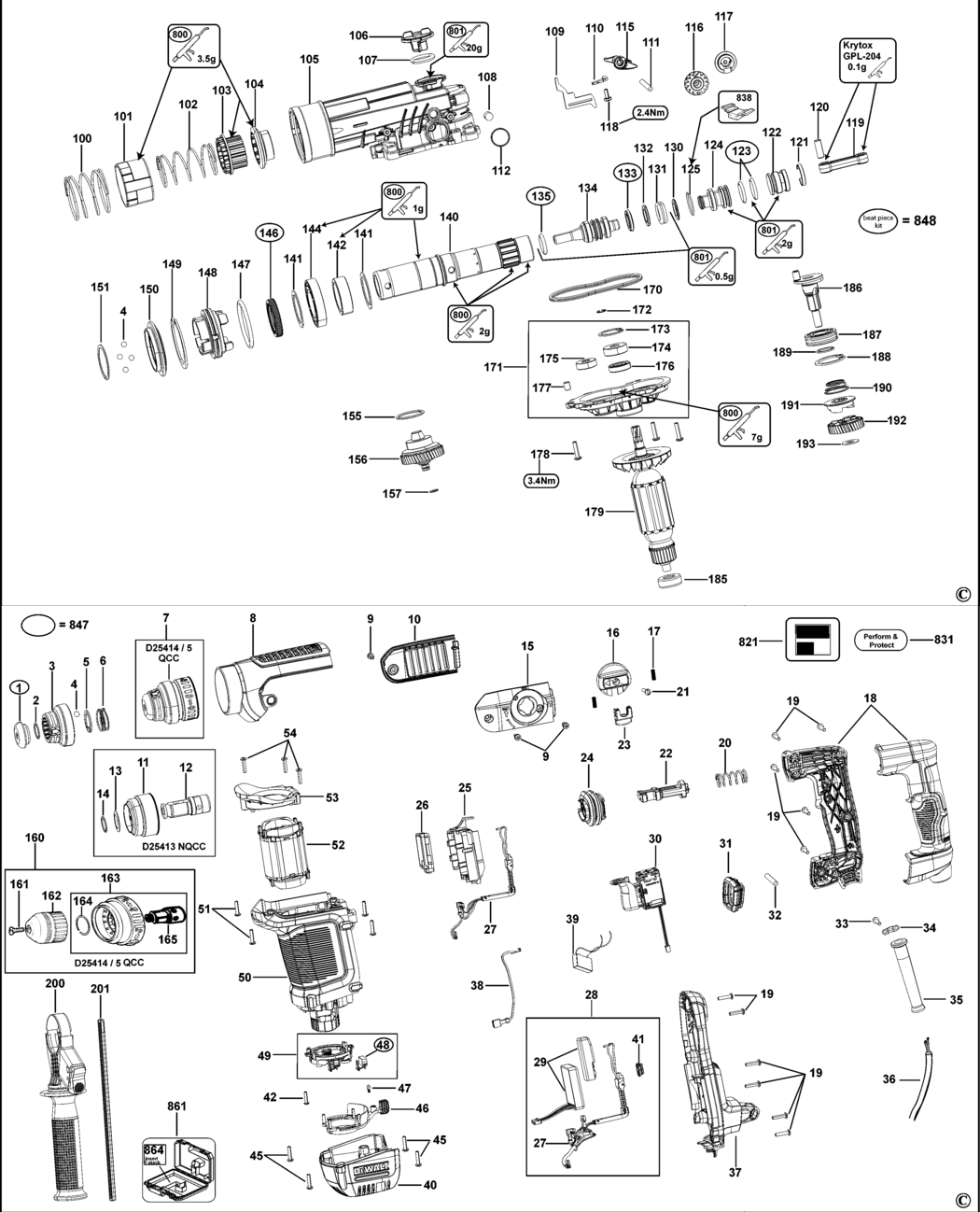

An exploded drawing and spare parts listing for the Dewalt D25414K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - CAP BDE-323489-00.A12 323489-00	£1.66	£1.99
2 - RING BDE-579212-00.A24 579212-00	£1.66	£1.99
3 - TUBE BDE-N910599.A0 N910599	£14.57	£17.48
4 - BALL 7MM BDE-583890-00.A278 583890-00	£1.66	£1.99
5 - WASHER BDE-578387-00.A16 578387-00	£1.66	£1.99
6 - SPRING BDE-N038938.A9 N038938	£1.50	£1.80
7 - HOLDER TOOL BDE-N591846.A1 N591846	£60.94	£73.13
8 - COVER BDE-N106154.A0 N106154	£7.85	£9.42
9 - SCREW BDE-324006-14.A10 324006-14	£1.50	£1.80
9 - SCREW BDE-N445171.A8 N445171	£1.50	£1.80
10 - COVER RH BDE-N106172-00.A1 N106172-00	£3.30	£3.96
15 - COVER LH BDE-N106173-00.A2 N106173-00	£2.78	£3.34
16 - KNOB BDE-N150304.A9 N150304	£1.50	£1.80
17 - SPRING BDE-1008957-00.A19 1008957-00	£1.50	£1.80
18 - HANDLE SA BDE-N379400.A6 N379400	£16.03	£19.24
19 - SCREW BDE-330065-08.A181 330065-08	£1.50	£1.80
20 - SPRING COMPRESSION BDE-N106188.A16 N106188	£1.50	£1.80
21 - SCREW BDE-330065-08.A182 330065-08	£1.50	£1.80
22 - STOP BDE-N152623.A3 N152623	£5.88	£7.06
23 - BUTTON RELEASE BDE-N192178.A8 N192178	£1.50	£1.80
24 - BELLOWS BDE-N106221-00.A8 N106221-00	£4.69	£5.63
25 - HOLDER BDE-N186074.A9 N186074	£10.85	£13.02
26 - GACC MODULE 230V GB BDE-N556427.A1 N556427	£60.94	£73.13
26 - GACC MODULE 115V LX BDE-N274641.A0 N274641	£47.08	£56.49
27 - SET OF LEAD WIRES BDE-N379403.A6 N379403	£16.03	£19.24
30 - SWITCH LX BDE-N524745.A0 N524745	£18.91	£22.69
30 - SWITCH GB BDE-N524745.A1 N524745	£18.91	£22.69
31 - BELLOWS BDE-N106222.A13 N106222	£3.80	£4.56
32 - AXIS BDE-N159443.A2 N159443	£1.50	£1.80
33 - SCREW BDE-330065-08.A183 330065-08	£1.50	£1.80
34 - CORD CLAMP BDE-821070.A635 821070	£1.50	£1.80
35 - CORD PROTECTOR GB BDE-584090-00.A35 584090-00	£1.50	£1.80
35 - CORD PROTECTOR LX BDE-584090-00.A36 584090-00	£1.50	£1.80
36 - CORDSET GB BDE-582319-42.A9 582319-42	£34.00	£40.80
36 - CORDSET LX BDE-582319-40.A8 582319-40	£41.24	£49.49
37 - PLATE BDE-N106186-01.A6 N106186-01	£12.17	£14.60
38 - CONNECTING WIRE BDE-N578054.A0 N578054	£3.80	£4.56
38 - CONNECTING WIRE BDE-N221172.A3 N221172	£3.30	£3.96
39 - CAPACITOR GB BDE-N272900.A0 N272900	£1.82	£2.19
39 - CAPACITOR LX BDE-N272900.A1 N272900	£1.82	£2.19
40 - END CAP BDE-N106181-00.A0 N106181-00	£7.18	£8.62
42 - SCREW BDE-330065-35.A1 330065-35	£1.50	£1.80
45 - SCREW BDE-330065-08.A179 330065-08	£1.50	£1.80
46 - SELECTOR BDE-N135728.A6 N135728	£1.50	£1.80
47 - DETENT BDE-326467-00.A150 326467-00	£1.50	£1.80
48 - BRUSH KIT GB BDE-N544178.A4 N544178	£7.18	£8.62
48 - BRUSH PAIR 120V LX BDE-N379405.A0 N379405	£5.88	£7.06
49 - BRUSH PLATE BDE-N379407.A1 N379407	£19.90	£23.88
49 - BRUSHPLATE GB BDE-N379406.A2 N379406	£19.90	£23.88
49 - BRUSH PLATE LX BDE-N379407.A0 N379407	£19.90	£23.88
50 - HOUSING MOTOR BDE-N106153.A9 N106153	£16.03	£19.24
51 - SCREW BDE-N445171.A7 N445171	£1.50	£1.80
51 - SCREW BDE-324006-14.A9 324006-14	£1.50	£1.80
52 - FIELD 120V LX BDE-N379408.A4 N379408	£51.90	£62.28
52 - FIELD 230V GB BDE-N379409.A0 N379409	£110.62	£132.74
53 - BAFFLE FAN BDE-N137273.A0 N137273	£5.88	£7.06
54 - SCREW BDE-330065-08.A180 330065-08	£1.50	£1.80
100 - SPRING BDE-323395-07.A43 323395-07	£1.50	£1.80
101 - SLEEVE BDE-N106220.A0 N106220	£3.30	£3.96
102 - SPRING COMPRESSION BDE-N106166.A0 N106166	£1.50	£1.80
103 - SLEEVE BDE-N106162.A0 N106162	£12.17	£14.60
104 - BEVEL GEAR BDE-N379410.A6 N379410	£37.35	£44.82
105 - HOUSING GEAR SA BDE-N379411.A0 N379411	£110.62	£132.74
106 - CAP BDE-N106179.A9 N106179	£1.82	£2.19
107 - O RING BDE-N252839.A10 N252839	£9.41	£11.29
108 - FILTER BDE-582865-00.A101 582865-00	£1.50	£1.80
109 - PLATE BDE-N147987.A9 N147987	£2.78	£3.34
110 - LEVER BDE-N106187.A0 N106187	£1.50	£1.80
111 - PIN BDE-330041-44.A0 330041-44	£1.50	£1.80
112 - O RING BDE-323711-05.A7 323711-05	£1.50	£1.80
112 - O RING BDE-N553858.A8 N553858	£1.50	£1.80
115 - SELECTOR FORK BDE-N149242.A9 N149242	£1.50	£1.80
116 - ECCENTRIC BDE-N149241.A0 N149241	£2.26	£2.71
117 - GEAR BDE-N150303.A0 N150303	£1.50	£1.80
118 - SCREW BDE-N445171.A10 N445171	£1.50	£1.80
118 - SCREW BDE-324006-14.A7 324006-14	£1.50	£1.80
119 - CON ROD BDE-N407255.A9 N407255	£2.26	£2.71
120 - PIN BDE-N123257.A14 N123257	£3.30	£3.96
121 - PISTON RING BDE-325905-01.A0 325905-01	£1.50	£1.80
122 - PISTON BDE-N379413.A9 N379413	£12.17	£14.60
123 - O RING BDE-N106150.A0 N106150	£2.26	£2.71
124 - RAM BDE-N407083.A0 N407083	£16.03	£19.24
125 - CIRCLIP BDE-N106174.A8 N106174	£7.18	£8.62
130 - WASHER BDE-N511780.A9 N511780	£3.80	£4.56
130 - WASHER Service Packed BDE-N515032.A4 N515032	£12.17	£14.60
131 - DAMPER BDE-N179781.A0 N179781	£3.80	£4.56
132 - WASHER BDE-N122305.A0 N122305	£3.80	£4.56
133 - SEAL BDE-N106146.A6 N106146	£5.88	£7.06
134 - BEAT PIECE BDE-N474379.A0 N474379	£24.39	£29.27
135 - O RING BDE-N181843.A0 N181843	£3.30	£3.96
140 - SPINDLE BDE-N525737.A0 N525737	£119.32	£143.19
141 - WASHER BDE-1005982-00.A24 1005982-00	£1.50	£1.80
142 - DAMPER BDE-N218372.A9 N218372	£3.30	£3.96
144 - SLEEVE BEARING BDE-N106168.A9 N106168	£7.18	£8.62
146 - SEAL BDE-1007828-00.A24 1007828-00	£16.03	£19.24
147 - O RING BDE-N218672.A9 N218672	£14.57	£17.48
148 - BEARING HOLDER BDE-N122310.A9 N122310	£3.80	£4.56
149 - LOCKING RING BDE-N181847.A0 N181847	£1.50	£1.80
150 - CAP BDE-N184524.A9 N184524	£2.78	£3.34
151 - RING BDE-577795-00.A34 577795-00	£1.50	£1.80
155 - O RING BDE-N252840.A0 N252840	£12.17	£14.60
156 - CLUTCH SA BDE-N379416.A0 N379416	£74.15	£88.98
157 - O RING BDE-323711-26.A108 323711-26	£1.50	£1.80
160 - CHUCK & SPINDLE SA BDE-N591847.A4 N591847	£51.90	£62.28
161 - SCREW BDE-605256-02.A97 605256-02	£1.50	£1.80
162 - CHUCK KEYLESS BDE-582512-02.A25 582512-02	£24.39	£29.27
163 - SPINDLE SA BDE-N403284.A1 N403284	£18.91	£22.69
164 - RING BDE-579212-00.A29 579212-00	£1.66	£1.99
165 - SPINDLE BDE-N403112.A10 N403112	£16.03	£19.24
170 - SEAL BDE-N106217.A9 N106217	£1.50	£1.80
171 - HOUSING GEAR BDE-N379417.A6 N379417	£65.52	£78.62
172 - CLIP BDE-N148663.A9 N148663	£1.50	£1.80
173 - RING BDE-N219512.A9 N219512	£1.50	£1.80
174 - BEARING BALL BDE-330003-96.A1 330003-96	£4.69	£5.63
175 - BEARING BDE-330003-39.A84 330003-39	£2.78	£3.34
176 - SEAL BDE-327141-05.A24 327141-05	£7.18	£8.62
177 - SLEEVE BDE-327575-00.A21 327575-00	£1.50	£1.80
178 - SCREW TORX BDE-324007-11.A38 324007-11	£1.50	£1.80
179 - ARMATURE KIT 240V GB BDE-N379420.A0 N379420	£58.69	£70.43
179 - ARMATURE KIT 120V LX BDE-N379419.A4 N379419	£47.08	£56.49
185 - BEARING & SEAL BDE-N381533.A0 N381533	£3.30	£3.96
186 - CRANKSHAFT BDE-N379421.A9 N379421	£47.08	£56.49
187 - BEARING BALL BDE-323872-06.A15 323872-06	£14.57	£17.48
188 - CIRCLIP BDE-324821-04.A8 324821-04	£1.50	£1.80
189 - RING BDE-N181846.A9 N181846	£1.50	£1.80
190 - SPRING BDE-N199272.A9 N199272	£1.50	£1.80
191 - SLEEVE BDE-N106160.A9 N106160	£41.24	£49.49
192 - GEAR BDE-N379422.A0 N379422	£17.48	£20.97
193 - WASHER BDE-N106163.A9 N106163	£1.50	£1.80
200 - HANDLE SIDE SA BDE-N276149.A0 N276149	£19.90	£23.88
201 - DEPTH STOP BDE-798846-02.A72 798846-02	£1.50	£1.80
800 - GREASE 90 GMS BDE-870889-02.A325 870889-02	£7.85	£9.42
800 - GREASE BDE-870889-03.A135 870889-03	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A151 487130-04	£3.80	£4.56
821 - RATING PLATE GB BDE-N377798 N377798	£1.50	£1.80
821 - RATING PLATE LX BDE-N377801 N377801	£1.50	£1.80
831 - LABEL BDE-N376894.A6 N376894	£1.50	£1.80
837 - SERVICE TOOL Seal fitting tool BDE-1003957-99.A0 1003957-99	£96.55	£115.86
838 - SERVICE TOOL C Clip drift. BDE-1003958-99.A3 1003958-99	£65.52	£78.62
847 - SERVICE KIT 115V LX BDE-N392848.A3 N392848	£51.90	£62.28
847 - SERVICE KIT 230V GB BDE-N392849.A0 N392849	£51.90	£62.28
848 - SERVICE KIT BDE-N536059.A6 N536059	£47.08	£56.49
861 - KITBOX BDE-N377020.A3 N377020	£45.14	£54.17
864 - INSERT D25414KT TSTAK BDE-N361841.A1 N361841	£34.00	£40.80
