Dewalt DWEN102K Type 1 Rotary Hammer Spare Parts

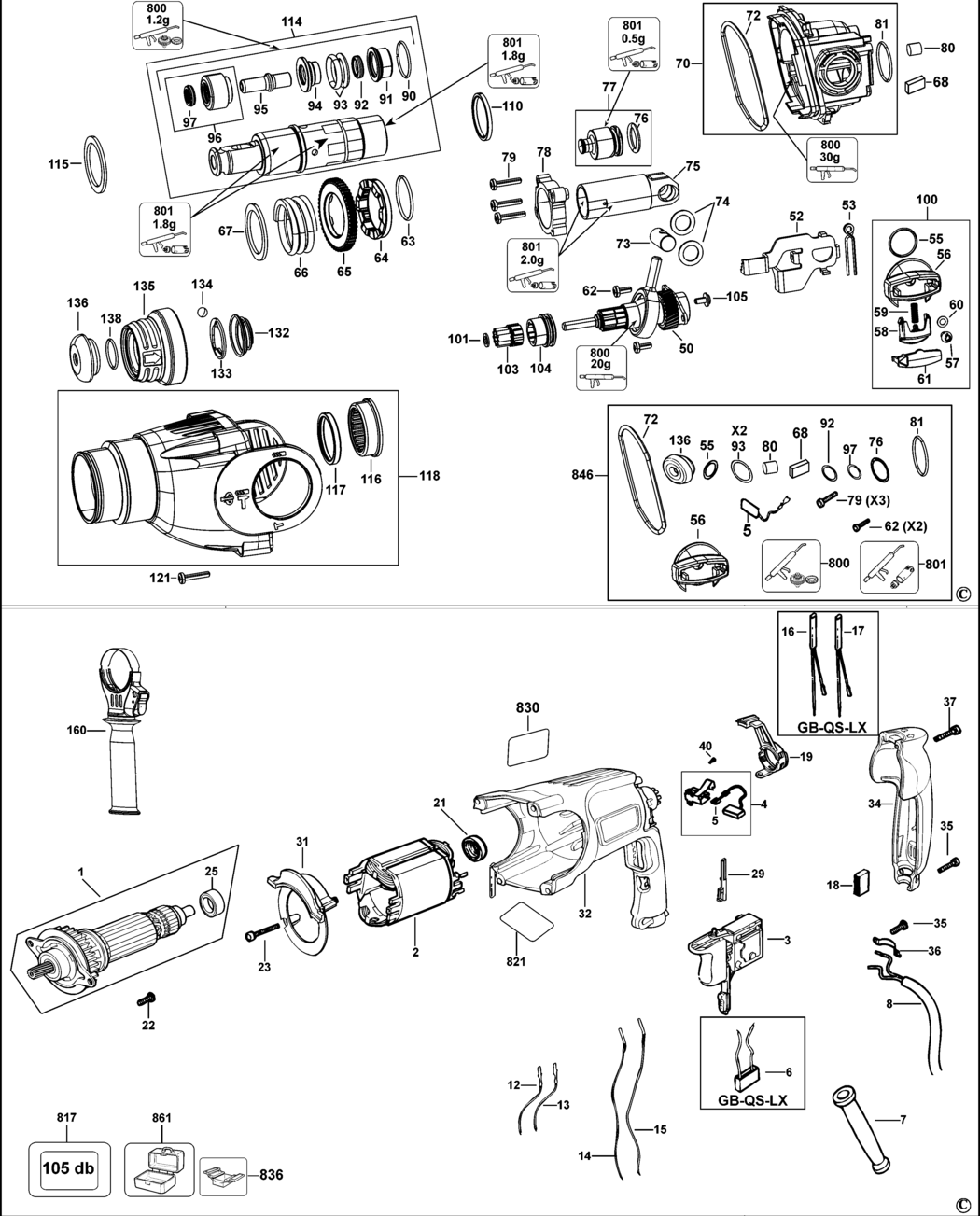

An exploded drawing and spare parts listing for the Dewalt DWEN102K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
3 - SWITCH BDE-583748-09.A10 583748-09	£24.39	£29.27
6 - CAPACITOR BDE-320842-19.A7 320842-19	£1.50	£1.80
7 - CORD PROTECTOR BDE-584090-00.A33 584090-00	£1.50	£1.80
12 - LEAD WHITE BDE-584304-00.A21 584304-00	£1.50	£1.80
13 - LEAD BLUE BDE-584304-10.A17 584304-10	£1.50	£1.80
14 - LEAD BLACK BDE-584304-04.A16 584304-04	£1.50	£1.80
15 - LEAD VIOLET BDE-584304-05.A21 584304-05	£1.50	£1.80
16 - CHOKE LEAD RED BDE-584304-02.A7 584304-02	£4.58	£5.49
17 - CHOKE LEAD BDE-584304-03.A14 584304-03	£4.58	£5.49
18 - BUMPER BDE-930026-01.A98 930026-01	£1.50	£1.80
19 - LEVER BDE-479818-00.A3 479818-00	£1.50	£1.80
21 - SLEEVE BDE-870052.A131 870052	£1.50	£1.80
22 - SCREW BDE-324006-14.A5 324006-14	£1.50	£1.80
23 - SCREW BDE-326519-05.A8 326519-05	£1.42	£1.70
25 - BEARING BDE-1005895-00.A1 1005895-00	£2.78	£3.34
29 - INSERT BDE-584551-00.A65 584551-00	£2.26	£2.71
31 - BAFFLE FAN BDE-577826-00.A0 577826-00	£2.78	£3.34
32 - FIELDCASE BDE-577810-03.A4 577810-03	£18.91	£22.69
34 - HANDLE COVER BDE-479817-00.A27 479817-00	£14.57	£17.48
35 - SCREW BDE-330065-06.A156 330065-06	£1.50	£1.80
36 - CORD CLAMP BDE-821070.A646 821070	£1.50	£1.80
37 - SCREW BDE-330065-09.A60 330065-09	£1.50	£1.80
40 - SCREW BDE-330065-25.A157 330065-25	£1.50	£1.80
50 - INTERSHAFT SA BDE-N081985.A1 N081985	£47.08	£56.49
52 - PLATE BDE-N029727.A7 N029727	£2.78	£3.34
53 - SPRING BDE-N042799.A0 N042799	£1.50	£1.80
55 - LEVER SA BDE-N104814.A0 N104814	£3.22	£3.86
56 - LEVER SA BDE-N104814.A1 N104814	£3.22	£3.86
57 - SCREW BDE-330065-05.A88 330065-05	£1.50	£1.80
58 - LOCK BUTTON BDE-N034136.A0 N034136	£1.42	£1.70
59 - SPRING BDE-N074923.A5 N074923	£1.50	£1.80
60 - SEAL BDE-1005811-00.A15 1005811-00	£1.50	£1.80
61 - COVER BDE-N034134.A22 N034134	£1.50	£1.80
62 - SCREW BDE-324006-14.A6 324006-14	£1.50	£1.80
63 - LOCKING RING BDE-581836-00.A0 581836-00	£1.50	£1.80
64 - RING BDE-N076101.A5 N076101	£14.19	£17.03
65 - GEAR BDE-N076102.A0 N076102	£18.42	£22.10
66 - SPRING BDE-N029717.A5 N029717	£3.80	£4.56
67 - WASHER BDE-577814-00.A33 577814-00	£2.26	£2.71
68 - FELT BDE-N081515.A12 N081515	£1.50	£1.80
70 - HOUSING SA BDE-N081983.A2 N081983	£23.75	£28.50
72 - SEAL BDE-578229-00.A76 578229-00	£1.50	£1.80
73 - BEARING BLOCK BDE-577801-00.A50 577801-00	£5.88	£7.06
74 - WASHER BDE-N074454.A4 N074454	£1.42	£1.70
75 - PISTON BDE-N081750.A4 N081750	£17.48	£20.97
76 - O RING BDE-579699-00.A56 579699-00	£1.50	£1.80
77 - RAM SA BDE-N081751.A4 N081751	£10.85	£13.02
78 - BEARING BUSH BDE-N029731.A5 N029731	£4.58	£5.49
79 - SCREW BDE-324006-15.A98 324006-15	£1.50	£1.80
80 - FELT BDE-N038257.A11 N038257	£1.50	£1.80
81 - O RING BDE-N042496.A12 N042496	£1.50	£1.80
90 - CLIP >=2014-WK16 BDE-N361759.A5 N361759	£1.50	£1.80
90 - CLIP <2014-WK16 BDE-577793-00.A29 577793-00	£1.50	£1.80
91 - BUSH BDE-584426-00.A23 584426-00	£16.03	£19.24
92 - O RING BDE-580990-00.A64 580990-00	£1.50	£1.80
93 - O RING BDE-577135-00.A56 577135-00	£3.30	£3.96
94 - DAMPER BDE-584425-00.A43 584425-00	£16.03	£19.24
95 - BEAT PIECE BDE-584424-00.A33 584424-00	£17.48	£20.97
96 - BEARING & SEAL BDE-584423-00.A36 584423-00	£18.91	£22.69
97 - SEAL BDE-577139-00.A33 577139-00	£1.50	£1.80
100 - LEVER KIT BDE-N099541.A8 N099541	£7.64	£9.17
101 - WASHER BDE-1005844-00.A27 1005844-00	£1.50	£1.80
103 - PINION GEAR BDE-N029726.A5 N029726	£11.87	£14.24
104 - COLLAR BDE-N029725.A7 N029725	£3.80	£4.56
105 - SCREW BDE-329794-00.A45 329794-00	£1.50	£1.80
110 - WASHER BDE-N059509.A0 N059509	£1.50	£1.80
114 - SPINDLE SA <2014-WK16 BDE-N386323.A3 N386323	£50.60	£60.72
114 - SPINDLE SA >=2014-WK16 BDE-N386323.A4 N386323	£50.60	£60.72
115 - WASHER BDE-577814-00.A32 577814-00	£2.26	£2.71
116 - BEARING NEEDLE BDE-577813-00.A12 577813-00	£7.85	£9.42
117 - SEAL BDE-577812-00.A5 577812-00	£2.78	£3.34
118 - HOUSING SA BDE-N081756.A2 N081756	£23.75	£28.50
121 - SCREW BDE-330019-81.A18 330019-81	£1.50	£1.80
132 - SPRING BDE-871690.A16 871690	£1.66	£1.99
133 - WASHER BDE-578387-00.A10 578387-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A257 583890-00	£1.66	£1.99
135 - TUBE BDE-493965-02.A1 493965-02	-
136 - CAP BDE-323489-00.A8 323489-00	£1.66	£1.99
138 - RING BDE-579212-00.A23 579212-00	£1.66	£1.99
160 - HANDLE SA BDE-N064581.A3 N064581	£18.42	£22.10
800 - GREASE 90 GMS BDE-870889-02.A340 870889-02	£7.85	£9.42
801 - GREASE 10 GMS BDE-487130-04.A166 487130-04	£3.80	£4.56
817 - LABEL BDE-496620-00.A5 496620-00	£1.50	£1.80
830 - BRAND LABEL BDE-N074584.A6 N074584	£1.50	£1.80
836 - S.T.CIRCLIP REMOVER BDE-1003924-99.A19 1003924-99	£157.18	£188.61
836 - S.T.CIRCLIP REMOVER BDE-596005-99.A46 596005-99	£84.42	£101.30
836 - S.T.CIRCLIP INSERTER BDE-1003925-99.A0 1003925-99	£144.10	£172.92
836 - S.T.INSERT BDE-1003926-99.A16 1003926-99	£51.90	£62.28
861 - KITBOX BDE-N064862.A4 N064862	£37.82	£45.38
