Dewalt D28421 Type 3 Angle Grinder Spare Parts

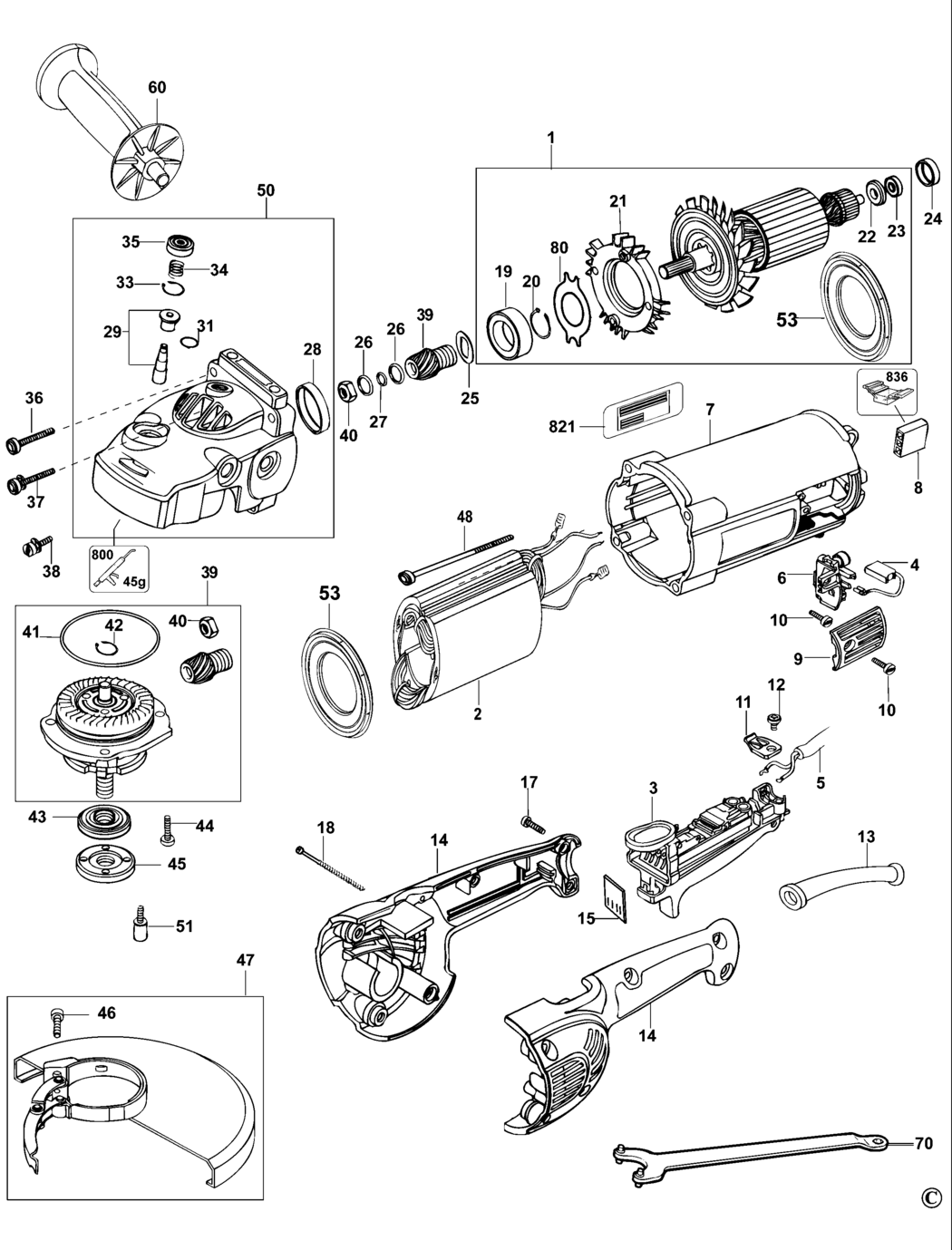

An exploded drawing and spare parts listing for the Dewalt D28421 Type 3 Angle Grinder

	Ex VAT	Inc VAT
3 - NO LONGER AVAILABLE BDE-000000-00.A96515 000000-00	-
6 - BRUSH HOLDER SA BDE-629976-00.A16 629976-00	£5.88	£7.06
7 - FIELDCASE BDE-399025-01.A0 399025-01	£15.63	£18.76
8 - CONNECTOR BDE-604389-00.A32 604389-00	£1.50	£1.80
9 - BRUSH COVER BDE-394387-01.A9 394387-01	£1.50	£1.80
10 - SCREW.TEMP BDE-330019-11.A105 330019-11	£1.50	£1.80
11 - CORD CLAMP BDE-398217-00.A2 398217-00	£1.50	£1.80
12 - SCREW BDE-330019-03.A268 330019-03	£1.50	£1.80
13 - CORD PROTECTOR BDE-947964-01.A141 947964-01	£3.80	£4.56
14 - HANDLE SA BDE-395185-00.A9 395185-00	£14.57	£17.48
15 - SEAL BDE-398720-00.A31 398720-00	£1.42	£1.70
17 - SCREW BDE-330019-32.A71 330019-32	£1.50	£1.80
18 - SCREW BDE-330019-50.A49 330019-50	£1.50	£1.80
19 - BEARING BDE-330003-13.A58 330003-13	£3.80	£4.56
20 - RETAINER BDE-398605-00.A12 398605-00	£1.50	£1.80
21 - SPACER BDE-614708-00.A19 614708-00	£5.72	£6.87
22 - SHIELD BDE-393238-00.A26 393238-00	£1.50	£1.80
23 - BEARING BDE-330003-60.A119 330003-60	£2.78	£3.34
24 - SLEEVE INSULATING BDE-609970-00.A23 609970-00	£1.50	£1.80
25 - WASHER BDE-608568-00.A48 608568-00	£1.42	£1.70
26 - WASHER BDE-607502-00.A1 607502-00	£1.50	£1.80
27 - WASHER SPRING BDE-614045-00.A45 614045-00	£1.42	£1.70
28 - SLEEVE BDE-609971-00.A41 609971-00	£1.50	£1.80
29 - REPAIR KIT BDE-496443-00.A0 496443-00	£4.69	£5.63
31 - RING BDE-050049-00.A58 050049-00	£1.50	£1.80
33 - RETAINER BDE-603470-00.A48 603470-00	£1.50	£1.80
34 - SPRING BDE-395029-00.A14 395029-00	£1.50	£1.80
35 - CAP BDE-610999-00.A14 610999-00	£1.50	£1.80
36 - SCREW BDE-330019-26.A9 330019-26	£1.50	£1.80
37 - SCREW BDE-330045-59.A1 330045-59	£1.42	£1.70
38 - SCREW BDE-330045-58.A37 330045-58	£1.42	£1.70
39 - GEARCASE COVER SA BDE-N075444.A1 N075444	£69.63	£83.56
40 - LOCK NUT BDE-609125-00.A31 609125-00	£1.42	£1.70
41 - O RING BDE-397031-00.A33 397031-00	£1.50	£1.80
42 - RETAINER BDE-034109-00.A29 034109-00	£1.42	£1.70
43 - INNER FLANGE BDE-403150-01.A18 403150-01	£4.69	£5.63
44 - SCREW BDE-330045-15.A100 330045-15	£1.50	£1.80
45 - OUTER FLANGE BDE-401678-05.A46 401678-05	£4.69	£5.63
46 - SCREW BDE-606863-00.A53 606863-00	£1.50	£1.80
47 - GUARD SA BDE-N036837.A7 N036837	£19.90	£23.88
48 - SCREW BDE-330019-34.A27 330019-34	£1.50	£1.80
50 - GEARCASE BDE-N075439.A1 N075439	£53.92	£64.70
51 - SCREW BDE-N033051.A77 N033051	£1.50	£1.80
53 - BAFFLE BDE-614542-00.A16 614542-00	£1.50	£1.80
60 - SIDE HANDLE BDE-577401-00.A5 577401-00	£9.17	£11.00
70 - WRENCH PIN BDE-938733.A99 938733	£7.18	£8.62
80 - INSERT BDE-613366-00.A29 613366-00	£1.42	£1.70
800 - GREASE 50 GMS BDE-583534-00.A203 583534-00	£144.10	£172.92
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A20 559638-99	£24.39	£29.27
