Dewalt D28142 Type 3 Small Angle Grinder Spare Parts

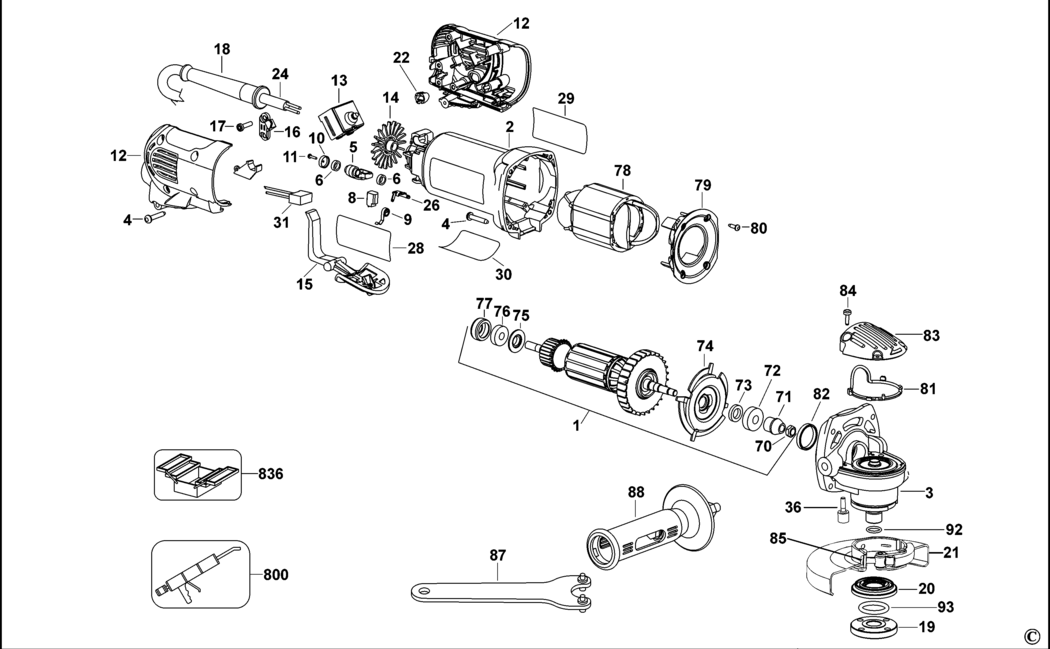

An exploded drawing and spare parts listing for the Dewalt D28142 Type 3 Small Angle Grinder

	Ex VAT	Inc VAT
1 - ARMATURE 115/120V LX BDE-N378184.A1 N378184	£44.14	£52.97
1 - ARMATURE 230V GB BDE-N014341.A0 N014341	£55.30	£66.36
2 - FIELDCASE LX BDE-623583-06.A4 623583-06	£44.14	£52.97
2 - FIELDCASE GB BDE-625242-24.A0 625242-24	£11.87	£14.24
3 - GEARCASE SA LX BDE-N157455.A2 N157455	£41.24	£49.49
3 - GEARCASE SA GB BDE-N157455.A3 N157455	£41.24	£49.49
4 - PLASTIC SCREW BDE-330065-31.A67 330065-31	£1.50	£1.80
5 - ARM BDE-648743-00.A51 648743-00	£1.50	£1.80
6 - FELT SEAL BDE-623592-00.A22 623592-00	£1.50	£1.80
8 - BRUSH CUT OFF GB BDE-650916-03.A2 650916-03	£4.69	£5.63
8 - BRUSH PAIR 120V LX BDE-N378957.A5 N378957	£7.85	£9.42
9 - BRUSH SPRING BDE-623589-00.A11 623589-00	£1.50	£1.80
10 - BRUSH CAP BDE-623591-00.A52 623591-00	£1.50	£1.80
11 - SCREW BDE-593685-00.A22 593685-00	£1.50	£1.80
12 - HANDLE SA LX BDE-623576-01.A1 623576-01	£7.85	£9.42
12 - HANDLE SA GB BDE-623576-01.A2 623576-01	£7.85	£9.42
13 - SWITCH BDE-945614-02.A5 945614-02	£9.17	£11.00
14 - SEPARATOR BDE-N055787.A22 N055787	£1.50	£1.80
15 - PADDLE BDE-623619-00.A1 623619-00	£3.30	£3.96
16 - CORD CLAMP BDE-626006-01.A0 626006-01	£1.50	£1.80
17 - SCREW BDE-330019-03.A196 330019-03	£1.50	£1.80
18 - CORD PROTECTOR GB BDE-N542553.A514 N542553	£3.80	£4.56
18 - CORD PROTECTOR LX BDE-N185751.A3 N185751	-
19 - OUTER FLANGE BDE-622613-02.A5 622613-02	£4.69	£5.63
20 - INNER FLANGE SA LX BDE-633257-00SV.A45 633257-00SV	£5.88	£7.06
20 - INNER FLANGE SA GB BDE-633257-00SV.A46 633257-00SV	£5.88	£7.06
21 - GUARD SA LX BDE-N041731.A3 N041731	£9.41	£11.29
21 - GUARD SA LX BDE-N042080.A4 N042080	£10.85	£13.02
21 - GUARD SA GB BDE-N041731.A4 N041731	£9.41	£11.29
21 - GUARD SA GB BDE-N042080.A3 N042080	£10.85	£13.02
22 - PLUG BDE-625415-01.A1 625415-01	£1.50	£1.80
24 - CORDSET GB BDE-562161-39.A2 562161-39	£19.40	£23.28
24 - CORDSET LX BDE-562161-36.A2 562161-36	£50.60	£60.72
26 - TERMINAL BDE-623593-00.A32 623593-00	£1.50	£1.80
28 - RATING PLATE LX BDE-N115541 N115541	£1.50	£1.80
28 - RATING PLATE GB BDE-N115545 N115545	£1.50	£1.80
29 - BRAND LABEL BDE-628885-00.A6 628885-00	£1.50	£1.80
31 - CAPACITOR GB BDE-562212-04.A4 562212-04	£1.42	£1.70
31 - CAPACITOR LX BDE-562212-04.A5 562212-04	£1.42	£1.70
36 - SCREW BDE-N033051.A37 N033051	£1.50	£1.80
70 - NUT BDE-604484-00.A75 604484-00	£1.50	£1.80
71 - PINION GB BDE-657180-00.A0 657180-00	£7.18	£8.62
71 - PINION LX BDE-657180-00.A1 657180-00	£7.18	£8.62
72 - BEARING GB BDE-605040-67.A0 605040-67	£1.50	£1.80
72 - BEARING BALL LX BDE-605040-11.A31 605040-11	£2.78	£3.34
73 - FELT SEAL BDE-623617-00.A35 623617-00	£1.50	£1.80
74 - RETAINER BDE-N422242.A34 N422242	£1.50	£1.80
75 - WASHER BDE-623613-00.A46 623613-00	£1.50	£1.80
76 - BEARING BDE-605040-02.A73 605040-02	£2.26	£2.71
77 - SLEEVE BDE-641823-00.A15 641823-00	£1.50	£1.80
78 - FIELD 230V GB BDE-624764-18.A0 624764-18	£29.32	£35.18
78 - FIELD 120V LX BDE-621220-02.A5 621220-02	£37.35	£44.82
79 - BAFFLE FAN LX BDE-623572-00.A51 623572-00	£1.50	£1.80
79 - BAFFLE FAN GB BDE-650997-00.A29 650997-00	£1.50	£1.80
80 - SCREW BDE-330065-25.A29 330065-25	£1.50	£1.80
81 - GASKET BDE-623618-00.A32 623618-00	£1.50	£1.80
82 - SLEEVE BDE-611492-00.A78 611492-00	£1.50	£1.80
83 - GEARCASE COVER BDE-623562-00.A40 623562-00	£3.80	£4.56
84 - SCREW BDE-385676-01.A55 385676-01	£1.50	£1.80
85 - SCREW BDE-631609-03.A16 631609-03	£1.50	£1.80
87 - WRENCH BDE-401680-00.A2 401680-00	£4.69	£5.63
88 - SIDE HANDLE BDE-614796-00.A0 614796-00	£14.57	£17.48
92 - O RING BDE-633045-00.A13 633045-00	£1.50	£1.80
93 - O RING BDE-633043-00.A43 633043-00	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A129 583534-00	£144.10	£172.92
836 - DRIVER BDE-233804-36.A58 233804-36	£30.08	£36.10
