Dewalt DW743 Type 1 Combination Saw Spare Parts

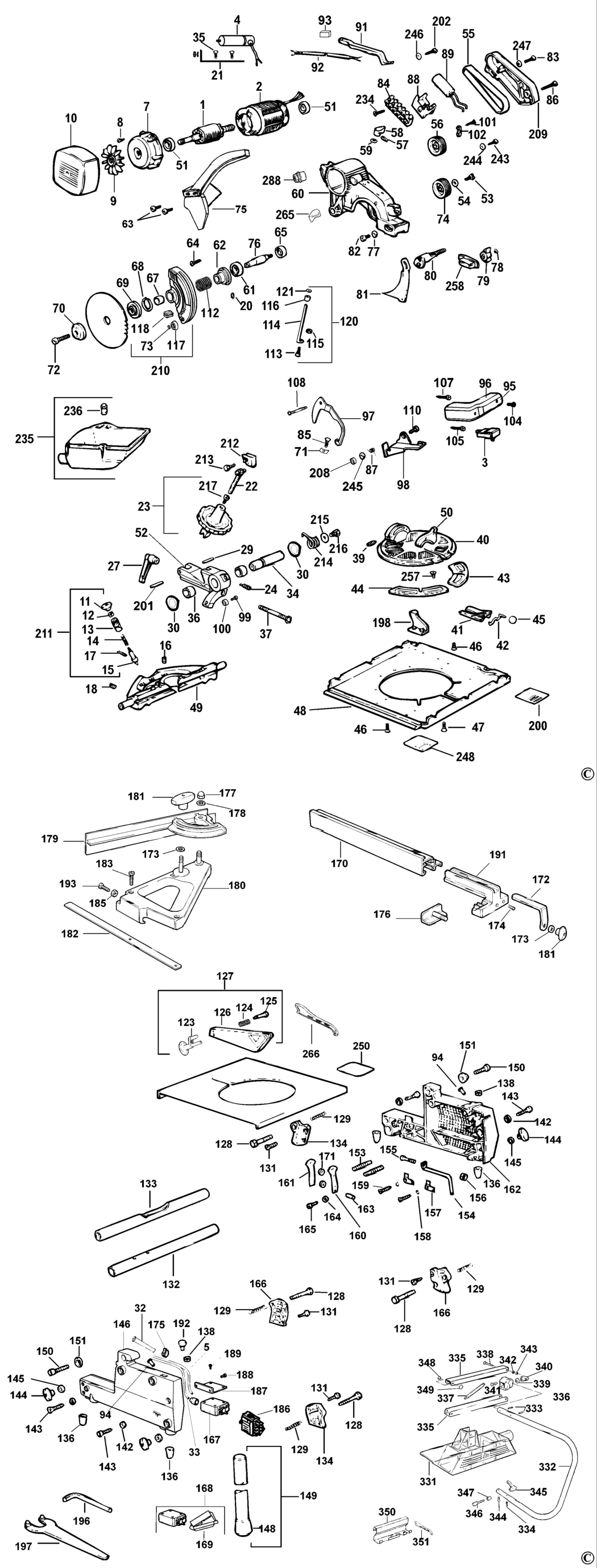

An exploded drawing and spare parts listing for the Dewalt DW743 Type 1 Combination Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A48035 000000-00	-
2 - NO LONGER AVAILABLE XW BDE-000000-00.A48036 000000-00	-
2 - STATOR 230V GB BDE-868395-00.A4 868395-00	£174.63	£209.56
3 - SWITCH LOCK OFF BDE-868182-00.A3 868182-00	£16.03	£19.24
4 - NO LONGER AVAILABLE XW BDE-000000-00.A48037 000000-00	-
5 - NO LONGER AVAILABLE GB BDE-000000-00.A48038 000000-00	-
5 - NO LONGER AVAILABLE XW BDE-000000-00.A48039 000000-00	-
7 - END CAP BDE-861085-04.A8 861085-04	£23.75	£28.50
8 - SCREW BDE-330045-15.A170 330045-15	£1.50	£1.80
9 - FAN BDE-942413-02.A24 942413-02	£4.69	£5.63
10 - END CAP BDE-861036-02.A20 861036-02	£10.85	£13.02
11 - KNOB BDE-942453-00.A31 942453-00	£3.80	£4.56
12 - NUT BDE-949726-05.A56 949726-05	£1.50	£1.80
13 - BARREL BDE-861069-00.A13 861069-00	£17.48	£20.97
14 - SPRING BDE-761054-00.A48 761054-00	£1.50	£1.80
15 - LOCKING PIN BDE-941798-00.A7 941798-00	£3.30	£3.96
16 - SCREW BDE-942329-00.A18 942329-00	£1.50	£1.80
17 - PIN BDE-761065-00.A22 761065-00	£1.50	£1.80
18 - SCREW BDE-949853-03.A15 949853-03	£1.82	£2.19
20 - PIN BDE-941549-00.A16 941549-00	-
21 - BRACKET XW BDE-942885-00.A5 942885-00	£9.17	£11.00
22 - SPINDLE BDE-942363-00.A22 942363-00	£34.00	£40.80
23 - WHEEL BDE-861060-01.A8 861060-01	-
24 - SCREW BDE-860088-23.A16 860088-23	-
27 - LEVER BDE-949884-01.A12 949884-01	£5.88	£7.06
29 - NO LONGER AVAILABLE BDE-000000-00.A48040 000000-00	-
30 - WASHER LOCK BDE-941800-00.A23 941800-00	-
32 - PROTECTOR BDE-942277-00.A40 942277-00	£1.66	£1.99
33 - MOTOR CABLE BDE-868179-00.A3 868179-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A48041 000000-00	-
35 - SCREW XW BDE-760299-00.A13 760299-00	-
36 - BUSH BDE-941886-00.A7 941886-00	-
37 - SCREW BDE-860085-32.A15 860085-32	£4.69	£5.63
39 - SCREW BDE-949743-01.A17 949743-01	£1.50	£1.80
40 - ROTARY TABLE BDE-869230-01.A3 869230-01	-
41 - PLATE BDE-942364-00.A1 942364-00	-
42 - LOCKING PIN BDE-942234-00.A22 942234-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A48042 000000-00	-
44 - SCALE LH BDE-861065-00.A8 861065-00	-
45 - KNOB BDE-942450-00.A7 942450-00	£1.42	£1.70
46 - SCREW BDE-868256-00.A15 868256-00	£1.50	£1.80
47 - SCREW BDE-942272-00.A8 942272-00	-
48 - FIXED TABLE BDE-861062-00.A8 861062-00	-
49 - BACK FENCE BDE-868285-02.A4 868285-02	-
50 - CLAMP BDE-942400-01.A4 942400-01	-
51 - BEARING BDE-330003-14.A76 330003-14	£7.85	£9.42
52 - SEGMENT BDE-861993-00.A3 861993-00	-
53 - SCREW BDE-860085-28.A13 860085-28	£1.50	£1.80
54 - WASHER BDE-861983-01.A7 861983-01	£1.50	£1.80
55 - BELT BDE-861038-00.A9 861038-00	£10.85	£13.02
56 - PULLEY BDE-861040-00.A6 861040-00	-
57 - PIN BDE-760233-00.A20 760233-00	£1.50	£1.80
58 - KNOB BDE-941807-00.A10 941807-00	£1.78	£2.13
59 - SPRING BDE-860491-01.A1 860491-01	£1.50	£1.80
60 - NO LONGER AVAILABLE GB BDE-000000-00.A48043 000000-00	-
60 - NO LONGER AVAILABLE XW BDE-000000-00.A48044 000000-00	-
61 - BEARING BDE-860155-08.A30 860155-08	£7.85	£9.42
62 - FLANGE BDE-861055-01.A10 861055-01	£4.58	£5.49
63 - SCREW BDE-860084-11.A58 860084-11	£1.50	£1.80
64 - SCREW.TEMP BDE-860094-00.A6 860094-00	£1.50	£1.80
65 - BEARING BDE-860155-08.A29 860155-08	£7.85	£9.42
67 - BUSH BDE-942490-00.A22 942490-00	-
68 - CIRCLIP BDE-860079-05.A3 860079-05	£1.50	£1.80
69 - FLANGE SET SA BDE-868571-00.A2 868571-00	£34.00	£40.80
70 - FLANGE SET SA BDE-868571-00.A3 868571-00	£34.00	£40.80
71 - WASHER BDE-860077-01.A13 860077-01	£1.50	£1.80
72 - SCREW BDE-761295-00.A6 761295-00	-
73 - CIRCLIP SA BDE-861705-00.A6 861705-00	£16.03	£19.24
74 - PULLEY BDE-861039-01.A7 861039-01	-
75 - GUARD REAR BDE-942394-05.A11 942394-05	-
76 - SPINDLE BDE-942500-00.A14 942500-00	£24.39	£29.27
77 - WASHER M8 BDE-860073-03.A497 860073-03	£1.50	£1.80
78 - CIRCLIP BDE-860322-00.A18 860322-00	£1.50	£1.80
79 - KNOB BDE-942263-01.A9 942263-01	£11.87	£14.24
80 - HOLDER BDE-945767-02.A6 945767-02	-
81 - RIVING KNIFE BDE-945739-02.A13 945739-02	-
82 - SCREW BDE-949886-16.A17 949886-16	£1.50	£1.80
83 - SCREW BDE-860089-18.A56 860089-18	£1.50	£1.80
84 - TERMINAL BLOCK BDE-942508-00.A8 942508-00	£7.18	£8.62
85 - CAP BDE-861991-00.A6 861991-00	£1.50	£1.80
86 - SCREW BDE-860089-13.A17 860089-13	£1.42	£1.70
87 - SPRING BDE-861987-00.A4 861987-00	-
88 - NO LONGER AVAILABLE BDE-000000-00.A48045 000000-00	-
89 - NO LONGER AVAILABLE XW BDE-000000-00.A48046 000000-00	-
89 - CAPACITOR GB BDE-949772-43.A1 949772-43	£10.85	£13.02
91 - COVER BDE-942485-00.A4 942485-00	£3.80	£4.56
92 - LEAD SA BDE-942467-00.A9 942467-00	-
93 - NO LONGER AVAILABLE BDE-000000-00.A14905 000000-00	-
94 - SCREW BDE-949701-05.A11 949701-05	£1.50	£1.80
95 - HANDLE BDE-942498-03.A0 942498-03	-
96 - HANDLE COVER BDE-861995-00.A4 861995-00	£7.85	£9.42
97 - LEVER SA BDE-868235-00.A3 868235-00	£24.39	£29.27
98 - NO LONGER AVAILABLE BDE-000000-00.A14906 000000-00	-
99 - SCREW BDE-861989-00.A4 861989-00	£1.50	£1.80
100 - BEARING BDE-949719-04.A12 949719-04	£3.30	£3.96
101 - SCREW BDE-860084-13.A43 860084-13	-
102 - CABLE CLAMP BDE-941544-00.A0 941544-00	-
104 - SCREW BDE-949896-10.A33 949896-10	£1.50	£1.80
105 - SCREW BDE-860090-06.A7 860090-06	-
107 - SCREW BDE-935371-00.A7 935371-00	£1.50	£1.80
108 - SCREW BDE-861054-01.A9 861054-01	£1.42	£1.70
110 - SCREW BDE-861478-01.A7 861478-01	£1.42	£1.70
112 - SPRING BDE-861988-00.A7 861988-00	-
113 - SCREW BDE-860085-17.A40 860085-17	-
114 - NO LONGER AVAILABLE BDE-000000-00.A14907 000000-00	-
115 - NUT M6 BDE-860083-12.A67 860083-12	£1.50	£1.80
116 - NO LONGER AVAILABLE BDE-000000-00.A14908 000000-00	-
117 - ROLLER BDE-861096-01.A5 861096-01	£12.17	£14.60
118 - BUFFER BDE-861095-01.A30 861095-01	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A14909 000000-00	-
121 - WASHER BDE-860073-08.A32 860073-08	£1.50	£1.80
123 - PIVOT BDE-N162670.A11 N162670	£3.80	£4.56
124 - SPRING BDE-941622-00.A24 941622-00	£1.50	£1.80
125 - SCREW BDE-860084-11.A72 860084-11	£1.50	£1.80
126 - GUARD UPPER BDE-N162669.A30 N162669	£17.48	£20.97
127 - GUARD SA BDE-N164678.A26 N164678	£38.80	£46.56
128 - BOLT BDE-860301-09.A32 860301-09	£1.50	£1.80
129 - SPRING BDE-761054-00.A85 761054-00	£1.50	£1.80
131 - SCREW BDE-330045-55.A70 330045-55	£1.50	£1.80
132 - CROSS BRACE BDE-861074-01.A7 861074-01	£16.03	£19.24
133 - NO LONGER AVAILABLE BDE-000000-00.A14910 000000-00	-
134 - CLAMP LH BDE-861078-02.A3 861078-02	-
136 - FOOT BDE-942375-00.A23 942375-00	£1.50	£1.80
138 - NUT BDE-860083-15.A97 860083-15	£1.50	£1.80
142 - WASHER BDE-98197-08.A0 98197-08	£1.50	£1.80
143 - SCREW BDE-942447-00.A38 942447-00	£1.50	£1.80
144 - KNOB BDE-941756-00.A197 941756-00	£1.50	£1.80
145 - WASHER M8 BDE-860073-03.A357 860073-03	£1.50	£1.80
146 - NO LONGER AVAILABLE BDE-000000-00.A14911 000000-00	-
148 - FOOT BDE-861073-00.A18 861073-00	£10.85	£13.02
149 - LEG SA BDE-861076-00.A10 861076-00	£17.48	£20.97
150 - SCREW BDE-942041-00.A7 942041-00	-
151 - WASHER BDE-861068-00.A11 861068-00	£3.30	£3.96
153 - SPRING BDE-942522-00.A8 942522-00	£1.50	£1.80
154 - LOCKING DEVICE BDE-942098-00.A19 942098-00	£9.41	£11.29
155 - SCREW BDE-942185-00.A8 942185-00	£1.50	£1.80
156 - NUT BDE-949726-05.A75 949726-05	£1.50	£1.80
157 - BRIDGE BDE-942104-00.A9 942104-00	£1.50	£1.80
158 - WASHER BDE-761035-00.A5 761035-00	£1.42	£1.70
159 - SCREW.TEMP BDE-860094-00.A72 860094-00	£1.50	£1.80
160 - CATCH BDE-861071-00.A8 861071-00	£2.26	£2.71
161 - LOCKING DEVICE BDE-861070-00.A13 861070-00	£2.26	£2.71
162 - SIDE RH BDE-861089-02.A4 861089-02	£170.23	£204.28
163 - PIN BDE-942365-00.A19 942365-00	£1.50	£1.80
164 - WASHER BDE-949876-08.A21 949876-08	£1.50	£1.80
165 - SCREW.TEMP BDE-860094-00.A71 860094-00	£1.50	£1.80
166 - CLAMP RH BDE-861077-02.A4 861077-02	-
167 - NO LONGER AVAILABLE XW BDE-000000-00.A14912 000000-00	-
167 - SWITCH SA GB BDE-868178-01.A0 868178-01	-
168 - SWITCH BDE-868180-00.A0 868180-00	-
169 - SWITCH COVER BDE-N377168.A15 N377168	£14.57	£17.48
170 - GUIDE BDE-942320-03.A0 942320-03	£38.80	£46.56
171 - WASHER M6 BDE-860073-07.A16 860073-07	£1.50	£1.80
172 - CLAMPING BAR BDE-942316-01.A26 942316-01	£14.57	£17.48
173 - WASHER M8 BDE-860073-03.A358 860073-03	£1.50	£1.80
174 - SCREW BDE-949743-03.A22 949743-03	£7.85	£9.42
175 - CABLE CLAMP BDE-861091-00.A24 861091-00	£1.50	£1.80
176 - BRACKET BDE-941819-01.A16 941819-01	£16.03	£19.24
177 - NUT BDE-860092-00.A149 860092-00	£1.50	£1.80
178 - WASHER M6 BDE-860073-07.A17 860073-07	£1.50	£1.80
179 - FENCE BDE-941578-01.A12 941578-01	£55.30	£66.36
180 - BASE BDE-942172-00.A24 942172-00	£12.17	£14.60
181 - KNOB BDE-941756-00.A198 941756-00	£1.50	£1.80
182 - RAIL BDE-942151-00.A3 942151-00	£30.08	£36.10
183 - SCREW.TEMP BDE-860089-00.A0 860089-00	£1.50	£1.80
185 - NUT M6 BDE-860083-12.A68 860083-12	£1.50	£1.80
186 - NO LONGER AVAILABLE XW BDE-000000-00.A14913 000000-00	-
186 - CONTACT SA GB BDE-868538-00.A7 868538-00	£71.44	£85.73
187 - BRACKET BDE-944341-00.A7 944341-00	£7.18	£8.62
188 - SCREW BDE-860094-03.A185 860094-03	£1.50	£1.80
189 - SCREW BDE-930076-00.A77 930076-00	£1.50	£1.80
191 - FENCE BDE-861346-00.A22 861346-00	£25.70	£30.84
192 - FOOT BDE-941614-00.A46 941614-00	£1.50	£1.80
193 - SCREW BDE-941518-00.A69 941518-00	£1.50	£1.80
196 - WRENCH 6 MM BDE-860098-04.A96 860098-04	£1.50	£1.80
197 - SPANNER BDE-939072-00.A16 939072-00	£9.41	£11.29
198 - TABLE LATCH BDE-861063-00.A12 861063-00	£4.69	£5.63
200 - NO LONGER AVAILABLE BDE-000000-00.A14914 000000-00	-
201 - PIN BDE-942045-00.A9 942045-00	£1.42	£1.70
202 - SCREW BDE-861090-00.A8 861090-00	£1.50	£1.80
208 - NUT M5 BDE-860092-03.A8 860092-03	£1.50	£1.80
209 - BELT COVER BDE-861037-00.A3 861037-00	-
210 - LOWER GUARD SA BDE-868216-01.A3 868216-01	-
211 - LOCKING PIN SA BDE-861084-00.A7 861084-00	£25.70	£30.84
212 - NO LONGER AVAILABLE BDE-000000-00.A14915 000000-00	-
213 - PIN BDE-860649-01.A11 860649-01	-
214 - SPRING BDE-945619-00.A9 945619-00	-
215 - WASHER BDE-941602-00.A178 941602-00	£1.50	£1.80
216 - SCREW BDE-860085-18.A0 860085-18	-
217 - SCREW BDE-941606-00.A0 941606-00	-
234 - SCREW BDE-760299-00.A26 760299-00	-
235 - NO LONGER AVAILABLE BDE-000000-00.A14916 000000-00	-
236 - FASTENER BDE-946314-00.A3 946314-00	£1.50	£1.80
243 - SCREW BDE-860094-03.A186 860094-03	£1.50	£1.80
244 - WASHER BDE-933652-00.A32 933652-00	£1.50	£1.80
245 - WASHER BDE-860073-01.A136 860073-01	£1.50	£1.80
246 - WASHER BDE-941633-00.A5 941633-00	£1.50	£1.80
247 - WASHER BDE-860073-01.A137 860073-01	£1.50	£1.80
250 - LABEL BDE-861099-00.A17 861099-00	£1.50	£1.80
257 - SCREW BDE-949795-01.A11 949795-01	£1.50	£1.80
258 - WEDGE BDE-946620-00.A7 946620-00	£37.35	£44.82
265 - SHOCK ABSORBER BDE-946315-00.A14 946315-00	£14.19	£17.03
266 - PUSHROD BDE-860610-01.A49 860610-01	£7.85	£9.42
288 - REDUCER BDE-942308-00.A24 942308-00	£18.91	£22.69

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW743 Type 1 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW743 Type 1 Combination Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW743 Type 1 Combination Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
