Dewalt D51276 Type 1 Angled Finish Nailer 15 Gauge Spare Parts

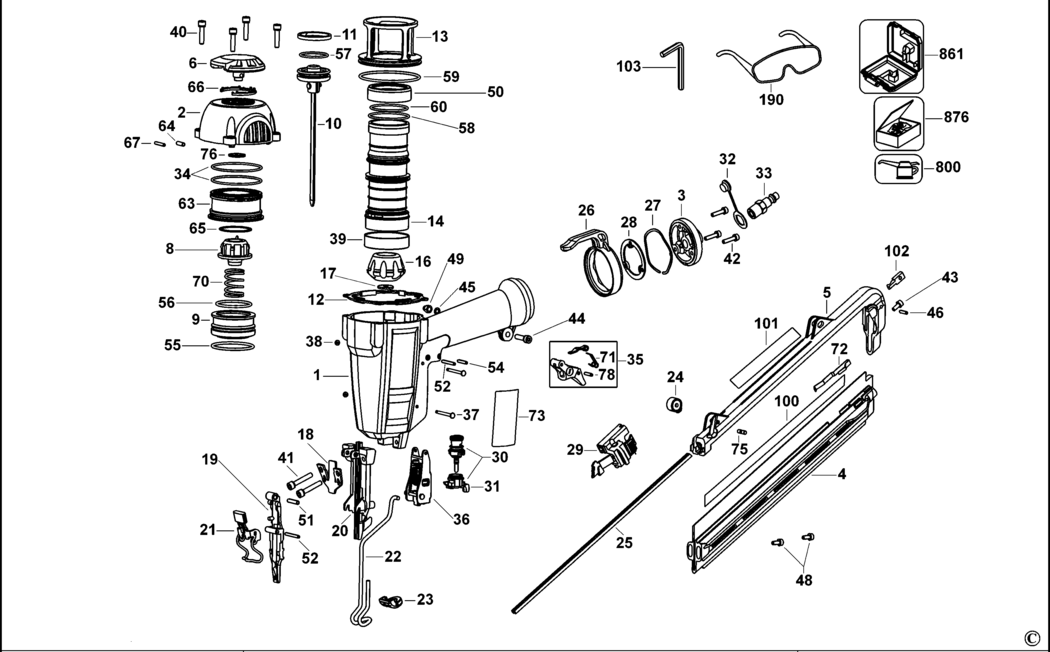

An exploded drawing and spare parts listing for the Dewalt D51276 Type 1 Angled Finish Nailer 15 Gauge

	Ex VAT	Inc VAT
1 - FRAME BDE-645892-00.A0 645892-00	£104.31	£125.17
2 - CAP BDE-645882-00.A0 645882-00	£34.00	£40.80
3 - END CAP BDE-647601-00.A0 647601-00	£5.88	£7.06
4 - NO LONGER AVAILABLE BDE-000000-00.A95913 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A95914 000000-00	-
6 - DEFLECTOR BDE-646415-00.A1 646415-00	£3.30	£3.96
8 - BUMPER BDE-651719-00.A0 651719-00	£1.50	£1.80
10 - DRIVER BDE-647603-00.A1 647603-00	£34.00	£40.80
11 - SEAL BDE-647952-00.A1 647952-00	£3.30	£3.96
12 - GASKET BDE-647650-00.A0 647650-00	£1.50	£1.80
13 - INSERT BDE-652373-00.A1 652373-00	£1.82	£2.19
14 - CYLINDER BDE-646280-00.A1 646280-00	£4.69	£5.63
16 - BUMPER BDE-652500-00.A0 652500-00	£5.88	£7.06
17 - PLATE BDE-646981-00.A0 646981-00	£1.50	£1.80
18 - DOOR BDE-647060-00.A1 647060-00	£1.50	£1.80
19 - DOOR BDE-647064-00.A0 647064-00	£18.91	£22.69
20 - NO LONGER AVAILABLE BDE-000000-00.A95915 000000-00	-
21 - LATCH BDE-653129-00.A0 653129-00	£3.80	£4.56
22 - CONTACT BDE-N015849.A1 N015849	£2.78	£3.34
23 - PAD BDE-619943-00.A3 619943-00	£3.80	£4.56
24 - SPRING BDE-647605-00.A0 647605-00	£3.80	£4.56
25 - LINER BDE-395115-00.A5 395115-00	£16.03	£19.24
26 - NO LONGER AVAILABLE BDE-000000-00.A95916 000000-00	-
27 - SPRING BDE-647608-00.A1 647608-00	£1.50	£1.80
28 - NO LONGER AVAILABLE BDE-000000-00.A95917 000000-00	-
29 - SLIDER BDE-646725-00.A1 646725-00	£7.85	£9.42
30 - TRIGGER BDE-N566148.A10 N566148	£12.17	£14.60
31 - CAP BDE-641011-00.A7 641011-00	£3.30	£3.96
32 - NO LONGER AVAILABLE BDE-000000-00.A95918 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A95919 000000-00	-
34 - O RING BDE-647621-00.A1 647621-00	£1.50	£1.80
35 - TRIGGER BDE-641188-00.A4 641188-00	£10.85	£13.02
36 - NO LONGER AVAILABLE BDE-000000-00.A95920 000000-00	-
37 - PIN BDE-395091-00.A21 395091-00	£1.82	£2.19
38 - GROMMET BDE-391814-00.A24 391814-00	£1.50	£1.80
39 - RING BDE-N000557.A1 N000557	£4.69	£5.63
40 - SCREW BDE-608174-00.A8 608174-00	£1.50	£1.80
41 - SCREW BDE-608175-00.A3 608175-00	£1.50	£1.80
42 - SCREW BDE-608178-00.A0 608178-00	£1.50	£1.80
43 - SCREW BDE-608179-00.A13 608179-00	£1.50	£1.80
44 - SCREW BDE-608176-00.A4 608176-00	£1.50	£1.80
45 - WASHER BDE-330016-07.A80 330016-07	£1.50	£1.80
46 - ROLL PIN BDE-330036-11.A2 330036-11	£1.50	£1.80
48 - SCREW BDE-608179-00.A14 608179-00	£1.50	£1.80
49 - NUT BDE-607155-00.A4 607155-00	£1.50	£1.80
50 - SEAL BDE-649687-00.A0 649687-00	£1.50	£1.80
51 - ROLL PIN BDE-330036-04.A0 330036-04	£1.50	£1.80
52 - SPIROL PIN BDE-650156-00.A4 650156-00	£1.50	£1.80
54 - SPIROL PIN BDE-650155-00.A0 650155-00	£1.50	£1.80
55 - O RING BDE-646361-00.A1 646361-00	£1.50	£1.80
56 - O RING BDE-646359-00.A1 646359-00	£1.50	£1.80
57 - O RING BDE-647949-00.A0 647949-00	£1.50	£1.80
58 - O RING BDE-652371-00.A1 652371-00	£1.50	£1.80
59 - O RING BDE-398159-00.A4 398159-00	£2.78	£3.34
60 - O RING BDE-652372-00.A0 652372-00	£1.50	£1.80
64 - SLEEVE BDE-651982-00.A1 651982-00	£1.50	£1.80
65 - RING BDE-651702-00.A0 651702-00	£1.50	£1.80
66 - O RING BDE-632495-00.A2 632495-00	£7.85	£9.42
67 - PIN BDE-632492-00.A0 632492-00	£1.50	£1.80
70 - SPRING BDE-395064-00.A1 395064-00	£2.26	£2.71
71 - SPRING BDE-391813-00.A12 391813-00	£1.50	£1.80
72 - RETAINER BDE-649652-00.A0 649652-00	£1.50	£1.80
73 - BRAND LABEL BDE-647940-00.A1 647940-00	£1.50	£1.80
75 - NO LONGER AVAILABLE BDE-000000-00.A95921 000000-00	-
76 - WASHER BDE-632239-00.A2 632239-00	£1.50	£1.80
78 - PIN BDE-603394-00.A7 603394-00	£1.50	£1.80
101 - NO LONGER AVAILABLE BDE-000000-00.A95922 000000-00	-
102 - LATCH BDE-649138-00.A0 649138-00	£1.82	£2.19
103 - NO LONGER AVAILABLE BDE-000000-00.A95923 000000-00	-
103 - HEX KEY 4 MM BDE-98000-09.A17 98000-09	-
190 - SAFETY GLASSES BDE-629042-01.A12 629042-01	£10.57	£12.68
800 - GREASE 150 GMS BDE-429995-00.A4 429995-00	-
861 - NO LONGER AVAILABLE BDE-000000-00.A95924 000000-00	-
876 - SERVICE KIT BDE-N001060.A0 N001060	£41.24	£49.49
876 - O RING KIT BDE-N001053.A0 N001053	£17.03	£20.44
876 - SERVICE KIT BDE-N001056.A1 N001056	£12.17	£14.60
876 - TRIGGER BDE-N003391.A0 N003391	£16.03	£19.24
876 - VALVE BDE-N003392.A2 N003392	£17.48	£20.97
876 - TRIGGER BDE-N003390.A1 N003390	£16.03	£19.24
