Dewalt D51431 Type 2 Nailer Spare Parts

Home Details Reviews Delivery

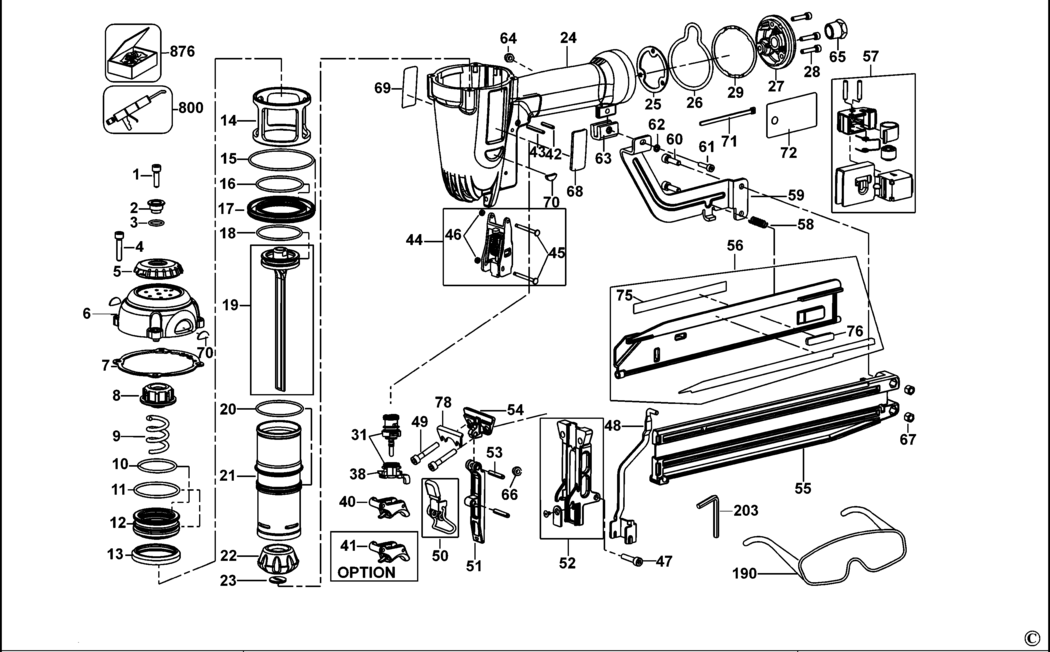

An exploded drawing and spare parts listing for the Dewalt D51431 Type 2 Nailer

	Ex VAT	Inc VAT
2 - NO LONGER AVAILABLE BDE-000000-00.A95306 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A95307 000000-00	-
4 - SCREW BDE-608174-00.A6 608174-00	£1.66	£1.99
5 - NO LONGER AVAILABLE BDE-000000-00.A95308 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A95309 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A95310 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A95311 000000-00	-
9 - SPRING BDE-395379-00.A2 395379-00	£1.88	£2.26
10 - O RING BDE-398163-00.A1 398163-00	£1.66	£1.99
11 - O RING BDE-609019-00.A1 609019-00	£1.66	£1.99
12 - VALVE BDE-395378-00.A4 395378-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A95312 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A95313 000000-00	-
15 - O RING BDE-398166-00.A5 398166-00	£1.66	£1.99
16 - O RING BDE-398167-00.A2 398167-00	£1.66	£1.99
17 - NO LONGER AVAILABLE BDE-000000-00.A95314 000000-00	-
18 - O RING BDE-622865-00.A2 622865-00	£1.66	£1.99
19 - NO LONGER AVAILABLE BDE-000000-00.A95315 000000-00	-
20 - O RING BDE-398165-00.A2 398165-00	£1.66	£1.99
21 - NO LONGER AVAILABLE BDE-000000-00.A95316 000000-00	-
22 - BUMPER BDE-395426-00.A2 395426-00	£7.64	£9.17
23 - NO LONGER AVAILABLE BDE-000000-00.A95317 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A95318 000000-00	-
25 - GASKET BDE-395430-00.A8 395430-00	£1.66	£1.99
26 - NO LONGER AVAILABLE BDE-000000-00.A95319 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A95320 000000-00	-
28 - SCREW BDE-608178-00.A4 608178-00	£1.66	£1.99
29 - NO LONGER AVAILABLE BDE-000000-00.A95321 000000-00	-
31 - TRIGGER BDE-N566148.A15 N566148	£12.53	£15.04
38 - CAP BDE-641011-00.A6 641011-00	£3.39	£4.07
40 - TRIGGER BDE-398219-00.A1 398219-00	£4.58	£5.49
41 - NO LONGER AVAILABLE BDE-000000-00.A95322 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A95323 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A95324 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A95325 000000-00	-
45 - PIN BDE-395091-00.A17 395091-00	£1.88	£2.26
46 - GROMMET BDE-391814-00.A30 391814-00	£1.66	£1.99
47 - NO LONGER AVAILABLE BDE-000000-00.A95326 000000-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A95327 000000-00	-
49 - SCREW BDE-608175-00.A5 608175-00	£1.66	£1.99
50 - NO LONGER AVAILABLE BDE-000000-00.A95328 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A95329 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A95330 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A95331 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A95332 000000-00	-
55 - NO LONGER AVAILABLE BDE-000000-00.A95333 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A95334 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A95335 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A95336 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A95337 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A95338 000000-00	-
61 - NO LONGER AVAILABLE BDE-000000-00.A95339 000000-00	-
62 - WASHER BDE-398218-00.A2 398218-00	£1.66	£1.99
63 - NO LONGER AVAILABLE BDE-000000-00.A95340 000000-00	-
64 - NUT BDE-607156-00.A6 607156-00	£1.66	£1.99
65 - NO LONGER AVAILABLE BDE-000000-00.A95341 000000-00	-
66 - NUT BDE-607155-00.A5 607155-00	£1.66	£1.99
67 - NO LONGER AVAILABLE BDE-000000-00.A95342 000000-00	-
68 - LABEL BDE-613090-00.A1 613090-00	-
70 - NO LONGER AVAILABLE BDE-000000-00.A95343 000000-00	-
71 - CABLE TIE BDE-149138-03.A1 149138-03	£1.66	£1.99
72 - NO LONGER AVAILABLE BDE-000000-00.A95344 000000-00	-
75 - NO LONGER AVAILABLE BDE-000000-00.A95345 000000-00	-
76 - NO LONGER AVAILABLE BDE-000000-00.A95346 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A95347 000000-00	-
190 - SAFETY GLASSES BDE-629042-01.A10 629042-01	£10.57	£12.68
203 - NO LONGER AVAILABLE BDE-000000-00.A95348 000000-00	-
203 - HEX KEY 4 MM BDE-98000-09.A16 98000-09	-
800 - GREASE 150 GMS BDE-429995-00.A7 429995-00	-
876 - NO LONGER AVAILABLE BDE-000000-00.A95349 000000-00	-

Attribute Name	Value
Brand	Dewalt
