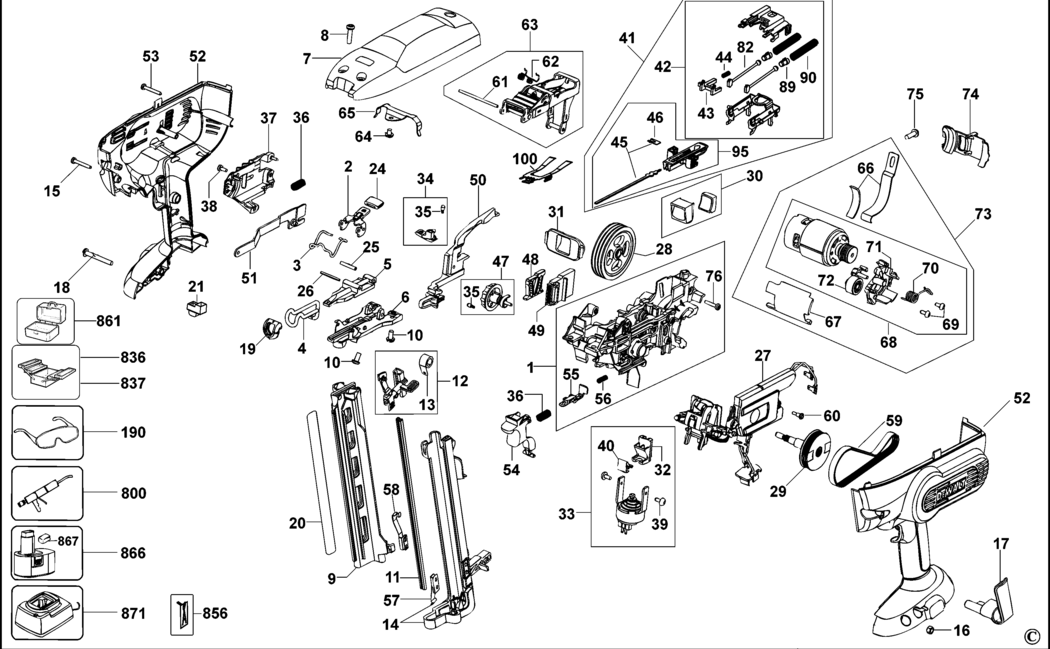

1 - HOUSING SA Inc items 55-56-76
BDE-613852-00.A1
613852-00
|
£59.41
|
£71.29
|
|
|
2 - LATCH
BDE-395123-00.A4
395123-00
|
£7.64
|
£9.17
|
|
|
3 - WIRE STEEL
BDE-392216-00.A3
392216-00
|
£7.18
|
£8.62
|
|
|
4 - ACTUATOR
BDE-392198-00.A4
392198-00
|
-
|
|
|
|
5 - COVER
BDE-392210-00.A5
392210-00
|
£12.17
|
£14.60
|
|
|
6 - NOSE
BDE-392209-00.A0
392209-00
|
£50.60
|
£60.72
|
|
|
7 - COVER-TOP
BDE-633518-00SV.A3
633518-00SV
|
£40.21
|
£48.25
|
|
|
8 - SCREW
BDE-609932-02.A6
609932-02
|
£1.50
|
£1.80
|
|
|
9 - MAGAZINE
BDE-392227-01.A3
392227-01
|
£25.05
|
£30.06
|
|
|
10 - SCREW
BDE-609932-00.A7
609932-00
|
£1.50
|
£1.80
|
|
|
11 - LINER
BDE-392193-01.A0
392193-01
|
£24.39
|
£29.27
|
|
|
12 - PUSH BLOCK
BDE-624748-01.A0
624748-01
|
£37.82
|
£45.38
|
|
|
13 - SPRING
BDE-392195-00.A5
392195-00
|
-
|
|
|
|
14 - MAGAZINE
BDE-613818-01.A0
613818-01
|
£25.05
|
£30.06
|
|
|
15 - SCREW
BDE-330019-07.A7
330019-07
|
£1.50
|
£1.80
|
|
|
16 - NUT
BDE-330015-04.A26
330015-04
|
£1.50
|
£1.80
|
|
|
17 - HOOK
BDE-394102-00.A7
394102-00
|
-
|
|
|
|
18 - SCREW.TEMP
BDE-330045-19.A30
330045-19
|
£1.50
|
£1.80
|
|
|
19 - RUBBER BOOT
BDE-616938-00.A5
616938-00
|
-
|
|
|
|
21 - LOCK BUTTON
BDE-616939-00.A1
616939-00
|
-
|
|
|
|
24 - GRIP
BDE-395093-00.A10
395093-00
|
£1.50
|
£1.80
|
|
|
25 - ROLL PIN
BDE-330036-27.A2
330036-27
|
£1.42
|
£1.70
|
|
|
26 - ROLL PIN
BDE-330036-21.A9
330036-21
|
£1.50
|
£1.80
|
|
|
27 - CONTROL MODULE SA
BDE-643115-01.A0
643115-01
|
-
|
|
|
|
28 - FLYWHEEL
BDE-623947-00.A2
623947-00
|
£74.15
|
£88.98
|
|
|
29 - SPINDLE SA
BDE-613835-00.A5
613835-00
|
£23.75
|
£28.50
|
|
|
30 - DAMPER
BDE-613869-00.A10
613869-00
|
£5.88
|
£7.06
|
|
|
31 - BUMPER
BDE-392240-00.A2
392240-00
|
£12.17
|
£14.60
|
|
|
32 - CLUTCH
BDE-392244-00.A8
392244-00
|
£24.39
|
£29.27
|
|
|
33 - SOLENOID ASSEMBLY Inc items 32-39-40
BDE-624709-00SV.A5
624709-00SV
|
-
|
|
|
|
34 - PADDLE Inc item 35
BDE-N001917.A5
N001917
|
-
|
|
|
|
35 - DETENT
BDE-326467-00.A105
326467-00
|
£1.50
|
£1.80
|
|
|
36 - SPRING
BDE-653099-00.A6
653099-00
|
-
|
|
|
|
37 - CAGE
BDE-604480-00.A8
604480-00
|
-
|
|
|
|
38 - SCREW
BDE-613619-01.A3
613619-01
|
£1.42
|
£1.70
|
|
|
39 - SCREW
BDE-330045-60.A7
330045-60
|
£1.42
|
£1.70
|
|
|
40 - CLIP
BDE-621980-00.A6
621980-00
|
-
|
|
|
|
41 - RETURN DEVICE ASSEMBLY Inc items 42-45
BDE-N391357.A3
N391357
|
-
|
|
|
|
42 - RETURN DEVICE ASSEMBLY Inc items 43-44
BDE-393217-00.A4
393217-00
|
-
|
|
|
|
43 - STOP
BDE-614577-00.A3
614577-00
|
£1.50
|
£1.80
|
|
|
44 - SPRING
BDE-610243-00.A4
610243-00
|
-
|
|
|
|
45 - BLADE SA Inc item 46
BDE-624742-00SV.A3
624742-00SV
|
£16.03
|
£19.24
|
|
|
46 - CLIP
BDE-392206-00.A17
392206-00
|
£1.50
|
£1.80
|
|
|
47 - KNOB SA Inc item 35
BDE-613874-00.A2
613874-00
|
£3.70
|
£4.44
|
|
|
48 - ADJUSTER PLATE
BDE-392437-00.A4
392437-00
|
£1.42
|
£1.70
|
|
|
49 - SLIDER
BDE-392438-00.A5
392438-00
|
£1.50
|
£1.80
|
|
|
50 - CONTACT BAR
BDE-393220-00SV.A5
393220-00SV
|
£9.17
|
£11.00
|
|
|
51 - LINK
BDE-396657-00.A4
396657-00
|
£5.88
|
£7.06
|
|
|
52 - CLAMSHELL SET
BDE-623375-00.A1
623375-00
|
£33.13
|
£39.76
|
|
|
53 - SCREW
BDE-330019-05.A19
330019-05
|
£1.50
|
£1.80
|
|
|
54 - TRIGGER
BDE-613670-00.A2
613670-00
|
£2.21
|
£2.65
|
|
|
55 - LINKAGE SA
BDE-392201-00.A3
392201-00
|
£1.42
|
£1.70
|
|
|
56 - SPRING COMPRESSION
BDE-394314-00.A4
394314-00
|
£1.42
|
£1.70
|
|
|
57 - CLIP
BDE-392252-00.A5
392252-00
|
£1.42
|
£1.70
|
|
|
58 - RETAINER
BDE-392229-00.A1
392229-00
|
£1.42
|
£1.70
|
|
|
59 - BELT DRIVE
BDE-392246-00.A2
392246-00
|
-
|
|
|
|
60 - SCREW
BDE-623407-00.A0
623407-00
|
£1.42
|
£1.70
|
|
|
61 - PIN
BDE-395932-00.A3
395932-00
|
£1.42
|
£1.70
|
|
|
62 - SPRING TORSION
BDE-394045-00.A5
394045-00
|
£3.30
|
£3.96
|
|
|
63 - ARM Inc items 61-62
BDE-624717-00SV.A2
624717-00SV
|
£60.94
|
£73.13
|
|
|
64 - SCREW
BDE-330045-12.A0
330045-12
|
£1.42
|
£1.70
|
|
|
66 - STRAP
BDE-606837-01.A4
606837-01
|
£1.42
|
£1.70
|
|
|
67 - RUBBER PAD
BDE-623181-00.A4
623181-00
|
£1.42
|
£1.70
|
|
|
68 - MOTOR SA
BDE-613834-00SV.A3
613834-00SV
|
£51.90
|
£62.28
|
|
|
69 - SCREW
BDE-330045-44.A39
330045-44
|
£1.50
|
£1.80
|
|
|
70 - SPRING
BDE-N044593.A5
N044593
|
£3.30
|
£3.96
|
|
|
71 - SUPPORT PLATE
BDE-397762-00.A1
397762-00
|
£3.80
|
£4.56
|
|
|
72 - IDLER ASSEMBLY
BDE-630664-00SV.A8
630664-00SV
|
£7.18
|
£8.62
|
|
|
73 - MOTOR SA Inc items 66-67-68
BDE-624740-00.A0
624740-00
|
£58.69
|
£70.43
|
|
|
74 - CABLE GUIDE
BDE-392203-00.A4
392203-00
|
£3.30
|
£3.96
|
|
|
75 - SCREW
BDE-609932-01.A7
609932-01
|
£1.50
|
£1.80
|
|
|
76 - SCREW
BDE-613619-00.A16
613619-00
|
£1.50
|
£1.80
|
|
|
82 - BAND
BDE-392243-00.A3
392243-00
|
-
|
|
|
|
89 - STOP
BDE-392242-00.A9
392242-00
|
£1.50
|
£1.80
|
|
|
90 - SPRING
BDE-392236-02.A10
392236-02
|
£1.50
|
£1.80
|
|
|
95 - DRIVER SA
BDE-392204-00SV.A1
392204-00SV
|
-
|
|
|
|
100 - PLATE
BDE-N015432.A6
N015432
|
-
|
|
|
|
190 - SAFETY GLASSES
BDE-629042-01.A5
629042-01
|
£10.57
|
£12.68
|
|
|
800 - GREASE
BDE-5140024-25.A5
5140024-25
|
£63.87
|
£76.64
|
|
|
861 - KITBOX
BDE-633527-00.A2
633527-00
|
£58.69
|
£70.43
|
|
|
867 - SAFETY CAP
BDE-608522-00.A65
608522-00
|
£1.50
|
£1.80
|
|
