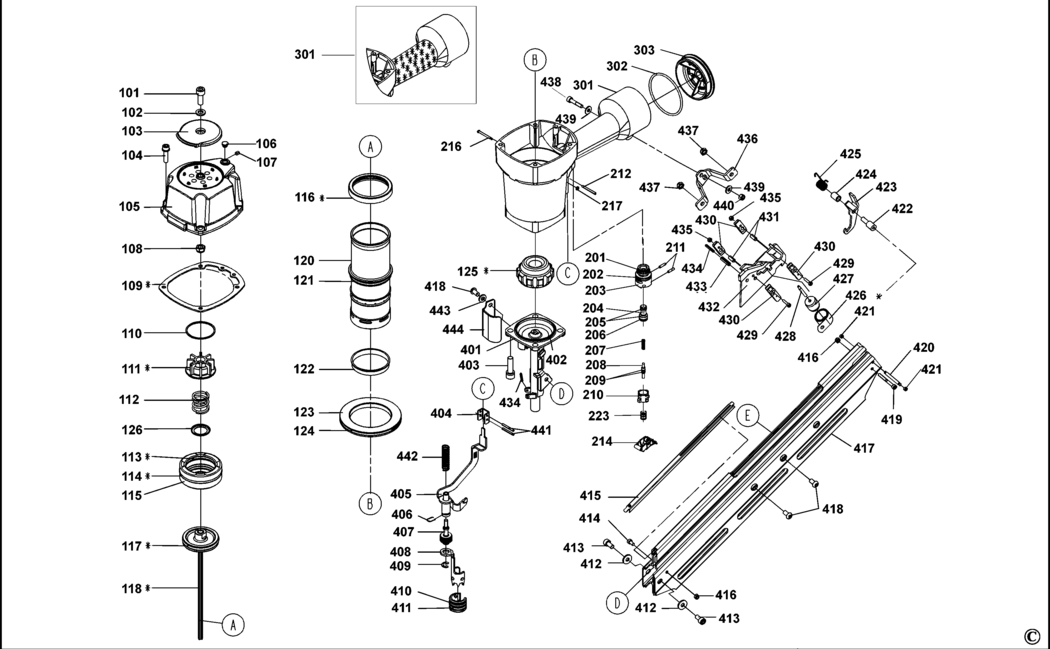

101 - BOLT
BDE-2040101-05020
2040101-05020
|
£1.50
|
£1.80
|
|
|
102 - WASHER
BDE-2040202-06010
2040202-06010
|
£1.50
|
£1.80
|
|
|
103 - DEFLECTOR
BDE-11371-0370001
11371-0370001
|
£4.69
|
£5.63
|
|
|
104 - BOLT
BDE-2040100-04020
2040100-04020
|
£1.50
|
£1.80
|
|
|
105 - CAP
BDE-11369-037T302
11369-037T302
|
£84.42
|
£101.30
|
|
|
106 - GROMMET
BDE-1135S-0350001.A0
1135S-0350001
|
£1.50
|
£1.80
|
|
|
107 - GRUB SCREW
BDE-2040104-03010.A5
2040104-03010
|
£1.50
|
£1.80
|
|
|
108 - LOCK NUT
BDE-2040500-05010
2040500-05010
|
£1.50
|
£1.80
|
|
|
109 - GASKET
BDE-11302-0370001
11302-0370001
|
£30.08
|
£36.10
|
|
|
110 - SEAL
BDE-11380-0374701
11380-0374701
|
£1.82
|
£2.19
|
|
|
111 - SEAL
BDE-11370-0370001
11370-0370001
|
£17.48
|
£20.97
|
|
|
112 - SPRING COMPRESSION
BDE-11360-0354701
11360-0354701
|
£2.26
|
£2.71
|
|
|
113 - O RING
BDE-2041108-05040.A1
2041108-05040
|
£2.78
|
£3.34
|
|
|
114 - O RING
BDE-2041108-07010
2041108-07010
|
£2.78
|
£3.34
|
|
|
115 - PISTON
BDE-11368-0370004
11368-0370004
|
£37.35
|
£44.82
|
|
|
116 - COLLAR
BDE-11399-0370004
11399-0370004
|
£5.88
|
£7.06
|
|
|
117 - O RING
BDE-2041108-06030
2041108-06030
|
£3.30
|
£3.96
|
|
|
118 - DRIVER
BDE-11204-0870001
11204-0870001
|
£165.92
|
£199.11
|
|
|
120 - CYLINDER
BDE-11320-0370007
11320-0370007
|
£104.31
|
£125.17
|
|
|
121 - O RING
BDE-2041101-06010
2041101-06010
|
£1.50
|
£1.80
|
|
|
122 - RING
BDE-11322-0370002
11322-0370002
|
£1.50
|
£1.80
|
|
|
123 - SPACER
BDE-11321-0370001
11321-0370001
|
£7.18
|
£8.62
|
|
|
124 - O RING
BDE-2041101-09010
2041101-09010
|
£1.50
|
£1.80
|
|
|
125 - BUMPER
BDE-11327-0370001
11327-0370001
|
£25.70
|
£30.84
|
|
|
126 - WASHER
BDE-11381-0864701
11381-0864701
|
£1.82
|
£2.19
|
|
|
201 - O RING
BDE-2041104-02020
2041104-02020
|
£1.50
|
£1.80
|
|
|
202 - O RING
BDE-2041104-02030
2041104-02030
|
£1.50
|
£1.80
|
|
|
203 - CAP
BDE-11374-0084701
11374-0084701
|
£3.30
|
£3.96
|
|
|
204 - PLUNGER
BDE-1133S-0250002
1133S-0250002
|
£7.18
|
£8.62
|
|
|
205 - O RING
BDE-2041100-01070.A0
2041100-01070
|
£1.50
|
£1.80
|
|
|
206 - O RING
BDE-2041100-01030.A0
2041100-01030
|
£1.50
|
£1.80
|
|
|
207 - SPRING
BDE-11376-0254701
11376-0254701
|
£1.50
|
£1.80
|
|
|
208 - PLUNGER
BDE-11375-0084701
11375-0084701
|
£1.50
|
£1.80
|
|
|
209 - O RING
BDE-2041102-01030.A0
2041102-01030
|
£1.50
|
£1.80
|
|
|
210 - HEAD
BDE-11373-0084701
11373-0084701
|
£1.50
|
£1.80
|
|
|
211 - PIN
BDE-2040400-05060
2040400-05060
|
£1.50
|
£1.80
|
|
|
212 - PIN
BDE-2040400-05160
2040400-05160
|
£1.50
|
£1.80
|
|
|
214 - TRIGGER
BDE-11224-1113701
11224-1113701
|
£30.08
|
£36.10
|
|
|
216 - PIN
BDE-11318-0464701
11318-0464701
|
£1.50
|
£1.80
|
|
|
217 - RETAINER
BDE-1131D-0460001.A8
1131D-0460001
|
£1.50
|
£1.80
|
|
|
223 - SPRING
BDE-11376-0370001
11376-0370001
|
£1.50
|
£1.80
|
|
|
302 - O RING
BDE-2041106-07010
2041106-07010
|
£2.78
|
£3.34
|
|
|
303 - END CAP
BDE-11346-0371304
11346-0371304
|
£16.03
|
£19.24
|
|
|
401 - NOSE
BDE-11382-0874703
11382-0874703
|
£336.69
|
£404.03
|
|
|
402 - O RING
BDE-2041104-07010
2041104-07010
|
£1.50
|
£1.80
|
|
|
403 - BOLT
BDE-2040100-05010
2040100-05010
|
£1.50
|
£1.80
|
|
|
404 - GUIDE
BDE-11338-0874701
11338-0874701
|
£3.80
|
£4.56
|
|
|
405 - SAFETY KEY
BDE-11332-0874703
11332-0874703
|
£37.35
|
£44.82
|
|
|
406 - RING
BDE-1131C-0830001
1131C-0830001
|
£2.78
|
£3.34
|
|
|
407 - ADAPTOR
BDE-11249-0640001
11249-0640001
|
£17.48
|
£20.97
|
|
|
408 - BRACKET
BDE-11331-0374705
11331-0374705
|
£7.18
|
£8.62
|
|
|
409 - CIRCLIP
BDE-2040302-26010
2040302-26010
|
£1.50
|
£1.80
|
|
|
410 - CASING
BDE-11339-0374701
11339-0374701
|
£2.78
|
£3.34
|
|
|
411 - RING
BDE-1131G-0374701
1131G-0374701
|
£1.50
|
£1.80
|
|
|
412 - WASHER
BDE-2040202-04010.A7
2040202-04010
|
£1.50
|
£1.80
|
|
|
413 - BOLT
BDE-2040101-04020.A0
2040101-04020
|
£1.50
|
£1.80
|
|
|
414 - BOLT
BDE-2040101-02030.A3
2040101-02030
|
£1.50
|
£1.80
|
|
|
415 - BRACKET
BDE-11396-0644709
11396-0644709
|
£10.85
|
£13.02
|
|
|
416 - LOCK NUT
BDE-2040500-02010.A0
2040500-02010
|
£1.50
|
£1.80
|
|
|
417 - MAGAZINE
BDE-11389-0874701
11389-0874701
|
£144.10
|
£172.92
|
|
|
418 - BOLT
BDE-2040102-04010
2040102-04010
|
£1.50
|
£1.80
|
|
|
419 - BOLT
BDE-2040101-02141
2040101-02141
|
£1.50
|
£1.80
|
|
|
420 - PIN
BDE-1132E-0374701
1132E-0374701
|
£2.26
|
£2.71
|
|
|
421 - RING
BDE-1135H-0250001.A2
1135H-0250001
|
£1.50
|
£1.80
|
|
|
422 - SPACER
BDE-1133V-0354702
1133V-0354702
|
£4.69
|
£5.63
|
|
|
423 - LATCH
BDE-11343-0354701
11343-0354701
|
£9.41
|
£11.29
|
|
|
424 - BUSHING
BDE-11398-0350001
11398-0350001
|
£2.78
|
£3.34
|
|
|
425 - SPRING
BDE-1132F-0354701
1132F-0354701
|
£1.50
|
£1.80
|
|
|
426 - SPRING
BDE-11372-0350001
11372-0350001
|
£16.03
|
£19.24
|
|
|
427 - ROLLER
BDE-11386-0370001
11386-0370001
|
£7.18
|
£8.62
|
|
|
428 - ROLLPIN
BDE-11385-0604701
11385-0604701
|
£1.50
|
£1.80
|
|
|
429 - BOLT
BDE-2040101-01020
2040101-01020
|
£1.50
|
£1.80
|
|
|
430 - BEARING
BDE-1133W-0370001
1133W-0370001
|
£1.50
|
£1.80
|
|
|
431 - PIN
BDE-11329-0354701
11329-0354701
|
£1.50
|
£1.80
|
|
|
432 - PUSHER
BDE-11247-0874701
11247-0874701
|
£25.70
|
£30.84
|
|
|
433 - PIN
BDE-2040400-08100
2040400-08100
|
£1.50
|
£1.80
|
|
|
434 - PIN
BDE-2040400-05100
2040400-05100
|
£1.50
|
£1.80
|
|
|
435 - LOCK NUT
BDE-2040500-01010
2040500-01010
|
£1.50
|
£1.80
|
|
|
436 - BRACKET
BDE-11323-0874702
11323-0874702
|
£9.41
|
£11.29
|
|
|
437 - LOCK NUT
BDE-2040500-04010
2040500-04010
|
£1.50
|
£1.80
|
|
|
438 - BOLT
BDE-2040101-03161.A2
2040101-03161
|
£1.50
|
£1.80
|
|
|
439 - WASHER
BDE-2040202-03010.A0
2040202-03010
|
£1.50
|
£1.80
|
|
|
440 - LOCK NUT
BDE-2040500-03020.A2
2040500-03020
|
£1.50
|
£1.80
|
|
|
441 - PIN
BDE-2040400-05130
2040400-05130
|
£1.50
|
£1.80
|
|
|
442 - SPRING
BDE-11337-0874701
11337-0874701
|
£1.50
|
£1.80
|
|
|
443 - WASHER
BDE-2040201-04010
2040201-04010
|
£1.50
|
£1.80
|
|
|
444 - COVER
BDE-1137A-0874701
1137A-0874701
|
£3.80
|
£4.56
|
|
