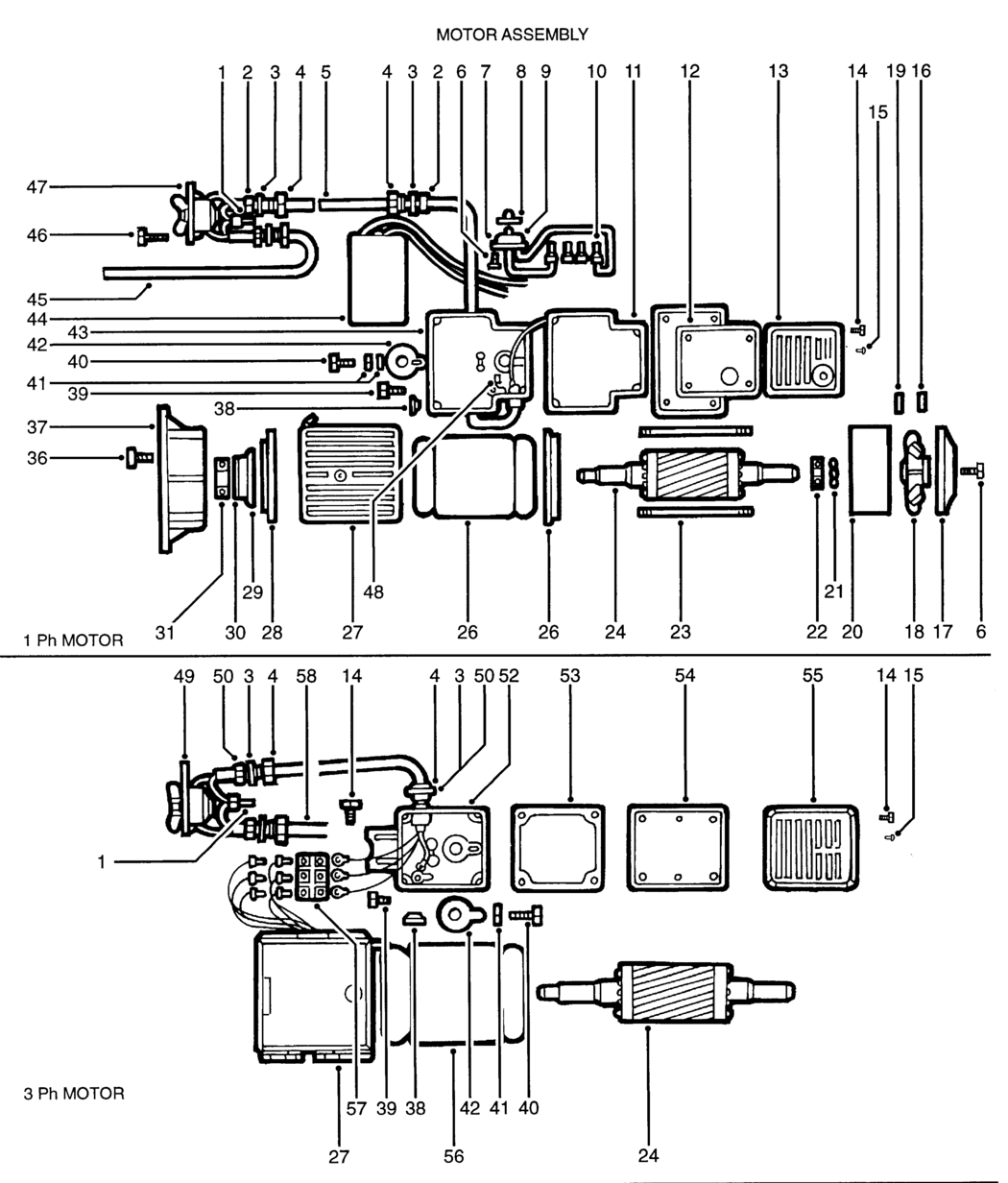

An exploded drawing and spare parts listing for the Dewalt BS1310----B Type 1 Bandsaw
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113688 000000-00 -
1 - NO LONGER AVAILABLE 3 PH MOTOR BDE-000000-00.A113689 000000-00 -
2 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113690 000000-00 -
3 - NO LONGER AVAILABLE 3 PH MOTOR BDE-000000-00.A113691 000000-00 -
3 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113692 000000-00 -
4 - GLAND 3 PH MOTOR BDE-949747-07.A6 949747-07 £1.50 £1.80
4 - GLAND 1 PH MOTOR BDE-949747-07.A7 949747-07 £1.50 £1.80
5 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113693 000000-00 -
6 - SCREW 1 PH MOTOR BDE-860094-05.A70 860094-05 £1.50 £1.80
7 - WASHER SPRING 1 PH MOTOR BDE-860074-00.A15 860074-00 £1.50 £1.80
8 - CAP 1 PH MOTOR BDE-860133-00.A33 860133-00 £1.42 £1.70
10 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113694 000000-00 -
11 - GASKET 1 PH MOTOR BDE-860708-00.A60 860708-00 -
13 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113695 000000-00 -
14 - SCREW 1 PH MOTOR BDE-860094-03.A75 860094-03 £1.50 £1.80
14 - SCREW 3 PH MOTOR BDE-860094-03.A76 860094-03 £1.50 £1.80
15 - RIVET 3 PH MOTOR BDE-860060-01.A48 860060-01 £1.42 £1.70
15 - RIVET 1 PH MOTOR BDE-860060-01.A49 860060-01 £1.42 £1.70
16 - SCREW 1 PH MOTOR BDE-860088-25.A26 860088-25 £1.50 £1.80
17 - END CAP 1 PH MOTOR BDE-860687-03.A24 860687-03 -
18 - FAN 1 PH MOTOR BDE-860688-00.A25 860688-00 £10.57 £12.68
19 - NUT 1 PH MOTOR BDE-860083-02.A255 860083-02 £1.50 £1.80
20 - HOUSING 1 PH MOTOR BDE-860701-00.A22 860701-00 -
21 - RING 1 PH MOTOR BDE-860080-02.A153 860080-02 £1.50 £1.80
22 - BEARING 1 PH MOTOR BDE-868768-07.A113 868768-07 £7.85 £9.42
23 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113696 000000-00 -
24 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113697 000000-00 -
24 - NO LONGER AVAILABLE 3 PH MOTOR BDE-000000-00.A113698 000000-00 -
26 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113699 000000-00 -
27 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113700 000000-00 -
27 - NO LONGER AVAILABLE 3 PH MOTOR BDE-000000-00.A113701 000000-00 -
28 - SEAL 1 PH MOTOR BDE-860718-00.A8 860718-00 £7.18 £8.62
29 - CAP 1 PH MOTOR BDE-123302-01.A16 123302-01 £3.80 £4.56
30 - GASKET 1 PH MOTOR BDE-863878-00.A7 863878-00 £3.30 £3.96
31 - BEARING 1 PH MOTOR BDE-868768-10.A27 868768-10 £14.57 £17.48
36 - SCREW 1 PH MOTOR BDE-860538-00.A8 860538-00 £1.50 £1.80
38 - GROMMET 3 PH MOTOR BDE-944653-00.A46 944653-00 £3.30 £3.96
38 - GROMMET 1 PH MOTOR BDE-944653-00.A47 944653-00 £3.30 £3.96
39 - SCREW 1 PH MOTOR BDE-860094-01.A18 860094-01 £1.50 £1.80
39 - SCREW 3 PH MOTOR BDE-860094-01.A19 860094-01 £1.50 £1.80
40 - SCREW 1 PH MOTOR BDE-860089-18.A11 860089-18 £1.50 £1.80
40 - SCREW 3 PH MOTOR BDE-860089-18.A12 860089-18 £1.50 £1.80
41 - WASHER 1 PH MOTOR BDE-860073-01.A205 860073-01 £1.50 £1.80
41 - WASHER 3 PH MOTOR BDE-860073-01.A206 860073-01 £1.50 £1.80
42 - GROMMET 1 PH MOTOR BDE-944652-00.A22 944652-00 £4.69 £5.63
42 - GROMMET 3 PH MOTOR BDE-944652-00.A23 944652-00 £4.69 £5.63
43 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113702 000000-00 -
44 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113703 000000-00 -
45 - NO LONGER AVAILABLE 1 PH MOTOR BDE-000000-00.A113704 000000-00 -
48 - WASHER SPRING 1 PH MOTOR BDE-944650-00.A58 944650-00 £1.50 £1.80
50 - NUT 3 PH MOTOR BDE-944590-00.A25 944590-00 £1.50 £1.80
51 - NO LONGER AVAILABLE 3 PH MOTOR BDE-000000-00.A113705 000000-00 -
52 - NO LONGER AVAILABLE 3 PH MOTOR BDE-000000-00.A113706 000000-00 -
53 - GASKET 3 PH MOTOR BDE-860708-00.A61 860708-00 -
54 - NO LONGER AVAILABLE 3 PH MOTOR BDE-000000-00.A113707 000000-00 -
55 - NO LONGER AVAILABLE 3 PH MOTOR BDE-000000-00.A113708 000000-00 -
56 - NO LONGER AVAILABLE 3 PH MOTOR BDE-000000-00.A113709 000000-00 -
57 - CONNECTOR 3 PH MOTOR BDE-946085-00.A11 946085-00 £1.82 £2.19
58 - NO LONGER AVAILABLE 3 PH MOTOR BDE-000000-00.A113710 000000-00 -
