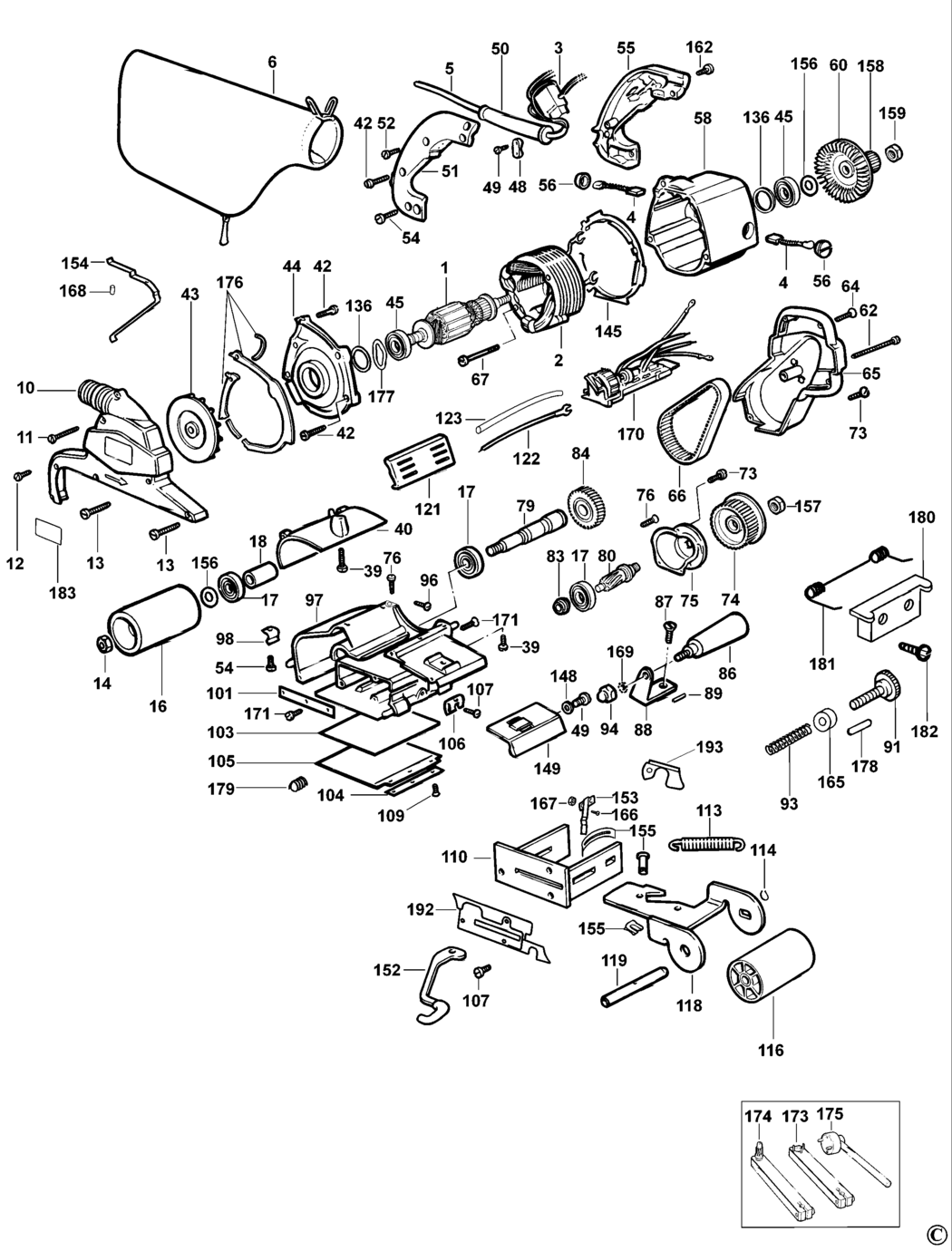

An exploded drawing and spare parts listing for the Dewalt DW650E Type 6 Belt Sander
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A47696 000000-00 -
2 - FIELD 220V BDE-090102102.A15 090102102 £72.28 £86.73
3 - SWITCH LOCK-ON BDE-155160303.A1 155160303 -
4 - BRUSH 220V BDE-013121501.A12 013121501 £4.45 £5.34
5 - CORDSET GB BDE-379092.A18 379092 £19.40 £23.28
6 - BAG DUST SA BDE-329265-00.A0 329265-00 £30.08 £36.10
10 - FANCASE KIT BDE-247664-05.A6 247664-05 £76.16 £91.39
11 - SCREW BDE-247144-05.A1 247144-05 £1.42 £1.70
12 - SCREW BDE-249437-01.A9 249437-01 £1.42 £1.70
13 - SCREW BDE-249415-03.A4 249415-03 £1.42 £1.70
14 - NUT BDE-249232-40.A10 249232-40 -
16 - ROLLER SA BDE-324914-00.A5 324914-00 -
17 - BEARING 6002 2RS BDE-055830000.A8 055830000 £10.57 £12.68
18 - SPACER BDE-050152300.A3 050152300 £2.71 £3.25
39 - SCREW BDE-249220-00.A2 249220-00 £1.50 £1.80
40 - PLATE BDE-324922-06.A4 324922-06 £2.21 £2.65
42 - SCREW BDE-760978-01.A25 760978-01 £1.50 £1.80
43 - FAN BDE-324908-00.A10 324908-00 -
44 - NO LONGER AVAILABLE BDE-000000-00.A47697 000000-00 -
45 - BEARING 6001 RSZ BDE-050830000.A31 050830000 -
48 - CABLE CLAMP BDE-910556.A134 910556 £1.42 £1.70
49 - SCREW BDE-249416-06.A42 249416-06 £1.42 £1.70
50 - CORD PROTECTOR BDE-320785.A1122 320785 £1.50 £1.80
51 - COVER BDE-324687-06.A1 324687-06 £7.01 £8.41
52 - SCREW BDE-249416-03.A14 249416-03 £1.42 £1.70
54 - SCREW BDE-249424-20.A7 249424-20 £1.42 £1.70
55 - GRIP BDE-324686-06.A0 324686-06 £7.01 £8.41
56 - BRUSH CAP BDE-249007-01.A1 249007-01 £1.82 £2.19
58 - HOUSING REPAIR KIT BDE-248438-03 248438-03 £59.41 £71.29
60 - FAN BDE-324907-02.A0 324907-02 -
62 - SCREW BDE-248090-05.A7 248090-05 £1.42 £1.70
64 - SCREW BDE-249437-02.A7 249437-02 £1.42 £1.70
65 - COVER BELT BDE-248187-06.A9 248187-06 £18.91 £22.69
66 - BELT TOOTHED BDE-324909-00.A1 324909-00 £18.91 £22.69
67 - RETAINER BDE-911442.A13 911442 £1.42 £1.70
73 - SCREW BDE-249415-01.A6 249415-01 £1.42 £1.70
74 - PULLEY BDE-324910-00.A4 324910-00 £18.91 £22.69
75 - PLATE BDE-050151901.A7 050151901 £14.19 £17.03
76 - SCREW BDE-249415-02.A6 249415-02 £1.42 £1.70
79 - GEAR & SPINDLE SA BDE-378189.A13 378189 £37.35 £44.82
80 - NO LONGER AVAILABLE BDE-000000-00.A113651 000000-00 -
83 - BEARING SINTER BDE-018980105.A9 018980105 £7.01 £8.41
84 - GEAR & SPINDLE SA BDE-378189.A14 378189 £37.35 £44.82
86 - KNOB BDE-140111000.A7 140111000 £14.19 £17.03
87 - SCREW BDE-248084-05.A0 248084-05 £3.70 £4.44
88 - LEVER BDE-249124-00.A0 249124-00 £11.87 £14.24
89 - PIN BDE-761065-00.A25 761065-00 £1.50 £1.80
91 - SCREW BDE-050117100.A3 050117100 -
93 - SPRING BDE-761054-00.A45 761054-00 £1.50 £1.80
94 - NUT BDE-248078-05.A0 248078-05 £1.78 £2.13
96 - SCREW BDE-249440-00.A0 249440-00 £1.42 £1.70
97 - HOUSING REPAIR KIT BDE-248125-02.A4 248125-02 £238.94 £286.73
98 - SPRING BDE-050930703.A4 050930703 £4.58 £5.49
101 - STRIP BDE-050116300.A8 050116300 -
103 - PLATE BDE-050111700.A7 050111700 £1.42 £1.70
104 - STRIP BDE-050110000.A7 050110000 £5.72 £6.87
105 - PLATE BDE-050110001.A8 050110001 £4.58 £5.49
106 - SPRING BDE-050930700.A11 050930700 £5.72 £6.87
107 - SCREW BDE-324006-00.A79 324006-00 £1.50 £1.80
109 - SCREW BDE-248084-10.A12 248084-10 -
110 - HOLDER BDE-248148-05.A3 248148-05 £7.64 £9.17
113 - SPRING BDE-050931316.A11 050931316 -
114 - CIRCLIP BDE-860079-03.A46 860079-03 £1.50 £1.80
116 - REPAIR KIT BDE-590984-00.A27 590984-00 -
118 - BRACKET BDE-324924-05.A0 324924-05 -
119 - REPAIR KIT BDE-590984-00.A26 590984-00 -
121 - COVER BRUSH BDE-249015-01.A0 249015-01 £2.71 £3.25
122 - LEAD 80MM YELLOW GB BDE-090164501.A4 090164501 £7.01 £8.41
123 - SLEEVE BDE-868020-00.A3 868020-00 £1.42 £1.70
136 - GASKET BDE-248113-00.A11 248113-00 £1.78 £2.13
145 - BAFFLE BDE-324466-00.A8 324466-00 £4.58 £5.49
148 - WASHER BDE-249233-00.A31 249233-00 £1.50 £1.80
149 - COVER BDE-324126-06.A1 324126-06 £3.30 £3.96
152 - LEVER BDE-324920-06.A1 324920-06 £10.57 £12.68
153 - SPRING BDE-324923-00.A11 324923-00 £4.58 £5.49
154 - SPRING BDE-247998-00.A8 247998-00 £4.58 £5.49
155 - REPAIR KIT BDE-249523-01.A0 249523-01 £3.80 £4.56
156 - WASHER BDE-247869-00.A8 247869-00 £1.42 £1.70
157 - NUT BDE-003822700.A11 003822700 £3.60 £4.32
158 - PULLEY BDE-325248-01.A0 325248-01 £16.03 £19.24
159 - NUT BDE-248077-00.A11 248077-00 £1.78 £2.13
162 - SCREW BDE-249437-10.A7 249437-10 £1.42 £1.70
165 - NO LONGER AVAILABLE BDE-000000-00.A113652 000000-00 -
166 - SCREW.TEMP BDE-248312-00.A11 248312-00 £1.42 £1.70
167 - NUT BDE-248313-00.A0 248313-00 £1.42 £1.70
168 - RIVET BDE-248082-00.A11 248082-00 £1.78 £2.13
169 - WASHER BDE-249219-00.A5 249219-00 £1.42 £1.70
170 - NO LONGER AVAILABLE BDE-000000-00.A113653 000000-00 -
171 - SCREW BDE-249424-00.A19 249424-00 £1.42 £1.70
173 - CLAMP SERVICE TOOLING BDE-559574-99.A3 559574-99 £24.39 £29.27
174 - S.T.LOCKING TOOL SERVICE TOOLING BDE-559575-99.A8 559575-99 £71.44 £85.73
175 - S.T.WRENCH SERVICE TOOLING BDE-559573-99.A8 559573-99 £71.44 £85.73
176 - GASKET BDE-249503-00.A7 249503-00 £1.42 £1.70
177 - WASHER SPRING BDE-249582-00.A5 249582-00 £1.42 £1.70
178 - PIN BDE-325880-04.A1 325880-04 £1.42 £1.70
179 - SPRING BDE-323395-28.A1 323395-28 £3.70 £4.44
180 - PLATE BDE-329160-00.A0 329160-00 £3.22 £3.86
181 - SPRING BDE-329159-00.A3 329159-00 £3.80 £4.56
182 - SCREW BDE-911126.A2 911126 £1.42 £1.70
183 - NO LONGER AVAILABLE BDE-000000-00.A113654 000000-00 -
192 - COVER RH BDE-575472-00.A3 575472-00 £1.42 £1.70
193 - COVER LH BDE-575473-00.A0 575473-00 £1.42 £1.70
