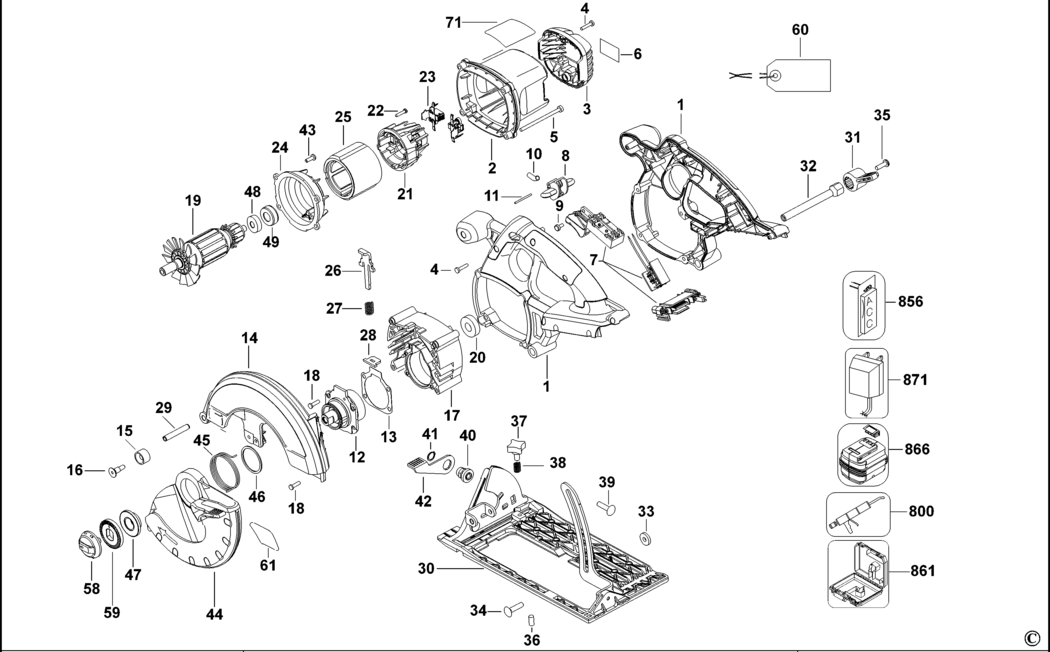

1 - CLAMSHELL SET
BDE-629578-00.A1
629578-00
|
£45.14
|
£54.17
|
|
|
2 - HOUSING MOTOR
BDE-629546-00.A0
629546-00
|
£9.41
|
£11.29
|
|
|
3 - END CAP
BDE-629547-00.A6
629547-00
|
-
|
|
|
|
4 - SCREW
BDE-90611830.A78
90611830
|
£1.50
|
£1.80
|
|
|
5 - SCREW
BDE-398987-00.A4
398987-00
|
£1.50
|
£1.80
|
|
|
6 - BRAND LABEL
BDE-629586-00.A0
629586-00
|
£1.50
|
£1.80
|
|
|
7 - SWITCH SA
BDE-648688-00SV.A1
648688-00SV
|
£65.52
|
£78.62
|
|
|
8 - BUTTON LOCK-OFF
BDE-605107-00.A13
605107-00
|
£3.80
|
£4.56
|
|
|
9 - SCREW
BDE-90611830.A77
90611830
|
£1.50
|
£1.80
|
|
|
10 - SPRING
BDE-389120-00.A12
389120-00
|
£2.26
|
£2.71
|
|
|
11 - PIN
BDE-388531-00.A15
388531-00
|
£1.50
|
£1.80
|
|
|
12 - SPINDLE & GEAR
BDE-629573-00.A1
629573-00
|
£34.00
|
£40.80
|
|
|
13 - GASKET
BDE-605081-01.A10
605081-01
|
£1.50
|
£1.80
|
|
|
14 - GUARD UPPER
BDE-629574-00.A0
629574-00
|
£34.00
|
£40.80
|
|
|
15 - BUMPER
BDE-389132-00.A12
389132-00
|
£1.50
|
£1.80
|
|
|
16 - SCREW
BDE-610134-00.A10
610134-00
|
£1.50
|
£1.80
|
|
|
17 - GEARCASE SA
BDE-629593-00SV.A0
629593-00SV
|
£25.70
|
£30.84
|
|
|
18 - SCREW
BDE-613783-00.A4
613783-00
|
£1.50
|
£1.80
|
|
|
19 - ARMATURE 36V
BDE-629549-00.A0
629549-00
|
£38.80
|
£46.56
|
|
|
20 - BEARING
BDE-330003-64.A24
330003-64
|
£4.69
|
£5.63
|
|
|
21 - SUPPORT BEARING
BDE-N171820.A12
N171820
|
-
|
|
|
|
22 - SCREW
BDE-330019-25.A39
330019-25
|
£1.50
|
£1.80
|
|
|
23 - BRUSHBOX SA
BDE-636233-00.A3
636233-00
|
£17.48
|
£20.97
|
|
|
24 - BAFFLE
BDE-610124-01.A7
610124-01
|
£4.69
|
£5.63
|
|
|
25 - MAGNET
BDE-N271359.A2
N271359
|
£135.36
|
£162.43
|
|
|
26 - SPINDLE LOCK
BDE-629444-00.A13
629444-00
|
£1.50
|
£1.80
|
|
|
27 - SPRING
BDE-58698-00.A16
58698-00
|
£1.50
|
£1.80
|
|
|
28 - WIPER
BDE-605094-00.A14
605094-00
|
£1.50
|
£1.80
|
|
|
29 - SPIROL PIN
BDE-614048-00.A12
614048-00
|
£2.49
|
£2.99
|
|
|
30 - SHOE SA
BDE-629591-00.A1
629591-00
|
£41.24
|
£49.49
|
|
|
31 - LEVER
BDE-605105-00.A1
605105-00
|
£1.82
|
£2.19
|
|
|
32 - SHAFT
BDE-629663-00.A3
629663-00
|
£5.88
|
£7.06
|
|
|
33 - WASHER
BDE-142013-00.A6
142013-00
|
£1.50
|
£1.80
|
|
|
34 - CARRIAGE BOLT
BDE-098128-85.A1
098128-85
|
£1.50
|
£1.80
|
|
|
35 - SCREW
BDE-330045-14.A86
330045-14
|
£1.50
|
£1.80
|
|
|
36 - SCREW
BDE-381069-00.A3
381069-00
|
£1.50
|
£1.80
|
|
|
37 - KNOB
BDE-396992-00.A3
396992-00
|
£1.50
|
£1.80
|
|
|
38 - SPRING
BDE-058287-00.A22
058287-00
|
£1.50
|
£1.80
|
|
|
39 - CARRIAGE BOLT
BDE-98128-37.A0
98128-37
|
£1.50
|
£1.80
|
|
|
40 - NUT
BDE-610625-00.A0
610625-00
|
£3.30
|
£3.96
|
|
|
41 - RING
BDE-152211-00.A6
152211-00
|
£1.50
|
£1.80
|
|
|
42 - LEVER
BDE-145347-00.A9
145347-00
|
£1.50
|
£1.80
|
|
|
43 - SCREW
BDE-330045-45.A1
330045-45
|
£1.50
|
£1.80
|
|
|
44 - GUARD LOWER
BDE-N019727.A1
N019727
|
£18.91
|
£22.69
|
|
|
45 - SPRING
BDE-632076-00
632076-00
|
£1.50
|
£1.80
|
|
|
46 - RETAINER
BDE-388496-01.A2
388496-01
|
£1.50
|
£1.80
|
|
|
47 - WASHER INNER CLAMP GB
BDE-650109-00.A0
650109-00
|
£1.50
|
£1.80
|
|
|
48 - BEARING
BDE-330003-60.A65
330003-60
|
£2.78
|
£3.34
|
|
|
49 - BOOT
BDE-631563-00.A2
631563-00
|
£1.50
|
£1.80
|
|
|
58 - BLADE CLAMP GB
BDE-N376798
N376798
|
£74.15
|
£88.98
|
|
|
59 - WASHER SPECIAL
BDE-636529-00.A0
636529-00
|
£3.30
|
£3.96
|
|
|
60 - WARNING LABEL
BDE-150394-00.A1
150394-00
|
£1.50
|
£1.80
|
|
|
61 - LABEL
BDE-653913-00
653913-00
|
£1.50
|
£1.80
|
|
|
71 - RATING PLATE GB
BDE-659486-00
659486-00
|
£1.50
|
£1.80
|
|
|
800 - GREASE 90 GMS
BDE-870889-02.A25
870889-02
|
£7.85
|
£9.42
|
|
|
856 - GUIDE FENCE GB
BDE-381091-01.A5
381091-01
|
£3.80
|
£4.56
|
|
|
861 - KITBOX
BDE-633095-00.A1
633095-00
|
£74.15
|
£88.98
|
|
|
866 - BATTERY 36V - 4.0AH - 144WH DC301KL GB
BDE-N394595.A19
N394595
|
£209.59
|
£251.51
|
|
|
871 - CHARGER GB DC301KL GB
BDE-1006633-00.A10
1006633-00
|
£131.95
|
£158.34
|
|
