Dewalt DCS576 Type 1 Cordless Circular Saw Spare Parts

Home Details Reviews Delivery

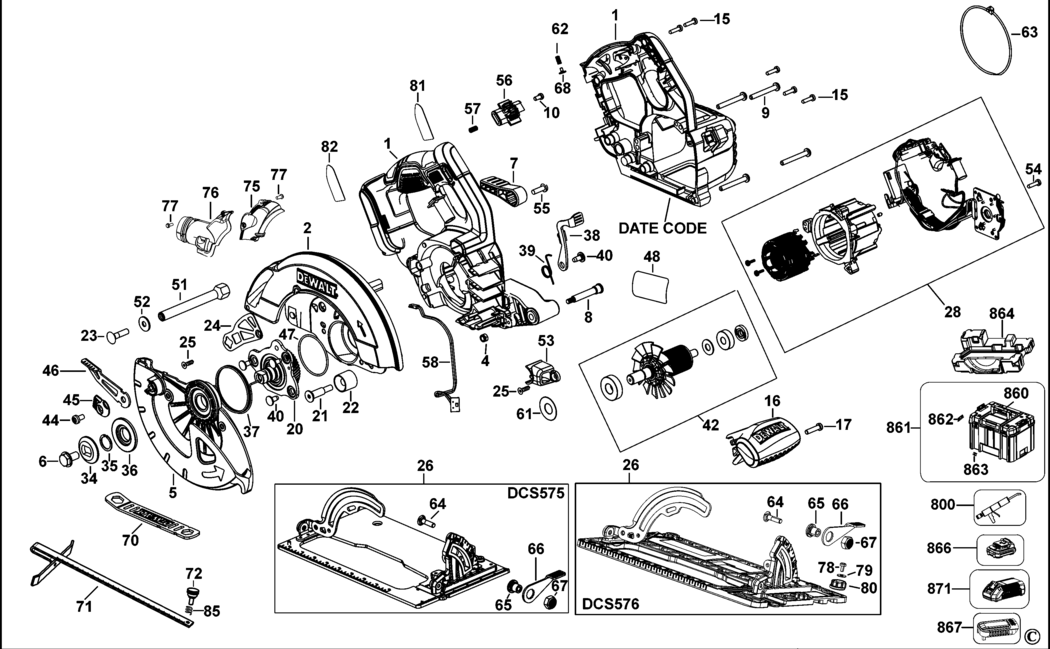

An exploded drawing and spare parts listing for the Dewalt DCS576 Type 1 Cordless Circular Saw

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-N418029.A2 N418029	£38.80	£46.56
2 - GEARCASE SA BDE-N484889.A1 N484889	£41.24	£49.49
4 - NUT M5 BDE-N461154.A2 N461154	£1.50	£1.80
5 - LOWER GUARD SA BDE-N461005.A2 N461005	£30.08	£36.10
6 - SCREW.SPECIAL BDE-145344-00.A4 145344-00	£1.88	£2.25
7 - LEVER BDE-N419350.A3 N419350	£1.50	£1.80
8 - BOLT BDE-N461157.A2 N461157	£1.50	£1.80
9 - SCREW.TEMP BDE-330045-19.A25 330045-19	£1.50	£1.80
10 - SCREW BDE-330019-10.A21 330019-10	£1.50	£1.80
15 - SCREW BDE-330019-03.A153 330019-03	£1.50	£1.80
16 - HANDLE BDE-N510174.A3 N510174	£3.30	£3.96
17 - SCREW BDE-330019-13.A166 330019-13	£1.50	£1.80
20 - SPINDLE SA BDE-N472351.A1 N472351	£30.08	£36.10
21 - SCREW BDE-N086135.A5 N086135	£1.50	£1.80
22 - BUMPER BDE-381066-00.A19 381066-00	£1.50	£1.80
23 - CARRIAGE BOLT BDE-098128-90.A11 098128-90	£1.50	£1.80
24 - PLATE BDE-N461456.A3 N461456	£1.50	£1.80
25 - SCREW BDE-N461159.A2 N461159	£1.50	£1.80
26 - SHOE SA BDE-N472354.A0 N472354	£84.42	£101.30
28 - ELECTRONIC & SWITCH BDE-NA029576.A2 NA029576	£218.32	£261.99
34 - OUTER FLANGE GB BDE-N120428.A1 N120428	£3.30	£3.96
35 - RETAINER BDE-N120426.A5 N120426	£1.50	£1.80
36 - WASHER INNER CLAMP BDE-N084137.A7 N084137	£3.30	£3.96
37 - SPRING BDE-N100006.A6 N100006	£1.50	£1.80
38 - LEVER LOCK BDE-N090570.A4 N090570	£3.30	£3.96
39 - SPRING BDE-N100123.A5 N100123	£1.50	£1.80
40 - SCREW BDE-385915-04.A26 385915-04	£2.78	£3.34
42 - ARMATURE SA GB BDE-N468098.A3 N468098	£74.15	£88.98
44 - SCREW BDE-098094-13.A1 098094-13	£1.50	£1.80
45 - LEVER BDE-N094953.A1 N094953	£1.50	£1.80
46 - LEVER BDE-N086628.A1 N086628	£1.50	£1.80
47 - O RING BDE-N361499.A5 N361499	£1.50	£1.80
48 - RATING PLATE GB BDE-N459168 N459168	£1.50	£1.80
51 - SHAFT BDE-N420031.A1 N420031	£10.85	£13.02
52 - WASHER BDE-N620480.A0 N620480	£1.50	£1.80
53 - COVER BDE-N421358.A5 N421358	£1.50	£1.80
54 - SCREW BDE-N034545.A2 N034545	£1.50	£1.80
55 - SCREW BDE-330045-14.A142 330045-14	£1.50	£1.80
56 - BUTTON LOCK-OFF BDE-N422878.A4 N422878	£1.50	£1.80
57 - SPRING BDE-N433343.A6 N433343	£1.50	£1.80
58 - LED LIGHT BDE-N363247.A1 N363247	£7.18	£8.62
61 - WASHER FIBRE BDE-N447499.A5 N447499	£1.50	£1.80
62 - SPRING BDE-N461735.A13 N461735	£1.50	£1.80
63 - CABLE TIE BDE-90504014.A1 90504014	£1.50	£1.80
64 - CARRIAGE BOLT BDE-098128-90.A1 098128-90	£1.50	£1.80
65 - SCREW BDE-N094731.A3 N094731	£3.30	£3.96
66 - LEVER BDE-145347-00.A31 145347-00	£1.50	£1.80
67 - STOP NUT BDE-N117921.A2 N117921	£1.50	£1.80
68 - BLOCK BDE-N122099.A4 N122099	£1.50	£1.80
70 - SPANNER BDE-N420180.A1 N420180	£3.30	£3.96
71 - FENCE BDE-N174703.A2 N174703	£9.41	£11.29
72 - SCREW BDE-N287119.A1 N287119	£1.75	£2.10
75 - DUST PORT BDE-N168420.A5 N168420	£2.08	£2.50
76 - DUST PORT BDE-N108974.A5 N108974	£2.08	£2.50
77 - SCREW BDE-370748.A84 370748	£1.50	£1.80
78 - SCREW BDE-330045-44.A20 330045-44	£1.50	£1.80
79 - WASHER BDE-N177561.A2 N177561	£1.50	£1.80
80 - KNOB BDE-N144477.A1 N144477	£1.50	£1.80
81 - LABEL BDE-N459249.A2 N459249	£1.82	£2.19
82 - LABEL BDE-N459248.A9 N459248	£1.82	£2.19
85 - SPRING BDE-058287-00.A3 058287-00	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A76 583534-00	£144.10	£172.92
860 - HANDLE DCS576NT BDE-H1400198008.A48 H1400198008	£3.75	£4.50
861 - KITBOX DCS576NT BDE-N445186.A8 N445186	£71.44	£85.73
862 - LATCH DCS576NT BDE-N409477.A65 N409477	£1.66	£1.99
863 - LATCH DCS576NT BDE-P910190.A108 P910190	£9.41	£11.29
864 - TRAY DCS576NT BDE-N498615.A1 N498615	£19.90	£23.88
866 - BATTERY 3 X18V-6.0AH-108WH DCS576T2 GB BDE-N473851.A12 N473851	£232.38	£278.85
867 - SAFETY CAP BDE-N462141.A6 N462141	£9.41	£11.29
871 - CHARGER GB DCS576T2 GB BDE-N473855.A10 N473855	£183.42	£220.10

Attribute Name	Value
Brand	Dewalt
